Product Description

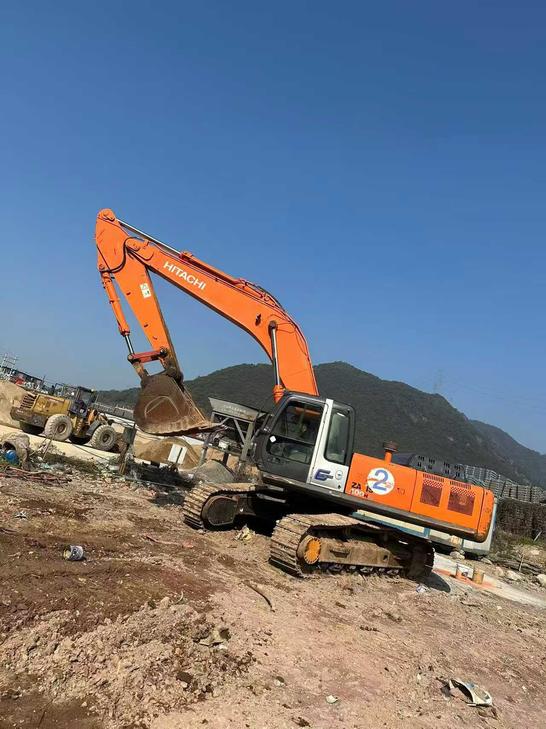

Expand your operational capacity with this 2016 Hitachi EX350H-5, a proven 35-ton workhorse engineered for contractors demanding reliable fleet performance. Powered by the robust Isuzu B-6SD1T engine delivering 169 kW at 1900 rpm, this excavator provides consistent output across multi-site deployments. With an 11,100 mm maximum reach and 7,380 mm digging depth, it handles infrastructure projects, demolition work, and mass excavation with precision. The 1.4 m³ backhoe bucket matches productivity requirements for medium-to-large operations.
- Operating weight: 32,613 kg—balanced for stability without sacrificing mobility
- 560-liter fuel capacity minimizes downtime on extended shifts
- 3,190 mm transport width facilitates efficient inter-site relocation
- 66 kPa ground pressure protects finished surfaces and sensitive terrain
- Joint venture/import quality from Hitachi's proven EX-5 series platform
Currently located in Hangzhou, Zhejiang, this machine integrates seamlessly into existing Hitachi fleets or serves as a capable backup during peak demand periods. Documented service history and transport-ready dimensions ensure rapid deployment to your next project site.
| Specifications | Value |
|---|---|
| No. | 1032573 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32613.3 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu B-6SD1T |
| Rated power (kw/rpm) | 169/1900 |
| Ground specific pressure (Kpa) | 66 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 560 |
| Total transport length (mm) | 10950 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3290 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3730 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7130 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11100 |
