2020 Hitachi EX350H-5

1/4
Buy Hitachi EX350H-5 Used Excavator / 1

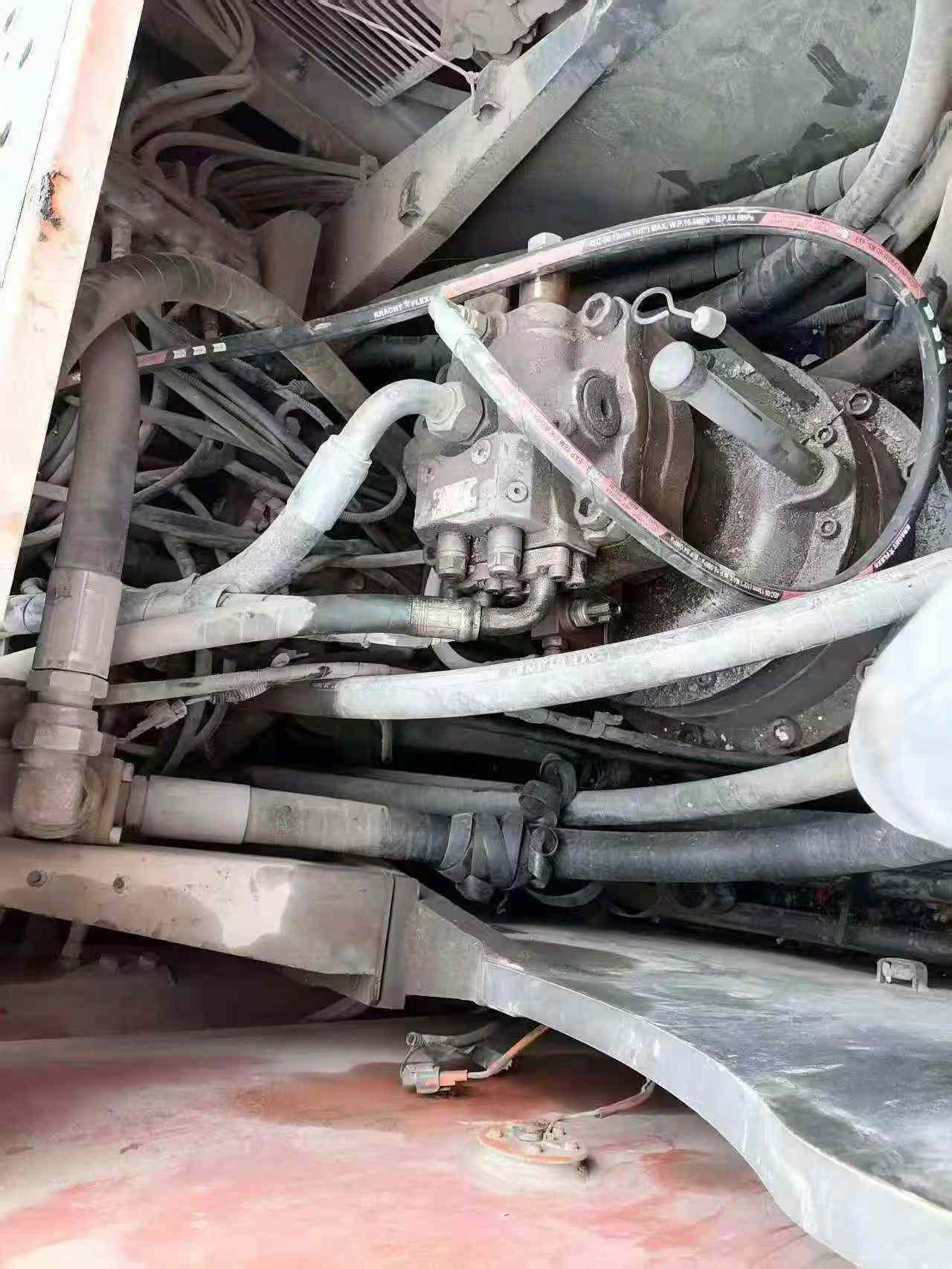

Buy Hitachi EX350H-5 Used Excavator / 2

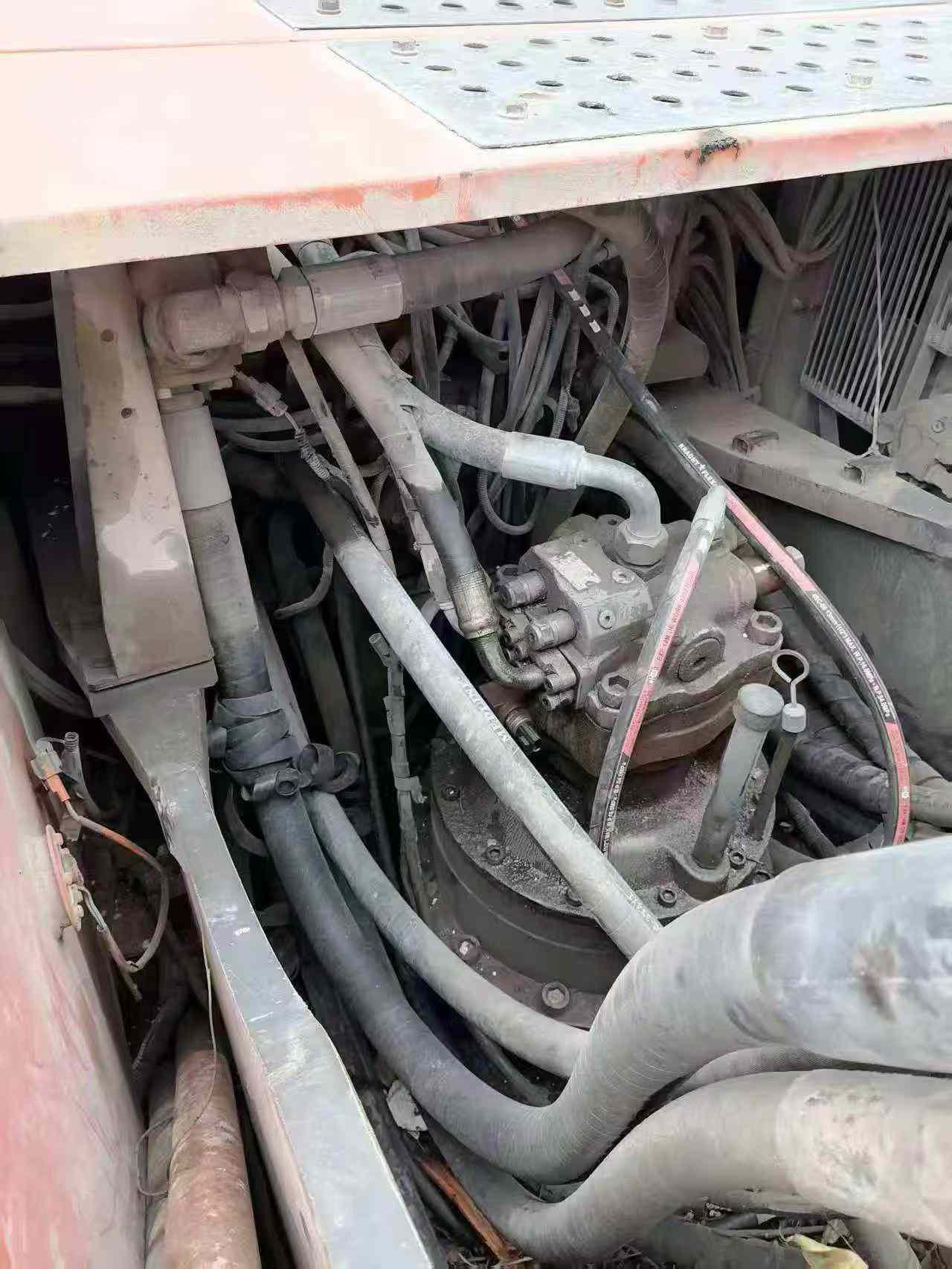

Buy Hitachi EX350H-5 Used Excavator / 3

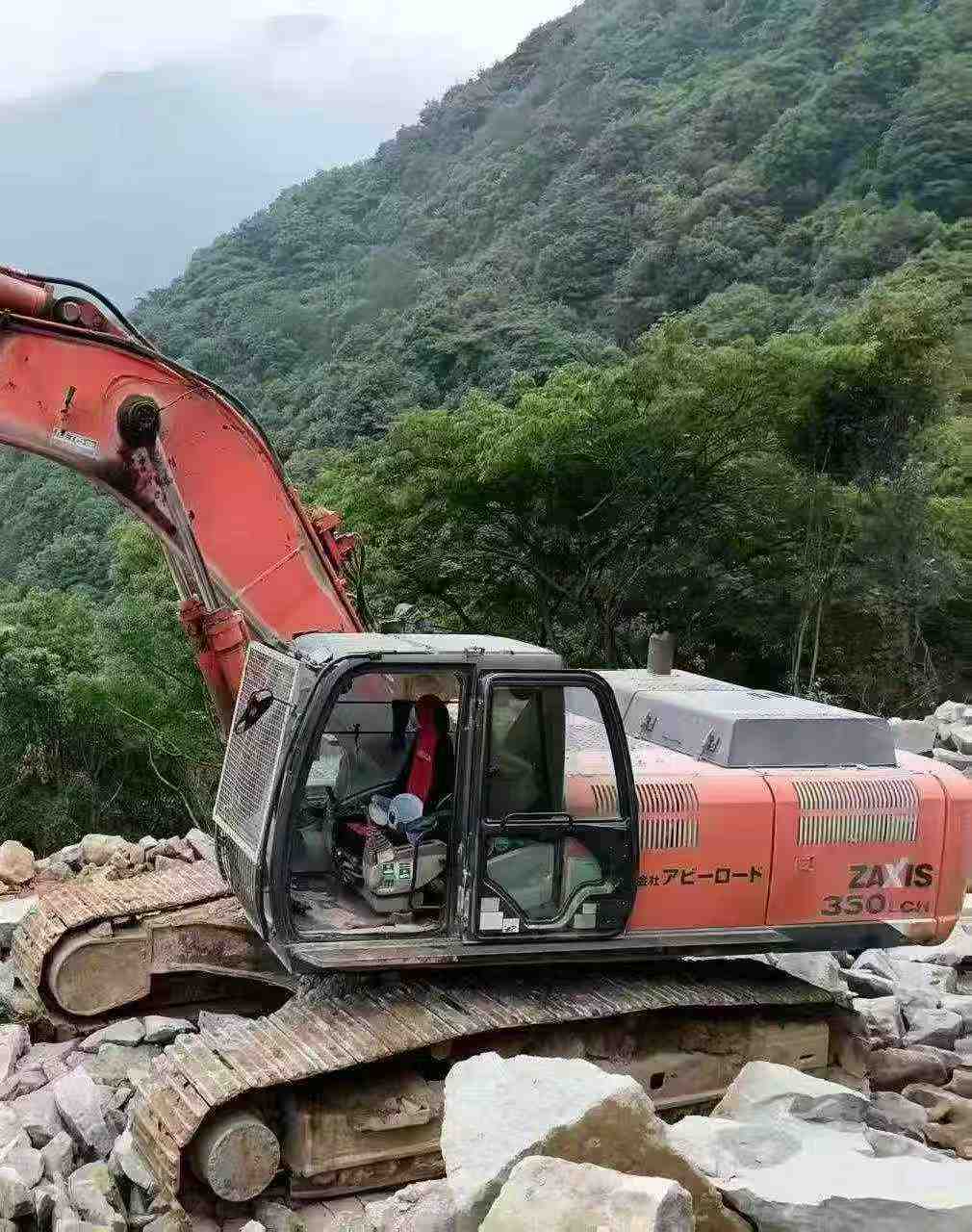

Buy Hitachi EX350H-5 Used Excavator / 4

Product Description

Built to endure the demands of large-scale excavation, this 2020 Hitachi EX350H-5 stands as proof that serious iron holds its value. With over four years of proven performance behind it, this 35-ton workhorse continues to deliver the reliability contractors depend on — powered by a robust Isuzu B-6SD1T engine producing 169 kW at 1,900 rpm and backed by a 560-liter fuel tank for extended, uninterrupted operation. Available now from Zhejiang, China.

  • Working Weight: 32,613 kg — stable, grounded, and built for heavy-duty cycles
  • Bucket Capacity: 1.4 m³ backhoe bucket for high-volume material handling
  • Maximum Digging Depth: 7,380 mm — reaches where the work demands
  • Maximum Excavation Radius: 11,100 mm at ground surface level
  • Maximum Excavation Height: 10,230 mm for versatile loading applications
  • Travel Speed: 5.5 km/h with a ground pressure of just 66 kPa
  • Track Plate Width: 600 mm — balanced footprint for varied terrain
  • Transport Dimensions: 10,950 × 3,190 × 3,230 mm
SpecificationsValue
No.1071760
Tonnage (tons)35
Working weight (kg)32613.3
Bucket capacity (m³)1.4
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu B-6SD1T
Rated power (kw/rpm)169/1900
Ground specific pressure (Kpa)66
Travel speed (km/h)5.5
Fuel Tank (L)560
Total transport length (mm)10950
Total transport width (mm)3190
Total transport height (mm)3230
Full cab height (mm)3110
Counterweight ground clearance (mm)1140
Minimum ground clearance (mm)500
Back end turning radius (mm)3290
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3730
Maximum digging depth (mm)7380
Maximum excavation height (mm)10230
Maximum unloading height (mm)7130
Maximum vertical digging depth (mm)6480
Maximum excavation radius of stop surface (mm)11100
see more

Overview

No.1071760

Brand Name:

Hitachi

Model Number:

EX350H-5

Year:

2020

Location:

Zhejiang China

Pub Date
