Product Description

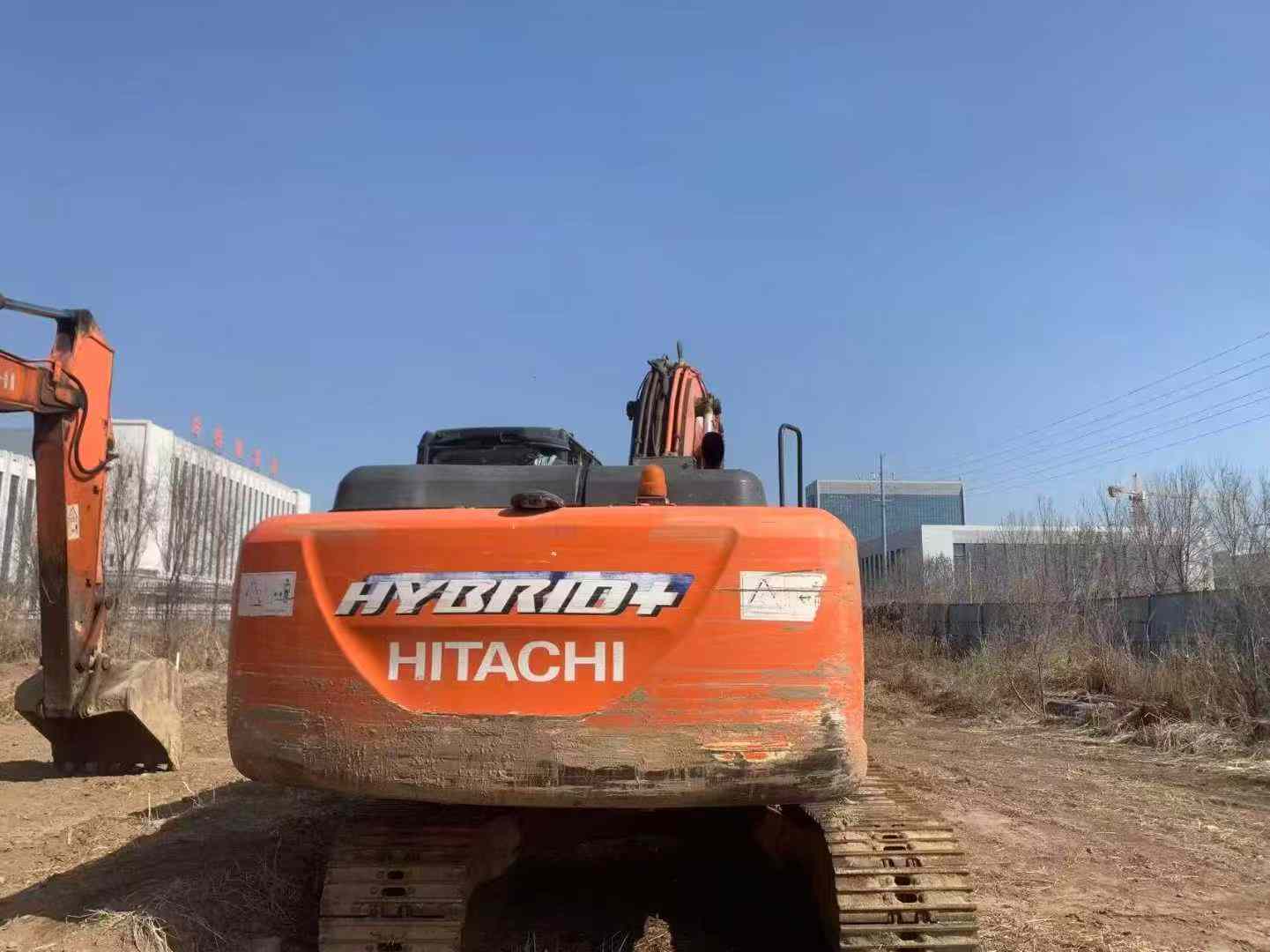

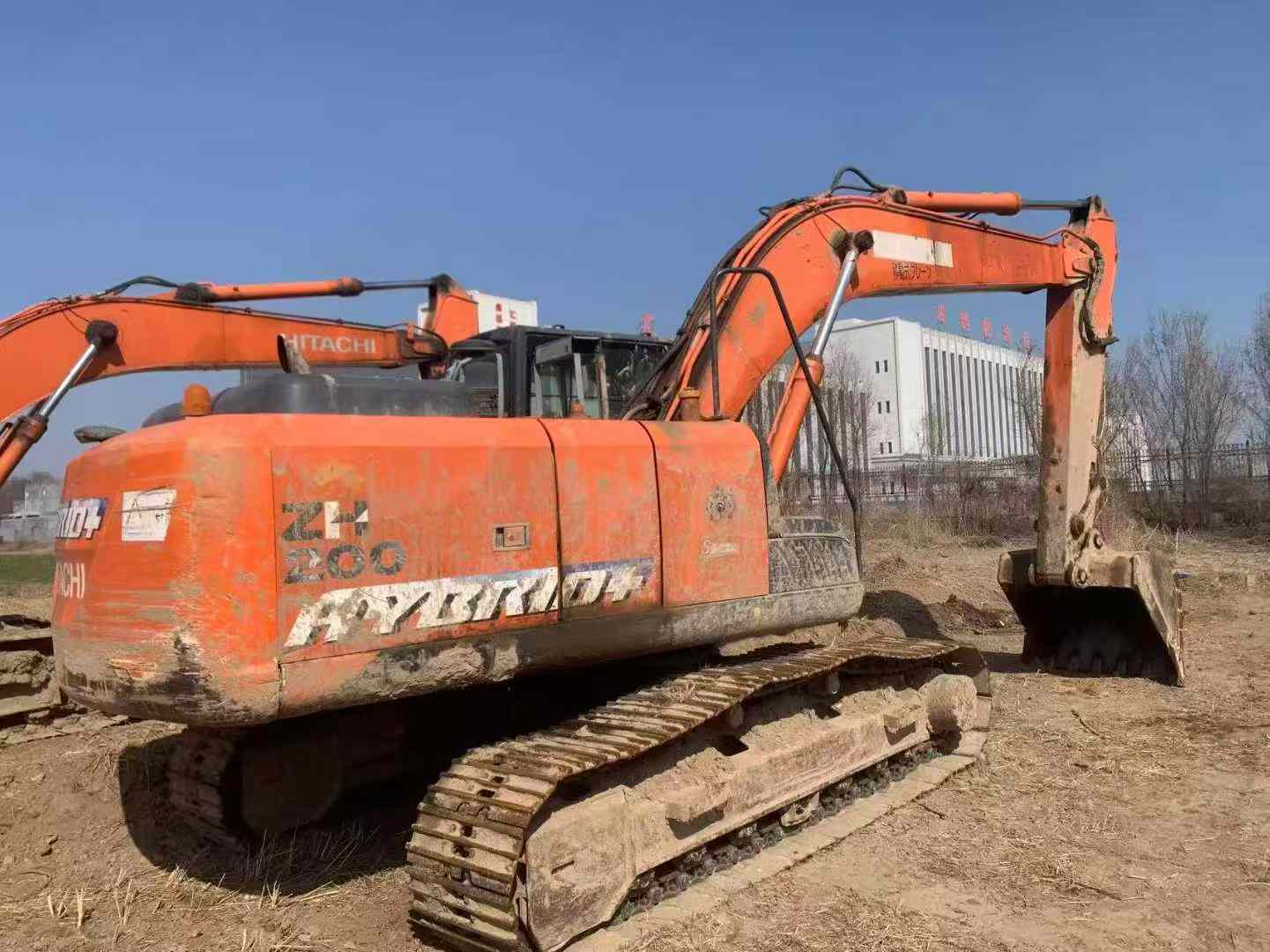

Proven in demanding conditions since 2016, this Hitachi ZH200-5A hybrid excavator combines fuel efficiency with reliable performance across 20-ton class operations. Powered by a robust Isuzu 4-cylinder engine delivering 113kW at 2000rpm, this machine features innovative hybrid technology that reduces fuel consumption while maintaining the digging power operators depend on—158kN bucket force and 114kN arm force handle tough materials with confidence.
Built for longevity, this joint-venture manufactured unit offers a substantial 0.91m³ bucket capacity and impressive reach specifications: 9920mm maximum digging radius and 6670mm maximum depth. The 5680mm boom and 2910mm arm configuration provide versatility across grading, trenching, and loading applications. With a 400L fuel tank supporting extended shifts and a proven Isuzu GI-4HK1XKSA-03 engine backed by years of field service, this workhorse delivers consistent productivity.
Key Specifications:
- Operating Weight: 20,900kg with hybrid power system
- Maximum Digging Height: 10,040mm | Unloading Height: 7,180mm
- Travel Speed: 3.5-5.5km/h | Climbing Ability: 70%
- Hydraulic Capacity: 200L tank for sustained performance<
| Specifications | Value |
|---|---|
| No. | 1028295 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
