Product Description

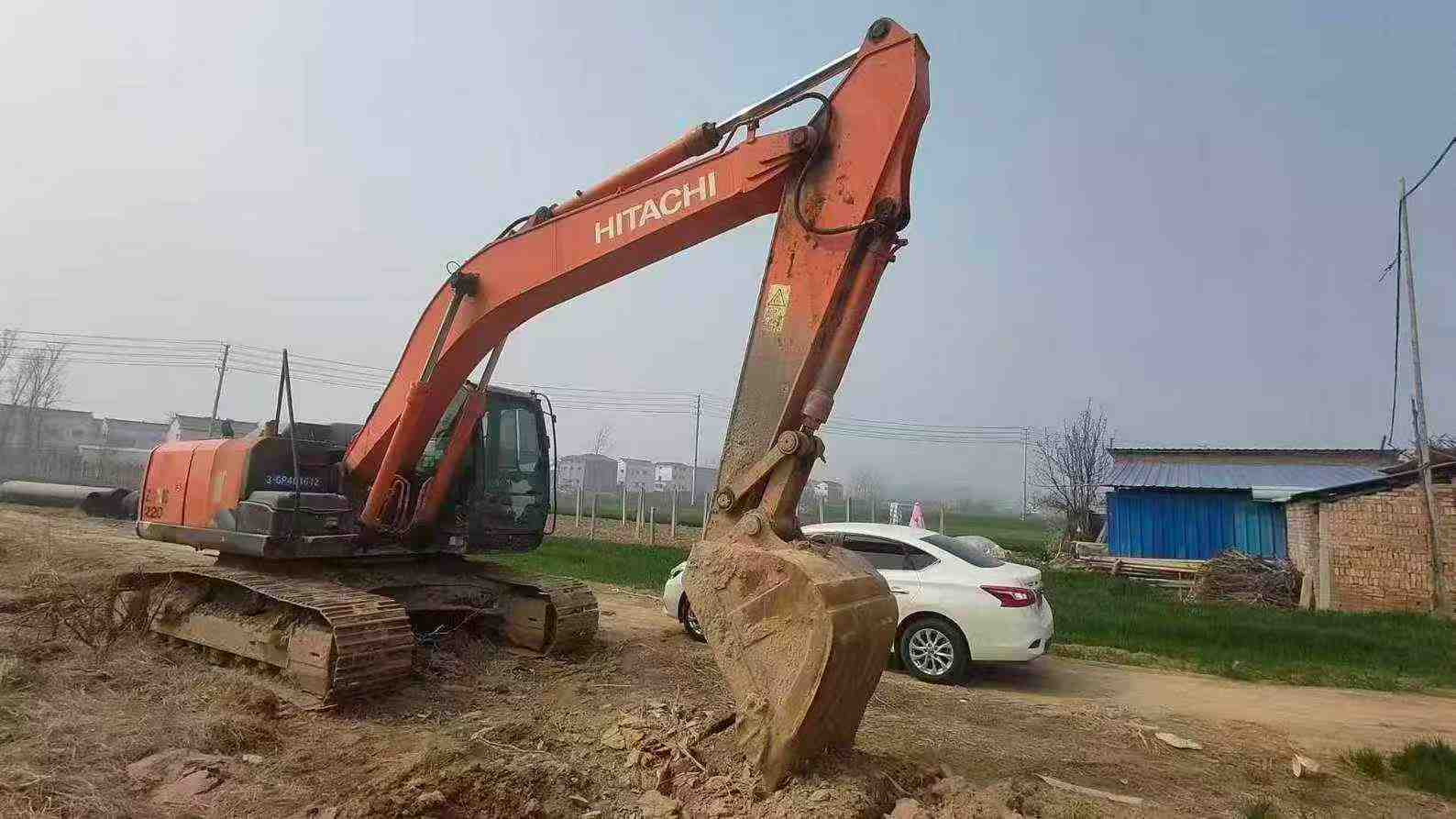

Available now in Zhejiang Shaoxing, this 2016 Hitachi ZH200-5A hybrid excavator eliminates factory wait times and accelerates project timelines. Powered by an Isuzu 4-cylinder engine delivering 113 kW at 2000 rpm, this 20-ton workhorse combines fuel efficiency with robust performance across demanding job sites. Skip the months-long procurement cycle—secure immediate deployment with a machine ready for transport.
- Operating weight: 20,900 kg with 0.91 m³ bucket capacity
- Maximum digging reach: 9,920 mm; digging depth: 6,670 mm
- Hybrid power system reduces fuel consumption without sacrificing productivity
- Bucket digging force: 158 kN; arm digging force: 114 kN
- Compact transport dimensions: 9,660 × 2,860 × 3,010 mm
- 400L fuel tank and 200L hydraulic reservoir support extended operation
- Located in Zhejiang Shaoxing for rapid logistics coordination
Fast-track your equipment acquisition with a proven excavator positioned for immediate delivery. Coordinate inspection and shipping directly—no production delays, no extended financing on idle capital.
| Specifications | Value |
|---|---|
| No. | 1029768 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
