Product Description

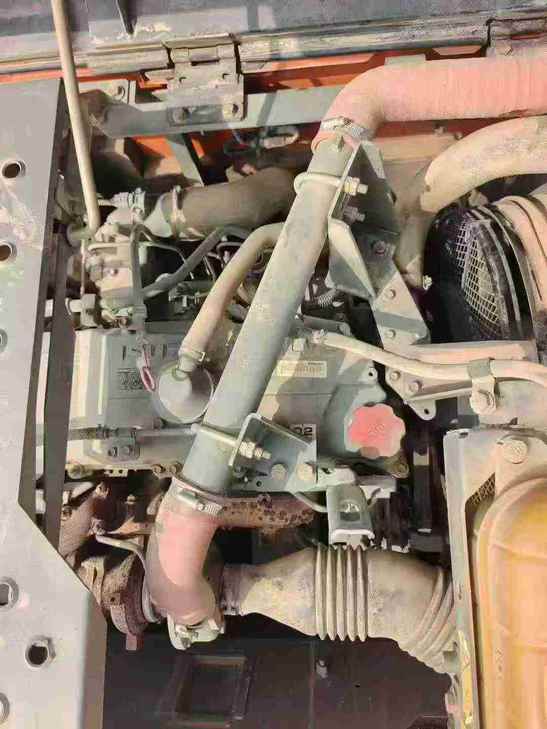

Built for precision and endurance, this 2017 Hitachi ZH200-5A hybrid excavator delivers 20-ton performance with operator-first engineering. Powered by an Isuzu GI-4HK1XKSA-03 engine generating 113 kW at 2000 rpm, the hybrid system combines fuel efficiency with commanding hydraulic force—158 kN bucket digging force and 114 kN arm digging force tackle demanding excavation tasks with confidence.
Operators benefit from exceptional visibility and stability across the job site:
- Full cab height of 2,950 mm provides panoramic sightlines to the 9,920 mm maximum digging radius
- Low ground specific pressure of 46 kPa with 600 mm track plates ensures stable operation on soft or uneven terrain
- 11.5 rpm rotation speed enables smooth, controlled movements during precision work
- Spacious cab minimizes fatigue during extended shifts, with intuitive controls for the 5,680 mm boom and 2,910 mm arm
- 70% climbing ability and 2,890 mm rear turning radius deliver maneuverability in confined spaces
Currently located in Shaoxing, Zhejiang, this joint-venture manufactured machine combines Japanese reliability with practical hybrid technology for operators prioritizing comfort and control.<
| Specifications | Value |
|---|---|
| No. | 1031101 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
