Product Description
Built for immediate deployment on demanding jobsites, this 2019 Hitachi ZH200-5A hydraulic excavator delivers proven performance in a 20-ton package. Powered by an innovative hybrid system combining a 113kW Isuzu engine with electric technology, this machine reduces fuel consumption while maintaining the digging force needed for heavy excavation, grading, and demolition work. The 0.91m³ bucket tackles material loading with 158kN of digging force, while the 5,680mm boom and 2,910mm arm provide a maximum digging reach of 9,920mm and depth of 6,670mm—ideal for foundation work, trenching, and site preparation.
- Hybrid power system: Lower operating costs with Isuzu 4-cylinder engine plus electric assist
- 20,900kg working weight: Stable platform for precision grading and heavy digging
- 400L fuel tank: Extended runtime reduces refueling downtime
- 70% climbing ability: Navigate rough terrain and steep grades confidently
- 3.5-5.5km/h travel speed: Quick repositioning between work areas
- Joint venture/Import quality: Built to international manufacturing standards
Currently located in Jiangxi Ji'an, this site-ready excavator is prepared for immediate shipment worldwide. Contac
| Specifications | Value |
|---|---|
| No. | 1041602 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

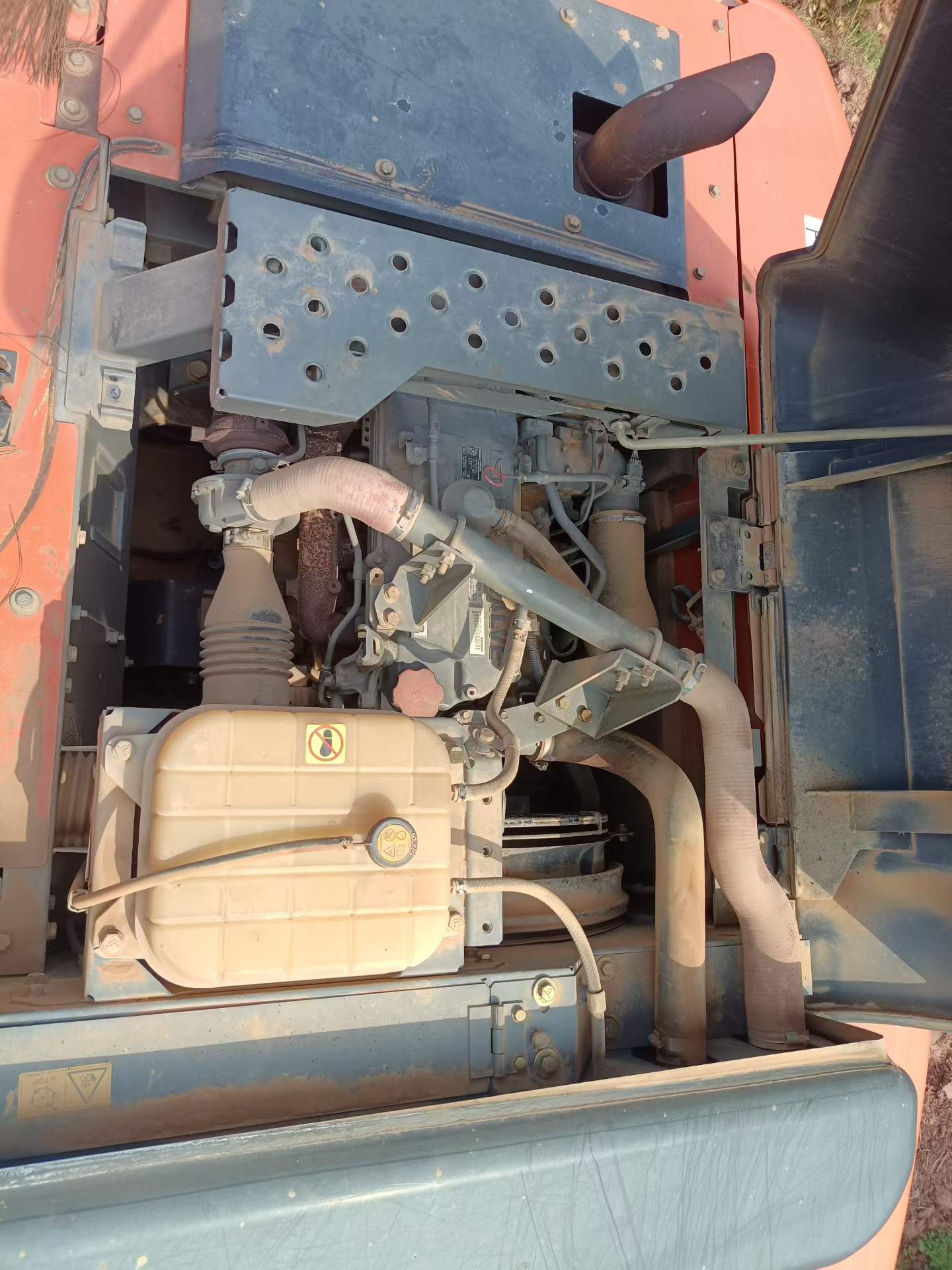

| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |

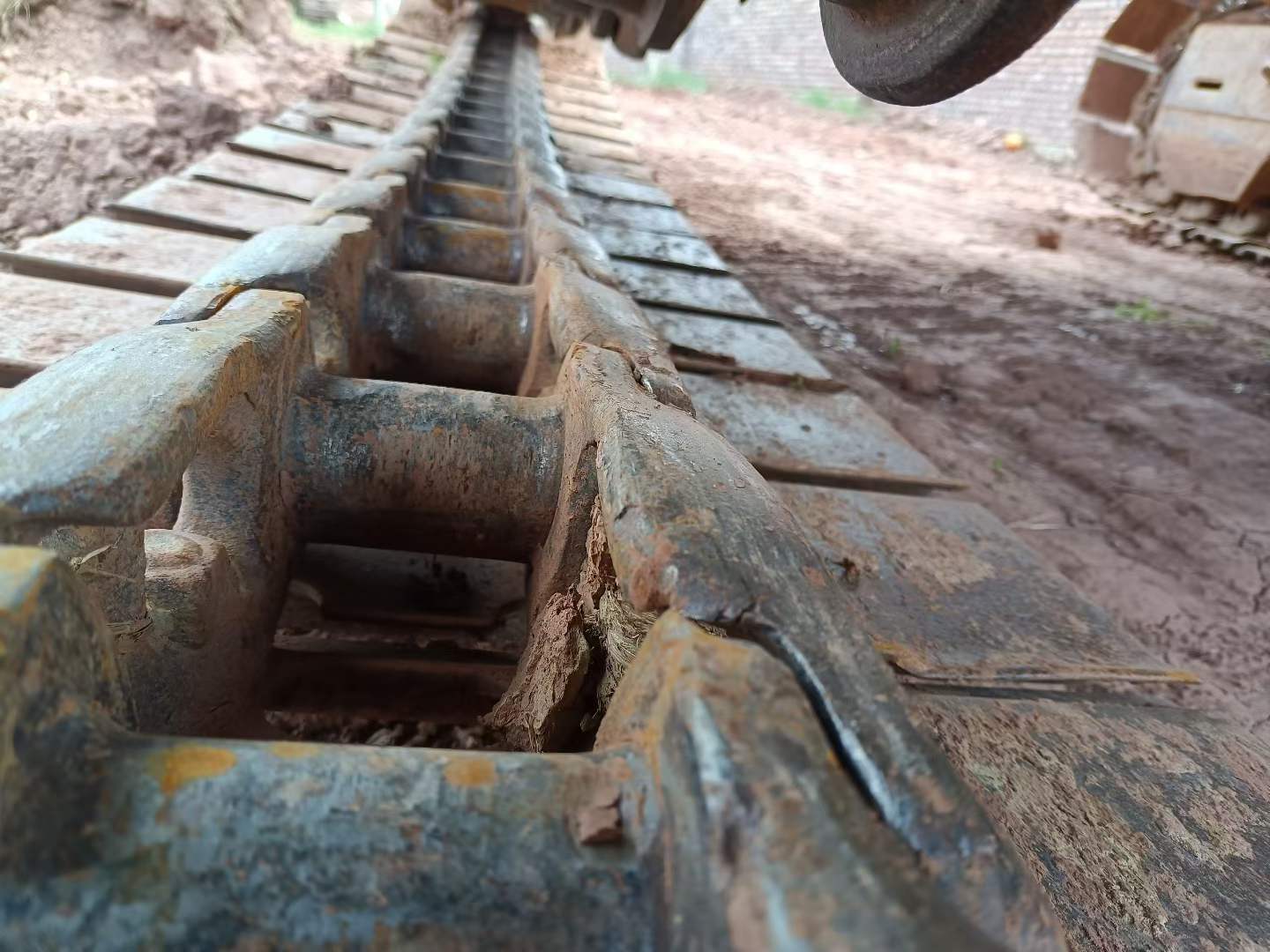

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
