Product Description
Built for demanding excavation work, this 2021 Hitachi ZH200-5A hybrid excavator delivers 20-ton performance with fuel-efficient operation. Powered by an Isuzu 4-cylinder engine producing 113kW at 2000rpm, the hybrid system reduces fuel consumption without sacrificing productivity on site. The 0.91m³ backhoe bucket generates 158kN digging force, while the 2910mm arm provides 114kN breakout force for tough ground conditions.
Designed for immediate deployment across grading, trenching, and demolition projects. Maximum digging depth reaches 6670mm with a 9920mm working radius, covering substantial work areas from a single position. The 5680mm boom and hydraulic system handle materials efficiently, supported by a 400L fuel tank for extended shifts. Track width of 600mm and 46kPa ground pressure enable stable operation on varied terrain.
- Hybrid power system for reduced operating costs

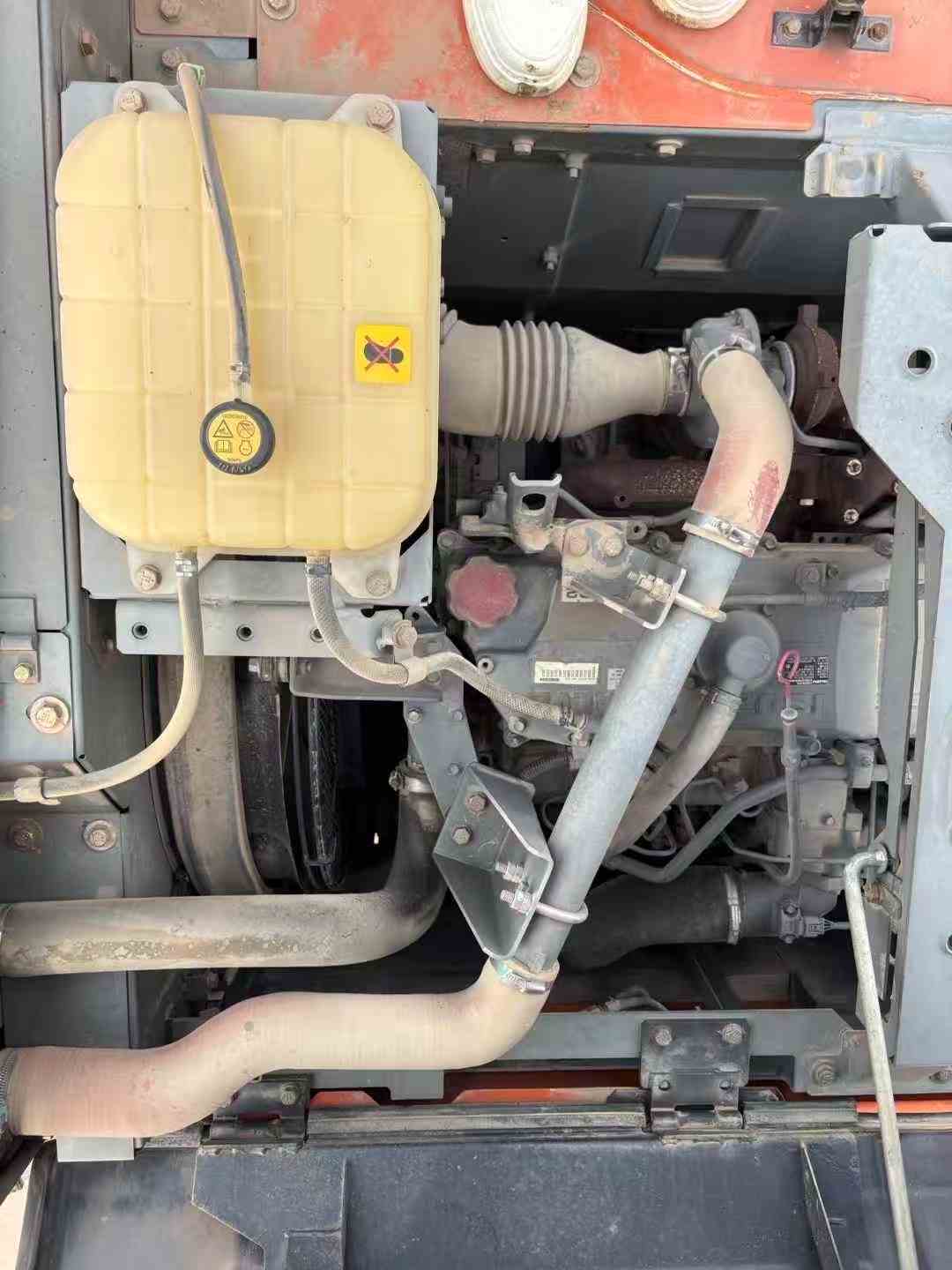

- 5.193L displacement engine with electronic fuel injection
- 11.5rpm rotation speed for efficient cycle times
- 70% gradeability for challenging slopes
- Currently located in Hangzhou, Zhejiang—ready for inspection
| Specifications | Value |
|---|---|
| No. | 1030354 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
