Product Description

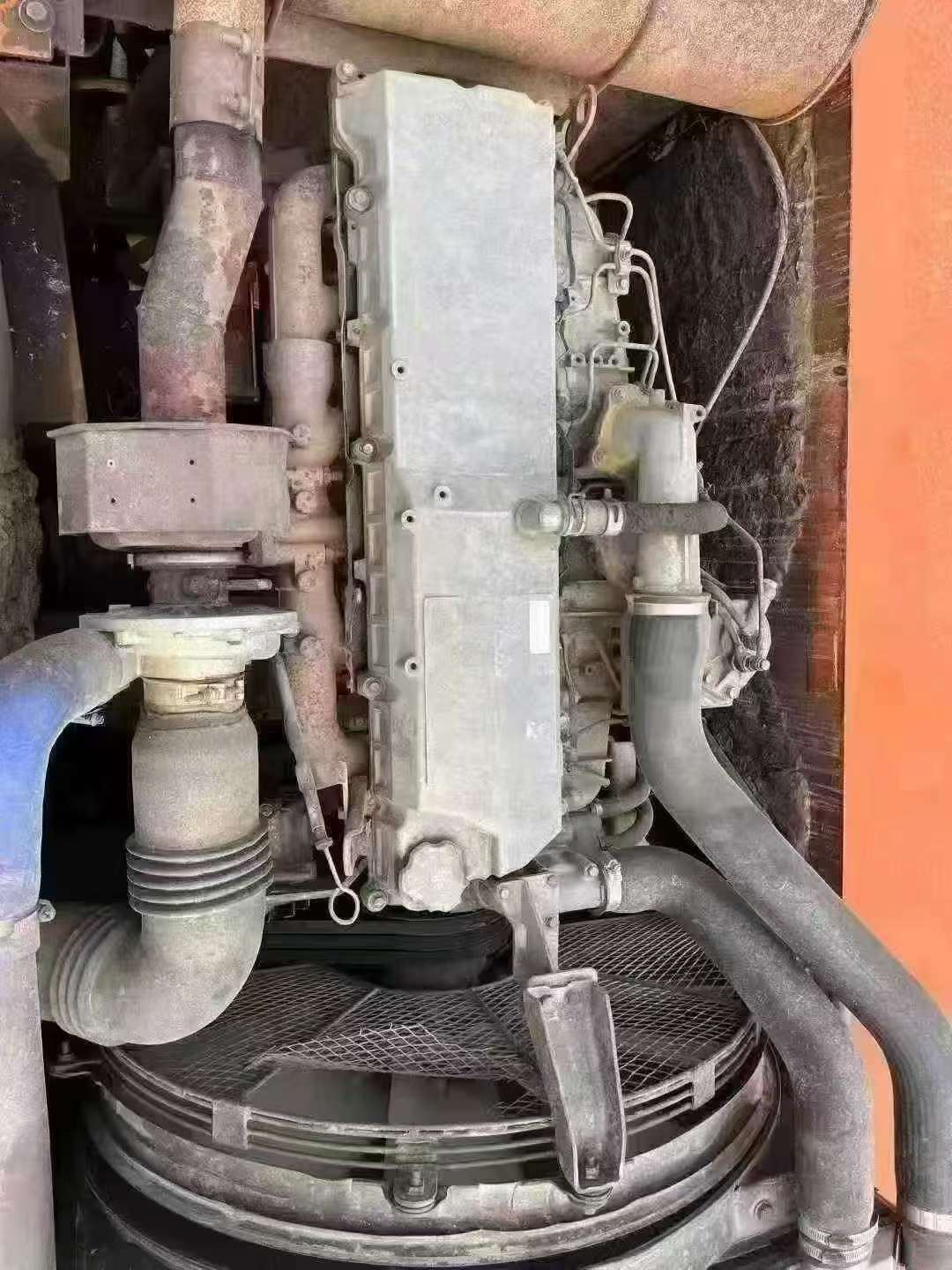

Proven performance meets long-term value in this 2013 Hitachi ZW330 wheel loader, currently located in Hangzhou, Zhejiang. Powered by a reliable Cummins QSM11 engine delivering 242 kW at 1800 rpm, this machine combines robust 10.82L displacement with efficient four-stroke, water-cooled direct injection technology. With an operating weight of 25,725-26,075 kg and bucket capacity ranging from 3.9 to 5.0 m³, it handles demanding material handling tasks with a digging force of 226 kN.
Hitachi's reputation in the used equipment market stems from exceptional parts availability and strong resale value retention. Global service networks ensure minimal downtime, while the brand's engineering consistency means components remain accessible years after production. Four-speed transmission (7.2-35.5 km/h) and 3,550 mm wheelbase provide operational versatility across job sites.
- Cummins QSM11 engine: 242 kW power output
- Operating weight: 25,725-26,075 kg
- Bucket capacity: 3.9-5.0 m³
- 424L fuel tank for extended operation
- 26.5-25-20PR tires for durability
- Proven Hitachi reliability with strong aftermarket support
| Specifications | Value |
|---|---|
| No. | 1010207 |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 242/1800 |
| Cylinder diameter × stroke (mm) | 125 x 147 |
| Working form | 4 stroke, water cooled, direct injection |
| Exhaust volume (L) | 10.82 |
| Bucket capacity (m³) | 3.9-5.0 |
| Rated load (tons) | |
| Digging force (lifting force) (kN) | 226 |
| Machine operating weight (kg) | 25725-26075 |
| Unloading height - Unloading Angle 45°(mm) | 3255 |
| Driving form | |
| Tyre specification | 26.5-25-20PR(L3) |
| Fuel Tank (L) | 424 |
| Hydraulic Tank (L) | 162 |
| Coolant (L) | 72 |
| Engine Oil (L) | 37 |
| Wheelbase (mm) | 3550 |
| Wheel base (mm) | 2300 |
| Minimum ground clearance (mm) | 460 |
| Machine length (mm) | 9050 |
| Machine height (mm) | 6160 |
| Minimum turning radius of outer wheel center line | 6455 |
| Steering form | |
| Boom cylinder diameter × stroke (mm×mm) | |
| Bucket cylinder diameter × stroke (mm×mm) | |
| Lift (s) | 6.4 |
| Unloading (s) | 3.3 |
| Lower empty bucket (s) | 1.4 |
| Ternary sum (s) | 11.1 |
| Speed 1 gear (km/h) | 7.2/7.8 |
| Speed 2 (km/h) | 12.4/13.5 |
| Speed 3 (km/h) | 21.6/23.2 |
| Speed 4 (km/h) | 34.4/35.5 |
| Service brake |
