Product Description

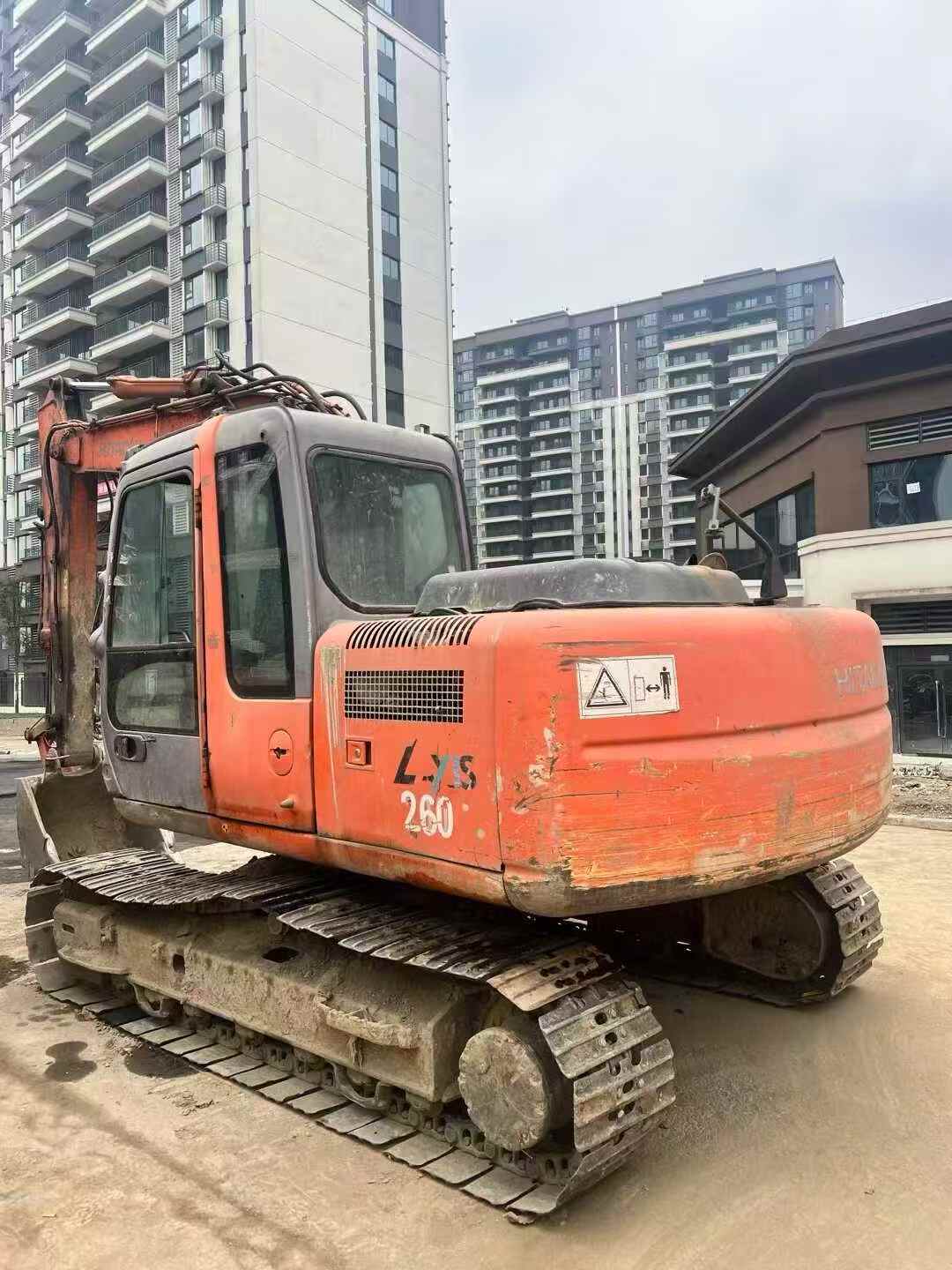

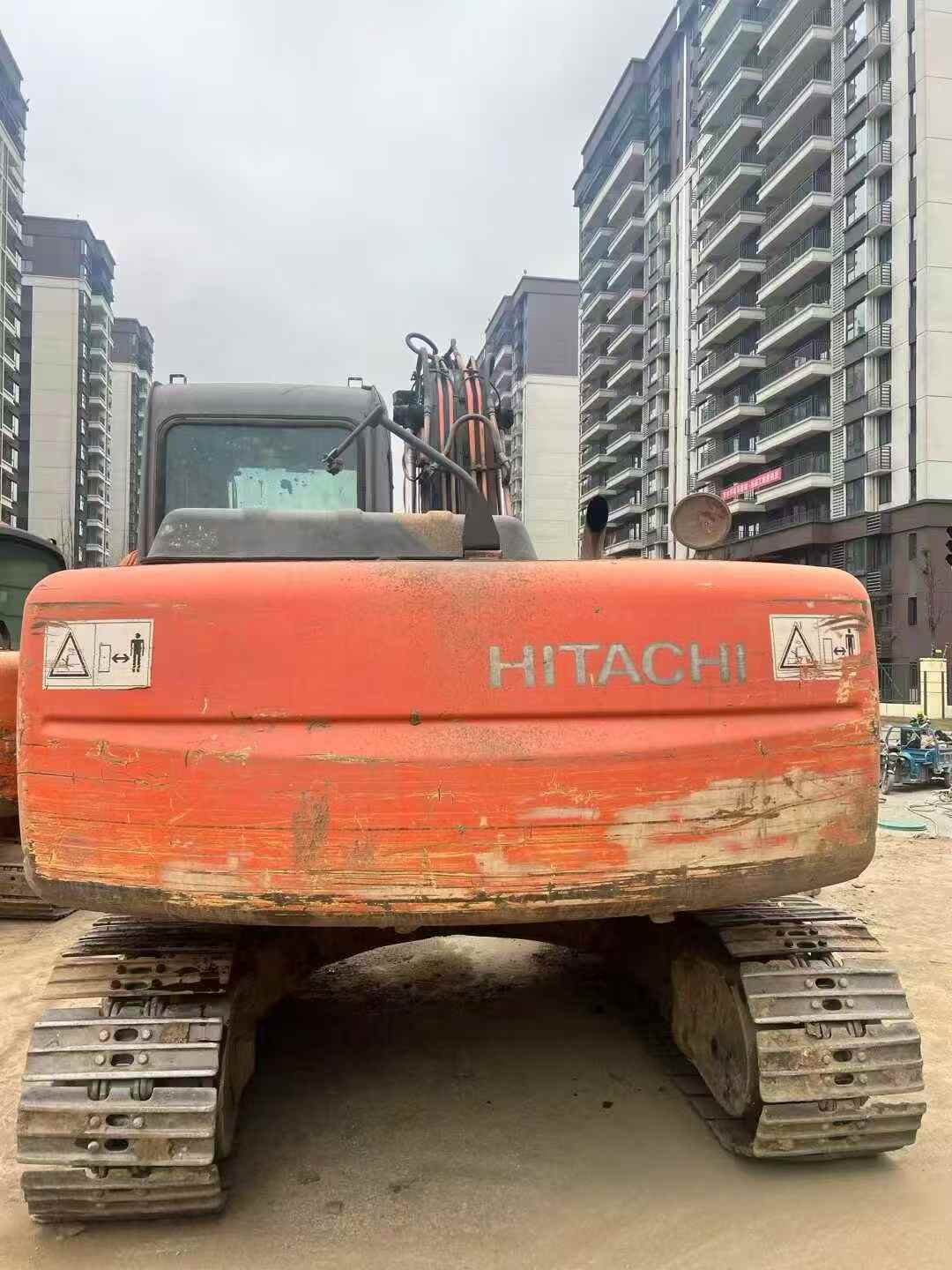

Maximize your equipment budget with this 2013 Hitachi ZX120 excavator from Fujian—a proven workhorse delivering exceptional value without the premium price tag of new machinery. Operating at 12 tons with a robust 12,200 kg working weight, this mid-size excavator combines Japanese engineering reliability with practical performance for demanding jobsites.

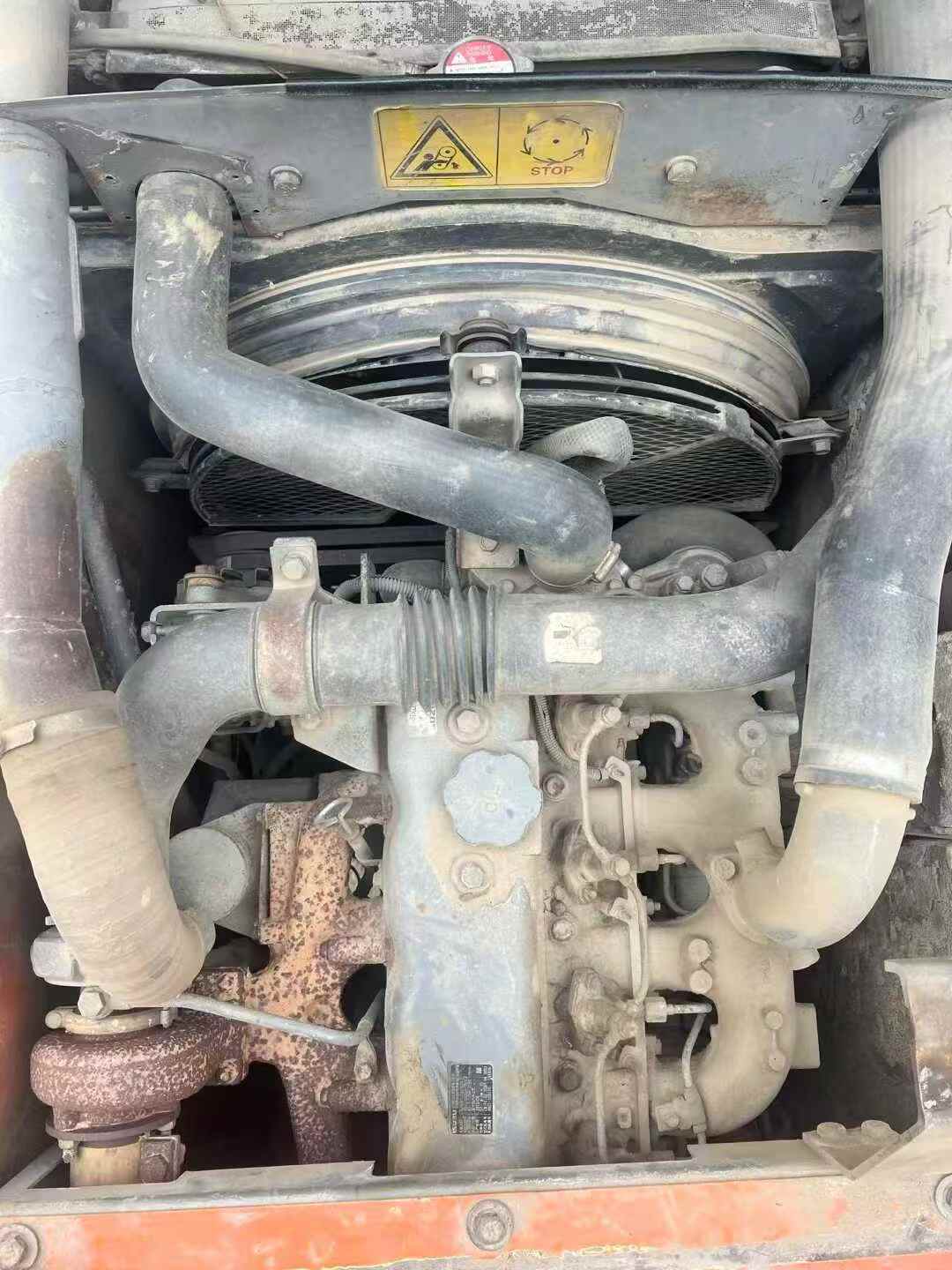

Powered by an ISUZU CC-4BG1TC engine generating 66 kW at 2,150 rpm, this machine offers consistent productivity across diverse applications. Key performance specifications include:
- Maximum digging reach of 8,270 mm and depth of 5,570 mm for versatile operation
- Bucket digging force of 99 kN with 0.52 m³ capacity
- Variable piston hydraulic system ensuring smooth, responsive control
- Compact transport dimensions (7,610 × 2,490 × 2,740 mm) for easy mobilization
- 70% gradeability and 13.7 rpm rotation speed for efficient cycle times
Investing in quality pre-owned equipment means accessing premium features—water-cooled 4-cylinder engine, dual variable piston pumps, 250L fuel capacity—at a fraction of replacement cost. Smart operators recognize that proven performance trumps depreciation every time.
| Specifications | Value |
|---|---|
| No. | 997255 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

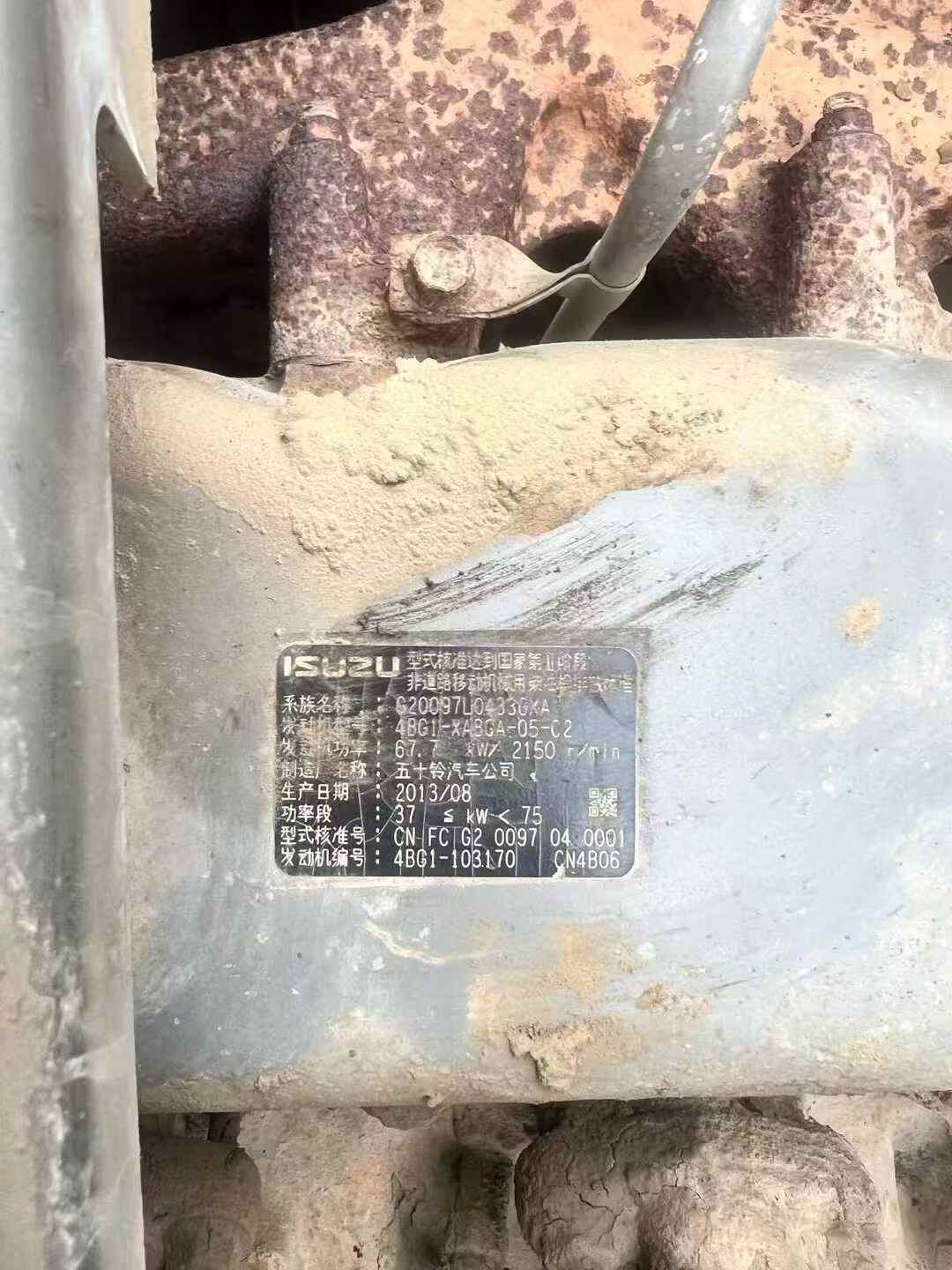

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
