Product Description
Proven performance meets long-term value in this 2014 Hitachi ZX120 excavator, currently located in Ningbo, Zhejiang. Operating at 12 tons with a robust 12,200 kg working weight, this machine delivers reliable productivity through its ISUZU CC-4BG1TC engine, generating 66 kW at 2,150 rpm. With a 0.52 m³ bucket capacity, 8,270 mm maximum digging radius, and 5,570 mm maximum digging depth, this backhoe configuration handles demanding excavation tasks with precision.
Hitachi's reputation in the used equipment market stands on solid ground. Parts availability remains exceptional across China, minimizing downtime and maintenance costs. The brand's strong resale value protects your investment, while the ZX120's water-cooled 4-cylinder engine and dual variable piston pump hydraulic system ensure consistent performance. Key specifications include 99 kN bucket digging force, 65 kN rod digging force, and travel speeds of 3.4/5.5 km/h.
- Working Weight: 12,200 kg with 250L fuel capacity
- Hydraulic System: Variable piston pumps with 34.3 Mpa main overflow pressure
- Transport Dimensions: 7,610 mm × 2,490 mm × 2,740 mm

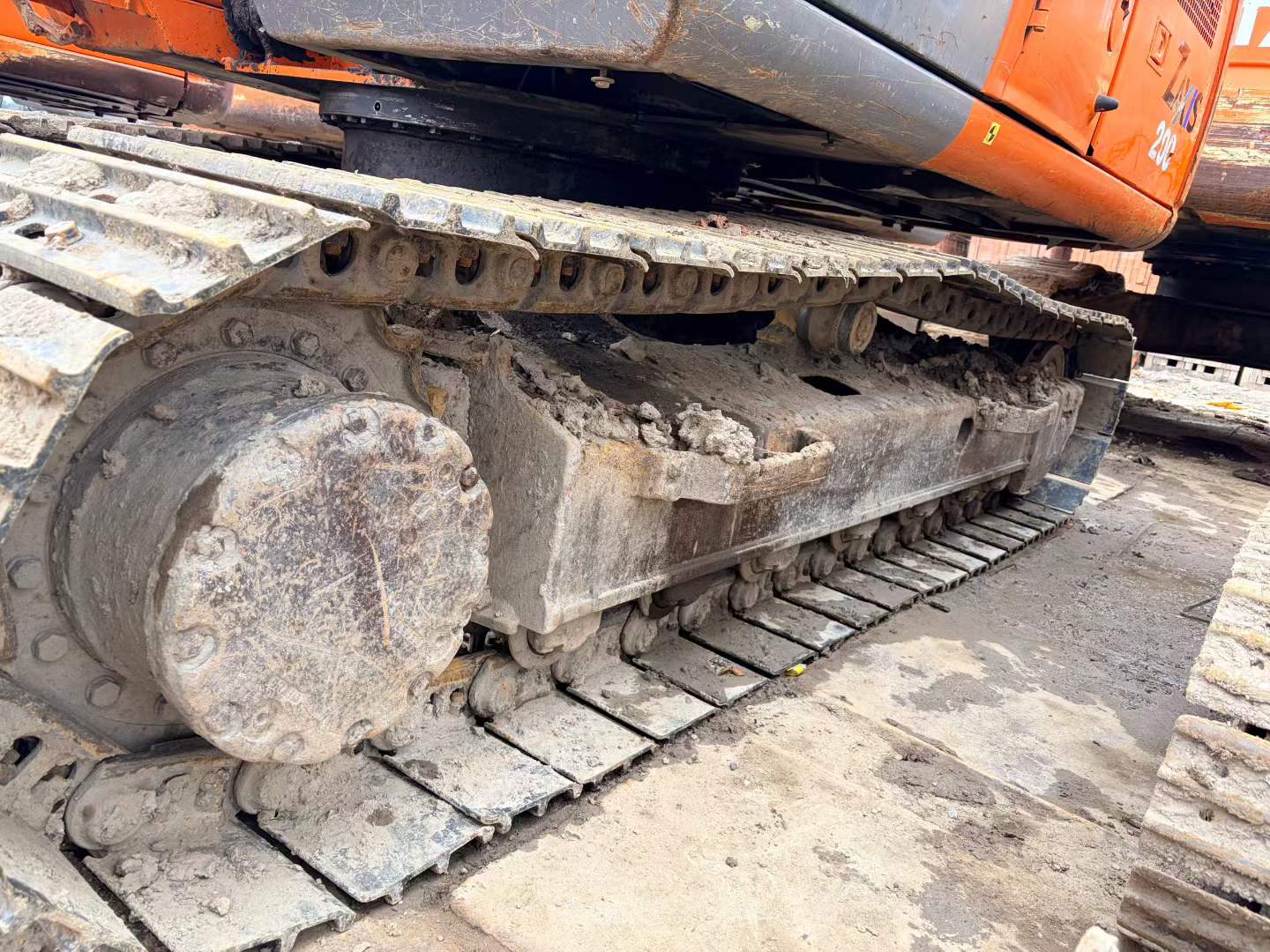

- Track Configuration: 2,880 mm ground length, 500 mm plate width
| Specifications | Value |
|---|---|
| No. | 1008695 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
