Product Description

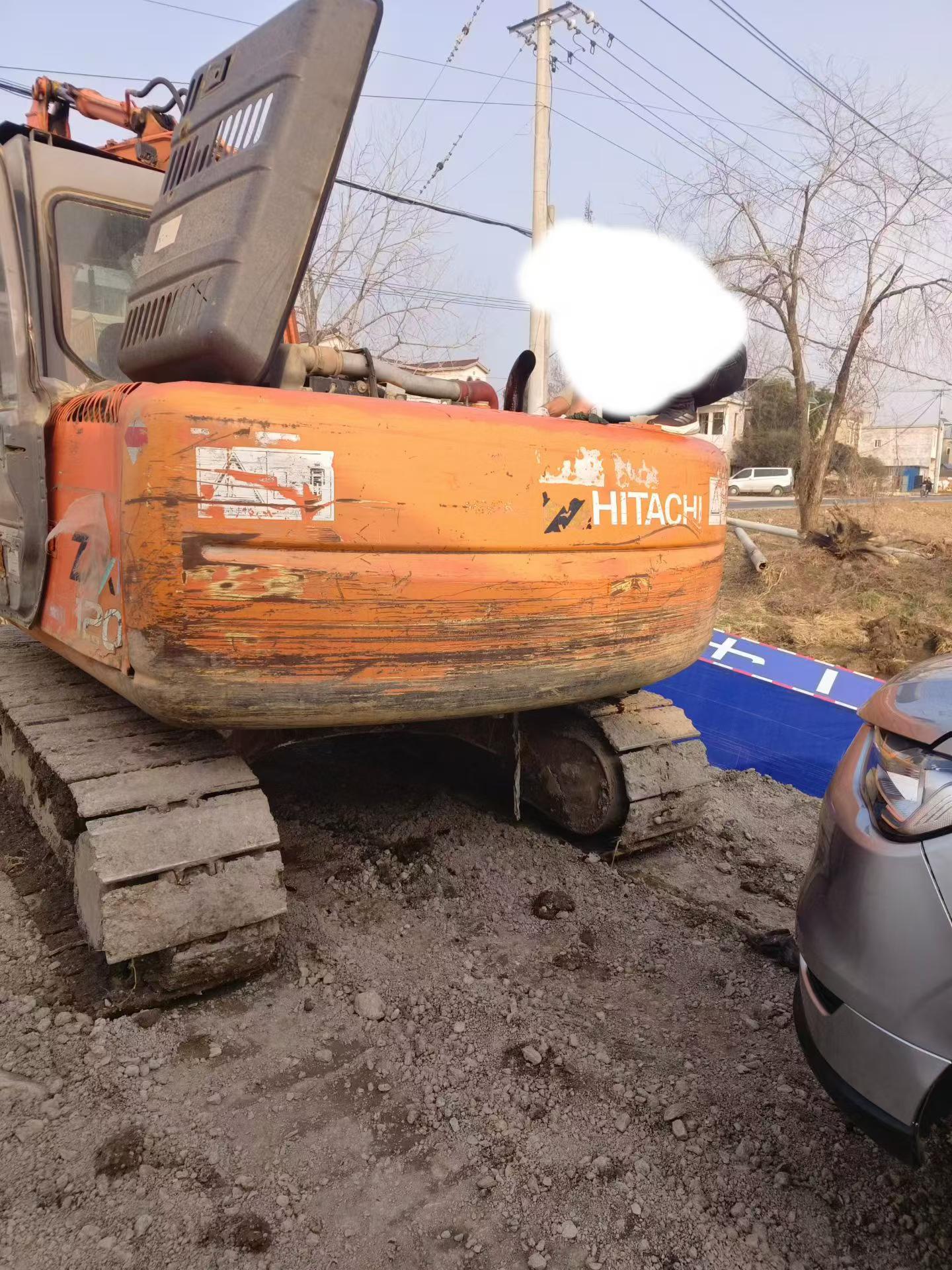

Built for demanding excavation work, this 2016 Hitachi ZX120 delivers reliable performance across construction and earthmoving applications. Operating at 12 tons with a 66kW ISUZU engine, this machine handles digging, grading, and material handling with proven efficiency. The 0.52m³ backhoe bucket generates 99kN of digging force, while the 8270mm maximum reach and 5570mm digging depth provide extensive working range for foundation work, trenching, and site preparation.
- ISUZU CC-4BG1TC water-cooled engine: 66kW at 2150rpm for consistent power delivery
- Hydraulic system: Variable piston pumps with 34.3MPa pressure for responsive control
- Compact footprint: 2490mm transport width navigates restricted jobsites
- 70% grading capability handles steep terrain and slope work
- 250L fuel capacity supports extended operation between refills
- Dual travel speeds (3.4/5.5 km/h) optimize productivity and repositioning
Currently located in Suqian, Jiangsu Province, this joint-venture manufactured excavator arrives ready for immediate deployment. Standard specifications include quantitative plunger rotation motor and variable piston travel motors for smooth, controlled o
| Specifications | Value |
|---|---|
| No. | 1006378 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
