Product Description

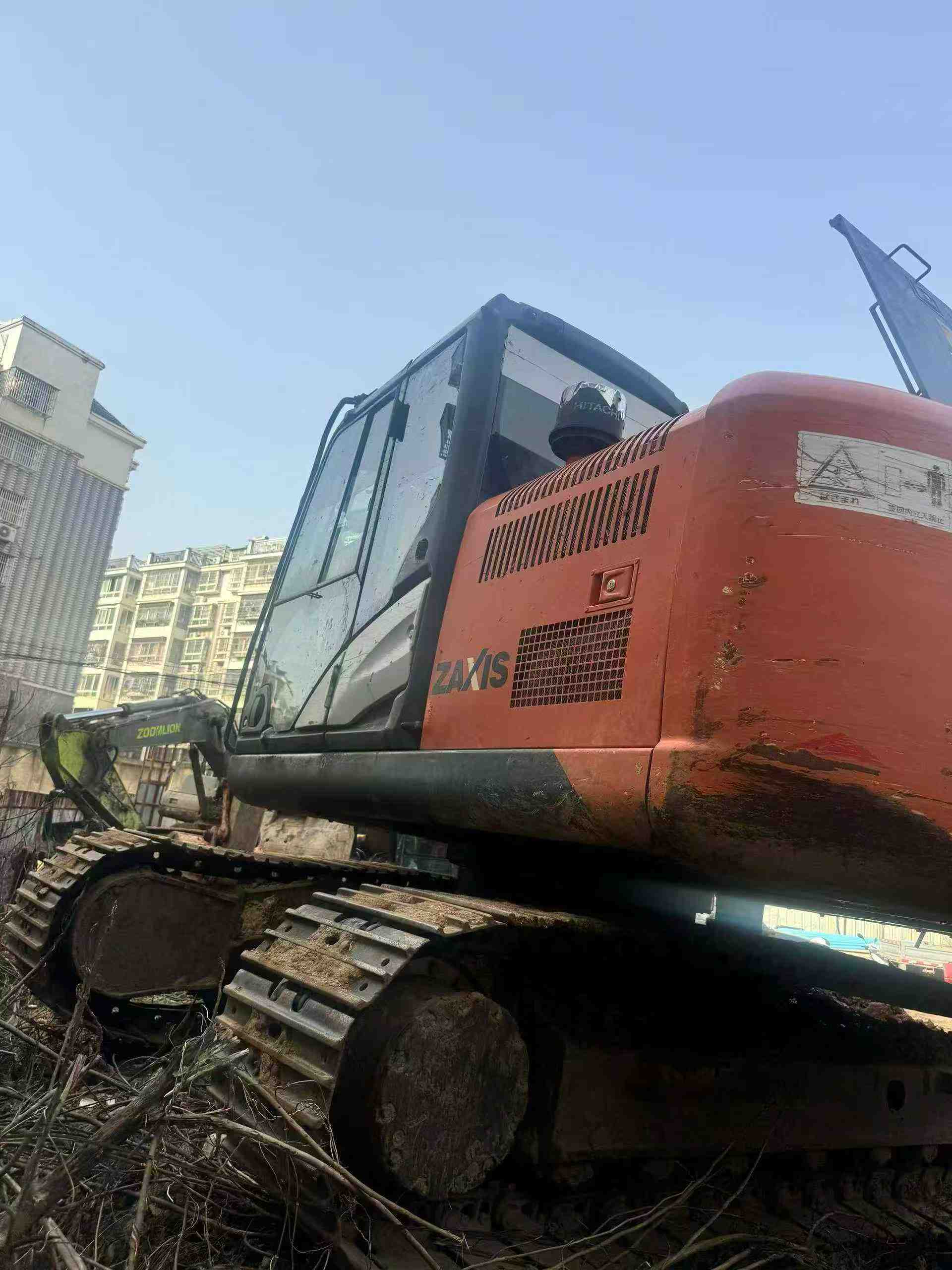

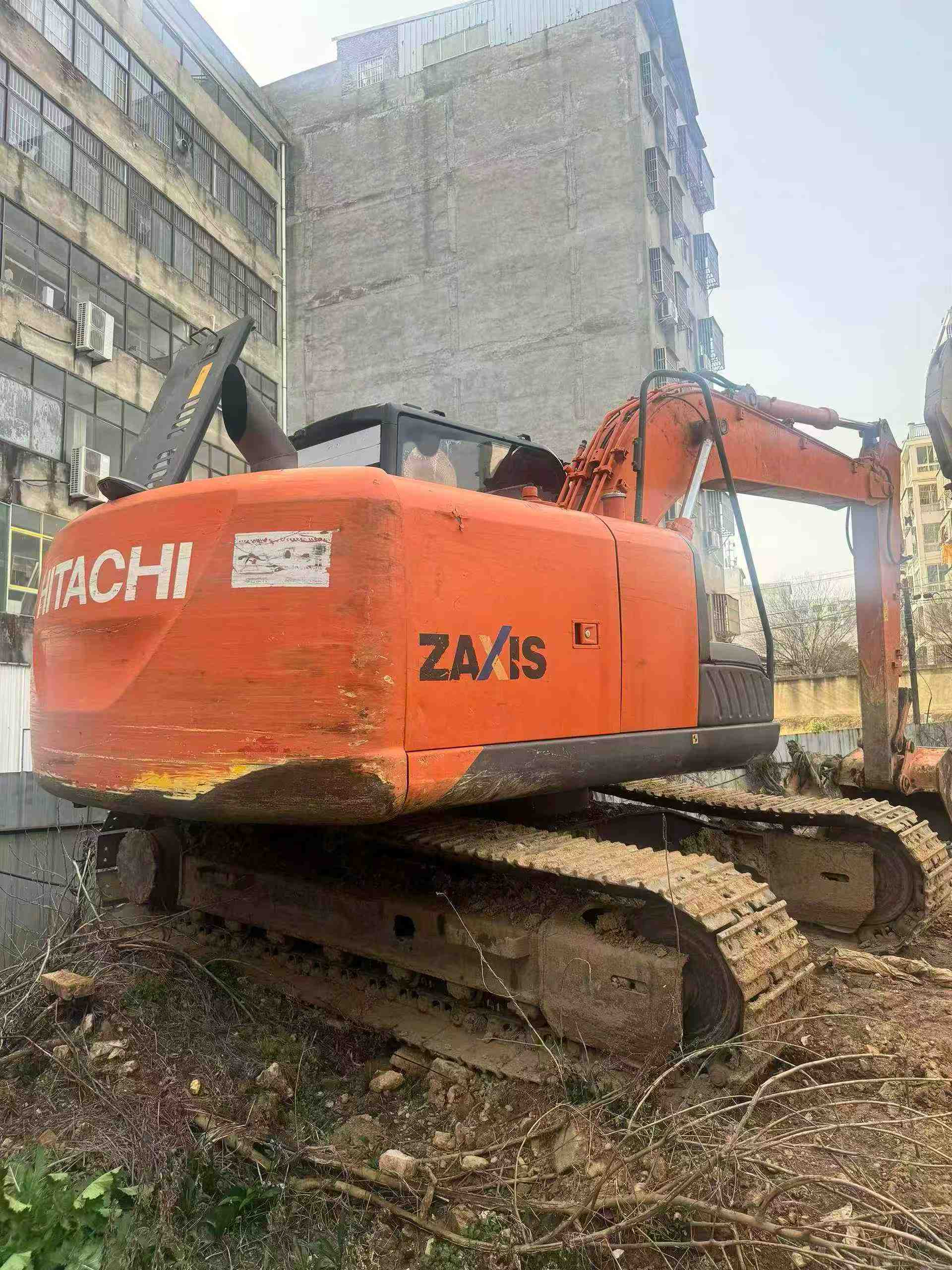

Expanding your fleet requires proven reliability and immediate productivity. This 2016 Hitachi ZX120 excavator delivers both, offering 12-ton capacity with the robust ISUZU CC-4BG1TC engine producing 66kW at 2150rpm. Sourced from Hefei and currently located in Wenzhou, Zhejiang, this mid-size machine integrates seamlessly into contractor operations requiring consistent performance across diverse job sites.
- Operating Specs: 0.52m³ bucket capacity, 8270mm maximum digging radius, 5570mm maximum digging depth
- Mobility: 12,200kg working weight with dual-speed travel (3.4/5.5 km/h), 70% grading capability, 2130mm rear swing radius for confined spaces
- Hydraulic System: Dual variable piston pumps, 34.3MPa main relief pressure, quantitative plunger rotation motor for precise control
- Fuel Efficiency: 250L fuel tank supports extended shifts, water-cooled 4-cylinder engine ensures durability
- Transport Dimensions: 7610mm × 2490mm × 2740mm for straightforward logistics
Ideal as a backup unit during peak season or as a permanent fleet addition, this ZX120 maintains operational continuity wi
| Specifications | Value |
|---|---|
| No. | 1018032 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
