2021 Hitachi ZX120

1/4

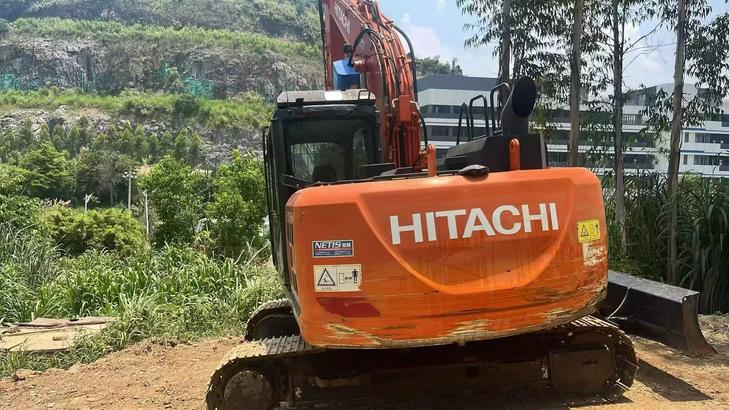

Buy Hitachi ZX120 Used Excavator / 1
Buy Hitachi ZX120 Used Excavator / 2
Buy Hitachi ZX120 Used Excavator / 3
Buy Hitachi ZX120 Used Excavator / 4

Product Description

This 2021 Hitachi ZX120-6A hydraulic excavator represents a well-maintained example of Hitachi's proven mid-size excavator platform. Manufactured for export with full Japanese specifications, this unit combines reliable performance with the operational efficiency expected from Hitachi's construction equipment lineup.

Key features include:

  • Operating weight class: approximately 12 tonnes
  • Hitachi HIOS III hydraulic system for responsive control
  • Fuel-efficient engine meeting emission standards
  • Spacious operator cabin with ergonomic controls
  • Low operating hours relative to model year

Currently located in Zhejiang Province, China. The machine is available for inspection by qualified buyers. Suitable for general excavation, trenching, material handling, and site preparation across construction and civil engineering applications.

SpecificationsValue
No.1141388
Tonnage (tons)12
Working weight (kg)12200
Bucket capacity (m³)0.52
Boom length (mm)4.6
Rod length (mm)2.52
Country of originHefei, Anhui Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU CC-4BG1TC
Rated power (kw/rpm)66/2150
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formDirect injection
Ground specific pressure (Kpa)37
Rotation speed (rpm)13.7
Climbing ability (%)70/35 °
Bucket digging force (kN)99
Rod digging force (kN)65
Travel speed (km/h)3.4/5.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative plunger pump ×1
Type of walking hydraulic motorVariable piston pump ×2
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump ×2+ gear pump ×1
Fuel Tank (L)250
Hydraulic Tank (L)69(Full box 130)
Engine Oil changes (L)15.8
Total transport length (mm)7610
Total transport width (mm)2490
Total transport height (mm)2740
Full cab height (mm)2740
Counterweight ground clearance (mm)890
Minimum ground clearance (mm)440
Back end turning radius (mm)2130
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2880
Maximum digging radius (mm)8270
Maximum digging depth (mm)5570
Maximum excavation height (mm)8570
Maximum unloading height (mm)6160
Maximum vertical digging depth (mm)5020
Bulldozer lift or depth (mm)No bulldozer
see more
