Product Description

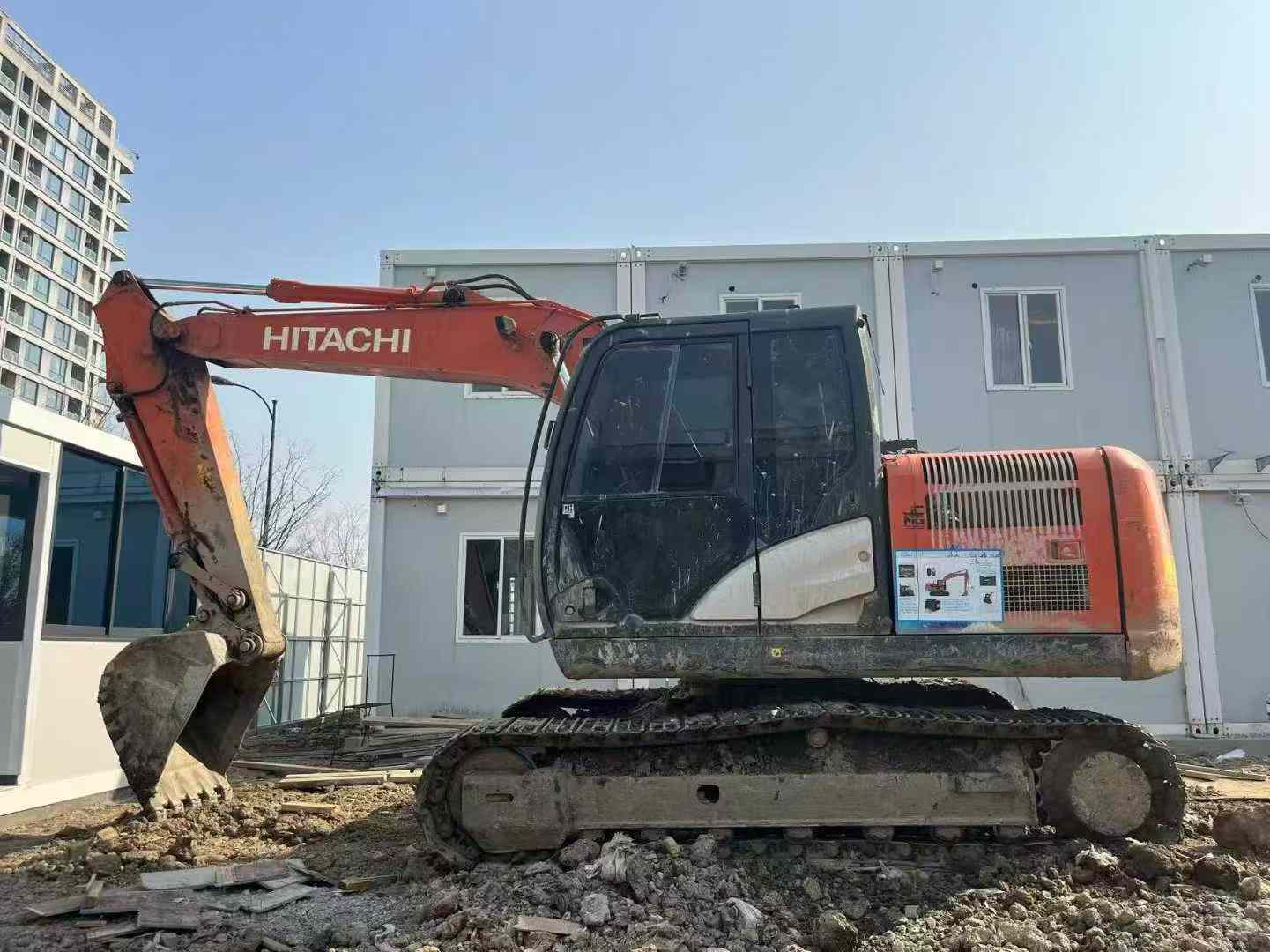

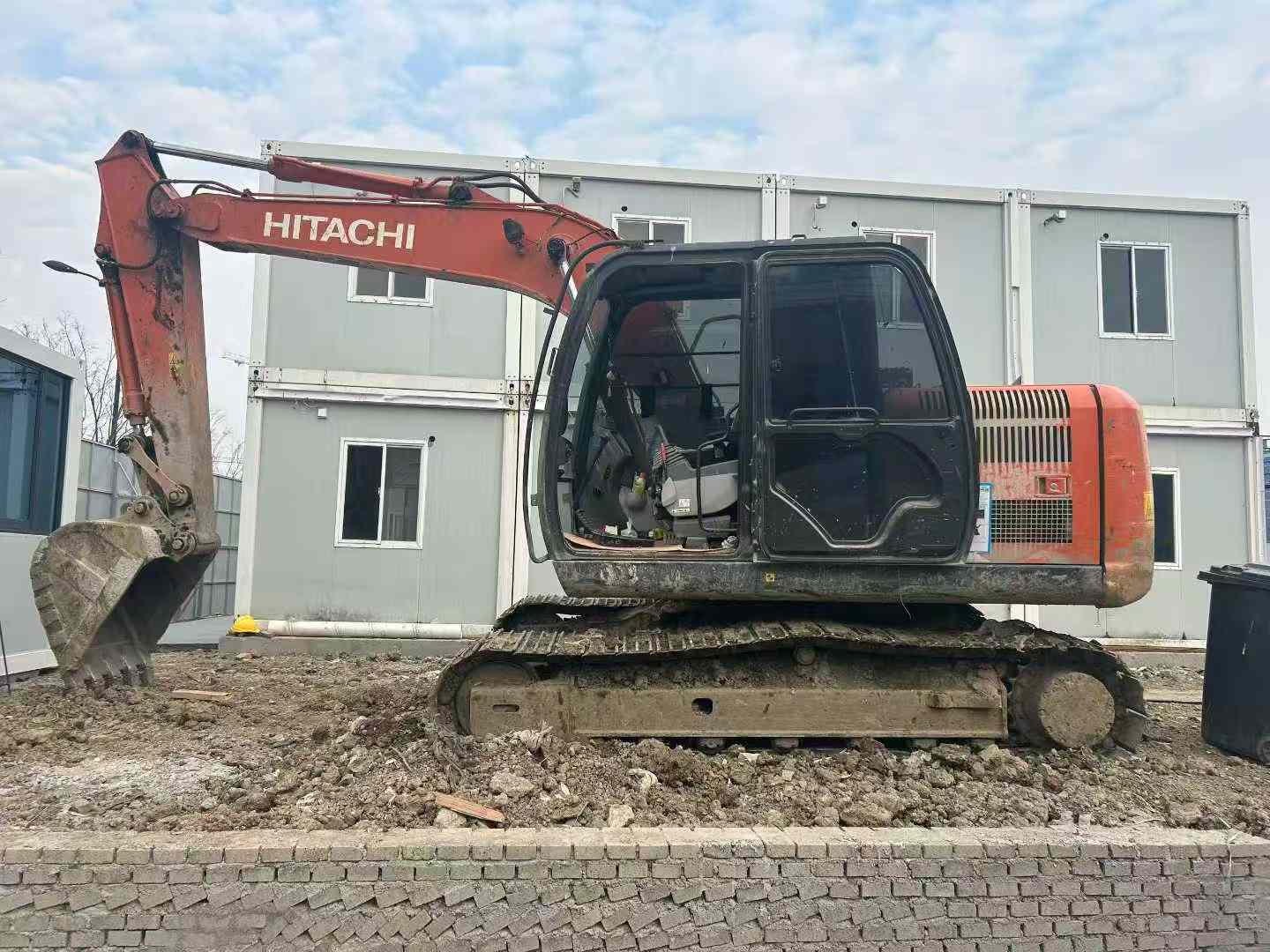

Maximize your equipment budget with this 2021 Hitachi ZX120 excavator, currently located in Hangzhou, Zhejiang. Delivering professional-grade performance at a fraction of new equipment costs, this 12-ton machine represents a smart investment for contractors seeking proven reliability without premium pricing. Powered by a robust ISUZU CC-4BG1TC engine generating 66kW at 2150 rpm, it combines a 0.52m³ bucket capacity with impressive digging force—99kN bucket force and 65kN arm force—to handle demanding excavation tasks efficiently.
Key specifications include:
- Working weight: 12,200 kg with optimal 37 Kpa ground pressure
- Maximum digging reach: 8,270 mm; digging depth: 5,570 mm
- Dual variable piston pumps plus gear pump hydraulic system
- Water-cooled 4-cylinder engine with 4.329L displacement
- Compact transport dimensions: 7,610 × 2,490 × 2,740 mm
- 250L fuel capacity for extended operation
Manufactured as a joint venture model in Hefei, this machine offers import-quality engineering with cost-effective ownership. Secure high-performance excavation capability while preserving capital for other operational needs.
| Specifications | Value |
|---|---|
| No. | 997502 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
