Product Description

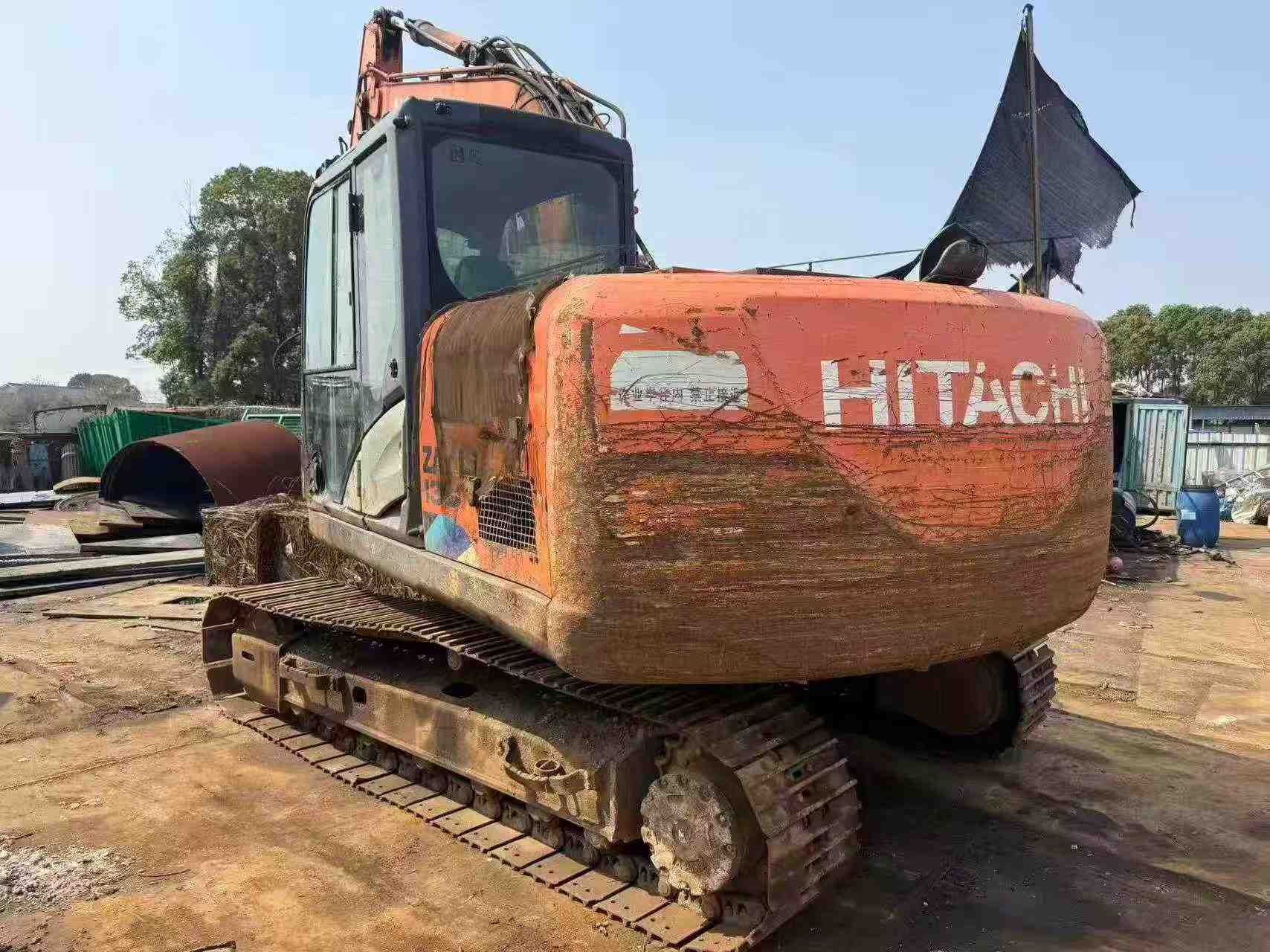

Built in 2017, this Hitachi ZX130-5A represents proven Japanese engineering with the support network global buyers demand. Operating at 13 tons with a 12,500 kg working weight, this excavator delivers reliable performance through its Isuzu GJ-4JJ1XKSA-03 engine producing 69 kW at 2000 rpm. Hitachi's reputation for longevity makes this model an intelligent investment in the used equipment market.
Key specifications include:
- Maximum digging reach of 8,300 mm with 5,540 mm depth capability
- 0.52 m³ bucket capacity with 104 kN digging force
- Dual variable axial piston pumps delivering 2 × 117 L/min flow
- Water-cooled 2.999L displacement engine with 354 N·m maximum torque
- Compact transport dimensions: 7,700 × 2,490 × 2,790 mm
Currently located in Wenzhou, Zhejiang, this machine benefits from Hitachi's extensive parts distribution network and strong resale values. Genuine components remain widely available, ensuring minimal downtime and protecting your investment. For contractors seeking dependable mid-size excavation power backed by a trusted manufacturer, this ZX130-5A offers proven performance and long-term value retention.
| Specifications | Value |
|---|---|
| No. | 1049528 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.52 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

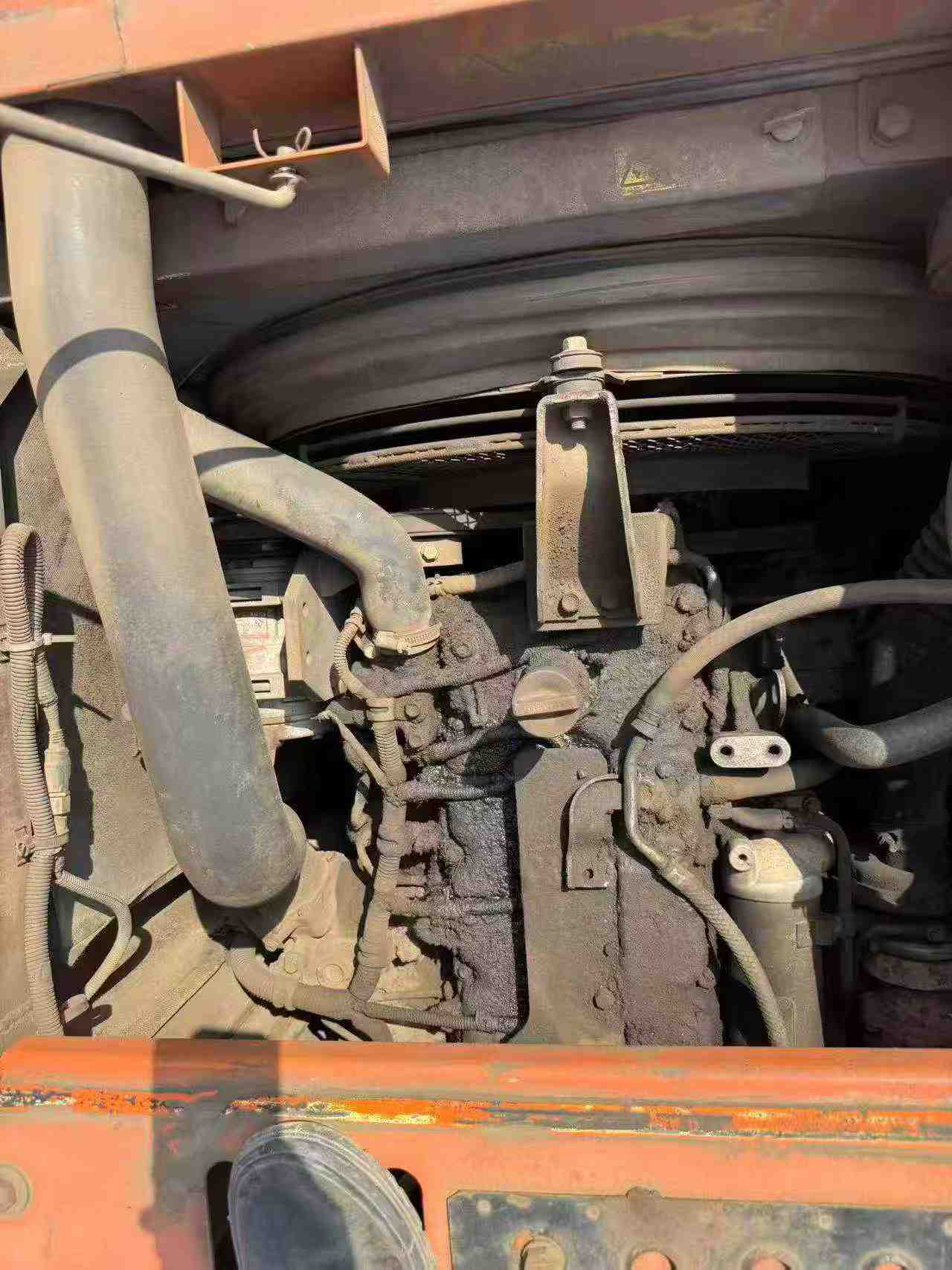

| Engine type | Isuzu GJ-4JJ1XKSA-03 |
| Rated power (kw/rpm) | 69/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 105 |
| Maximum torque (N.m) | 354/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 104 |
| Rod digging force (kN) | 69 |
| Maximum tractive force (kN) | 117 |
| Travel speed (km/h) | 3.3-5.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 117 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.0 |
| Pilot pump flow (L/min) | 33.6 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100*70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105*70 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 170 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 840 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2400 |
| Back end turning radius (mm) | 2190 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8300 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6190 |
| Maximum vertical digging depth (mm) | 4750 |
| Maximum excavation radius of stop surface (mm) | 8170 |
