Product Description

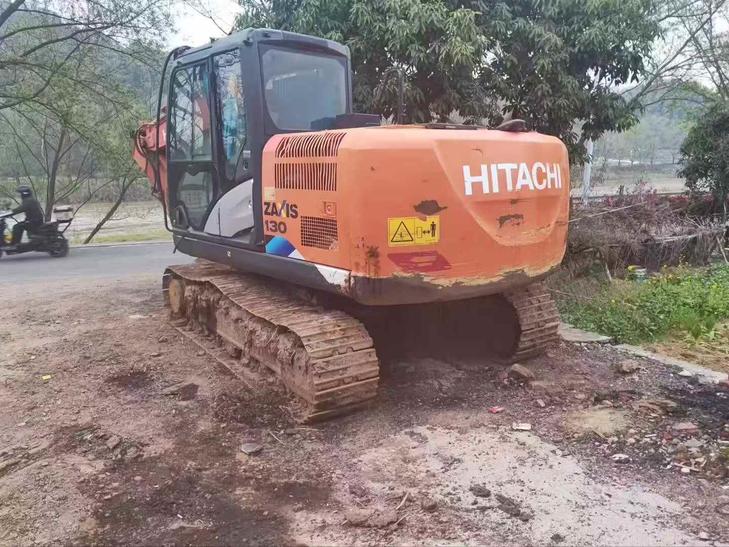

Built for precision and durability, this 2018 Hitachi ZX130-5A excavator delivers reliable performance across demanding jobsites. Operating at 13 tons with a 12,500 kg working weight, this machine combines powerful digging capability with exceptional maneuverability. The Isuzu GJ-4JJ1XKSA-03 engine generates 69 kW at 2000 rpm, providing consistent power for continuous excavation, grading, and material handling tasks.
Ready to deploy immediately, this crawler excavator features a 0.52 m³ bucket capacity and 2520 mm rod length for versatile digging operations. Maximum digging depth reaches 5,540 mm, while the 8,300 mm maximum digging radius ensures extensive working range. With 104 kN bucket digging force and 69 kN rod digging force, this machine tackles tough soil conditions and demolition work efficiently.
- Water-cooled 4-cylinder engine with 354 N.m maximum torque
- Dual variable axial piston pumps (2 × 117 L/min flow)
- 70% climbing ability for challenging terrain
- Compact transport dimensions: 7700 × 2490 × 2790 mm
- 280 L fuel tank for extended operation
- Currently located in Guizhou, China
| Specifications | Value |
|---|---|
| No. | 1036456 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.52 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GJ-4JJ1XKSA-03 |
| Rated power (kw/rpm) | 69/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 105 |
| Maximum torque (N.m) | 354/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 104 |
| Rod digging force (kN) | 69 |
| Maximum tractive force (kN) | 117 |
| Travel speed (km/h) | 3.3-5.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 117 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.0 |
| Pilot pump flow (L/min) | 33.6 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100*70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105*70 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 170 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 840 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2400 |
| Back end turning radius (mm) | 2190 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8300 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6190 |
| Maximum vertical digging depth (mm) | 4750 |
| Maximum excavation radius of stop surface (mm) | 8170 |
