Product Description

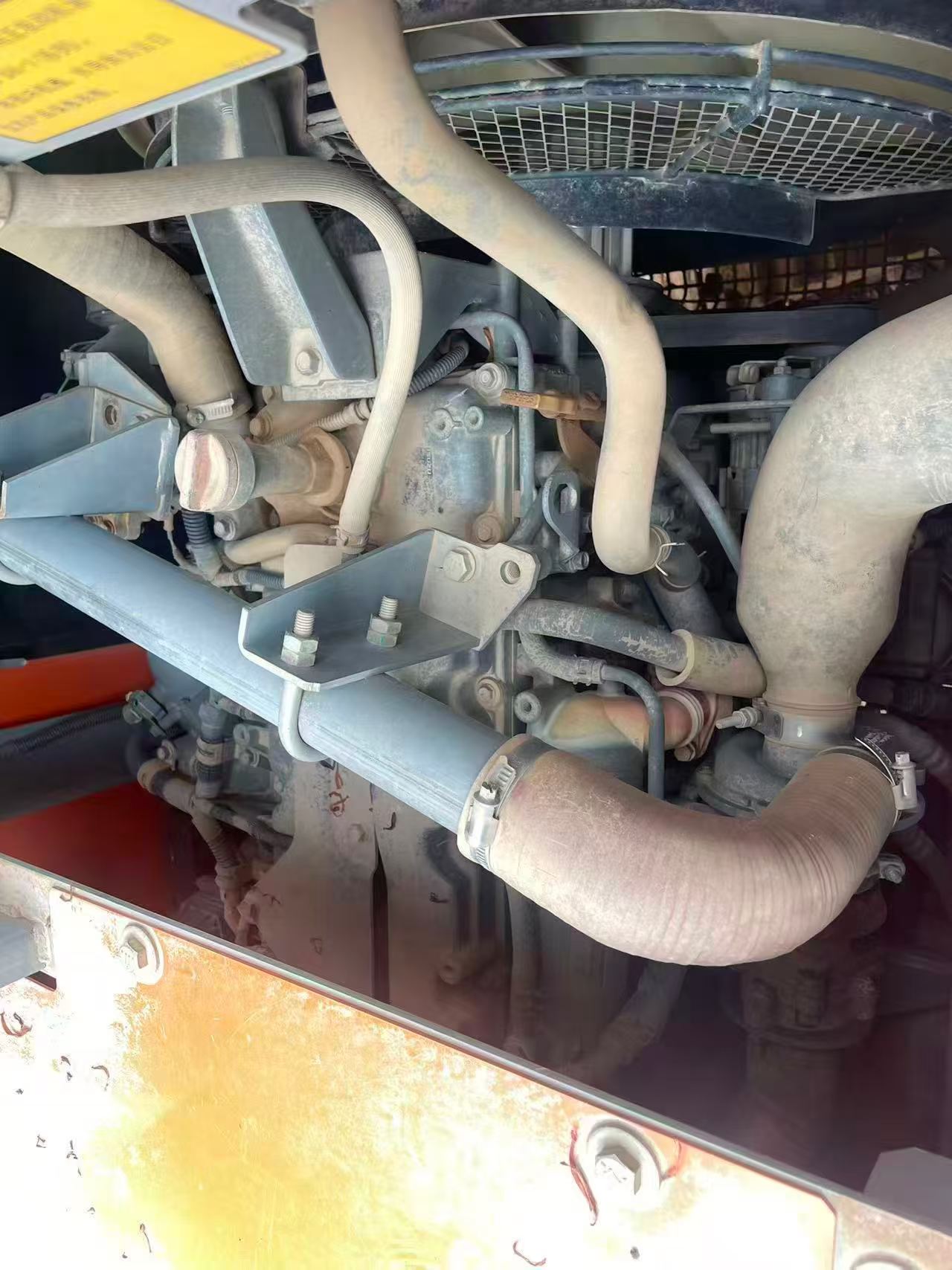

Proven performance meets exceptional durability in this 2016 Hitachi ZX170W-3 wheeled excavator, now available from our Huizhou, Guangdong facility. Engineered with Japan's renowned build quality and assembled through joint venture manufacturing, this 17-ton workhorse has demonstrated its reliability across demanding jobsites. Powered by a robust ISUZU AI-4HK1X turbocharged and intercooled engine delivering 107kW at 2000rpm, this machine combines traditional power with efficient water-cooling technology for consistent performance in challenging conditions.
Built for versatility, this excavator features impressive mobility with high-speed travel up to 35 km/h and a 6.65-meter minimum turning radius. Key specifications include:
- Operating weight: 17,800 kg with 0.7 m³ bucket capacity
- Maximum digging reach: 9,050 mm with 5,330 mm depth capability
- Powerful digging forces: 83 kN bucket and 80 kN arm breakout force

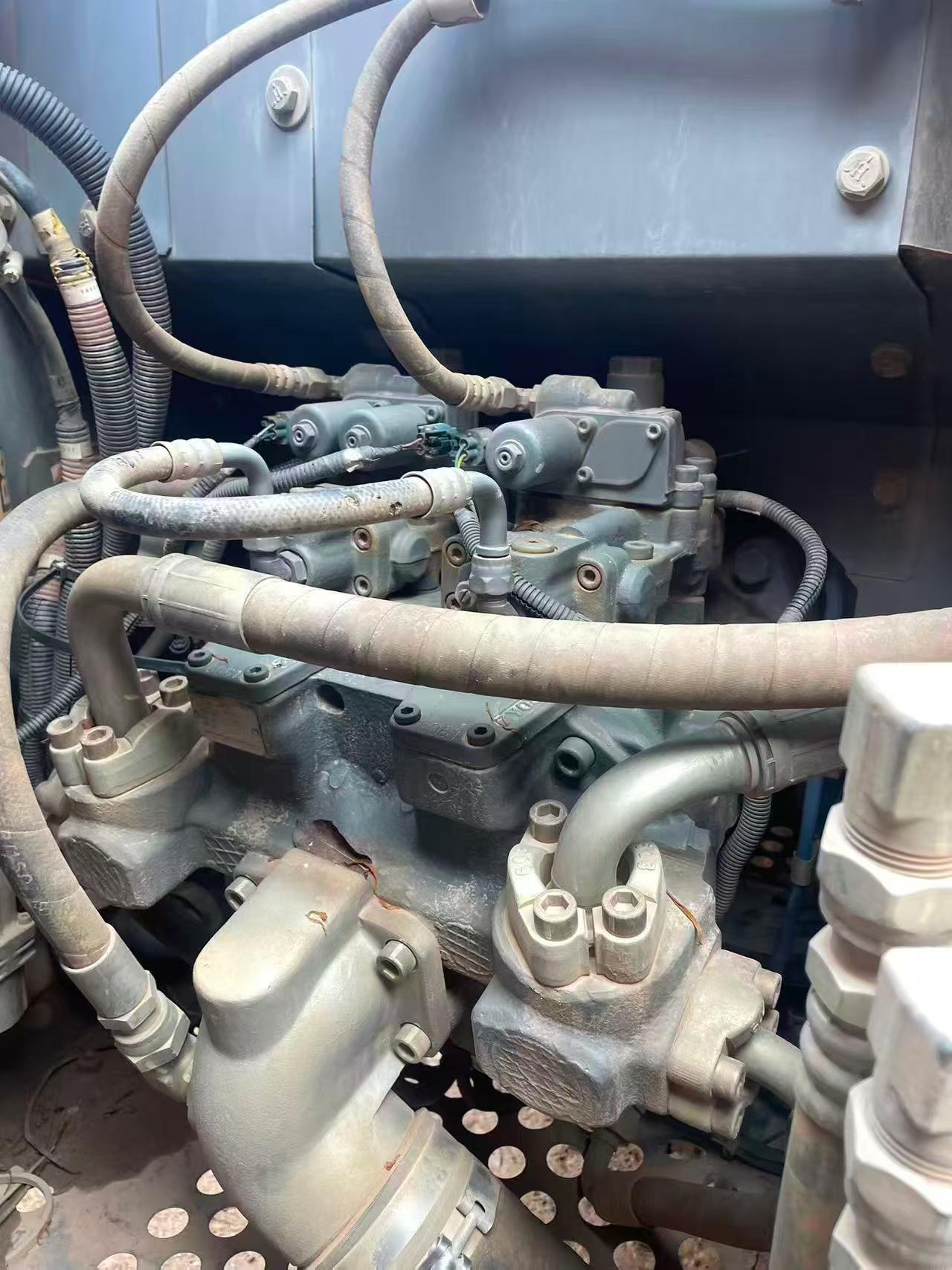

- Dual variable piston pumps providing 200 L/min flow each
- Exceptional 70% (35°) gradeability for steep terrain work
Years of proven service validate this machine's reputation as a dependable backhoe designed to deliver consistent results across construction,
| Specifications | Value |
|---|---|
| No. | 1049025 |
| Tonnage (tons) | 17 |
| Working weight (kg) | 17800 |
| Bucket capacity (m³) | 0.7 |
| Rod length (mm) | 2580 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 107/2000 |
| Total displacement (L) | 5.193 |
| Cooling mode | water-cooling |
| remark | Turbocharged and intercooled |
| Forward speed (Km/h) | Crawling 2.6/ Low speed 8.6/ High speed 35 |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 83 |
| Rod digging force (kN) | 80 |
| Minimum turning radius (m) | 6650 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger type ×1 |
| Type of walking hydraulic motor | Variable plunger type x 1 |
| Maximum flow of main pump (l/min) | 200 * 2 + 28.6 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.3 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-110×80 (piston rod diameter) |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 1-120×90 (piston rod diameter) |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 1-105×75 (piston rod diameter) |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston type ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 28.6 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 8580 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 3130 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1235 |
| Wheelbase (mm) | 2550 |
| Total tire outside width (mm) | 2470 |
| Minimum ground clearance (mm) | 350 |
| Maximum digging radius (mm) | 9050 |
| Maximum excavation radius (mm) | 8870 |
| Maximum digging depth (mm) | 5330 |
| Maximum excavation height (mm) | 9100 |
| Maximum unloading height (mm) | 6360 |
| Maximum vertical digging depth (mm) | 5600 |
| Minimum turning radius (mm) | 2940 |
| Bulldozer lift or depth (mm) | 445 |
| Dodging plate width × height (mm) | 2530 x 590 |
