Product Description

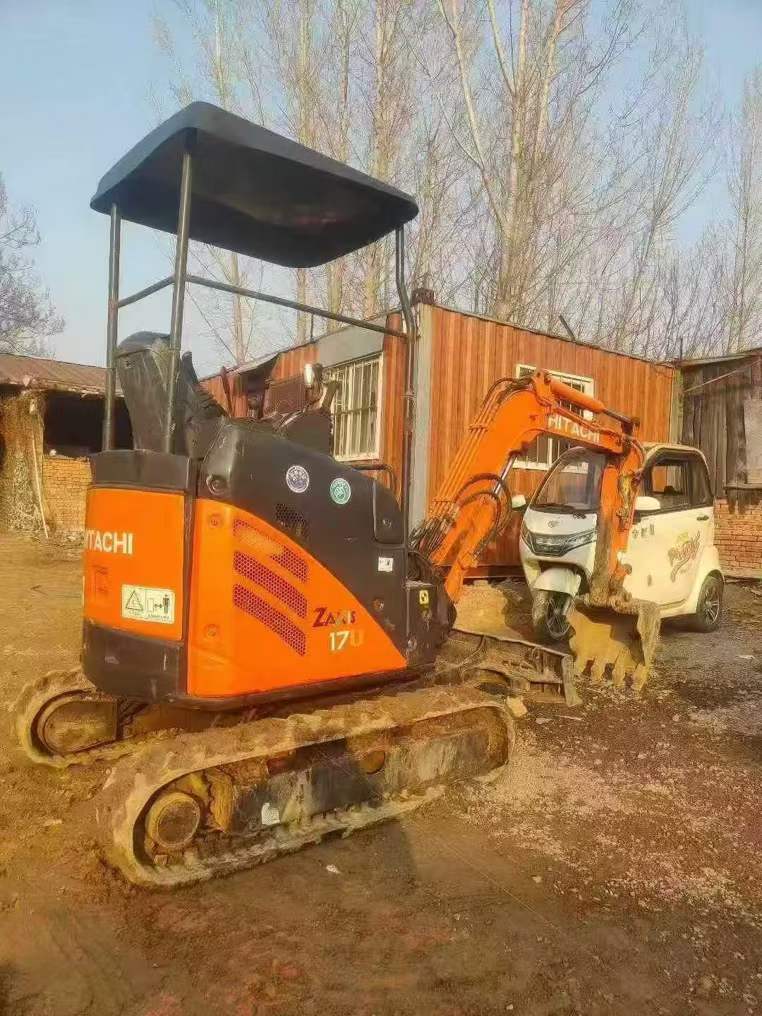

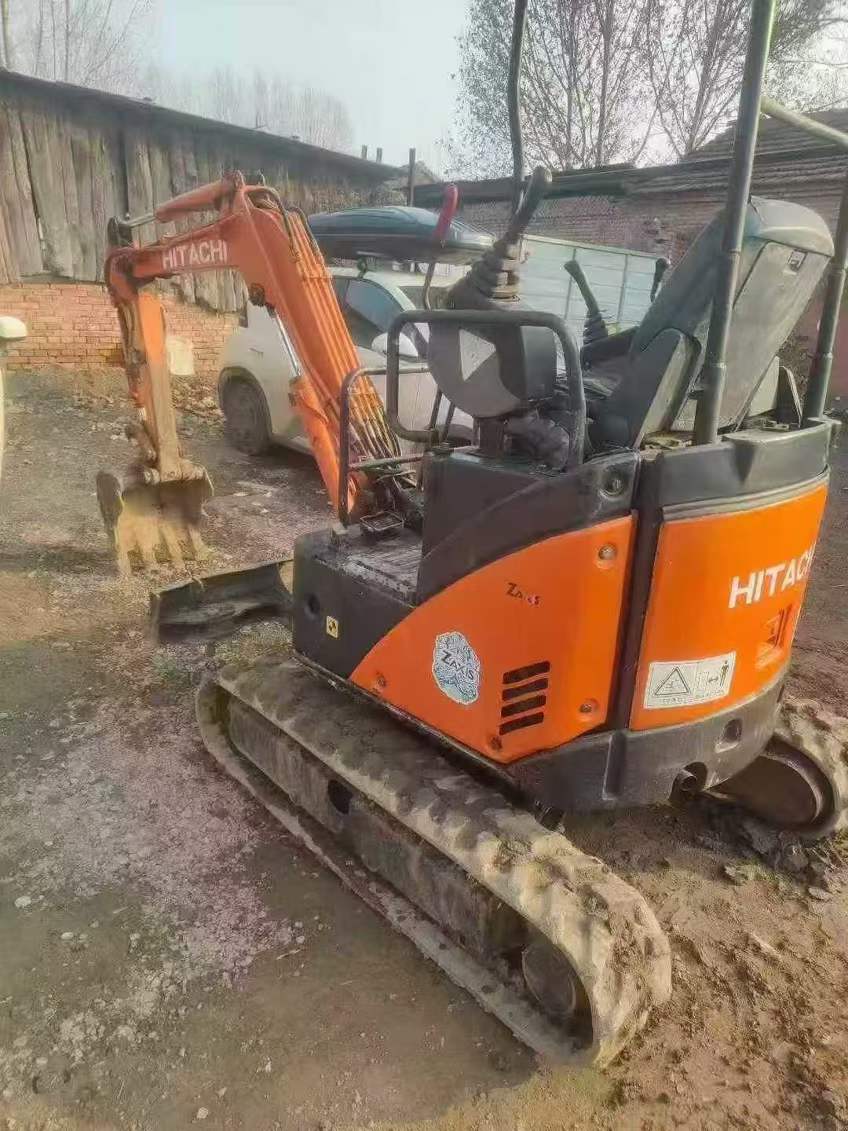

Built for endurance and proven in the field, this 2016 Hitachi ZX17U-2 compact excavator demonstrates exceptional reliability after years of dependable service. With its robust 1-ton capacity and precise 0.020-0.050 m³ bucket range, this workhorse delivers consistent performance in tight spaces where larger machines cannot operate.
Powered by a reliable Yanmar 3TNV70 engine producing 11.0 kW at 2400 rpm, this machine combines fuel efficiency with steady power output. Key performance specifications include:
- Maximum digging depth of 2,170mm with 3,900mm reach
- Compact transport dimensions: 3,590mm length × 980mm width
- Strong digging forces: 16kN bucket, 10.3kN rod
- Variable travel speeds from 2.4-4.3 km/h for precise positioning
Currently located in Hangzhou, Zhejiang, this proven excavator represents solid value for contractors seeking dependable compact earthmoving capability. After a decade of operation, its continued functionality speaks to Hitachi's engineering excellence and build quality that stands the test of time.
| Specifications | Value |
|---|---|
| No. | 991373 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.020 - 0.050 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 11.0/2400 |
| Cylinder diameter × stroke (mm) | 70 x 74 |
| Displacement (L) | 0.854 |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 10.3 |
| Travel speed (km/h) | 2.4-4.3 |
| Turning torque (Nm) | 50.2 |
| Main overflow set pressure (Mpa) | 20.6 |
| Maximum flow of main pump (l/min) | 2 x 19.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 60 x 94 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 60 x 311 |
| Boom cylinders - Number × diameter × stroke (mm) | 60 x 406 |
| Fuel Tank (L) | 19.5 |
| Engine Oil changes (L) | 3.1 |
| Coolant (L) | 15.7 |
| Total transport length (mm) | 3590 |
| Total transport width (mm) | 980 |
| Total transport height (mm) | 2400 |
| Minimum ground clearance (mm) | 165 |
| Back end turning radius (mm) | 1610 |
| Track gauge (mm) | 1210 |
| Track plate width (mm) | 2230 |
| Maximum digging radius (mm) | 3900 |
| Maximum digging depth (mm) | 2170 |
| Maximum excavation height (mm) | 3560 |
| Maximum unloading height (mm) | 2530 |
