Product Description

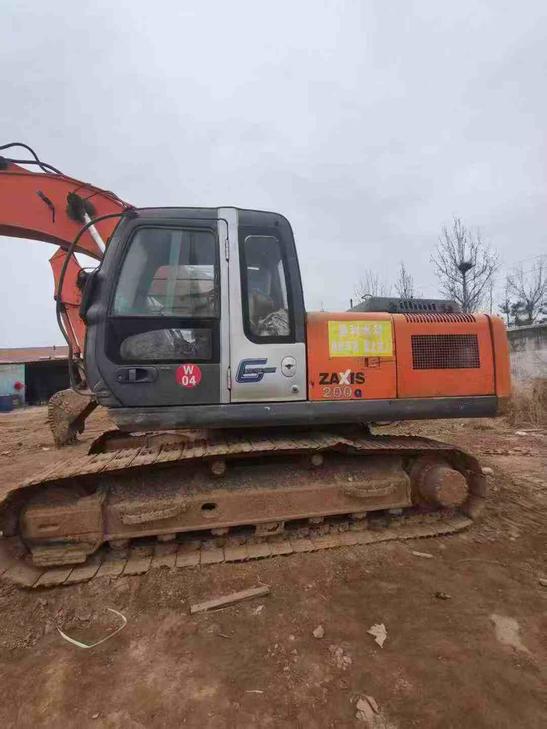

Powered by a robust ISUZU AA-6BG1T turbocharged engine delivering 110kW at 2100rpm, this 2013 Hitachi ZX200-3G offers proven performance for demanding excavation projects. Operating at 20 tons with a 0.91m³ bucket capacity, this machine combines impressive digging force—151kN bucket force and 109kN arm force—with a maximum digging reach of 9910mm and depth of 6660mm. Dual variable axial piston pumps provide 194 l/min flow each, ensuring responsive hydraulics across all functions.
Currently located in Jinan, Shandong, this joint-venture manufactured excavator represents exceptional value compared to new equipment costs. With a 6.494L displacement engine, water-cooled intercooled design, and comprehensive hydraulic system, you're acquiring professional-grade capability without the premium price tag. The 600mm track plates and 2200mm gauge deliver stable operation across varied terrain, while the 9500mm transport length facilitates efficient relocation between jobsites.
- 20-ton working weight with 0.91m³ bucket capacity
- ISUZU 6-cylinder turbocharged engine (110kW)
- Maximum digging reach: 9910mm; depth: 6660mm
- Dual variable piston pumps for superior hydraulic response
- Cost-effectiv
| Specifications | Value |
|---|---|
| No. | 1019654 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5.68(H Type) |
| Rod length (mm) | 2.91(H type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AA-6BG1T |
| Rated power (kw/rpm) | 110/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 44 |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 194 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115x80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2960 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
