2013 Hitachi ZX200-3G

1/6

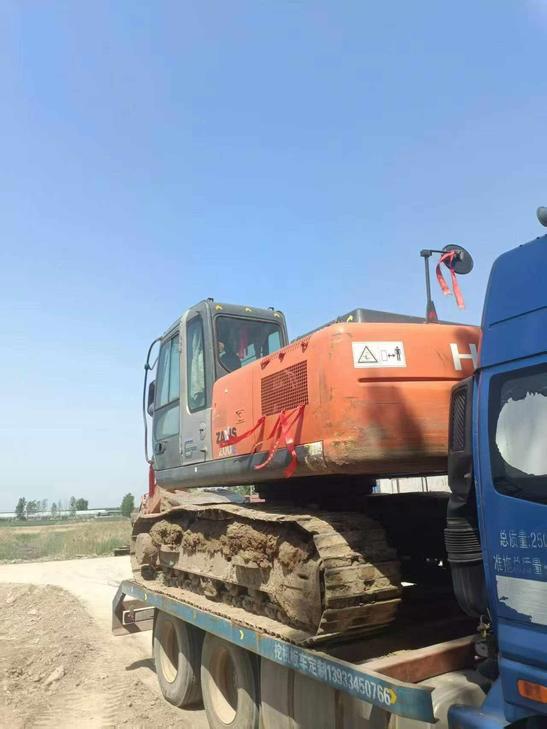

Buy Hitachi ZX200-3G Used Excavator / 1
Buy Hitachi ZX200-3G Used Excavator / 2
Buy Hitachi ZX200-3G Used Excavator / 3
Buy Hitachi ZX200-3G Used Excavator / 4
Buy Hitachi ZX200-3G Used Excavator / 5
Buy Hitachi ZX200-3G Used Excavator / 6

Product Description

Discover the reliability and efficiency of the 2013 Hitachi ZX200-3G, now available in Jiangsu, China. This used excavator is a top-tier model, renowned for its robust performance and durability. Ideal for construction, mining, and large-scale earthmoving projects, the ZX200-3G offers exceptional power and precision, ensuring that your operations run smoothly and efficiently.

  • Year: 2013
  • Brand: Hitachi
  • Model: ZX200-3G
  • Location: Jiangsu, China

This machine has been meticulously maintained and is in excellent condition, ready to meet the demands of your next project. With its proven track record, the Hitachi ZX200-3G is a solid investment for any industrial fleet.

SpecificationsValue
No.1088256
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)0.91
Boom length (mm)5.68(H Type)
Rod length (mm)2.91(H type)
Country of originHefei, Anhui Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AA-6BG1T
Rated power (kw/rpm)110/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)105 x 125
Number of cylinders (PCS)6
Displacement (L)6.494
Working form4 stroke, water cooled, direct injection, turbocharged, intercooled
Ground specific pressure (Kpa)44
Bucket digging force (kN)151
Rod digging force (kN)109
Rotary hydraulic motor typeAxial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)194 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30.4
Main pump typeVariable axial piston pump ×2
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1-115x80
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 95
Boom cylinders - Number × diameter × stroke (mm)2-120 x 85
Fuel Tank (L)360
Hydraulic Tank (L)135
Engine Oil changes (L)25
Coolant (L)23
Hydraulic System (L)240
Total transport length (mm)9500
Total transport width (mm)2860
Total transport height (mm)2970
Full cab height (mm)2960
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6660
Maximum excavation height (mm)9610
Maximum unloading height (mm)6790
Maximum vertical digging depth (mm)6040
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Boom turning Angle (left/right °)There is no
see more

Overview

No.1088256

Brand Name:

Hitachi

Model Number:

ZX200-3G

Year:

2013

Location:

Jiangsu China

Pub Date
