Product Description

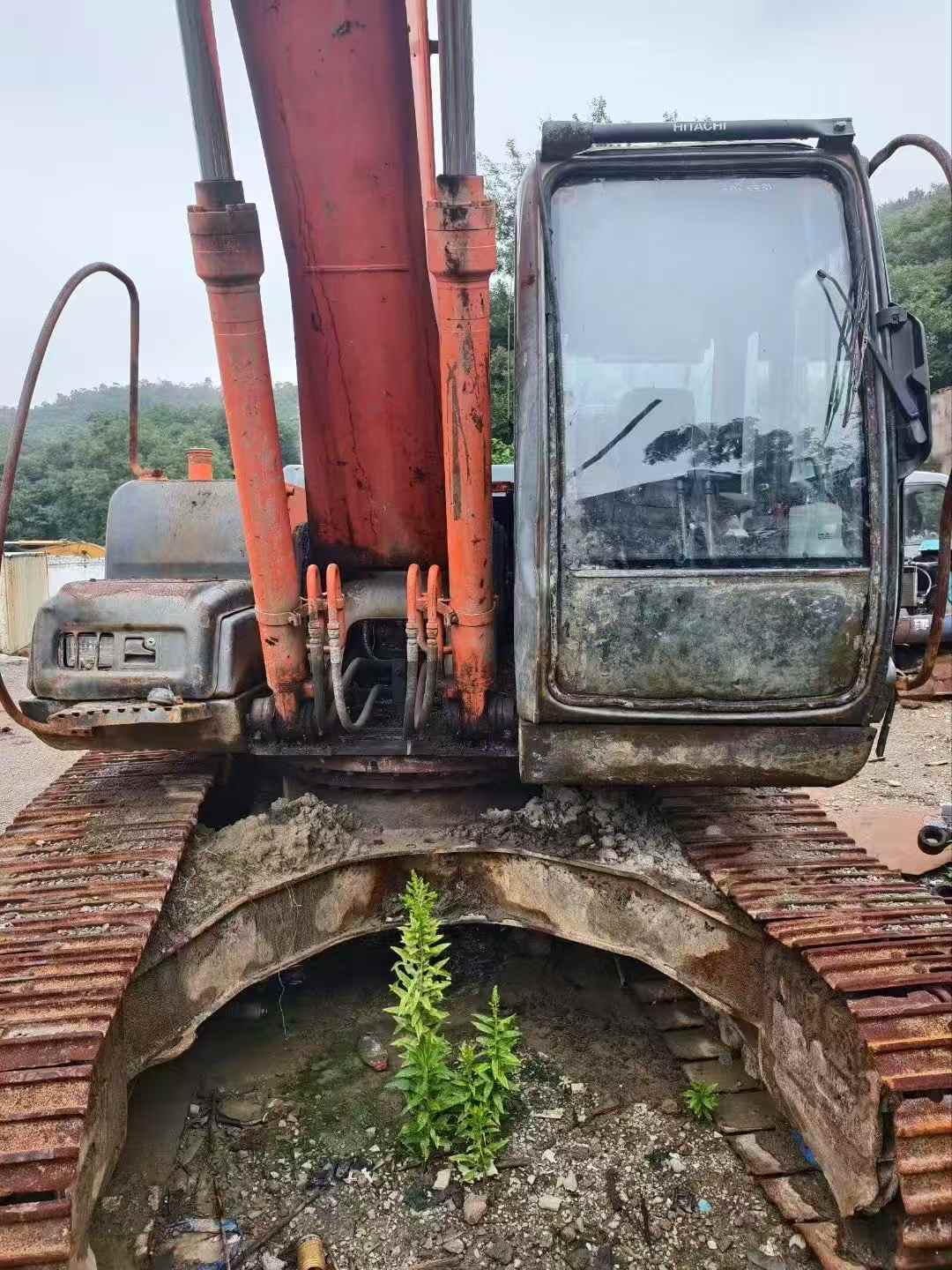

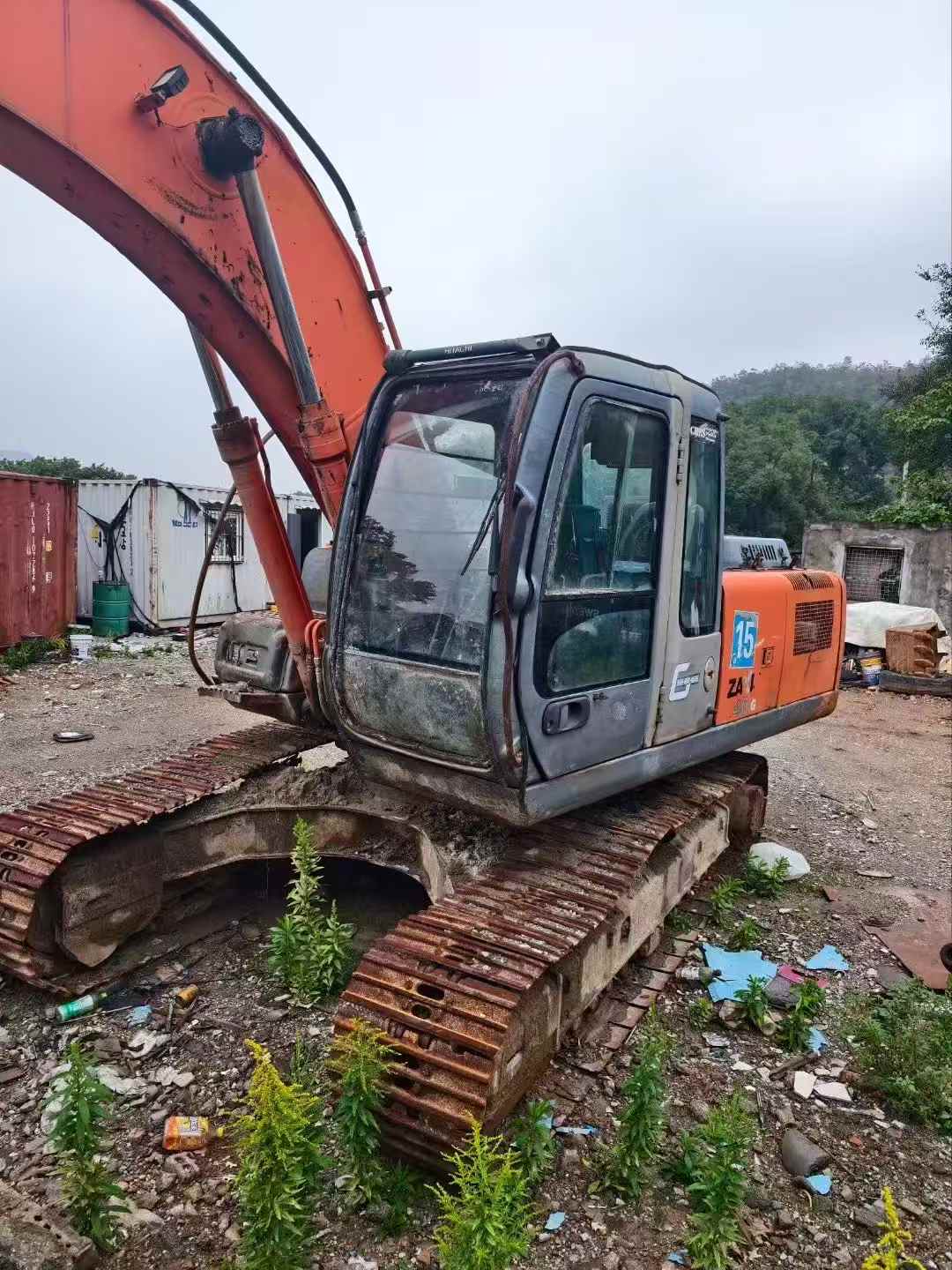

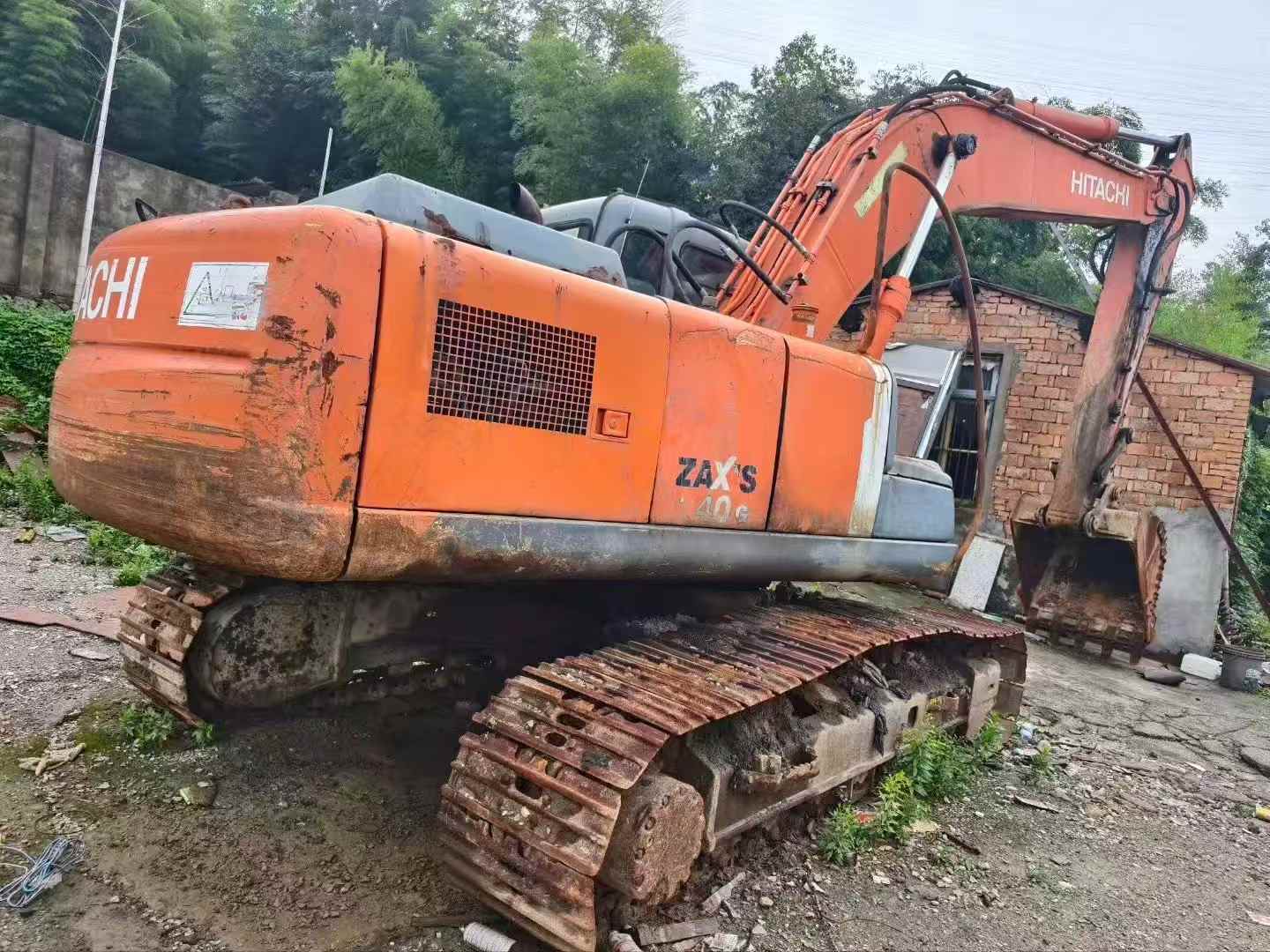

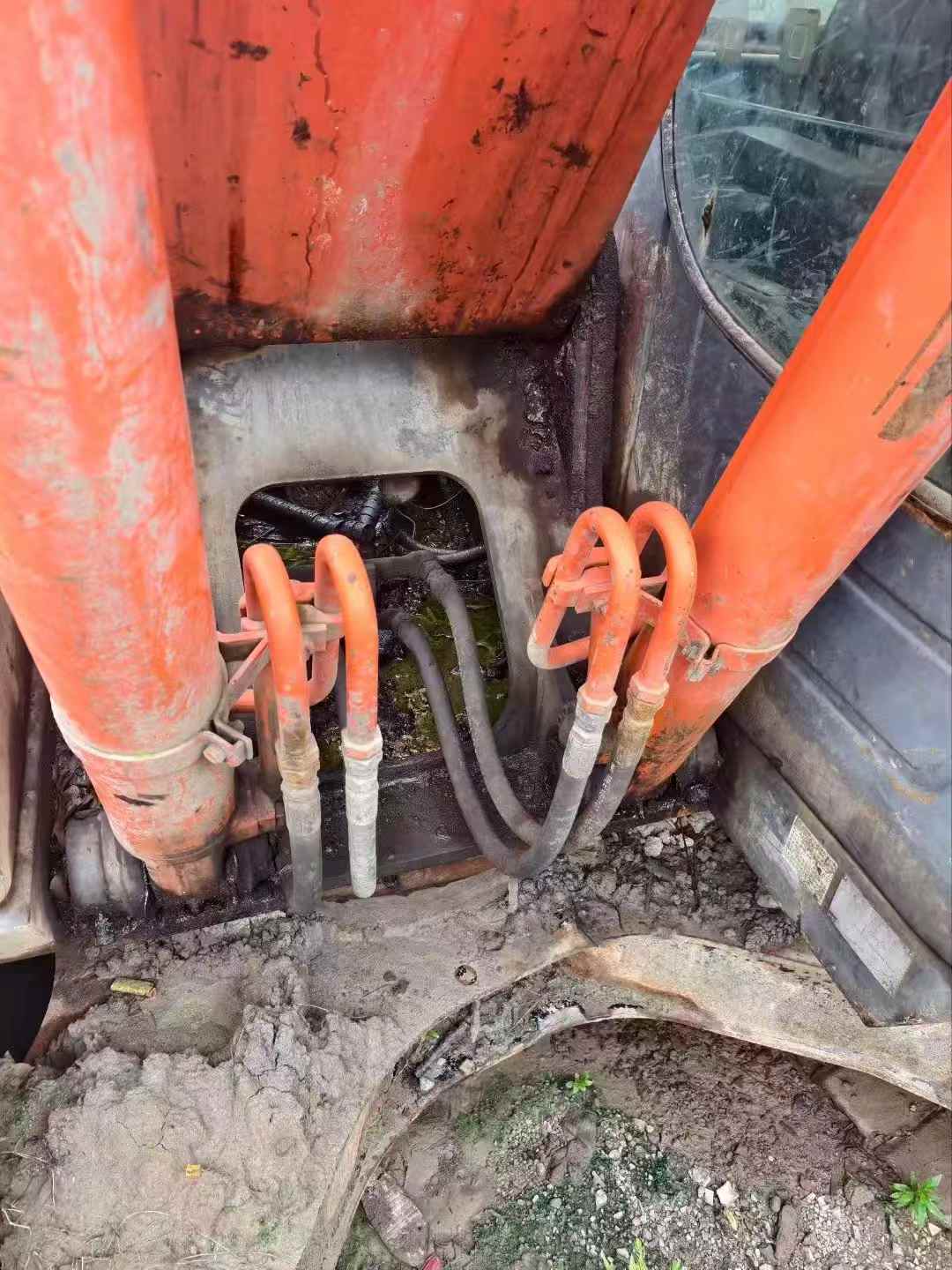

With a working weight of 19,800 kg and a bucket capacity of 0.91 m³, this 20-ton Hitachi ZX200-3G excavator from 2016 is a proven workhorse. Built to last, it features an ISUZU AA-6BG1T engine, delivering 110 kW at 2100 rpm, ensuring reliable performance. Equipped with a backhoe bucket, it provides a robust digging force of 151 kN for the bucket and 109 kN for the rod. The machine's hydraulic system, powered by two variable axial piston pumps, offers a maximum flow of 194 l/min, enhancing efficiency in various applications. Located in 福建三明, this excavator is ready to tackle your toughest jobs with its durable construction and impressive specifications.
- Working weight: 19,800 kg
- Bucket capacity: 0.91 m³
- Engine: ISUZU AA-6BG1T, 110 kW at 2100 rpm
- Hydraulic system: Variable axial piston pumps, 194 l/min
- Location: 福建三明
| Specifications | Value |
|---|---|
| No. | 1023331 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5.68(H Type) |
| Rod length (mm) | 2.91(H type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AA-6BG1T |
| Rated power (kw/rpm) | 110/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 44 |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 194 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |

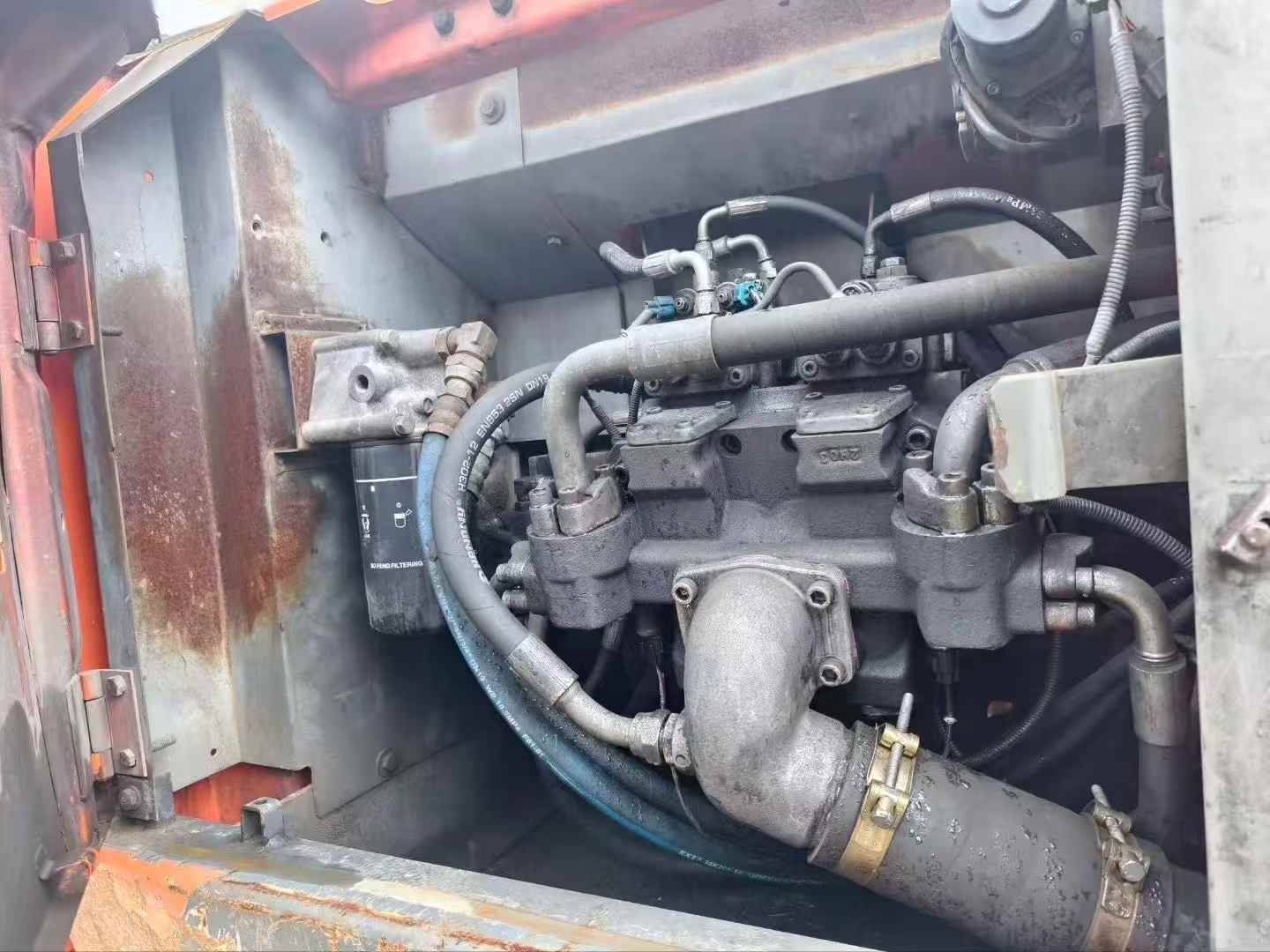

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115x80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2960 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
