Product Description

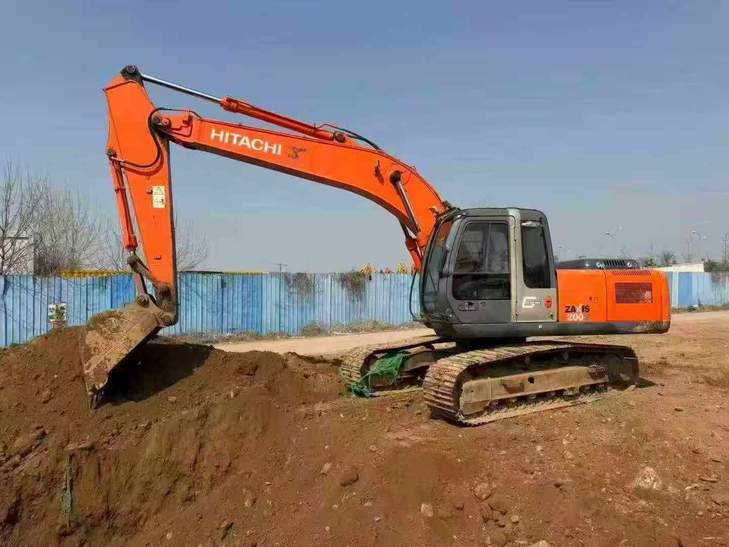

Built in 2016, this Hitachi ZX200-3G delivers robust performance across demanding excavation tasks with its 20-ton operating weight and proven ISUZU AA-6BG1T engine producing 110 kW at 2100 rpm. Engineered at Hitachi's Hefei facility in Anhui Province, this mid-size excavator combines precision hydraulics with operator-focused design for enhanced productivity on construction and earthmoving sites.
Equipped with dual variable axial piston pumps delivering 194 l/min each, the machine generates impressive digging forces—151 kN bucket force and 109 kN arm force—while maintaining excellent reach with a maximum digging radius of 9,910 mm and depth capacity of 6,660 mm. The 0.91 m³ bucket capacity handles substantial material volumes efficiently.
Key operator advantages include:
- Spacious cab positioned at 2,960 mm height offering commanding site visibility
- Low ground specific pressure of 44 kPa ensures stable operation on variable terrain
- Compact 2,750 mm rear turning radius enables work in confined areas
- Water-cooled, turbocharged engine with intercooler provides consistent power delivery
- Responsive pilot hydraulic controls (3.9 MPa) reduce operator fatigue
| Specifications | Value |
|---|---|
| No. | 1049552 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5.68(H Type) |
| Rod length (mm) | 2.91(H type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AA-6BG1T |
| Rated power (kw/rpm) | 110/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 44 |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 194 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115x80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2960 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
