Product Description

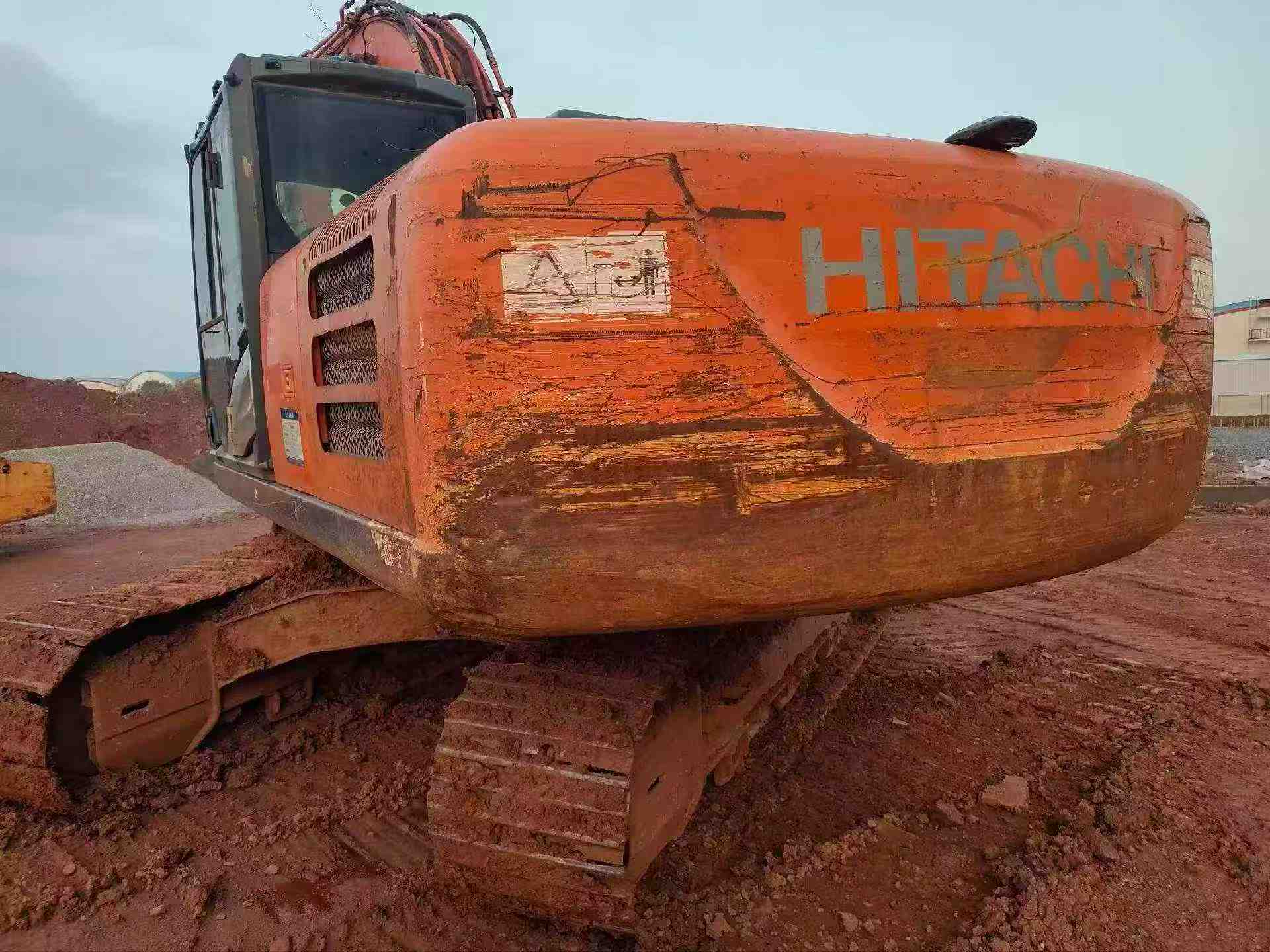

Designed for operators who demand precision and comfort, this 2014 Hitachi ZX200-5G delivers reliable performance on demanding jobsites. Operating at 20 tons with a 125 kW Isuzu engine, this excavator combines power with exceptional control. The spacious cabin offers superior visibility across the 9,920 mm maximum digging radius, while ergonomic controls reduce operator fatigue during extended shifts.
- Enhanced stability with 45 Kpa ground specific pressure and 2,200 mm track gauge
- Smooth handling via dual variable axial piston pumps delivering 424 L/min combined flow
- Excellent reach: 6,670 mm maximum digging depth and 10,040 mm excavation height
- Responsive hydraulics with 158 kN bucket digging force for tough materials
- Comfortable operation with water-cooled, turbocharged 6-cylinder engine
- 0.91 m³ backhoe bucket capacity for versatile excavation tasks
Currently located in Shaoxing, Zhejiang, this joint-venture manufactured machine represents proven Hitachi engineering. With a 70% climbing ability and 13.5 rpm rotation speed, operators can work confidently on varied terrain while maintaining productivity throughout the workday.
| Specifications | Value |
|---|---|
| No. | 1031463 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.91 |
| Rod length (mm) | 2.91 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Maximum torque (N.m) | 637 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Maximum tractive force (kN) | 203 |
| Travel speed (km/h) | 5.5/3.5 |
| Turning torque (Nm) | 68 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 34.3 |
| Main pump type | 2 variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33.6 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 115 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 120 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9,660 |
| Total transport width (mm) | 2,860 |
| Total transport height (mm) | 3,010 (total boom height) |
| Full cab height (mm) | 2,950 |
| Counterweight ground clearance (mm) | 1,030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3,180 |
| Back end turning radius (mm) | 2,890 |
| Onboard width (mm) | 2,710 |
| Total track length (mm) | 4,170 |
| Track gauge (mm) | 2,200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2,800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6,670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5,990 |
| Maximum excavation radius of stop surface (mm) | 9,750 |
| Maximum effective digging depth (mm) | 6,490 |
