Product Description

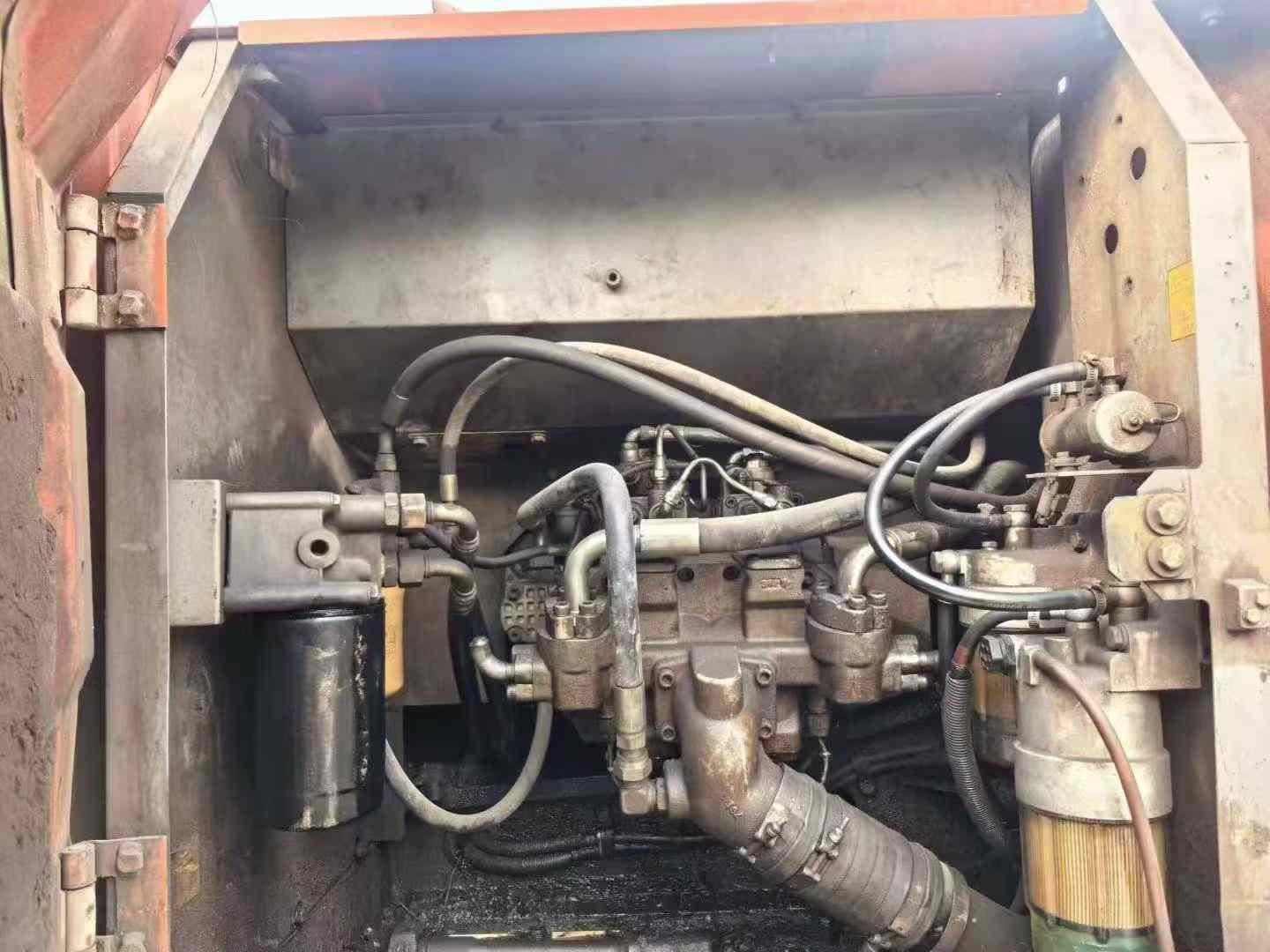

Equipped with an Isuzu AI-4HK1X engine, this 2016 Hitachi ZX210K-3 excavator delivers a rated power of 122 kW at 2000 rpm. Featuring a direct injection system with a turbocharger and intercooler, it ensures efficient and reliable performance. The hydraulics are powered by a dual-variable plunger type main pump and a gear type pump, providing a main overflow set pressure of 34.3 Mpa.
- Working weight: 21,900 kg
- Bucket capacity: 0.8 m³
- Boom length: 5,680 mm (H type)
- Rod length: 2,910 mm (Type K)
- Ground specific pressure: 49 Kpa
- Bucket digging force: 143 kN / Power 151 kN
- Travel speed: 5.5/3.5 km/h
Engineered in Japan, the ZX210K-3 is designed for durability and precision, making it a preferred choice for demanding construction projects. Its robust hydraulic system and advanced engine technology ensure optimal performance and efficiency, reducing downtime and increasing productivity on any job site.
| Specifications | Value |
|---|---|
| No. | 1002053 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 (H type) |
| Rod length (mm) | 2910 (Type K) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

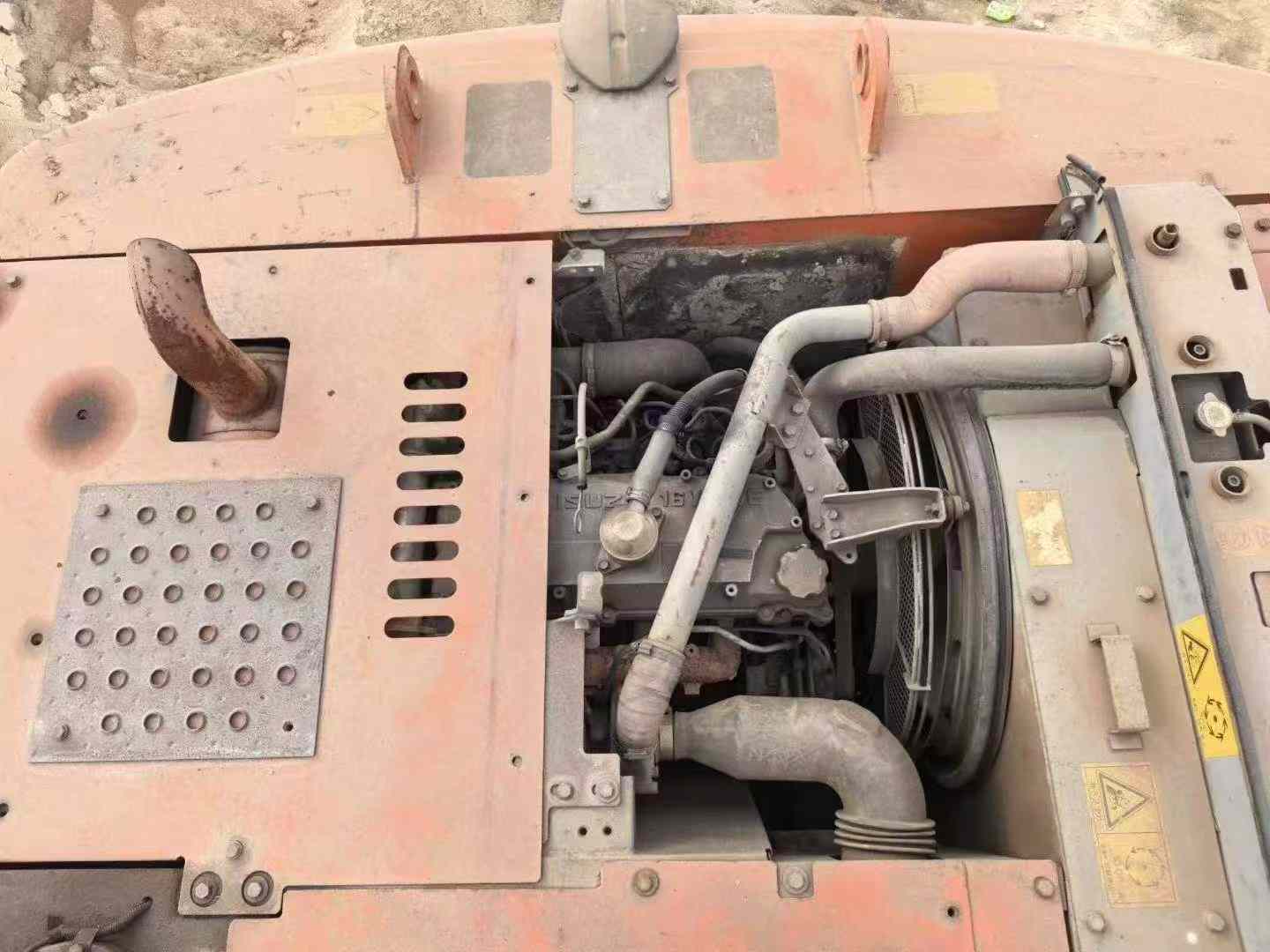

| Engine type | Isuzu AI-4HK1X |
| Rated power (kw/rpm) | 122/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection with turbocharger (intercooler) |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 13.3 |
| Bucket digging force (kN) | 143/ Power 151 |
| Rod digging force (kN) | 103/ Power 109 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3 |

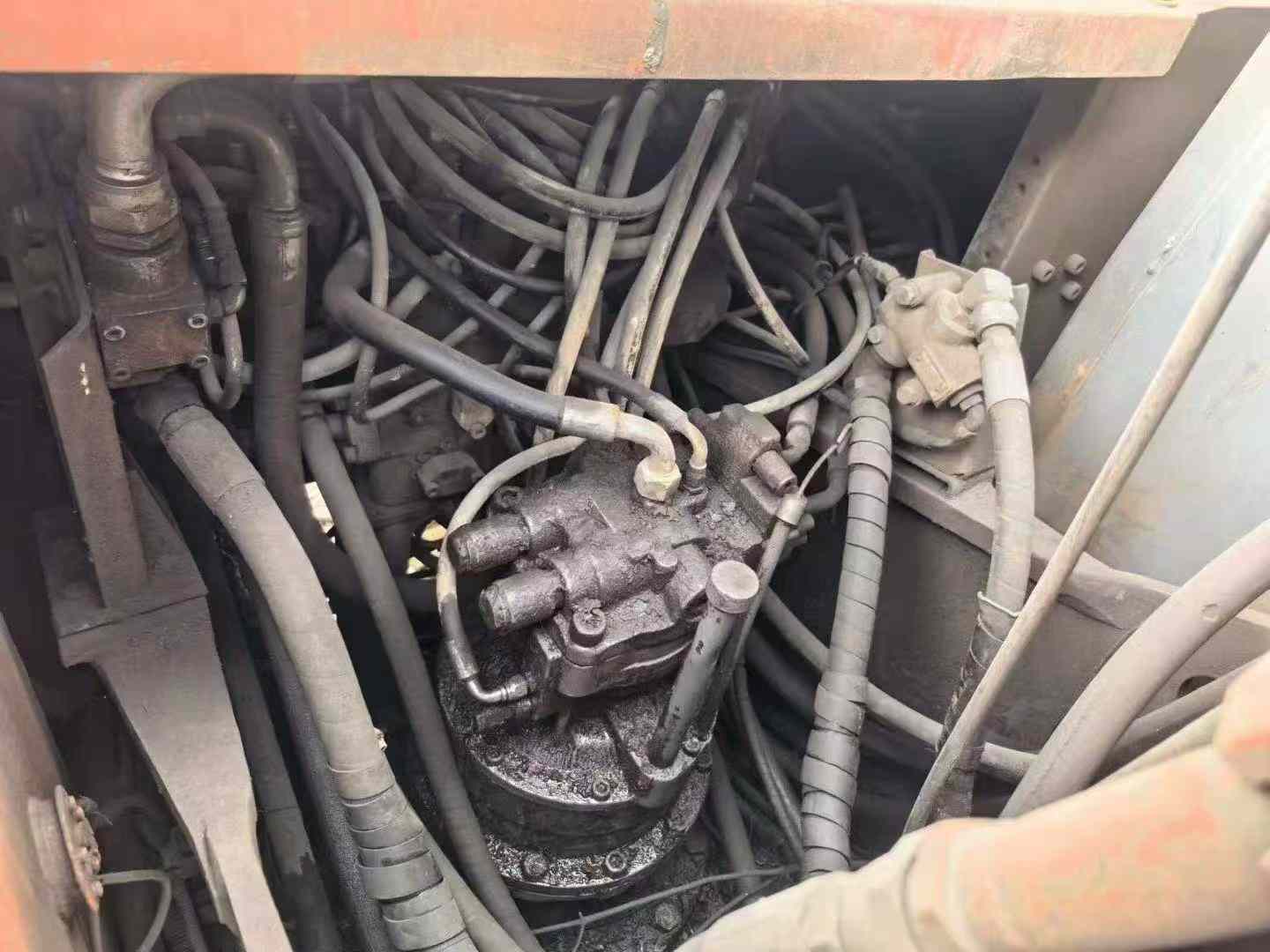

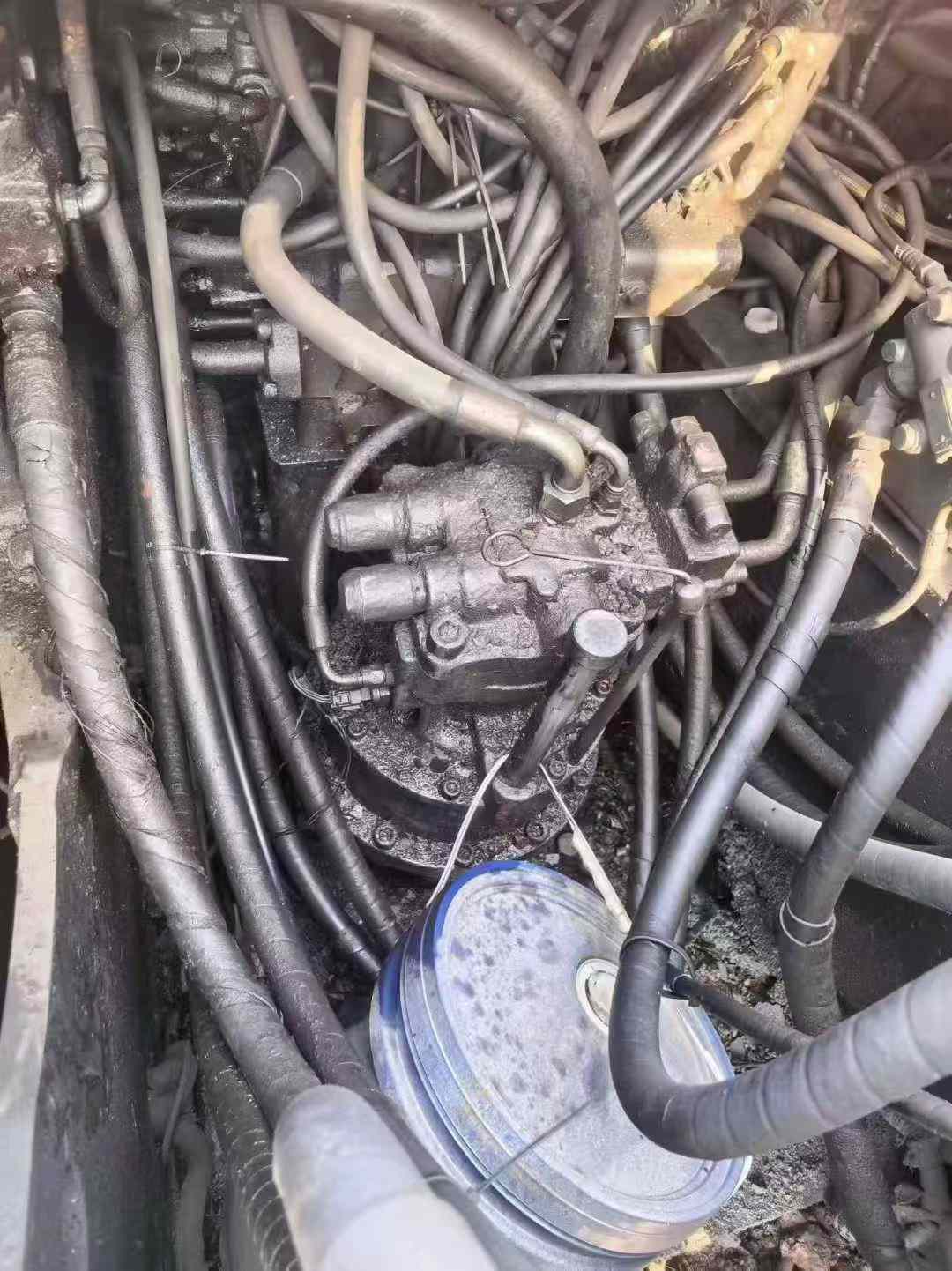

| Rotary hydraulic motor type | Quantitative plunger type ×1 |
| Type of walking hydraulic motor | Variable plunger type x 2 |

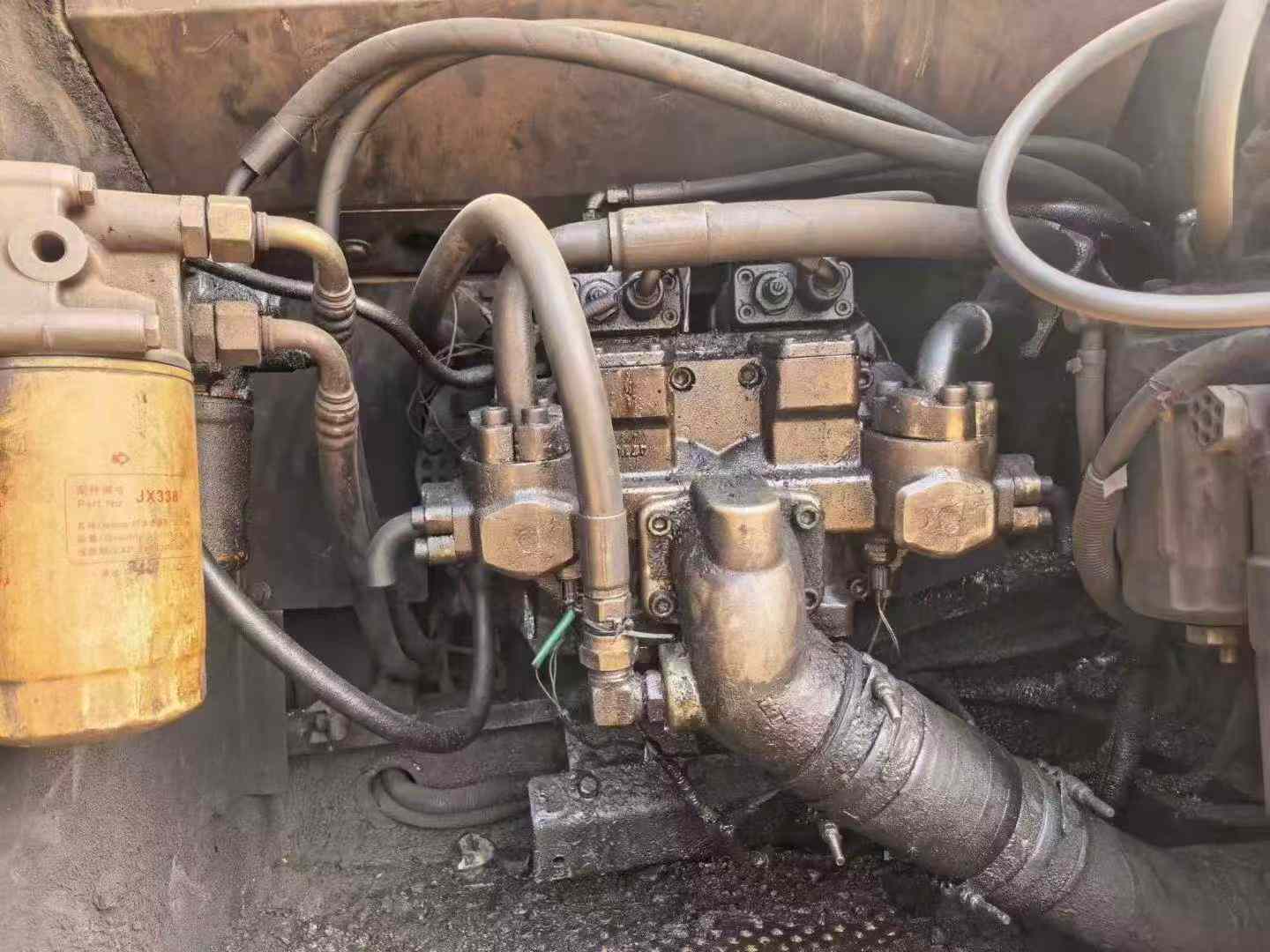

| Main pump type | Variable plunger type ×2+ gear type ×1 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 3080 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |

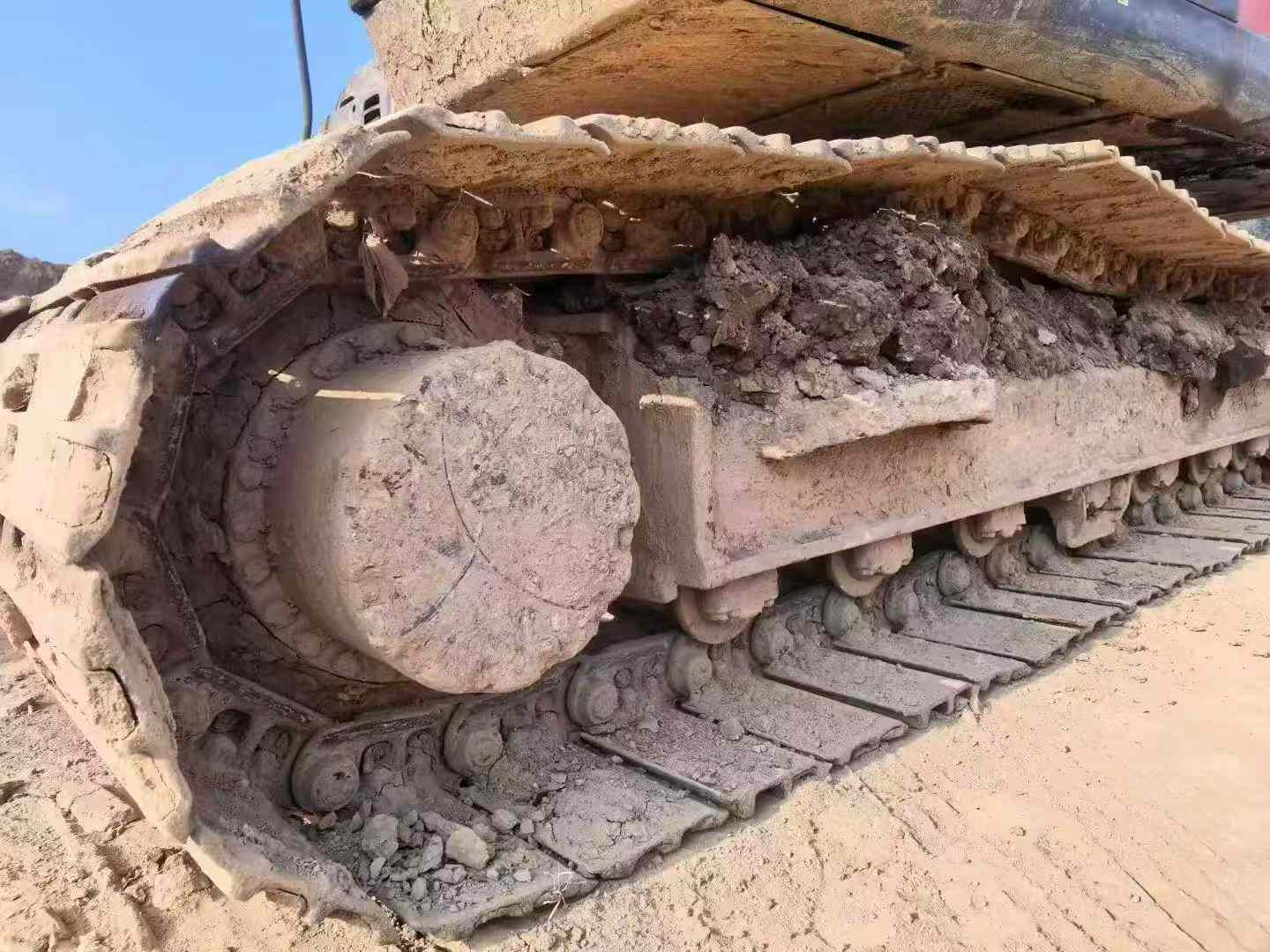

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
