2018 Hitachi ZX210K-5A

1/6
Buy Hitachi ZX210K-5A Used Excavator / 1

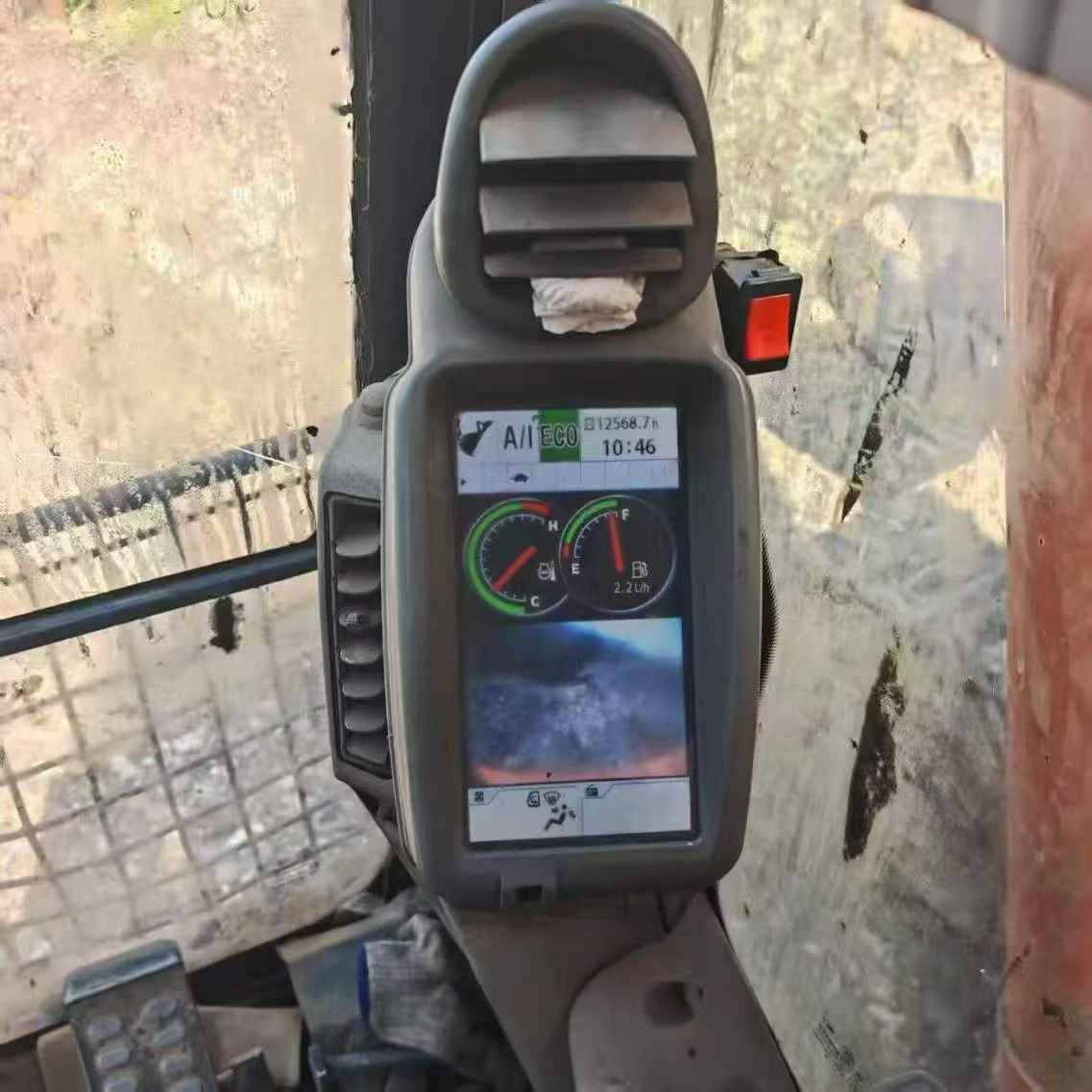

Buy Hitachi ZX210K-5A Used Excavator / 2

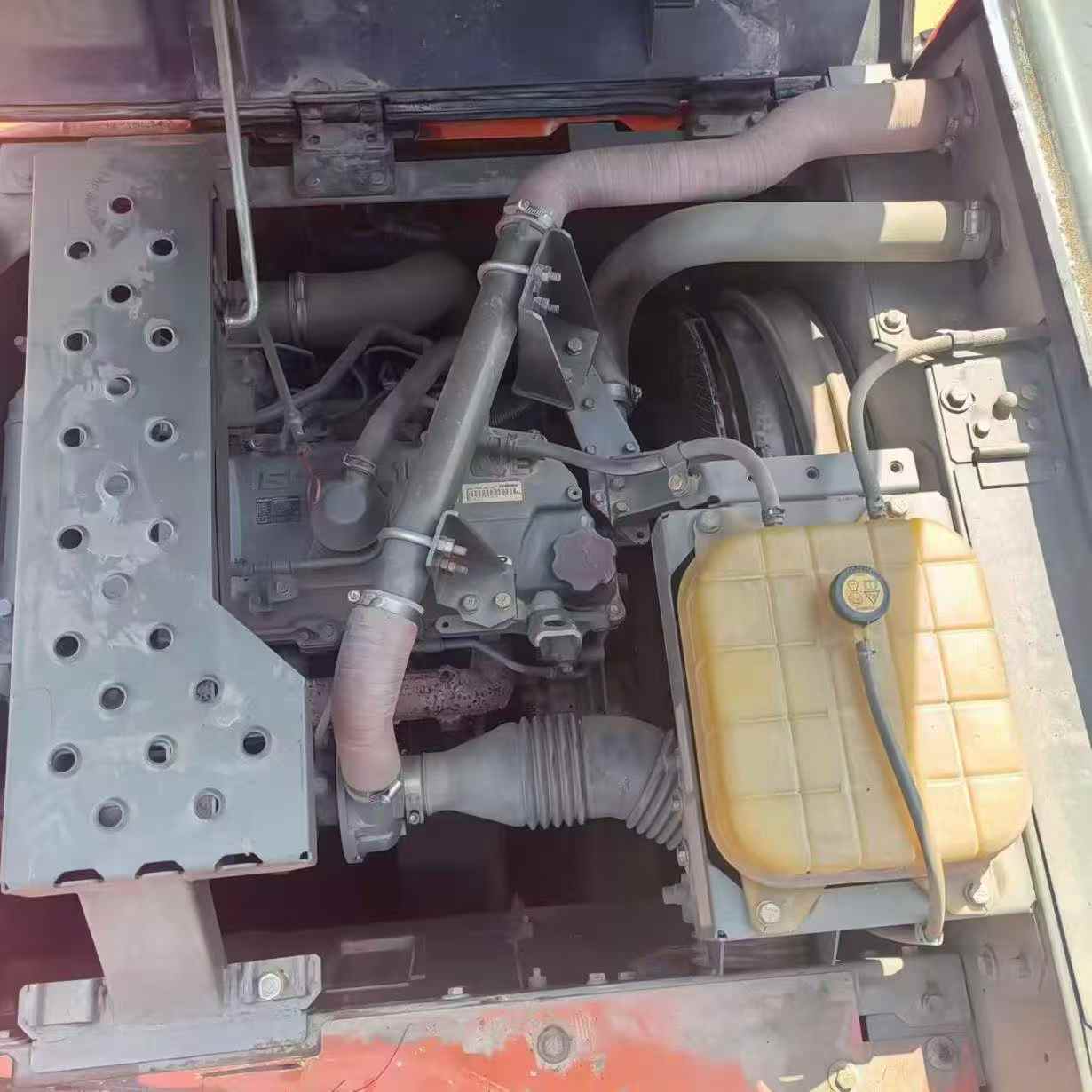

Buy Hitachi ZX210K-5A Used Excavator / 3

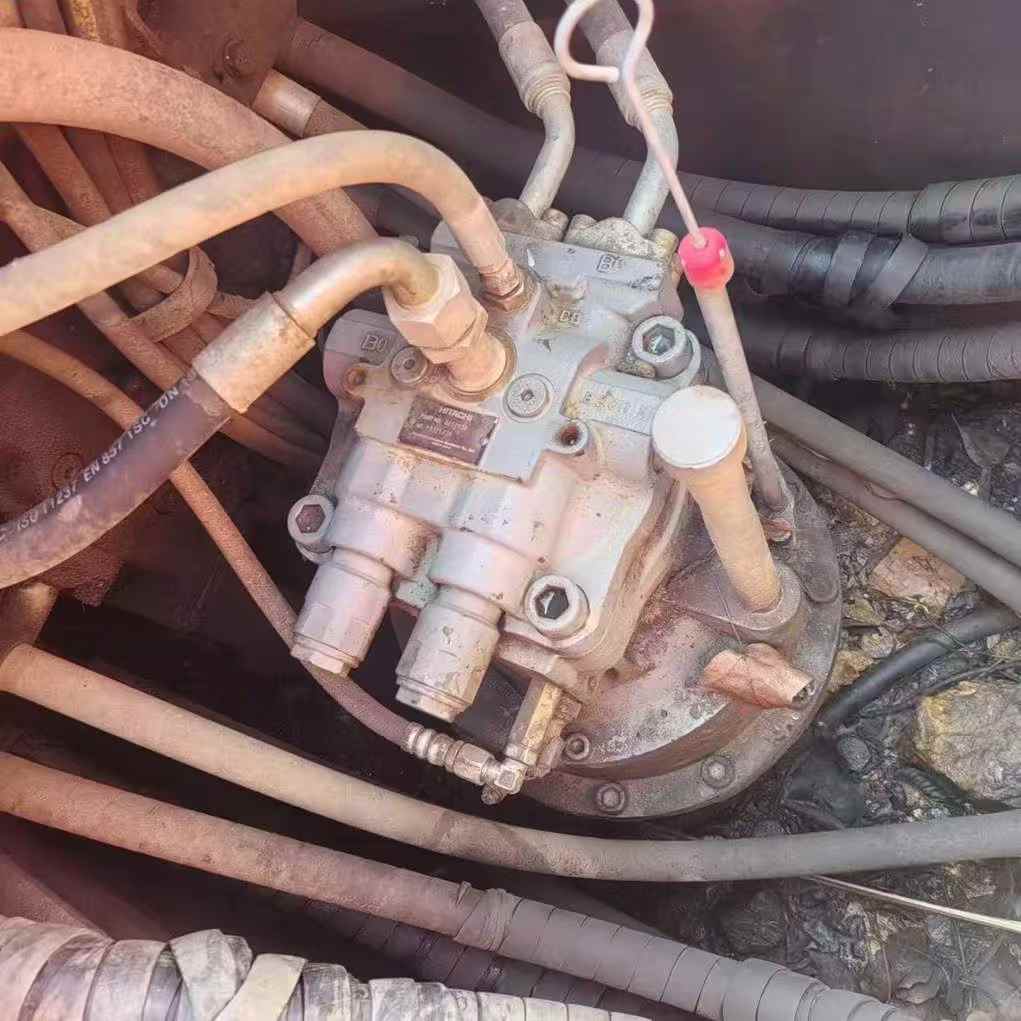

Buy Hitachi ZX210K-5A Used Excavator / 4

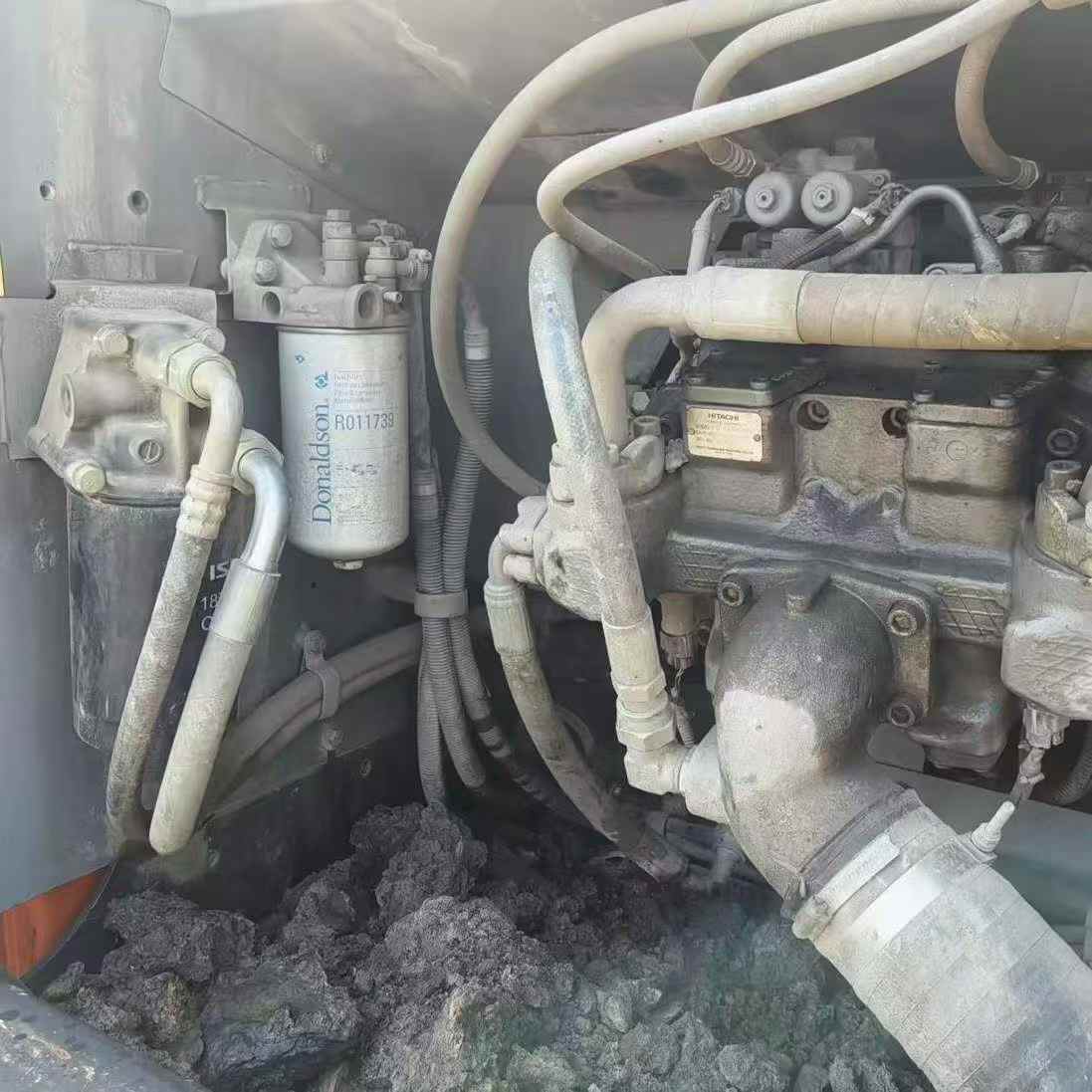

Buy Hitachi ZX210K-5A Used Excavator / 5

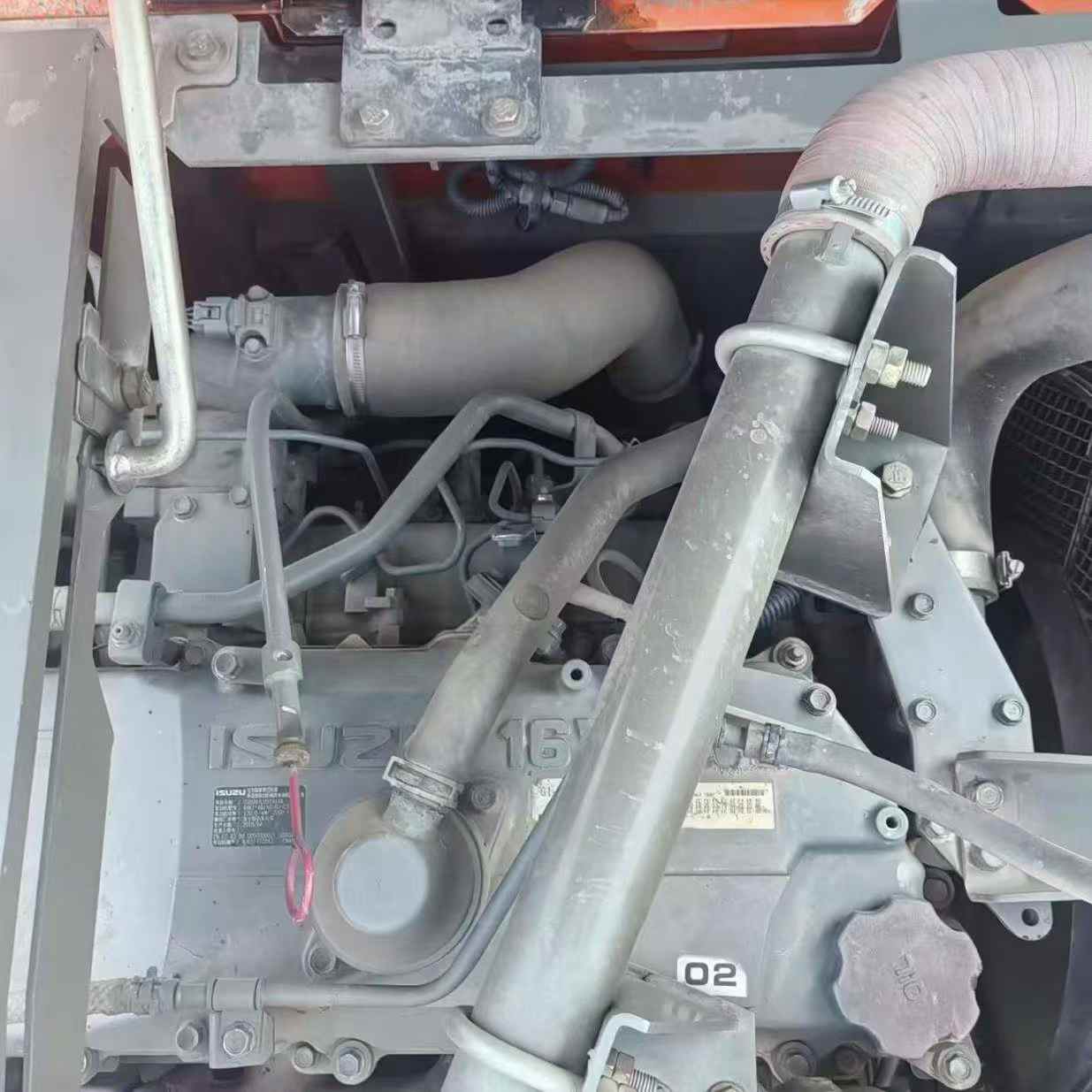

Buy Hitachi ZX210K-5A Used Excavator / 6

Product Description

Proven reliability meets exceptional value in this 2018 Hitachi ZX210K-5A, a 21-ton excavator engineered for demanding jobsites worldwide. Powered by the robust Isuzu 4HK1 engine delivering 113kW at 2000rpm, this machine combines fuel efficiency with consistent performance across extended duty cycles. Hitachi's legendary build quality ensures superior parts availability and strong resale value—critical factors when investing in used heavy equipment.

Located in Hunan, this backhoe excavator offers impressive operational capabilities:

  • Reach & Depth: 9,920mm maximum digging radius, 6,670mm maximum digging depth
  • Hydraulic Power: 158kN bucket digging force with dual variable axial piston pumps
  • Versatility: 0.91-1.0m³ bucket capacity, 70% grading ability
  • Efficiency: 400L fuel tank, water-cooled turbocharged engine with intercooling
  • Serviceability: Joint venture/import manufacturing ensures genuine parts access globally

Hitachi excavators maintain exceptional residual values due to their durability and widespread dealer networks. For contractors seeking dependable performance with low

SpecificationsValue
No.1046852
Tonnage (tons)21
Working weight (kg)21000~21100
Bucket capacity (m³)0.91~1.0
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu GI-4HK1XKSA-02
Rated power (kw/rpm)113 / 2000
Cooling modewater-cooling
Displacement (L)5.193
Working form4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled
Ground specific pressure (Kpa)47
Rotation speed (rpm)13.5
Climbing ability (%)70
Bucket digging force (kN)158
Rod digging force (kN)114
Travel speed (km/h)5.5 / 3.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Main pump type2 variable axial piston pumps, 1 gear pump
Fuel Tank (L)400
Hydraulic Tank (L)200
Engine Oil changes (L)23
Total transport length (mm)9660
Total transport width (mm)2880
Total transport height (mm)3010
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3180
Back end turning radius (mm)2890
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Maximum digging radius (mm)9920
Maximum digging depth (mm)6670
Maximum excavation height (mm)10040
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)5990
Maximum excavation radius of stop surface (mm)9750
see more

Overview

No.1046852

Brand Name:

Hitachi

Model Number:

ZX210K-5A

Year:

2018

Location:

Hunan China
