Product Description

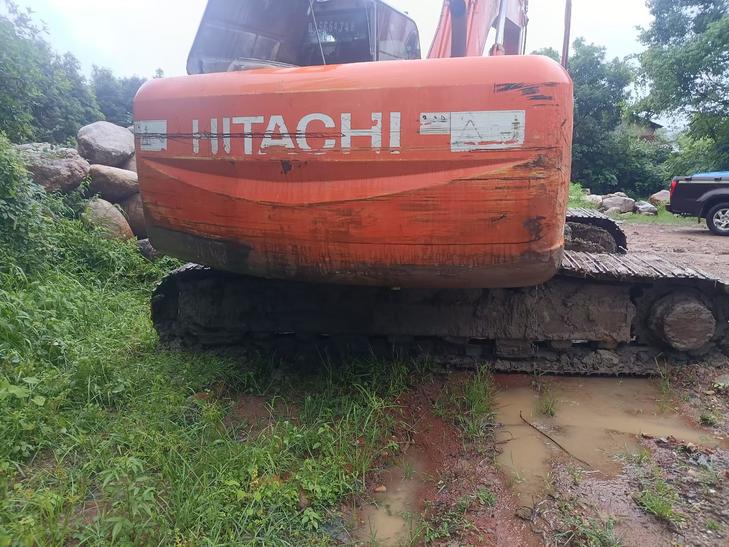

This 2010 Hitachi ZX210LC-3 hydraulic excavator is currently available in Jiangxi, China, with complete documentation ready for immediate deployment. As part of Hitachi's proven Zaxis-3 series, this 21-tonne class machine features a robust Isuzu engine delivering reliable performance for medium to heavy-duty excavation applications. The LC designation indicates long crawl configuration, providing enhanced stability and reach for demanding jobsite conditions.
Key features of the ZX210LC-3 include:
- Fuel-efficient hydraulic system with reduced operating costs
- Spacious ROPS-certified cab with improved operator visibility
- Durable undercarriage designed for extended service life
- Versatile attachment compatibility for various applications
- Complete documentation and service records available
This ready-to-ship unit represents a cost-effective solution for contractors seeking dependable excavation equipment with Hitachi's renowned build quality. Contact us for current pricing and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1087677 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 (H type) |
| Rod length (mm) | 2910 (Type H) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 122/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135(Full box 200) |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4470 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Bulldozer lift or depth (mm) | No bulldozer |
