Product Description

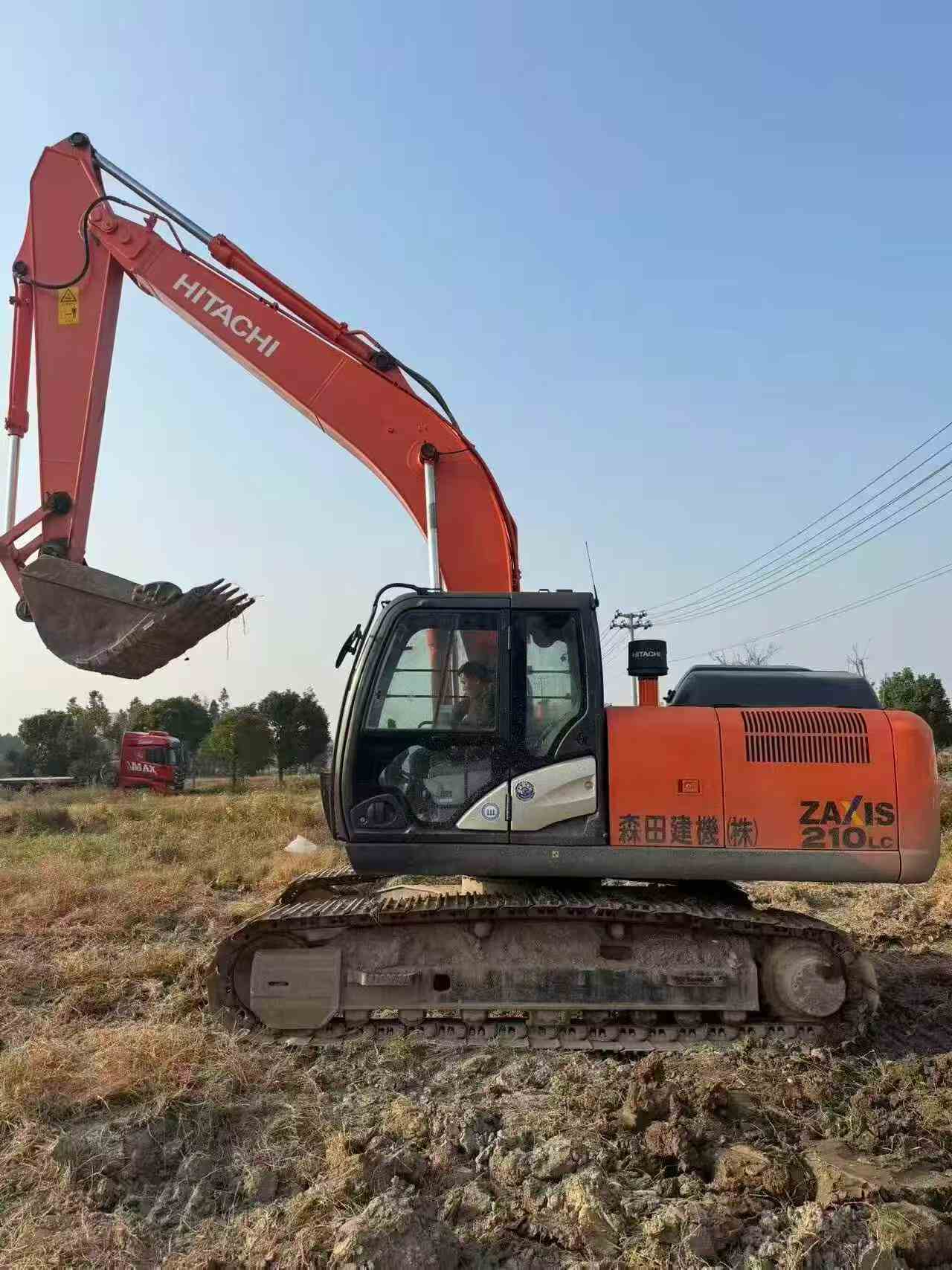

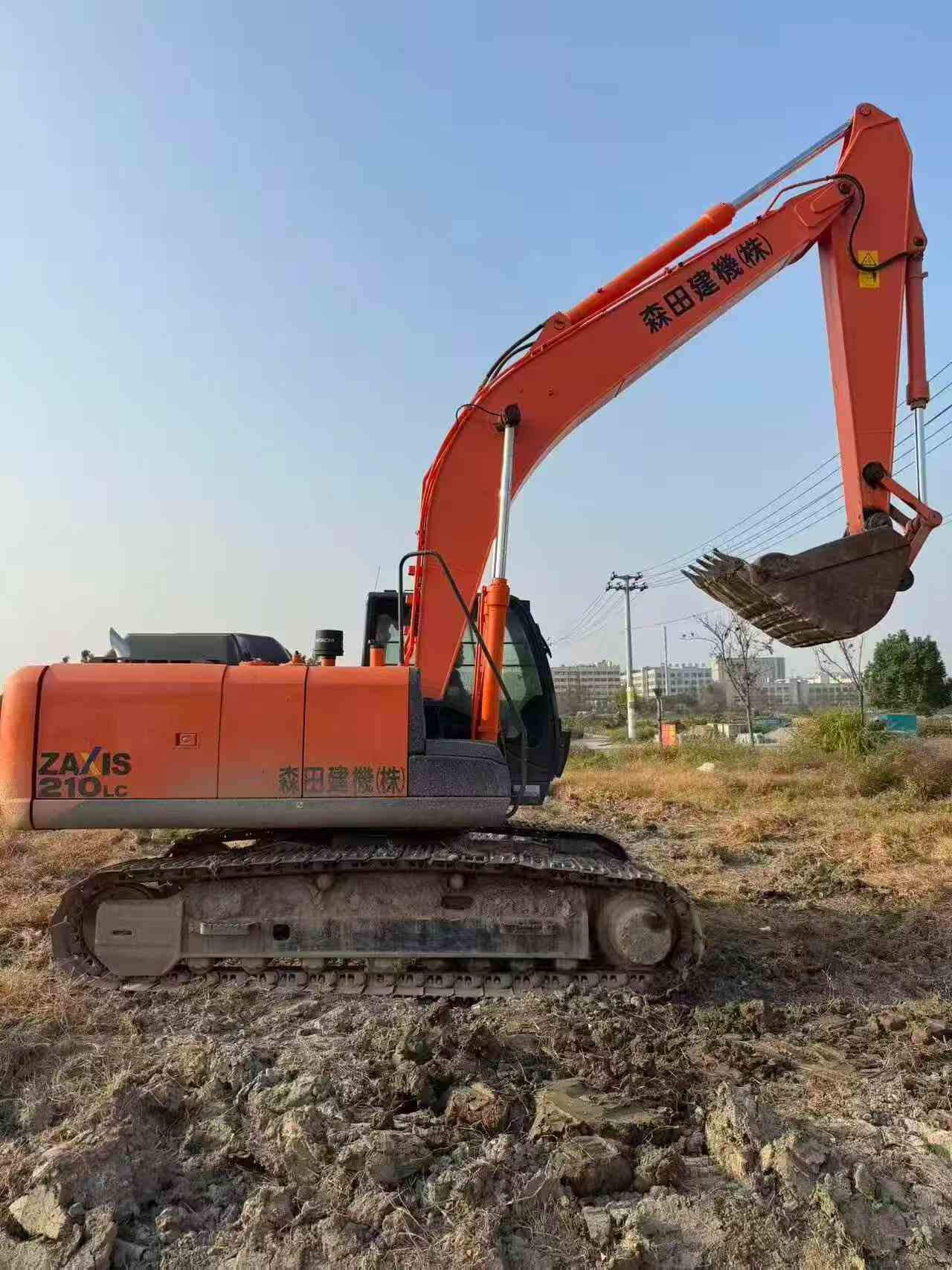

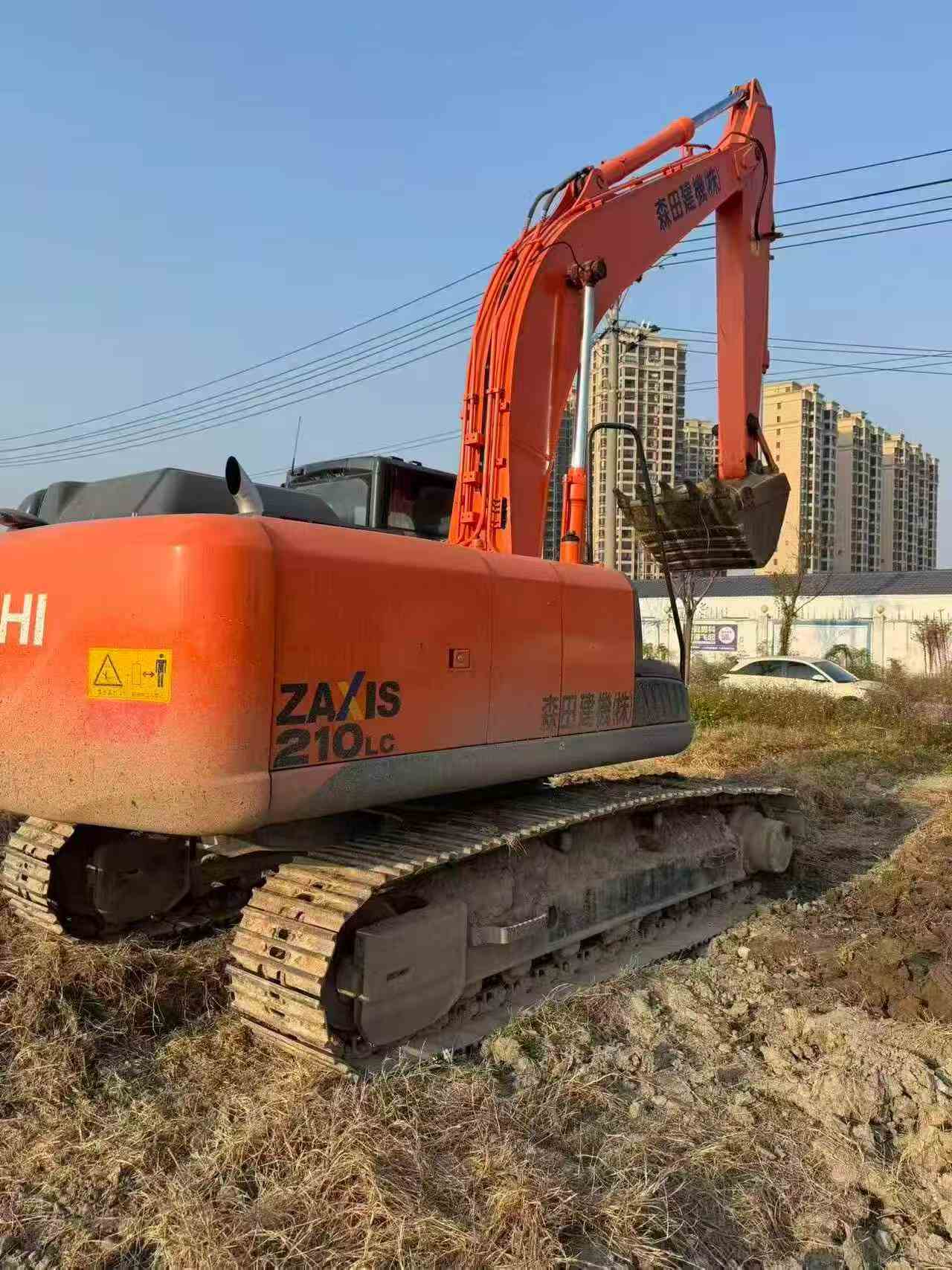

Built for precision and power, this 2022 Hitachi ZX210LC-5A excavator delivers 21-ton performance with a proven Isuzu 113kW engine. Currently located in Wenzhou, Zhejiang, this machine is inspection-ready and prepared for immediate deployment on your next project. With a maximum digging depth of 6,670mm and reach extending to 9,920mm, it handles foundation work, trenching, and grading operations with consistent efficiency.
- Isuzu 4-cylinder turbocharged engine: 113kW at 2000rpm, 638N·m torque
- Operating weight: 20,900-21,200kg with 1.0-1.2m³ bucket capacity

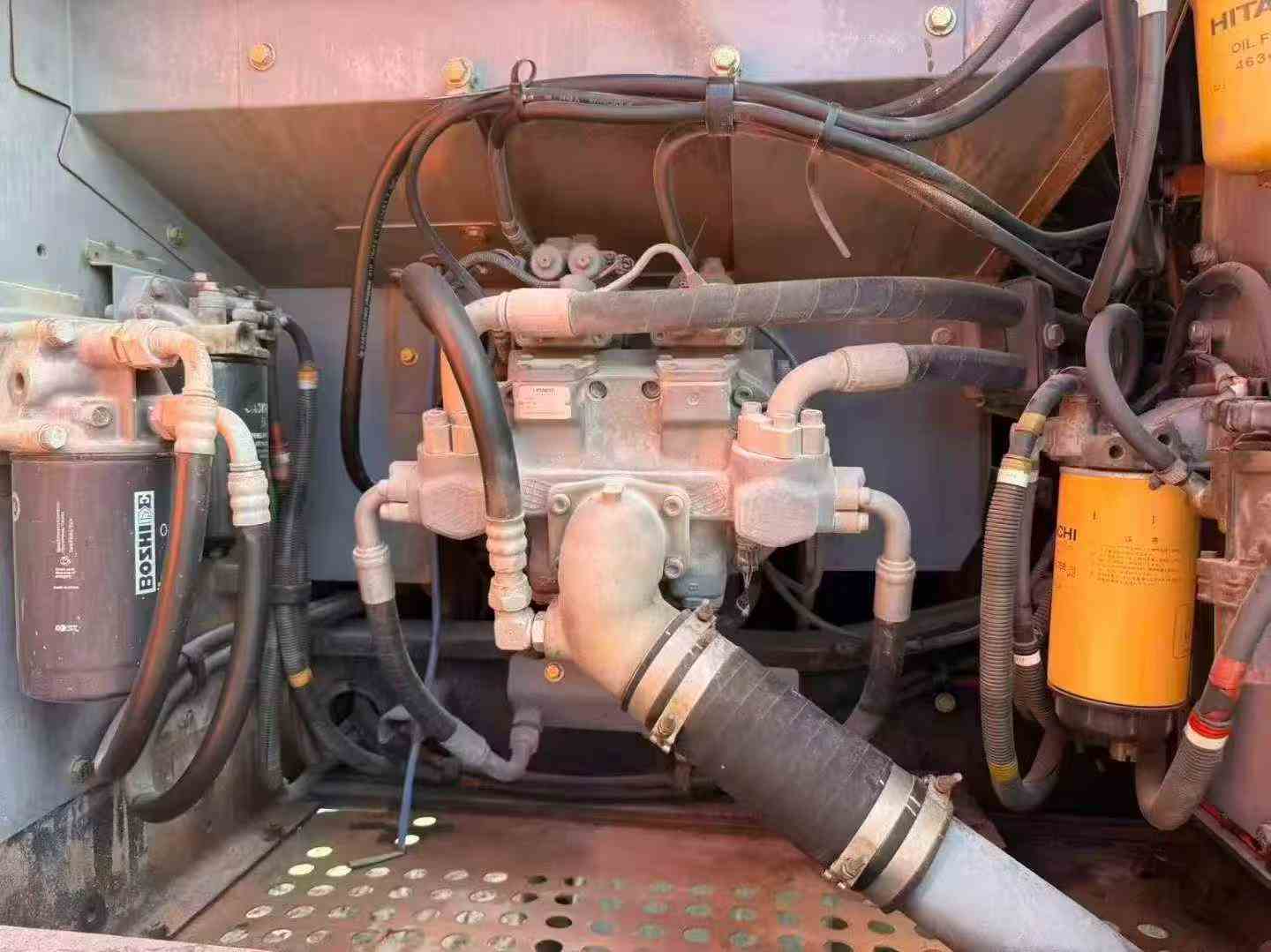

- Hydraulic system: dual 212L/min variable piston pumps, 34.3MPa working pressure
- 2,910mm rod length optimized for utility installation and excavation tasks
- 13.5rpm swing speed and 5.5km/h travel speed for responsive site mobility
- 400L fuel tank supports extended operating shifts without refueling interruptions
Configured with backhoe attachment and 600mm track plates, this ZX210LC-5A tackles demolition, land clearing, and earthmoving assignments across varied terrain. Machine is serviced and available for shipping worldwide.
| Specifications | Value |
|---|---|
| No. | 1044117 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900-21200 |
| Bucket capacity (m³) | 1.0-1.2 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

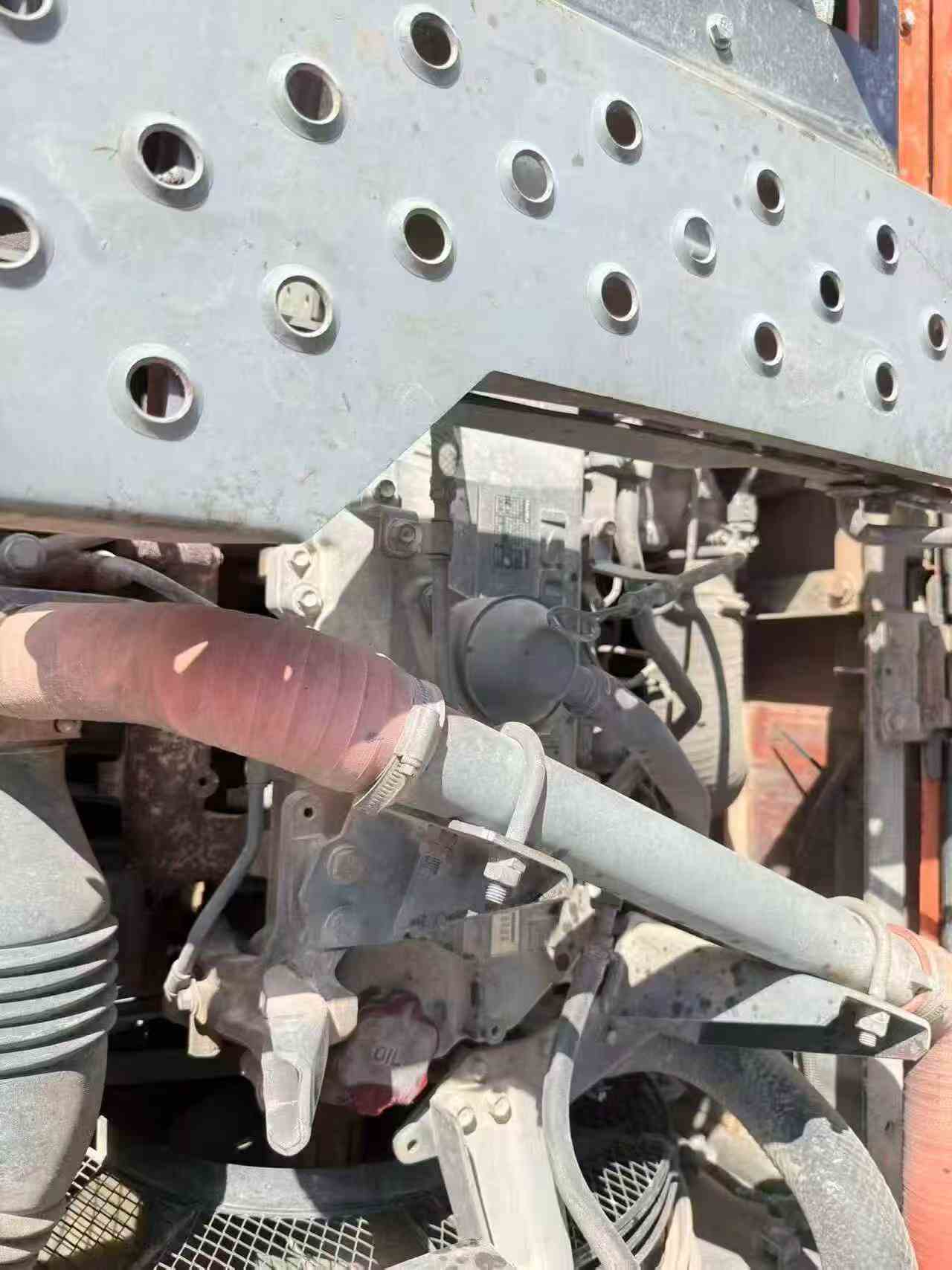

| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113/2000 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 638 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5/3.5 |

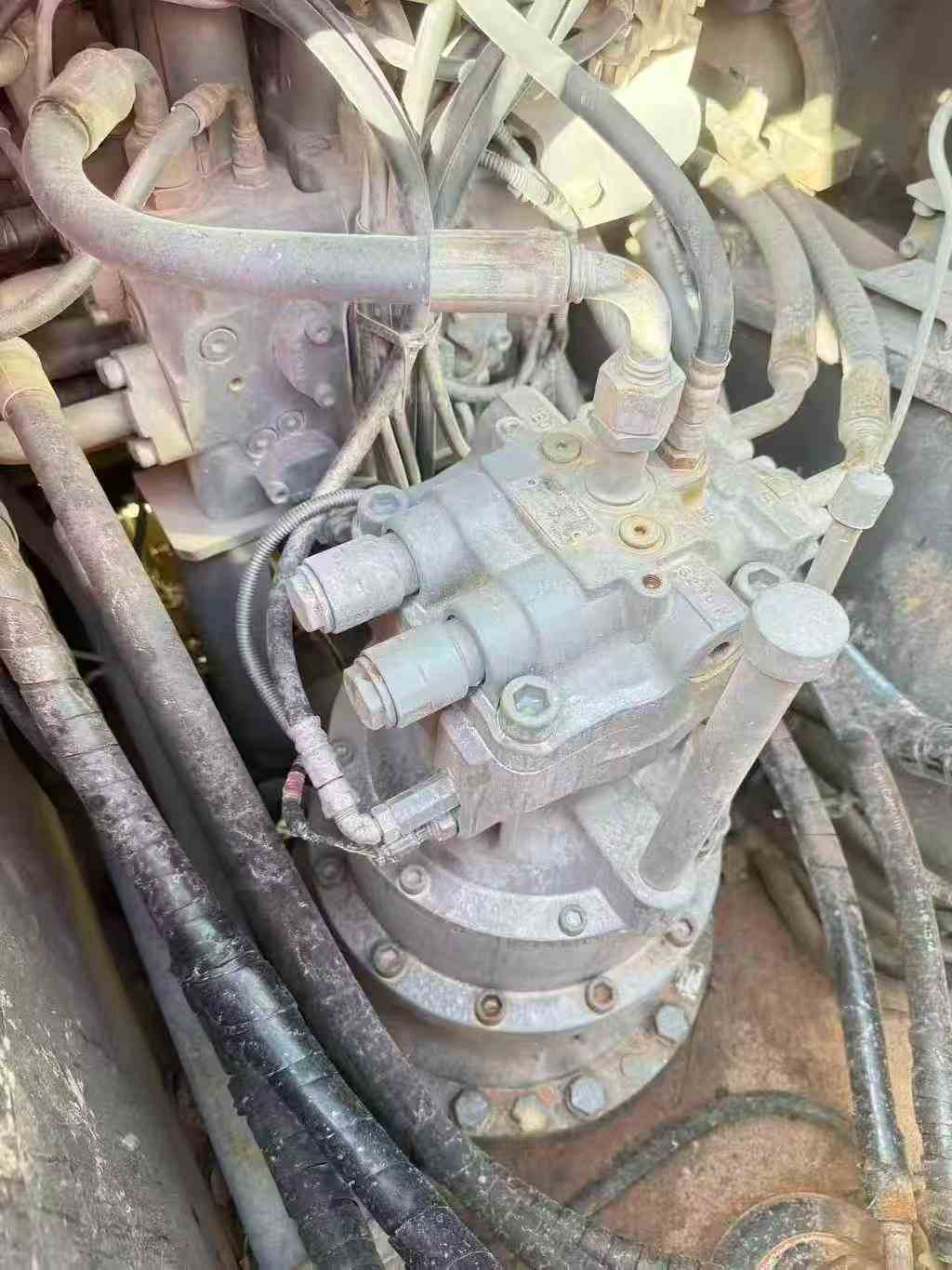

| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 212 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps + 1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 115 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 95 |

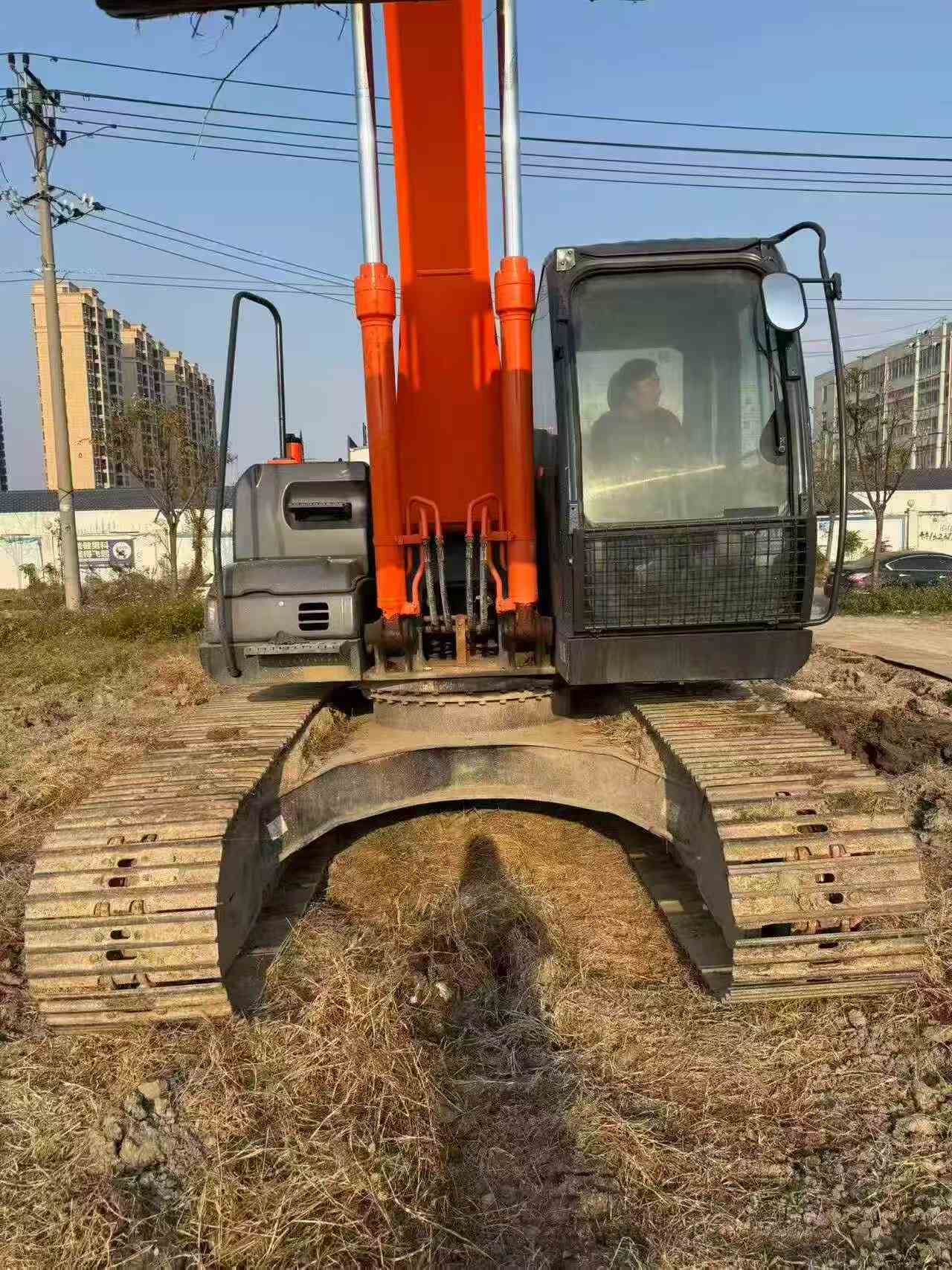

| Boom cylinders - Number × diameter × stroke (mm) | 2 x 120 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |

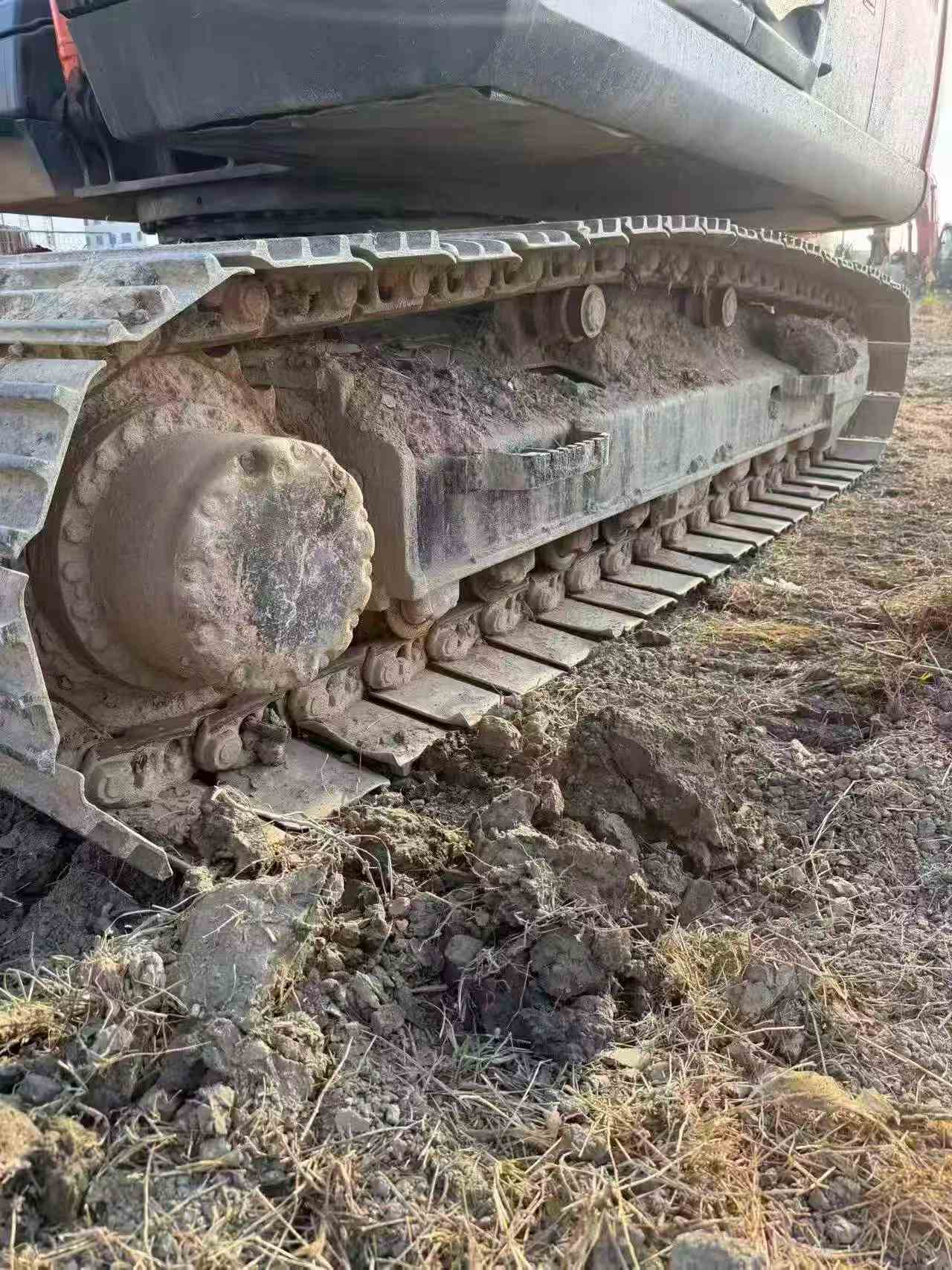

| Total track length (mm) | 4470 |
| Track gauge (mm) | 2390 |

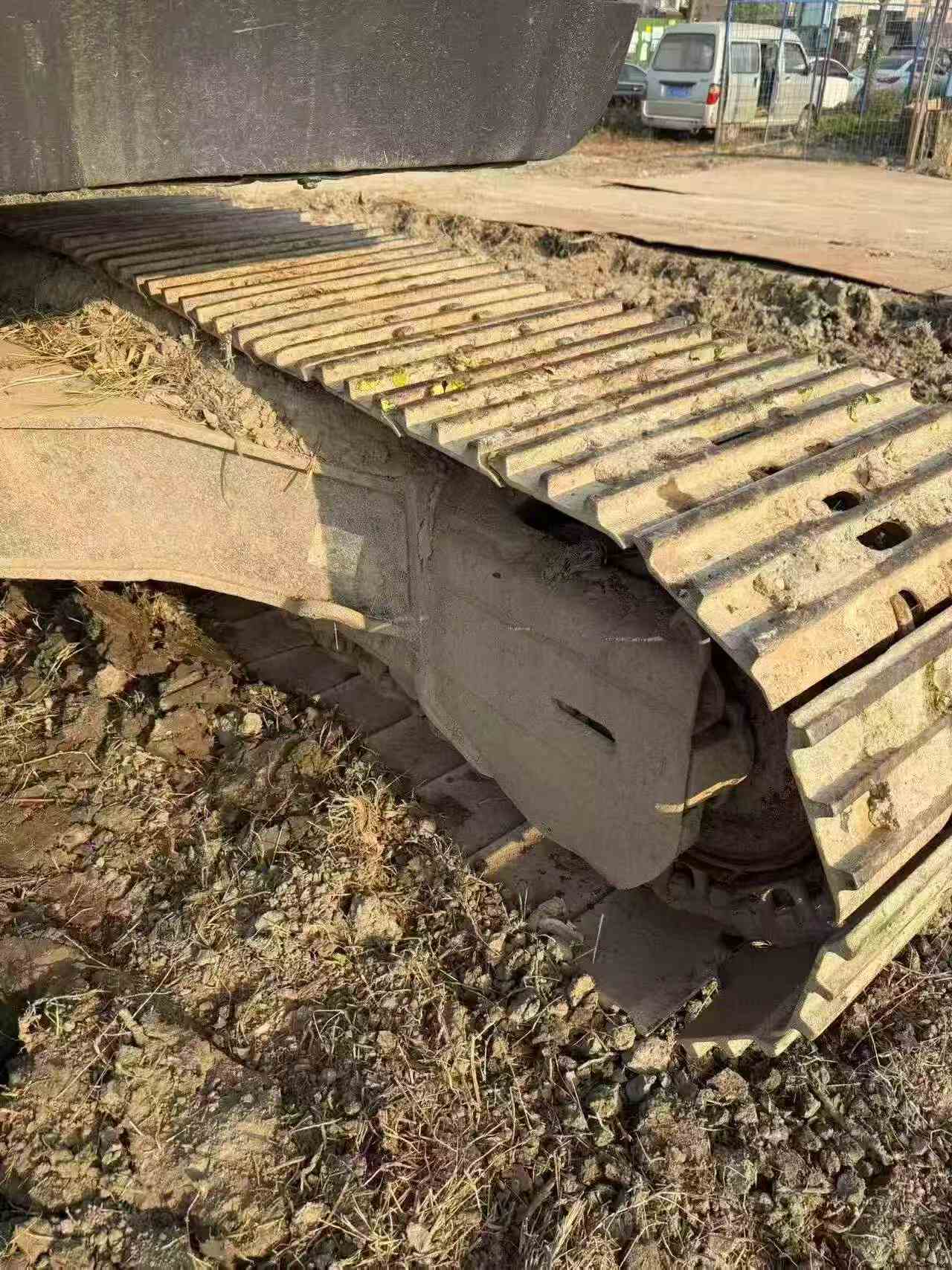

| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
