Product Description

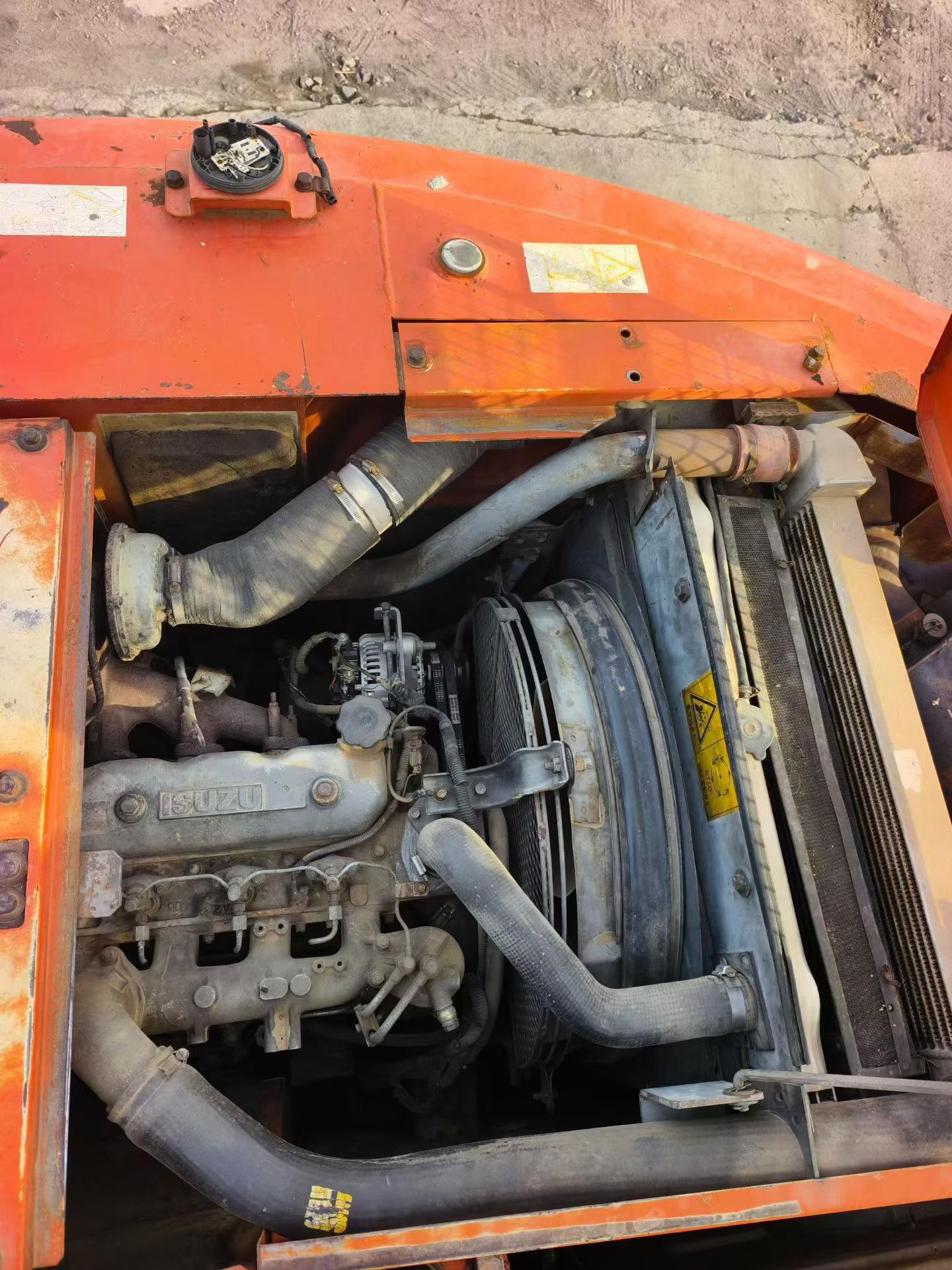

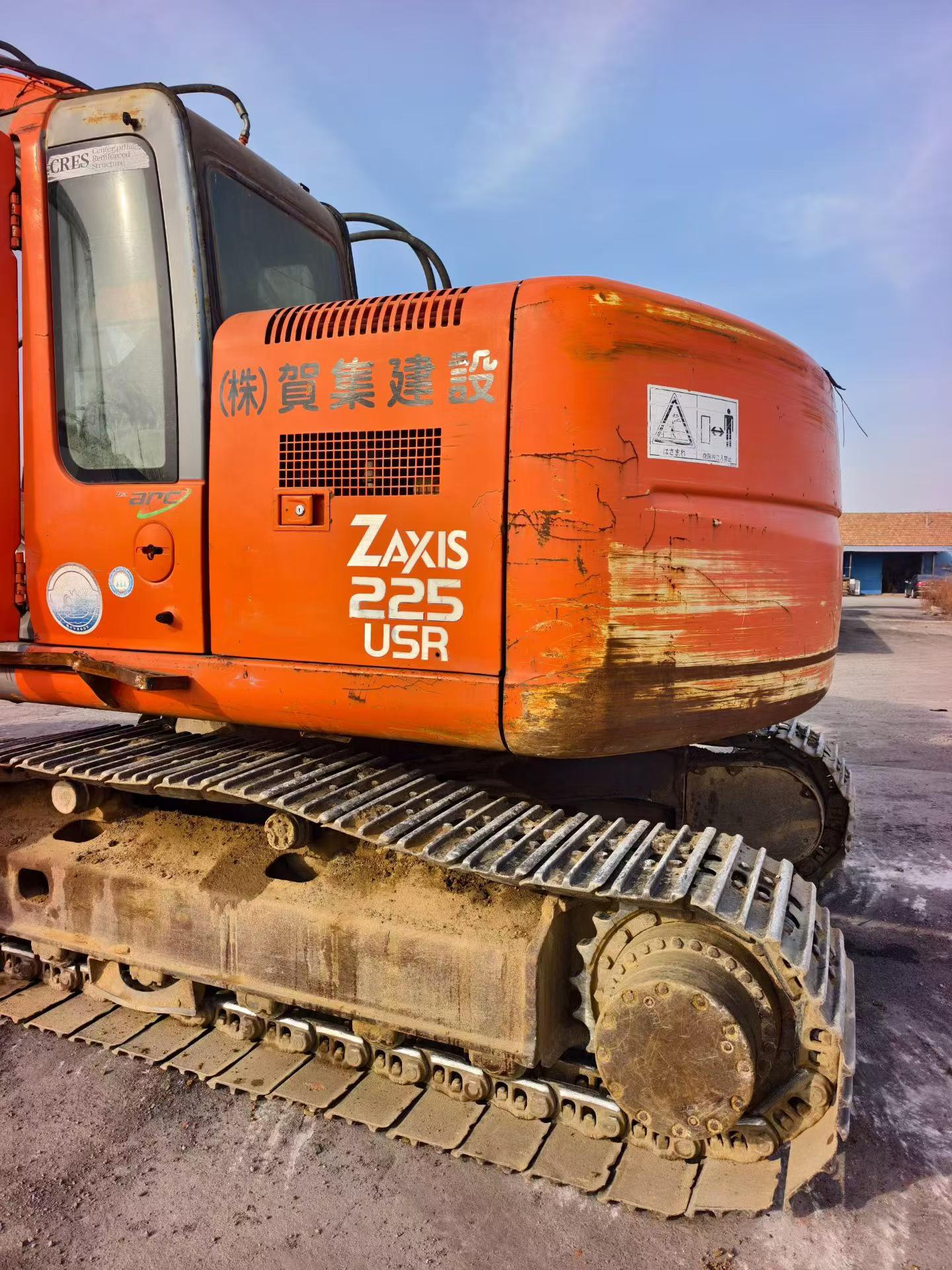

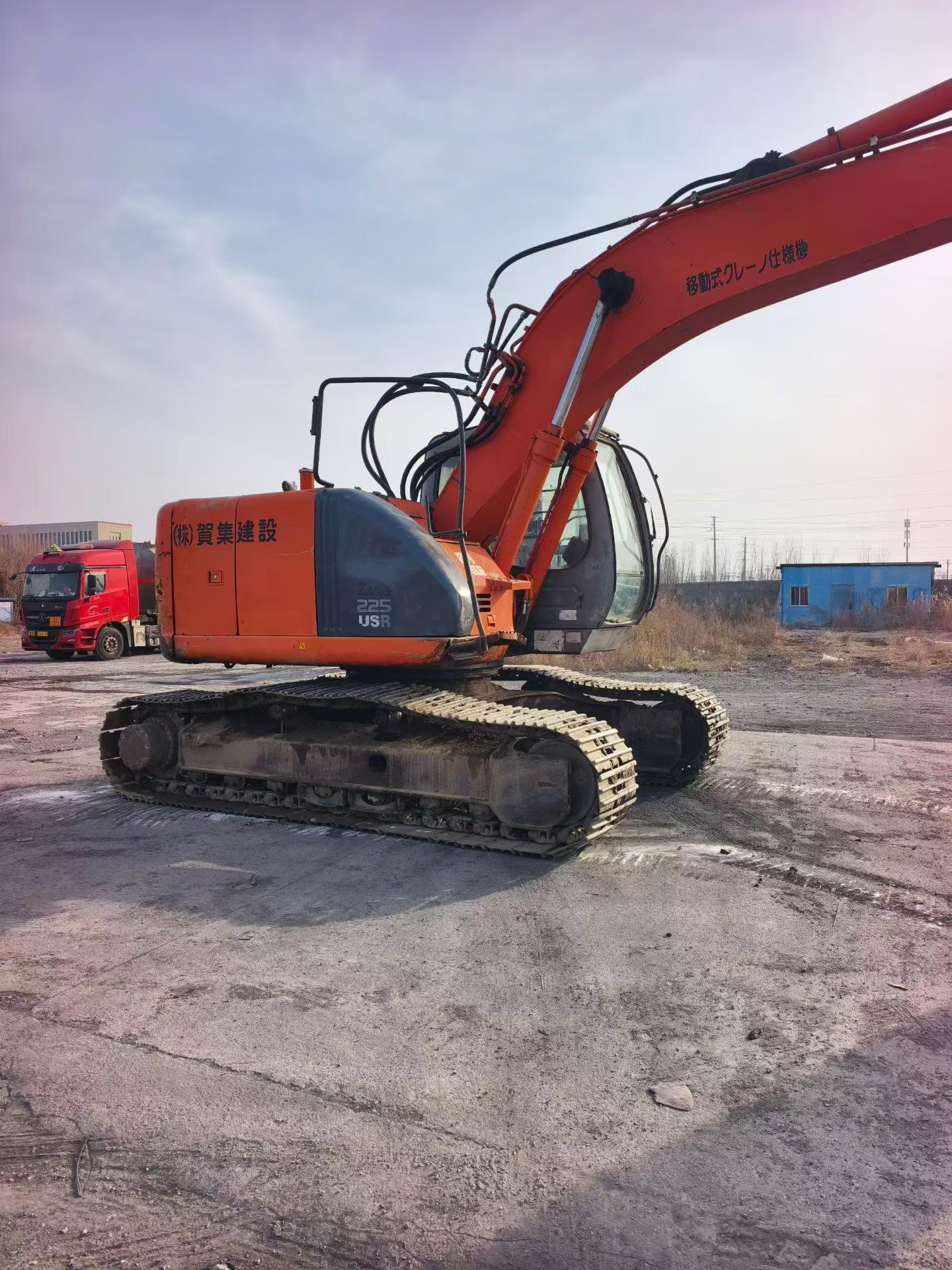

Available now in 山东东营, this 2016 Hitachi ZX225USR eliminates factory wait times and delivers immediate operational capability to your project site. Powered by a robust Isuzu AA-6BGIT engine generating 109.6 kW at 2100 rpm, this 22-ton excavator combines proven reliability with impressive performance metrics. Skip the lead times—this machine is ready for fast deployment across Shandong province and beyond.
Engineered for versatility, the ZX225USR offers multiple bucket configurations (0.8/0.51/1.2 m³) to match your specific application requirements. Maximum digging depth reaches 5,980mm, while the 9,170mm excavation height ensures comprehensive reach across demanding jobsites. Compact transport dimensions (8,990mm length × 2,800mm width) facilitate efficient logistics and rapid mobilization.
- Working weight: 22,000 kg with optimal 49 Kpa ground pressure
- Maximum excavation radius: 9,080mm from stop surface
- Fuel capacity: 270L for extended operational periods
- Hydraulic system: 200L capacity for consistent performance
- Travel speed: 5.3 km/h for efficient site positioning
Secure this joint venture-manufactured excavator today and accelerate your project timeline with
| Specifications | Value |
|---|---|
| No. | 998800 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.8/0.51/1.2 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AA-6BGIT |
| Rated power (kw/rpm) | 109.6/2100 |
| Displacement (L) | 6.5 |
| Ground specific pressure (Kpa) | 49 |
| Travel speed (km/h) | 5.3 |
| Fuel Tank (L) | 270 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 8990 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3130 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 1990 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Maximum digging depth (mm) | 5980 |
| Maximum excavation height (mm) | 9170 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 5140 |
| Maximum excavation radius of stop surface (mm) | 9080 |
