Product Description

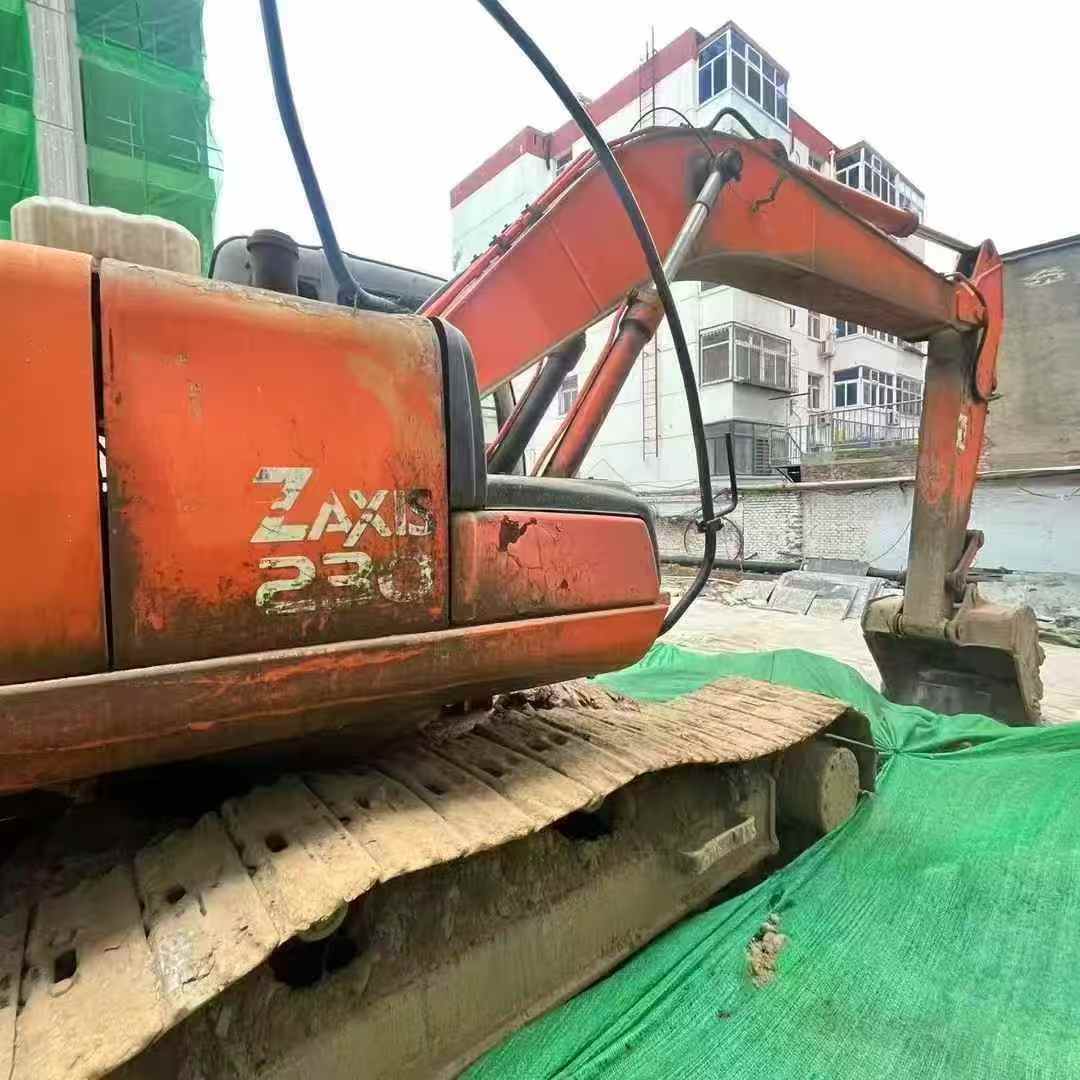

Maximize your equipment budget with this 2016 Hitachi ZX230 excavator, currently located in Guizhou. Delivering professional-grade performance at a fraction of new equipment costs, this 20-ton workhorse combines proven reliability with impressive operational capabilities. Powered by an Isuzu CC-6BG1T engine producing 124.5kW at 2100rpm, this machine handles demanding excavation tasks with confidence.
Key specifications include:
- Operating weight: 17,500kg with 0.8-1.0m³ bucket capacity
- Maximum digging depth of 6,300mm and reach height of 9,410mm
- 6.5L displacement engine with 380L fuel capacity for extended operation
- Compact 2,990mm transport width with 2,940mm rear turning radius
- Robust hydraulic system holding 303L for consistent performance
Joint venture manufacturing ensures quality construction standards while the backhoe configuration provides versatility across construction, infrastructure, and earthmoving applications. Smart buyers recognize that well-maintained used equipment delivers comparable productivity to new machines without the depreciation hit. Invest strategically in proven technology that works.
| Specifications | Value |
|---|---|
| No. | 999865 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 17500 |
| Bucket capacity (m³) | 0.8/1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

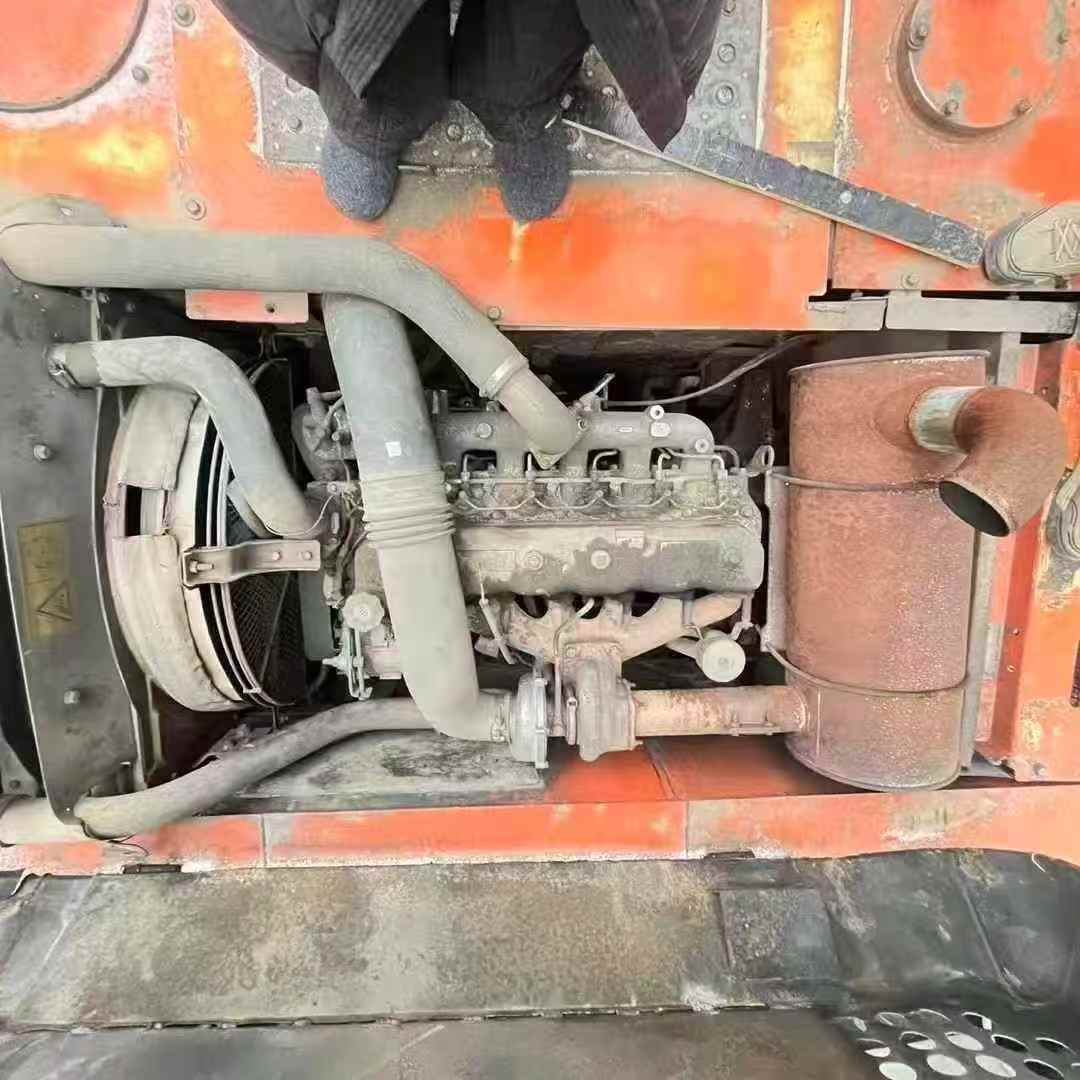

| Engine type | Isuzu CC-6BG1T |
| Rated power (kw/rpm) | 124.5/2100 |
| Displacement (L) | 6.5 |
| Ground specific pressure (Kpa) | 50 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 380 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport width (mm) | 2990 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3460 |
| Maximum digging depth (mm) | 6300 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6540 |
| Maximum vertical digging depth (mm) | 9530 |
