Product Description

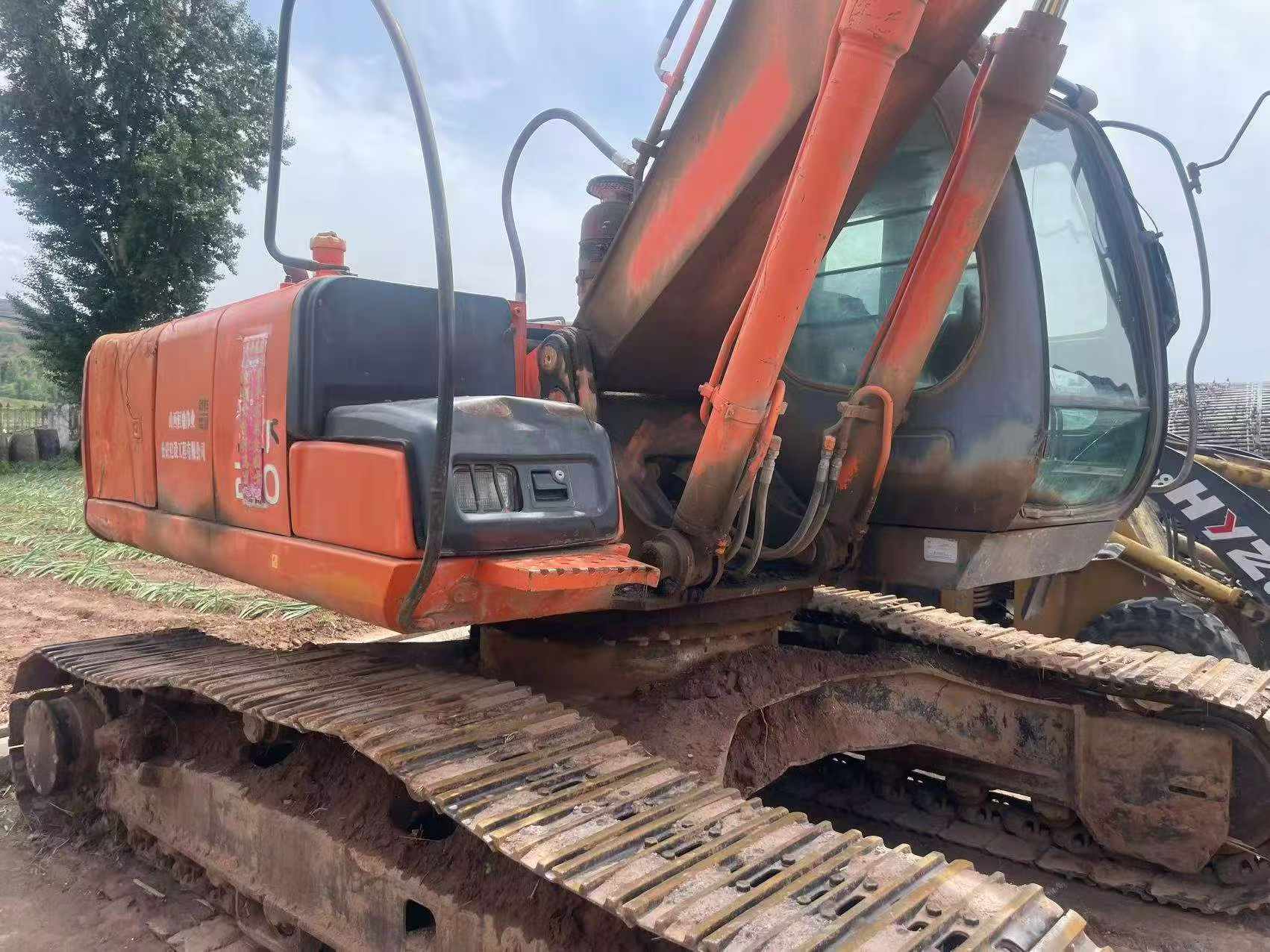

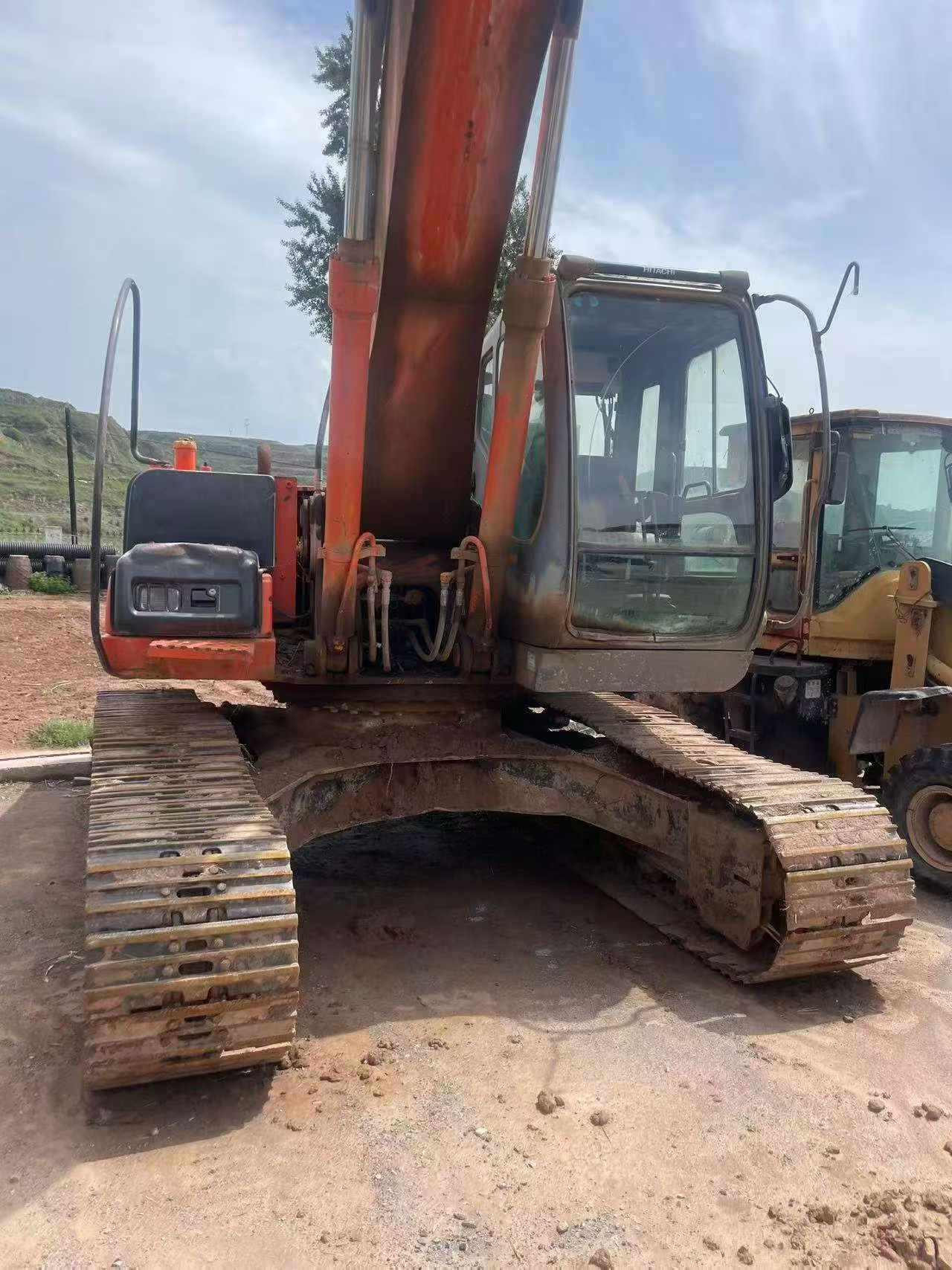

Discover the reliability and efficiency of the 2020 Hitachi ZX230, now available in Zhejiang, China. This used excavator is a genuine import, offering the robust performance and durability that Hitachi is renowned for. Ideal for a variety of construction and excavation tasks, the ZX230 is a versatile machine that can handle tough jobs with precision and power.
- Year: 2020
- Brand: Hitachi
- Model: ZX230
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1077246 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 17500 |
| Bucket capacity (m³) | 0.8/1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

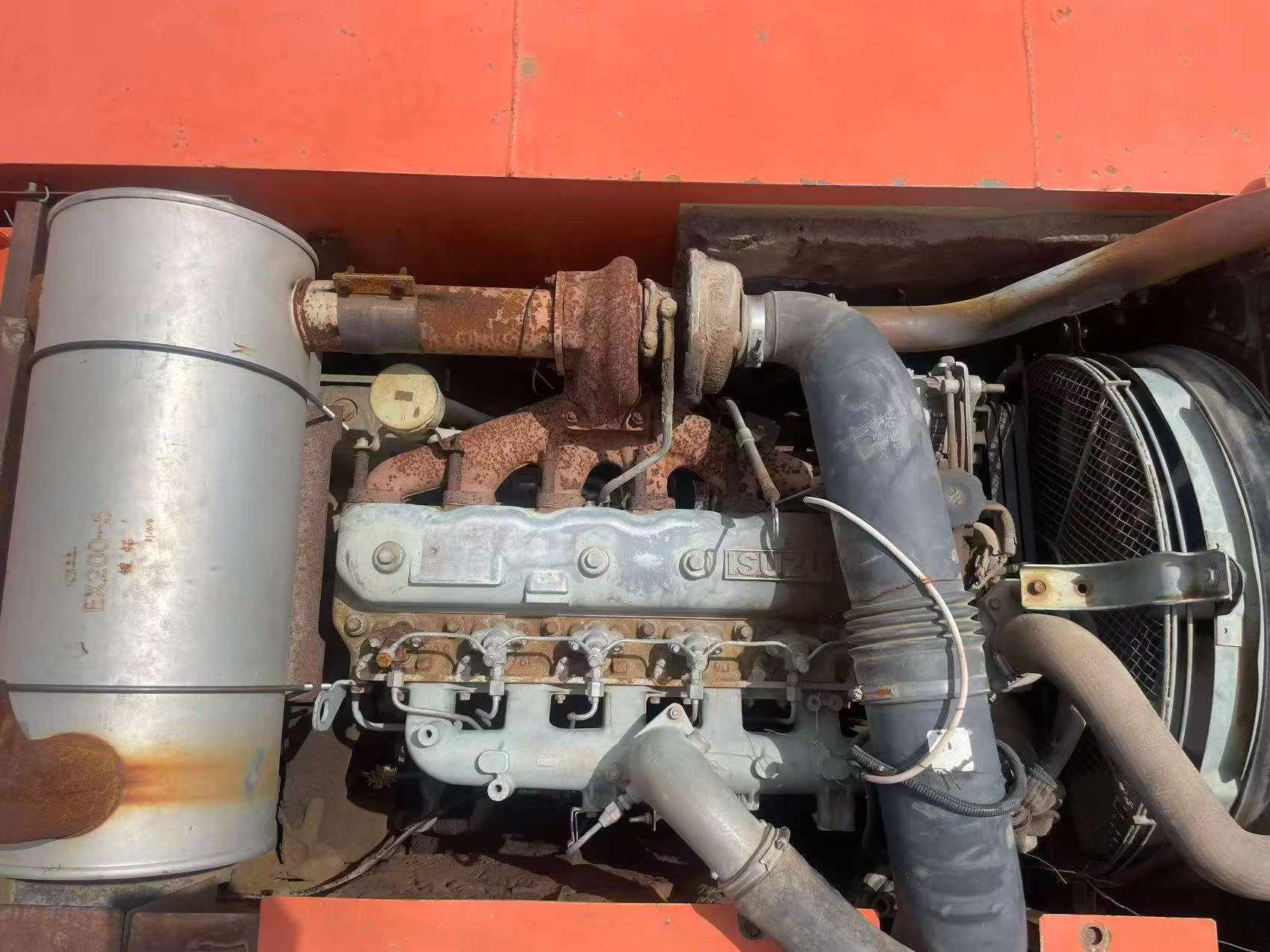

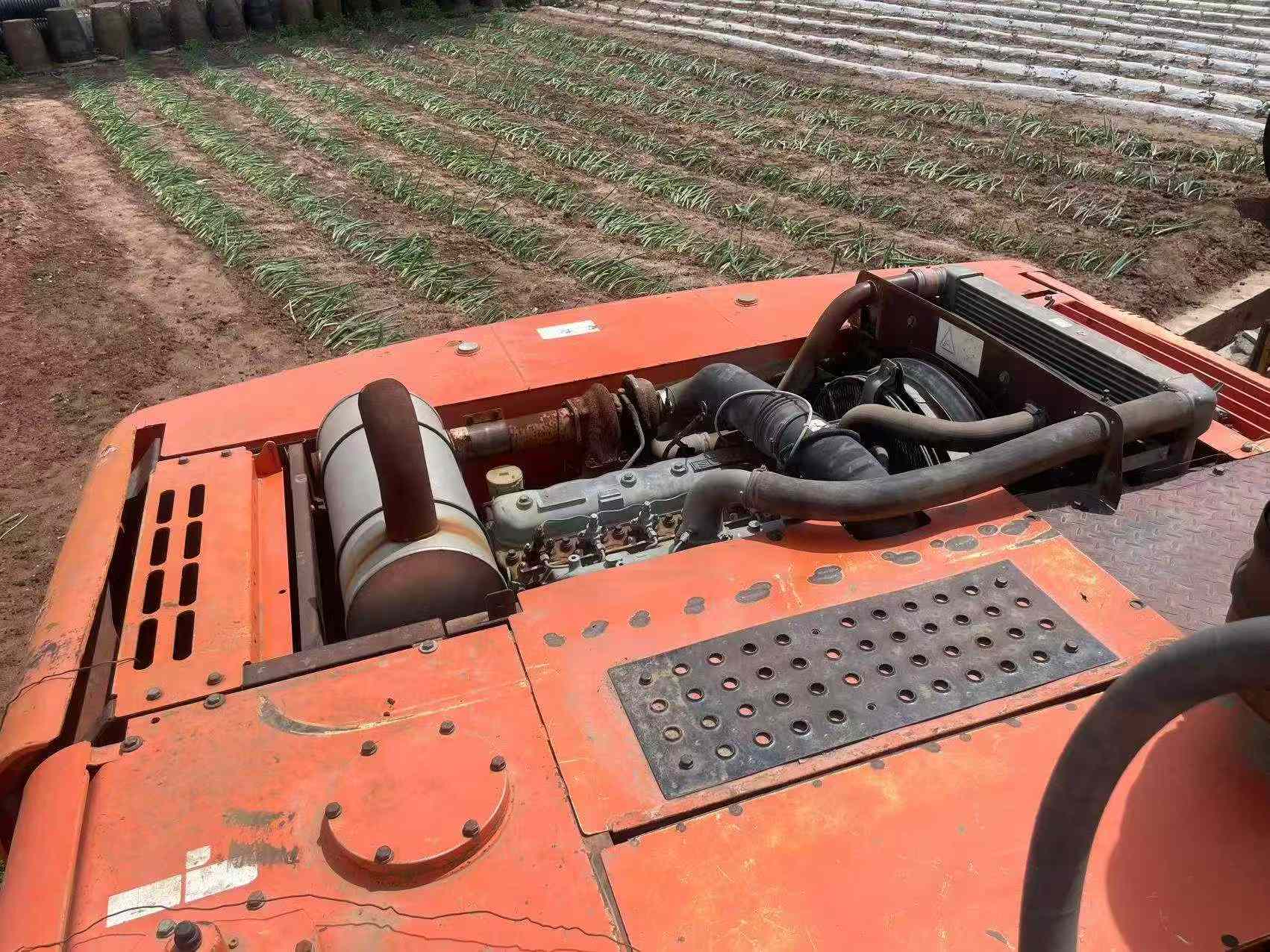

| Engine type | Isuzu CC-6BG1T |
| Rated power (kw/rpm) | 124.5/2100 |
| Displacement (L) | 6.5 |
| Ground specific pressure (Kpa) | 50 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 380 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport width (mm) | 2990 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3460 |
| Maximum digging depth (mm) | 6300 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6540 |
| Maximum vertical digging depth (mm) | 9530 |
