Product Description

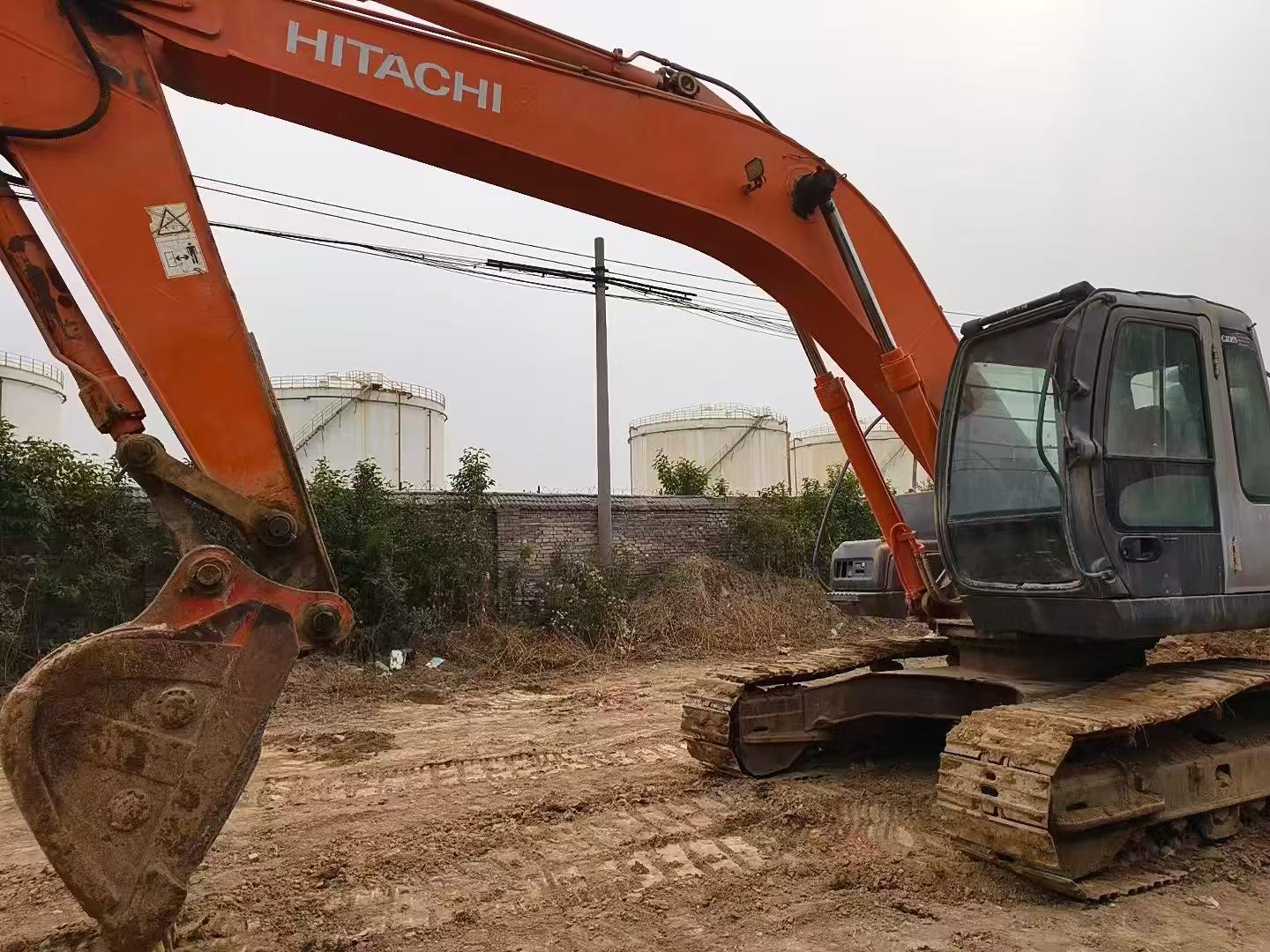

Built for high-output earthmoving and deep excavation work, this 2013 Hitachi ZX240-3 delivers 24-ton performance with proven ISUZU AH-4HK1X power. Operating weight of 23,800 kg provides stability for demanding trenching, foundation digging, and site preparation tasks. The turbocharged, intercooled engine generates 132 kW at 2,000 rpm, driving dual variable piston pumps that deliver 448 l/min combined hydraulic flow for responsive digging cycles.
Reach specifications include 10,290 mm maximum digging radius and 6,960 mm maximum depth—ideal for utility installation, basement excavation, and drainage projects. Bucket digging force reaches 180 kN with 1.0 m³ capacity standard equipment. Dual-speed travel at 3.4/5.5 km/h moves efficiently between dig zones. Water-cooled 4-cylinder engine with 5.193 L displacement runs reliably in extended shifts.
Currently located in Shaanxi Province, this machine is ready for immediate deployment on construction sites, demolition projects, or land development operations requiring precision hydraulic control and substantial breakout force.
| Specifications | Value |
|---|---|
| No. | 1014767 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23800 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 6 |
| Rod length (mm) | 2.96 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

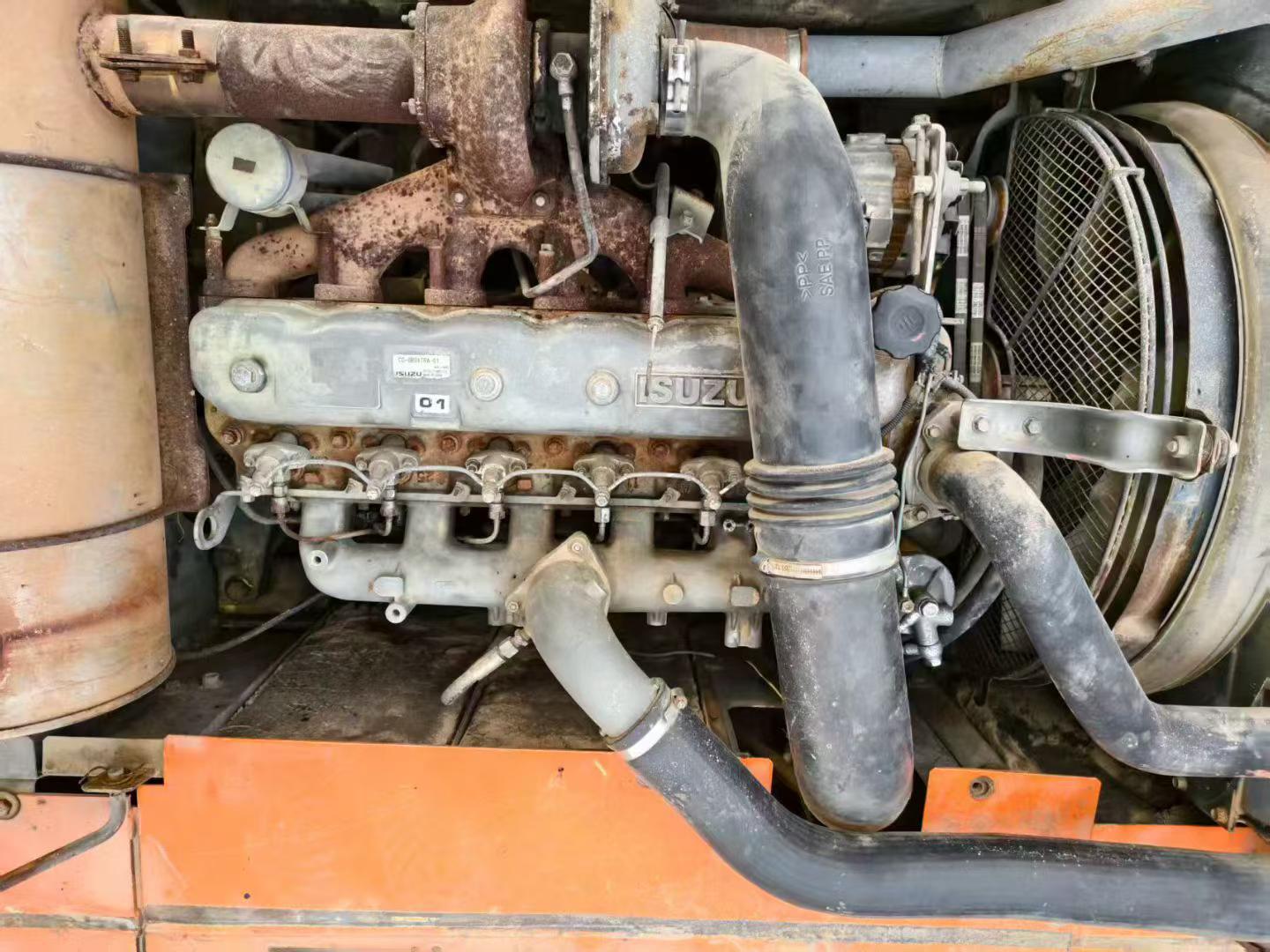

| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

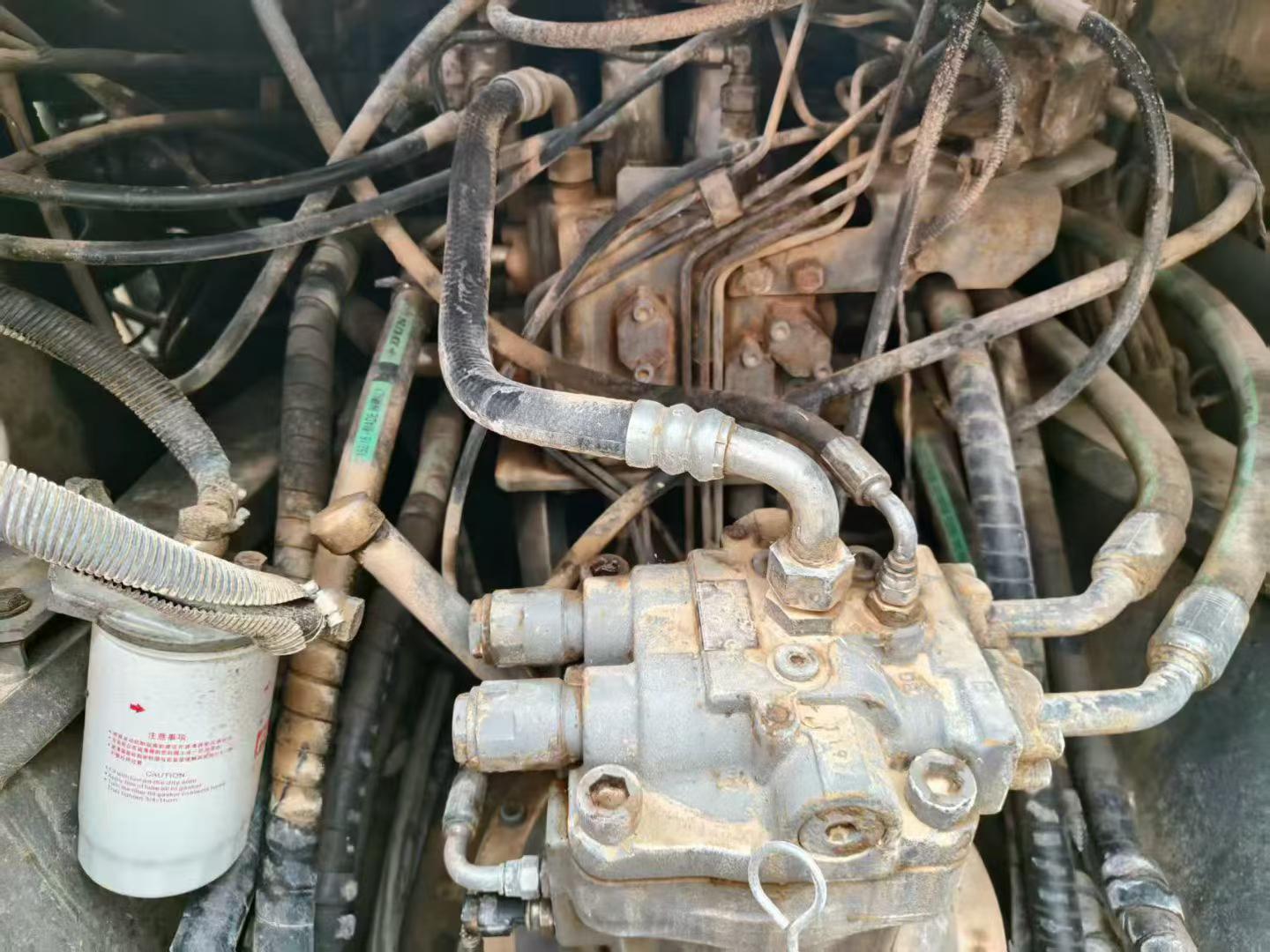

| Rotary hydraulic motor type | Axial piston motor ×1 |

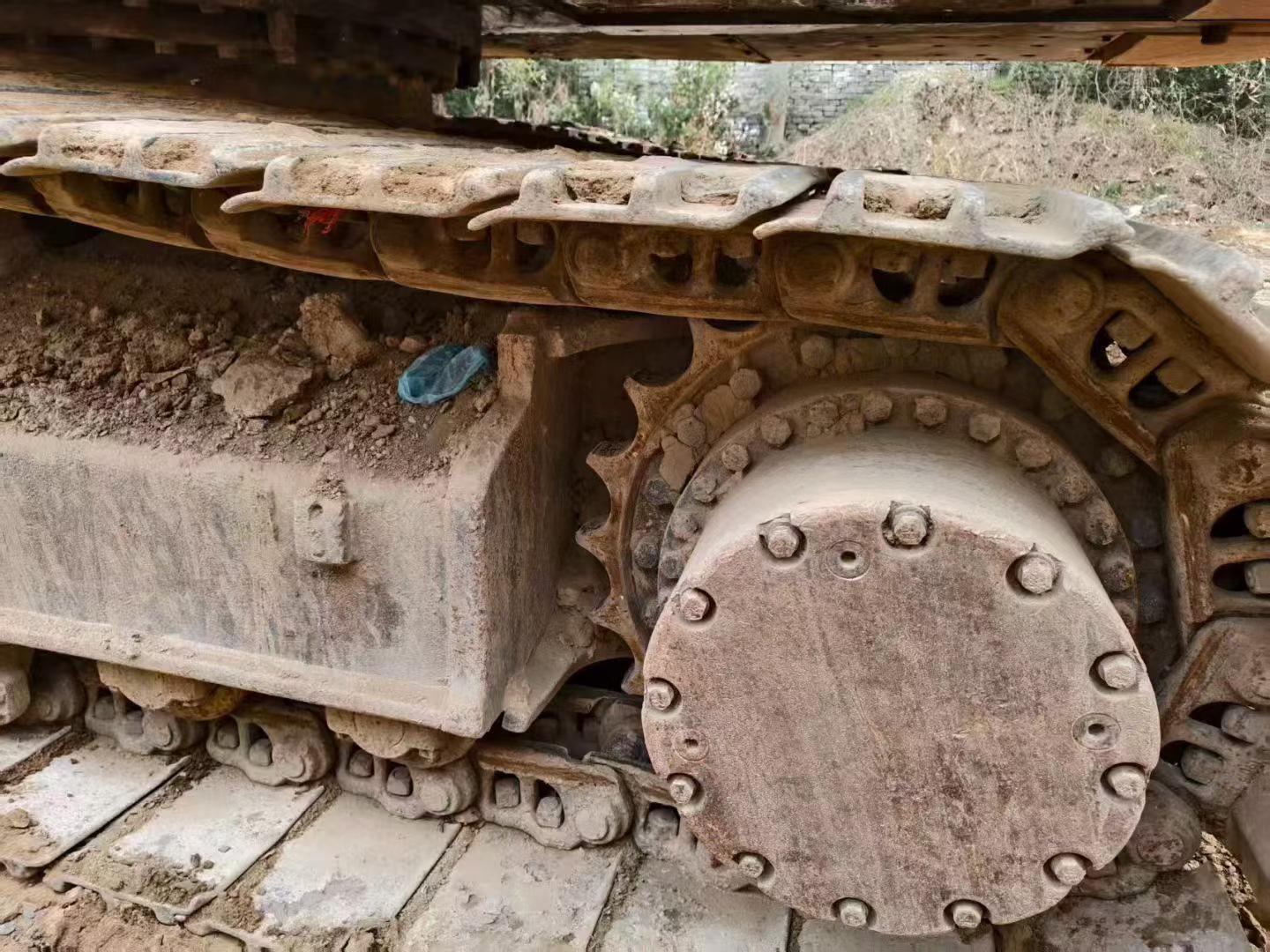

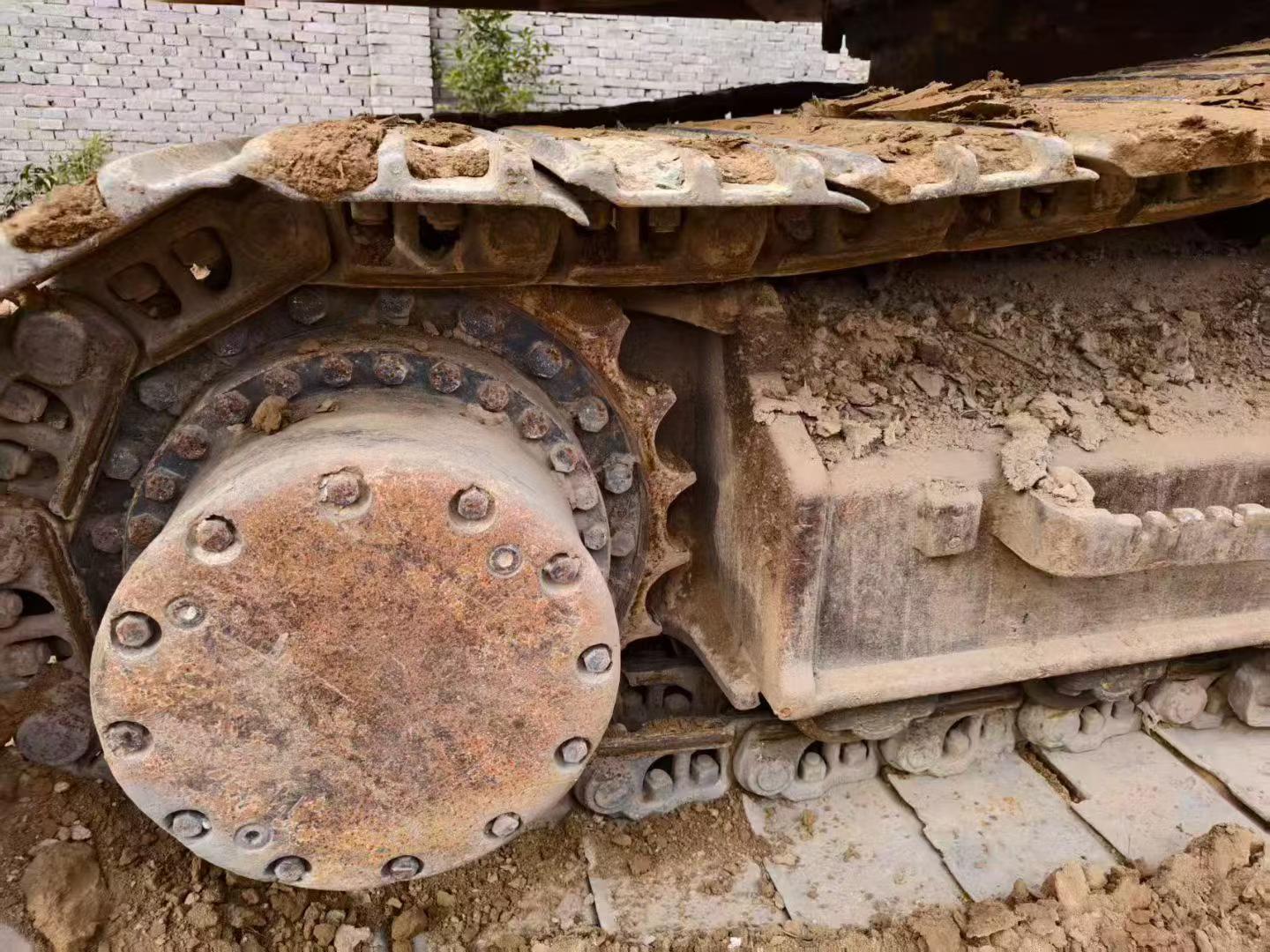

| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

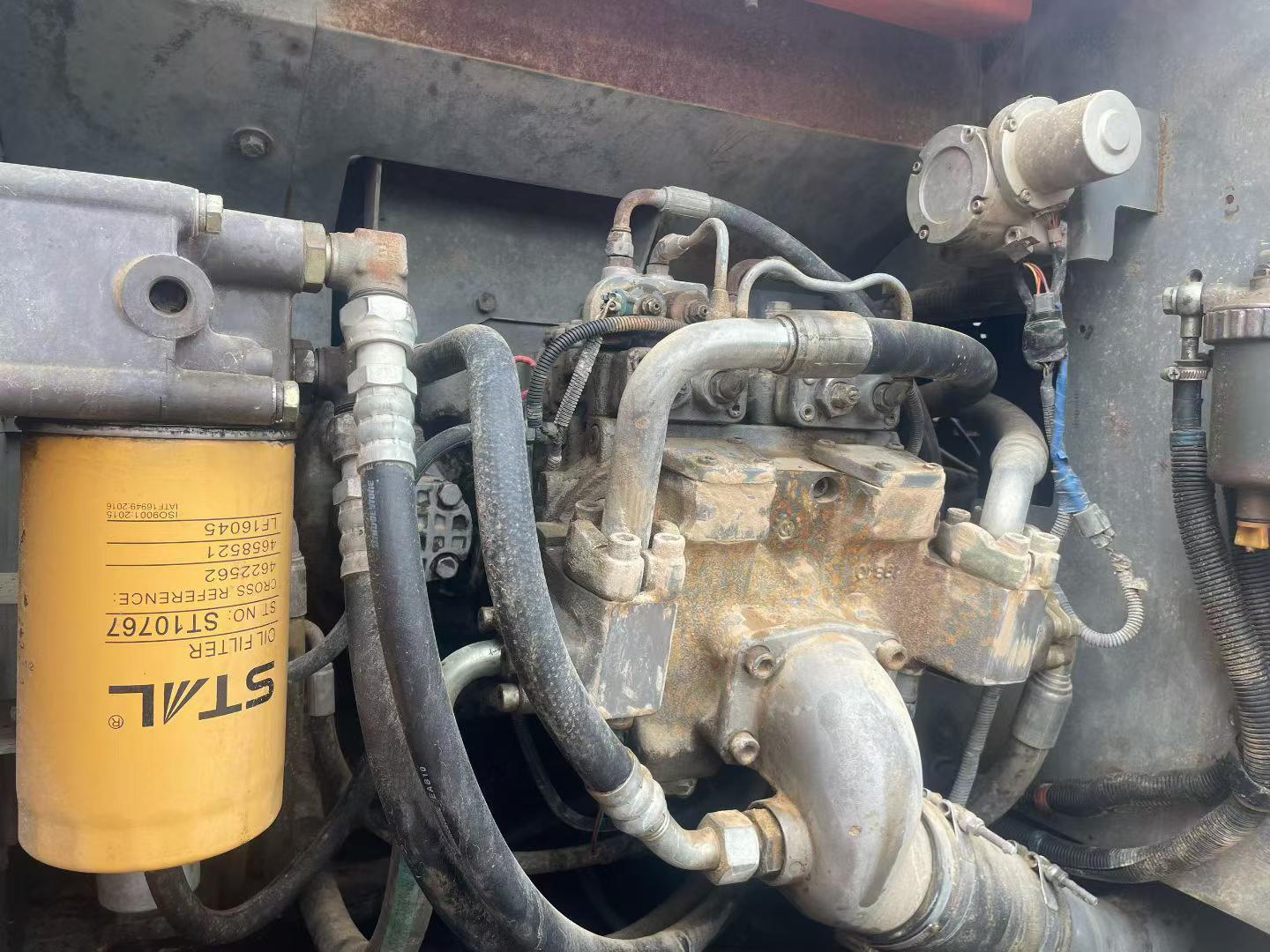

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10150 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3070 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
