Product Description
Engineered with Hitachi's proven ZX-3 series architecture, this 2015 ZX240-3 delivers 24-ton performance backed by precision Japanese hydraulics. Powered by an ISUZU AH-4HK1X engine generating 132 kW at 2000 rpm, the machine combines a direct-injection turbocharged system with intercooler technology for consistent output across demanding applications. Dual variable piston pumps supply 448 l/min total flow at 34.3 MPa working pressure, enabling 180 kN bucket digging force and 125 kN arm breakout force—critical metrics for productivity in rocky or compacted soil conditions.
- Hydraulic System: Twin variable piston pumps with independent circuit control; 156L tank capacity ensures thermal stability
- Reach & Depth: 10,290 mm maximum digging radius; 6,960 mm dig depth for deep foundation work
- Mobility: 13.5 rpm swing speed and 5.5 km/h travel speed; 52 kPa ground pressure minimizes site disturbance
- Durability: Water-cooled 5.2L displacement engine; 500L fuel capacity supports extended operation
Currently located in Guilin, Guangxi, this joint-venture manufactured excavator represents proven midsize excavator en
| Specifications | Value |
|---|---|
| No. | 1018439 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23800 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 6 |
| Rod length (mm) | 2.96 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |

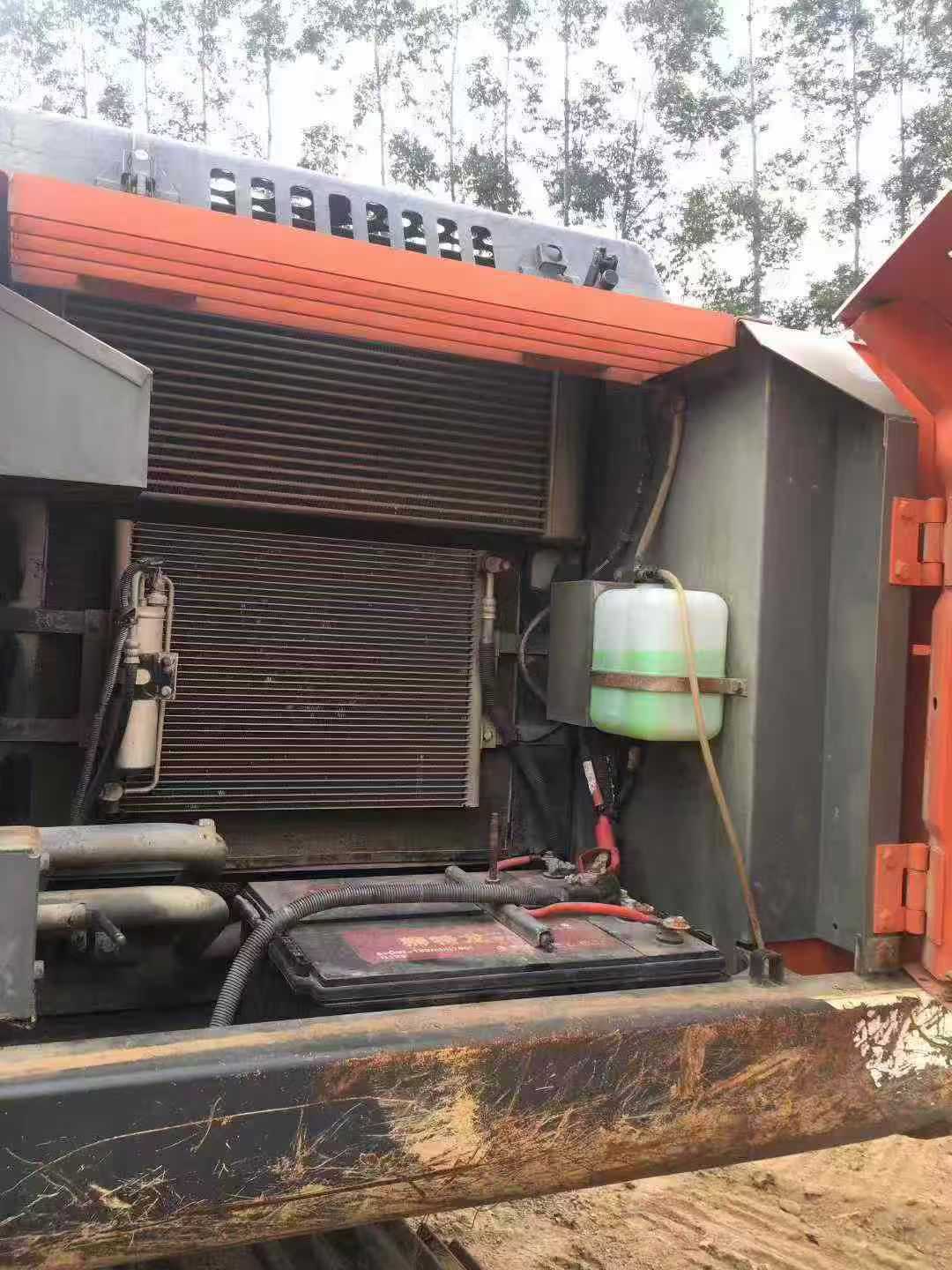

| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10150 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3070 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
