Product Description

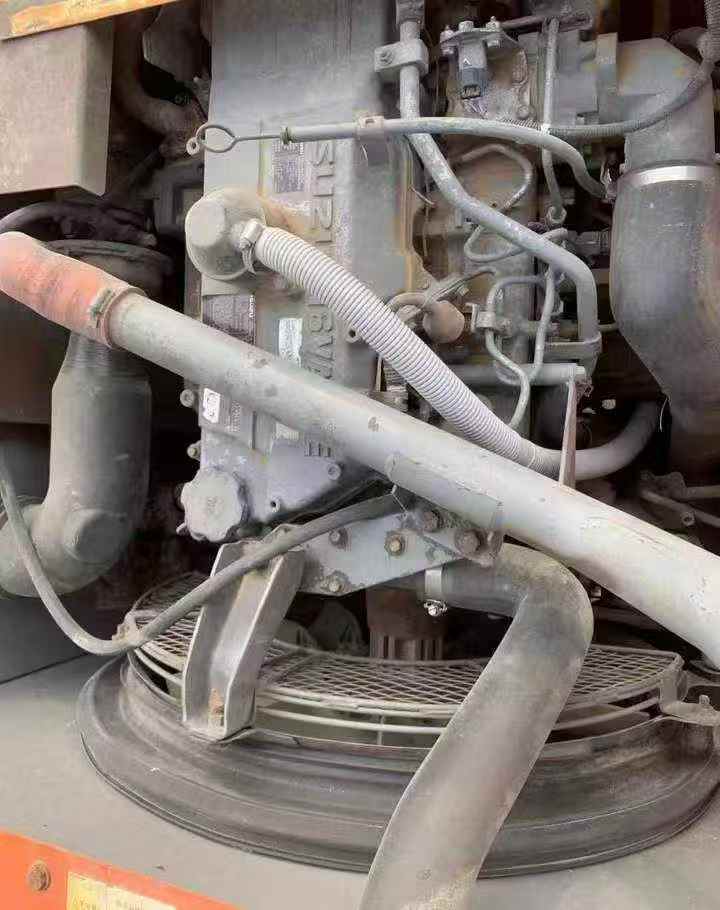

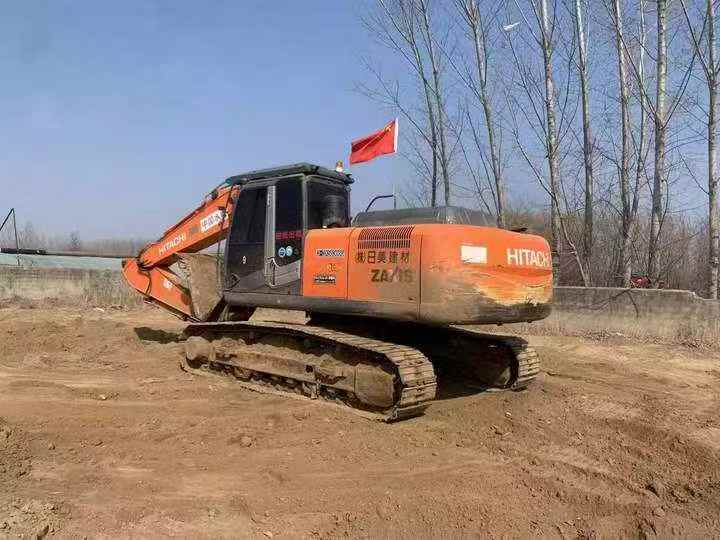

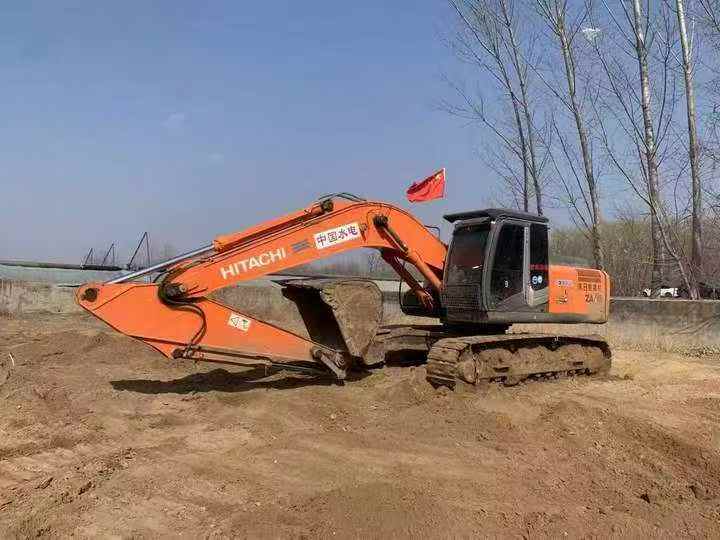

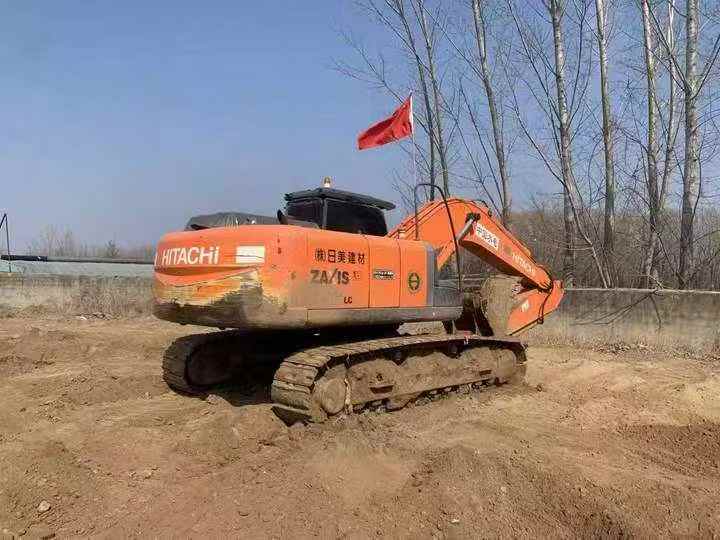

Engineered in Hefei with Japanese precision, this 2016 Hitachi ZX240-3 delivers 24-ton performance through proven hydraulic architecture. Powered by an ISUZU AH-4HK1X turbocharged diesel engine producing 132 kW at 2,000 rpm, this excavator combines raw power with intelligent fuel efficiency across demanding jobsites.

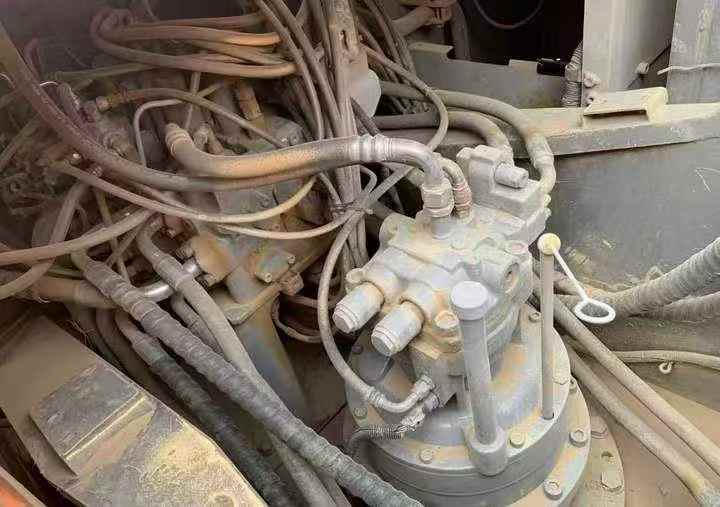

Hydraulic superiority defines this machine. Dual variable piston pumps supply 448 L/min total flow at 34.3 MPa working pressure, generating 180 kN bucket digging force and 125 kN arm digging force. Variable axial piston travel motors and a single axial piston swing motor provide precise control through independent hydraulic circuits optimized for simultaneous operations.
- 10,290 mm maximum reach with 6,960 mm digging depth
- 23,800 kg operating weight with 52 kPa ground pressure
- Water-cooled 5.2L displacement engine with intercooler
- 500L fuel capacity for extended runtime
- 70% gradeability (35°) with 3.4/5.5 km/h travel speeds
Currently located in Hebei Province, this joint-venture manufactured ZX240-3 represents Hitachi's third-generation excavator technology, ready for immediate deployment in construction, mining, or infrastructure projects worldwide
| Specifications | Value |
|---|---|
| No. | 1033747 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23800 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 6 |
| Rod length (mm) | 2.96 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10150 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3070 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
