Product Description
Expand your operational capacity with this 2013 Hitachi ZX240-3G excavator, a proven 24-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust ISUZU CC-6BG1T turbocharged engine delivering 125kW at 2100rpm, this machine provides consistent performance across demanding earthmoving, trenching, and site preparation tasks. Its 10.27m maximum digging radius and 6.95m digging depth deliver impressive reach for mid-size projects.
Built for fleet integration, this unit offers:
- Japanese engineering with joint-venture manufacturing quality standards
- Multiple bucket configurations (1.0/1.2H/1.2 Rock) for task-specific deployment
- 204L/min dual pump hydraulic system ensuring responsive control
- 23,500kg working weight balancing power with transportability
- 380L fuel capacity minimizing refueling downtime during extended shifts
Currently located in Guangxi, this ZX240-3G serves as an ideal backup machine or capacity booster when primary equipment is committed elsewhere. With proven reliability across construction, demolition, and utility sectors, it maintains productivity during peak demand periods without compromising your opera
| Specifications | Value |
|---|---|
| No. | 1025174 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

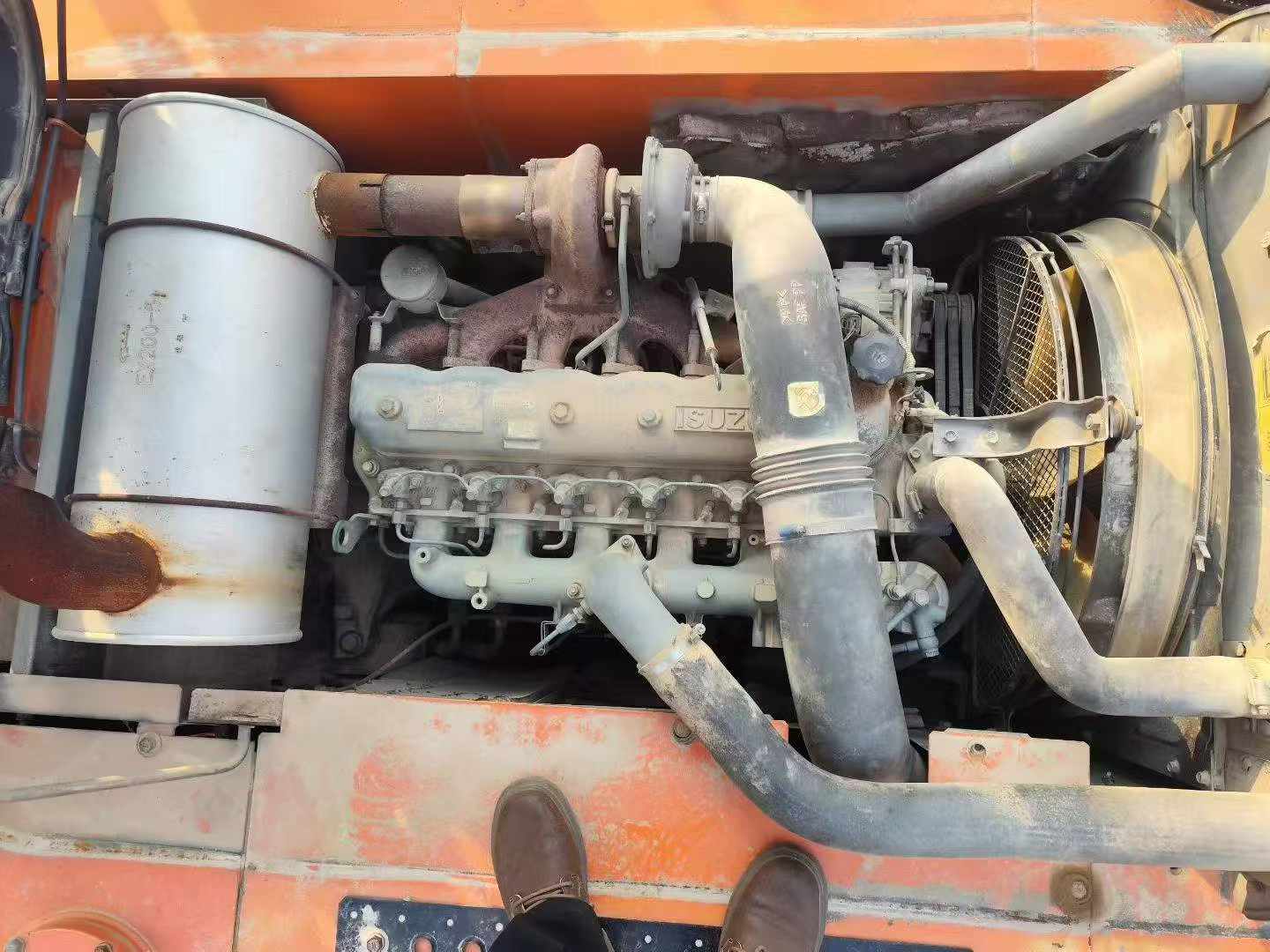

| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
