Product Description

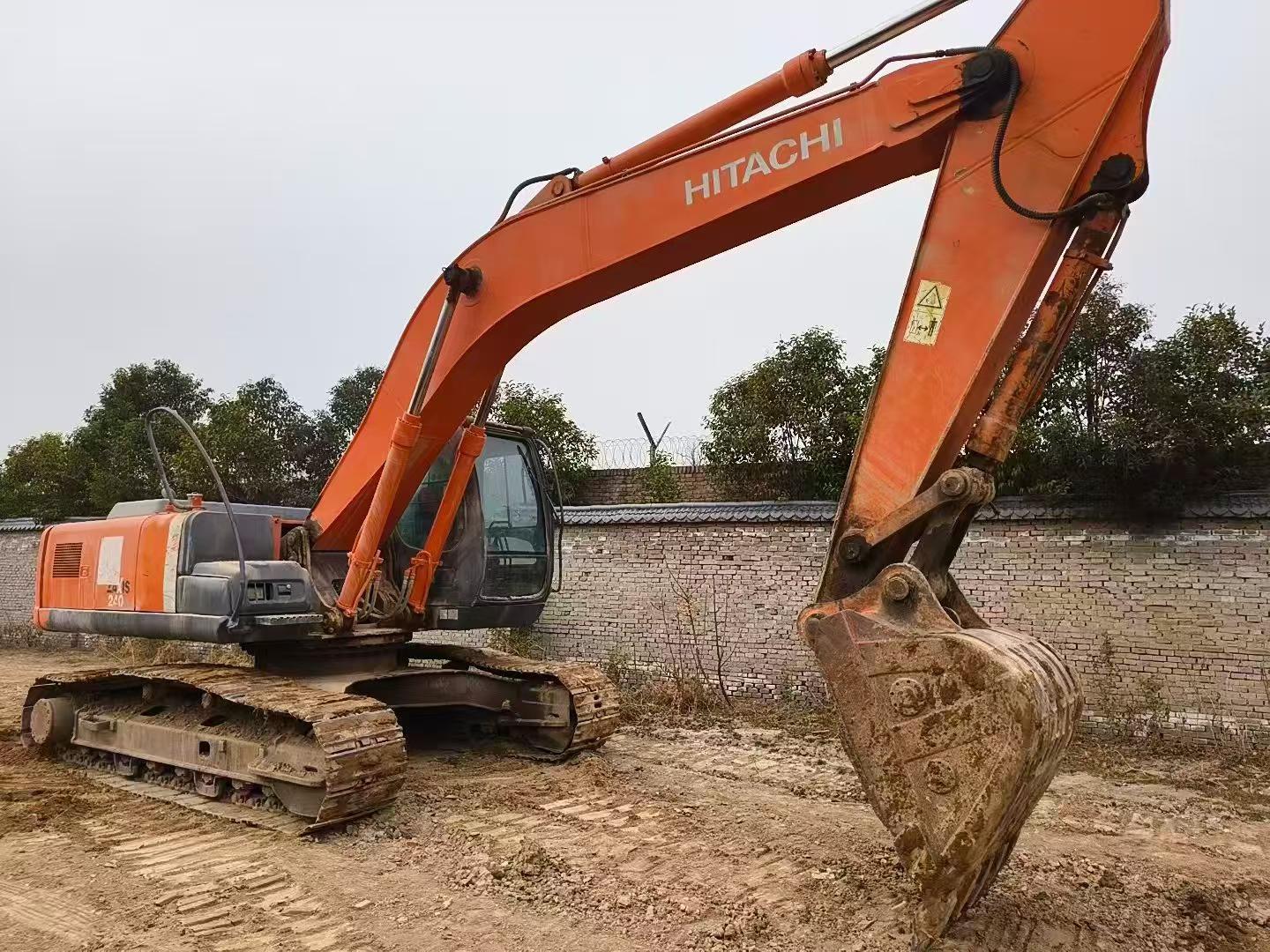

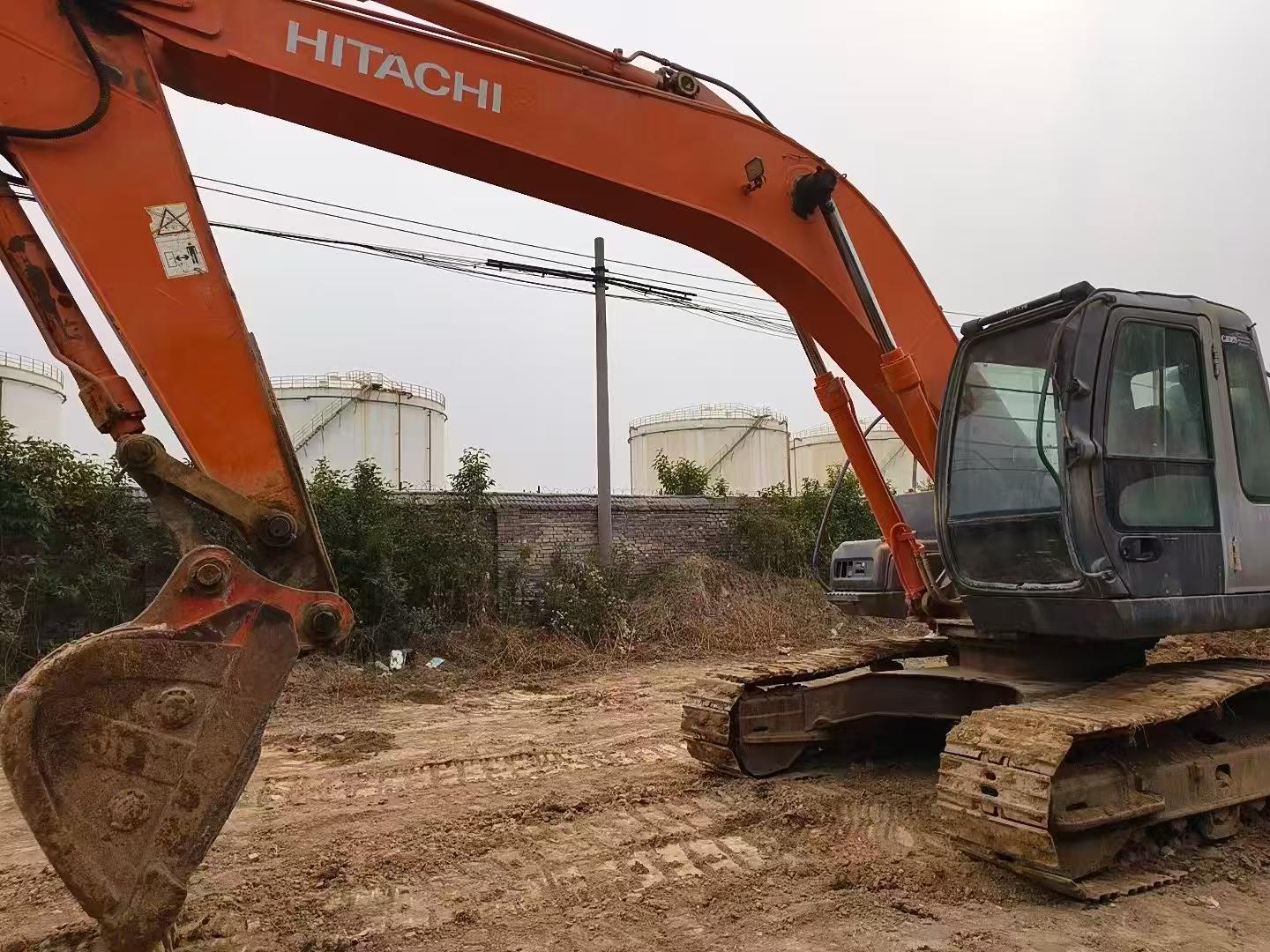

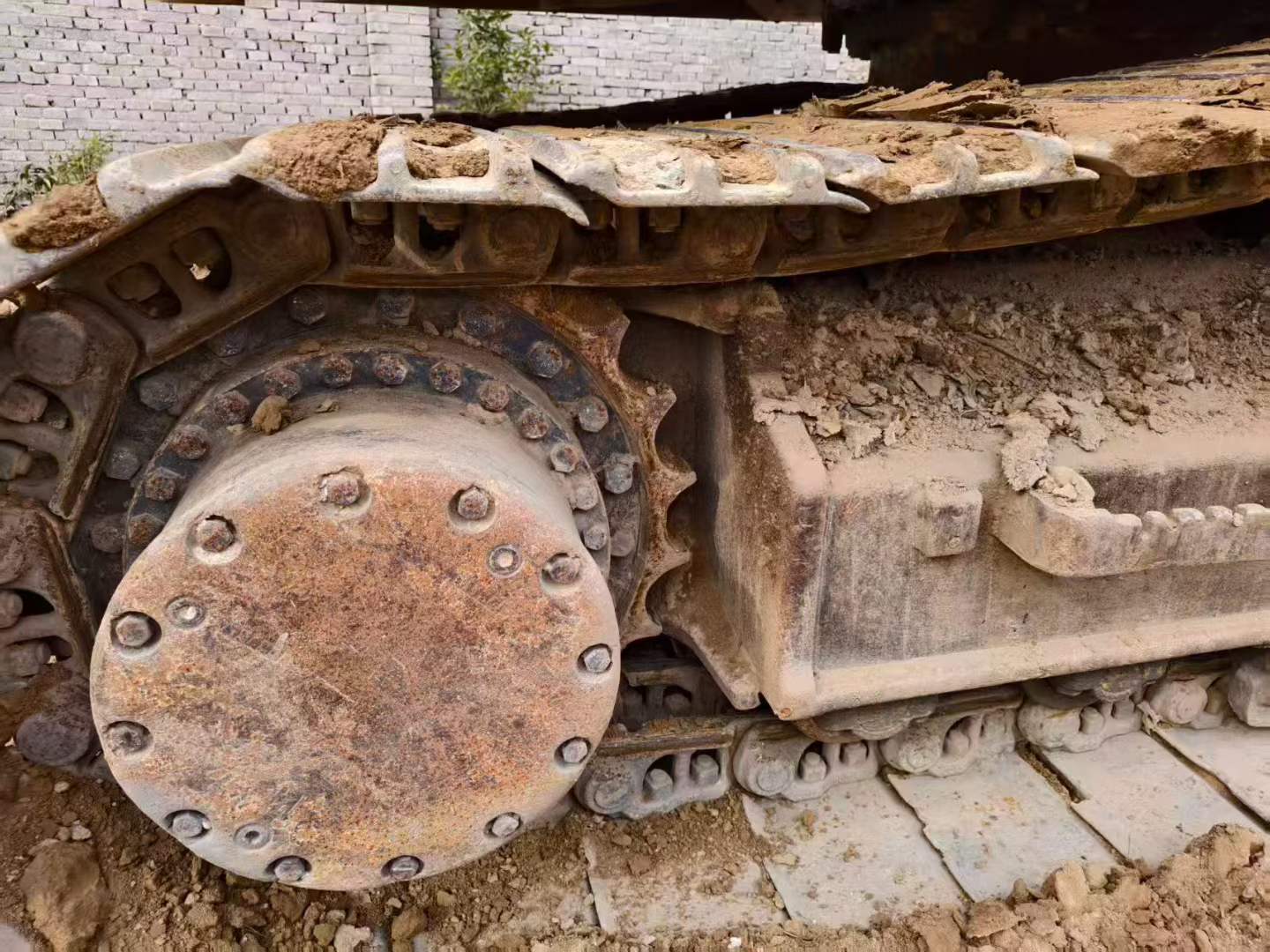

Built for high-volume excavation and grading operations, this 2013 Hitachi ZX240-3G delivers 24-ton performance with proven reliability. Powered by an ISUZU CC-6BG1T turbocharged engine producing 125 kW at 2100 rpm, this machine combines robust digging force with fuel-efficient operation. The 6.494L displacement engine features water-cooled, direct injection technology with intercooling for consistent power delivery across extended work cycles.
Equipped with a 6.00m H-type boom and 2.96m rod, this excavator reaches a maximum digging depth of 6950mm and a working radius of 10270mm—ideal for foundation work, trenching, and site preparation. Dual variable axial piston pumps supply 204 l/min each, ensuring responsive hydraulics for bucket capacities ranging from 1.0 to 1.2 m³. With 180 kN bucket digging force and 125 kN rod force, this ZX240-3G handles demanding materials including compacted soil and fractured rock.
Currently located in Shaanxi Province, this Japan-manufactured excavator is site-ready for immediate deployment on construction, mining, or infrastructure projects requiring dependable mid-size excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1043380 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

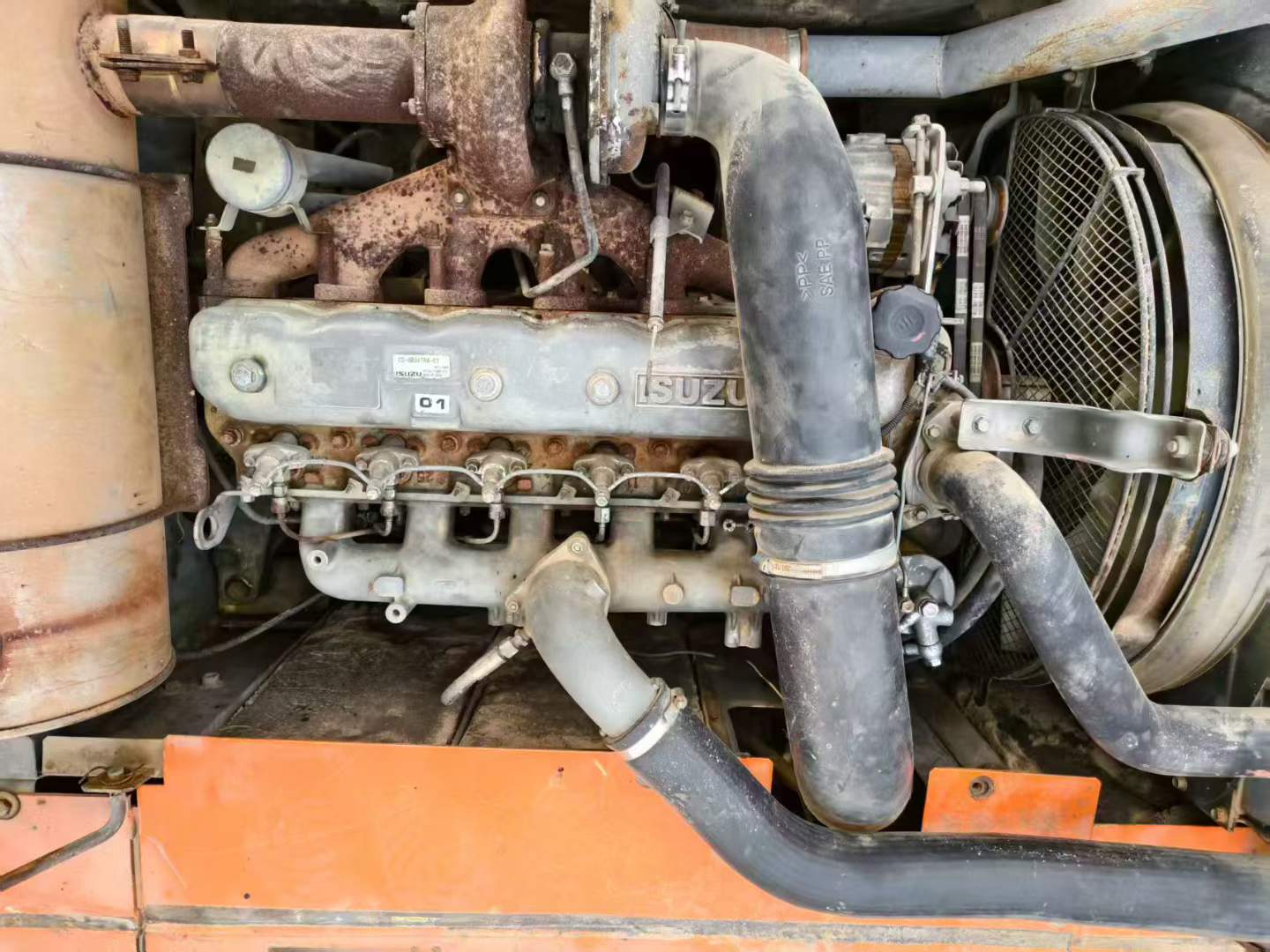

| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |

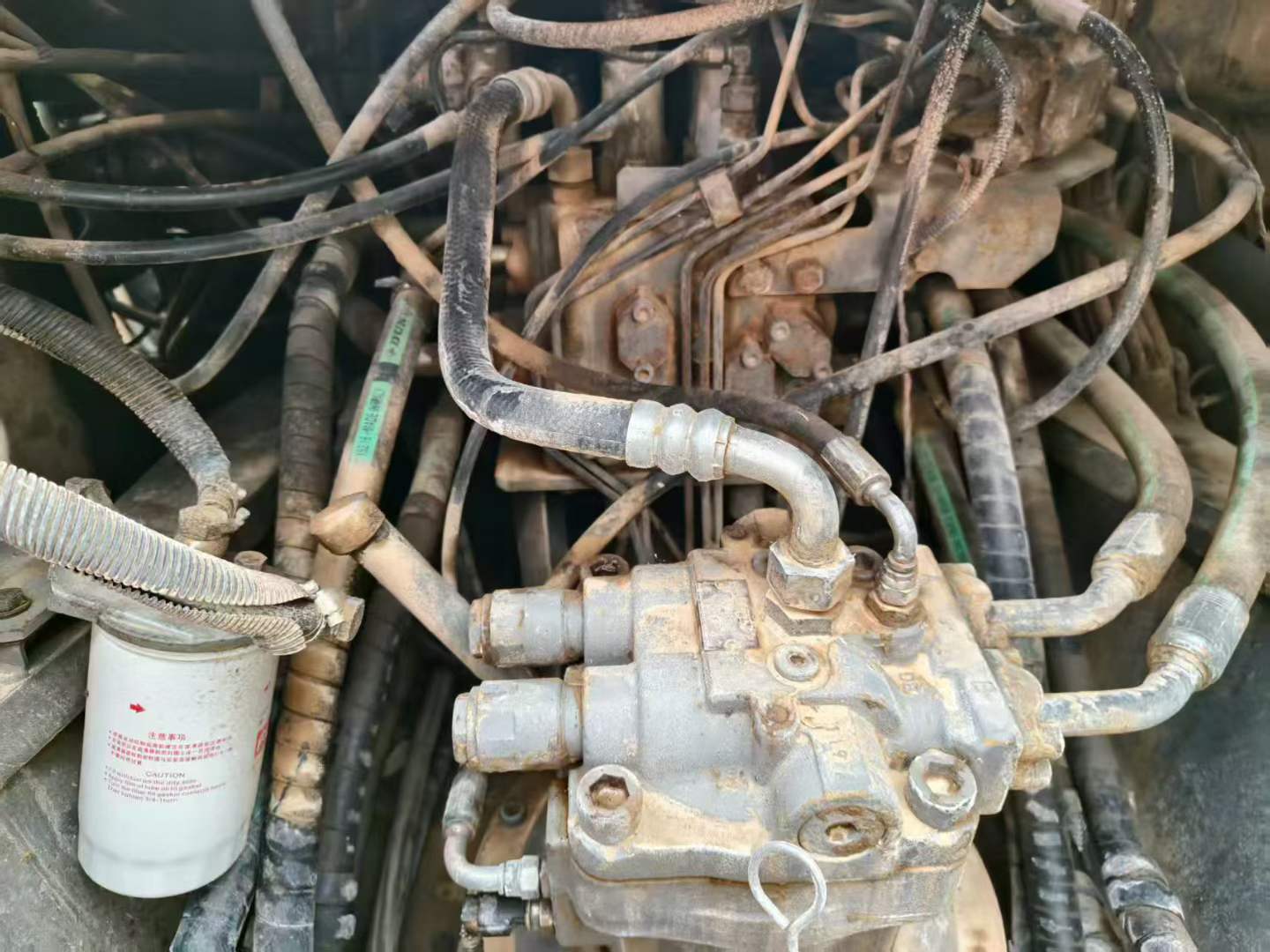

| Rotary hydraulic motor type | Axial piston motor |

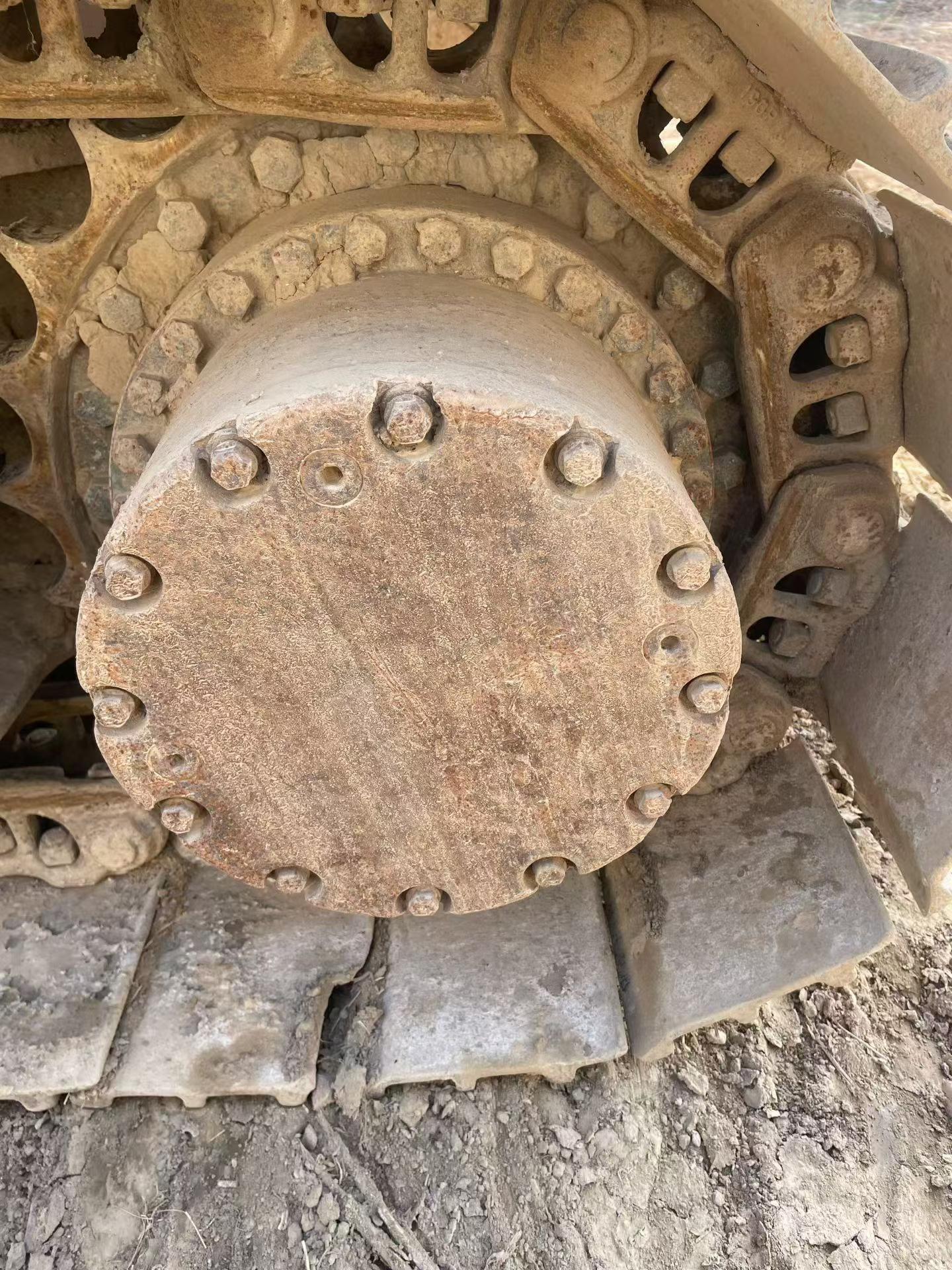

| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

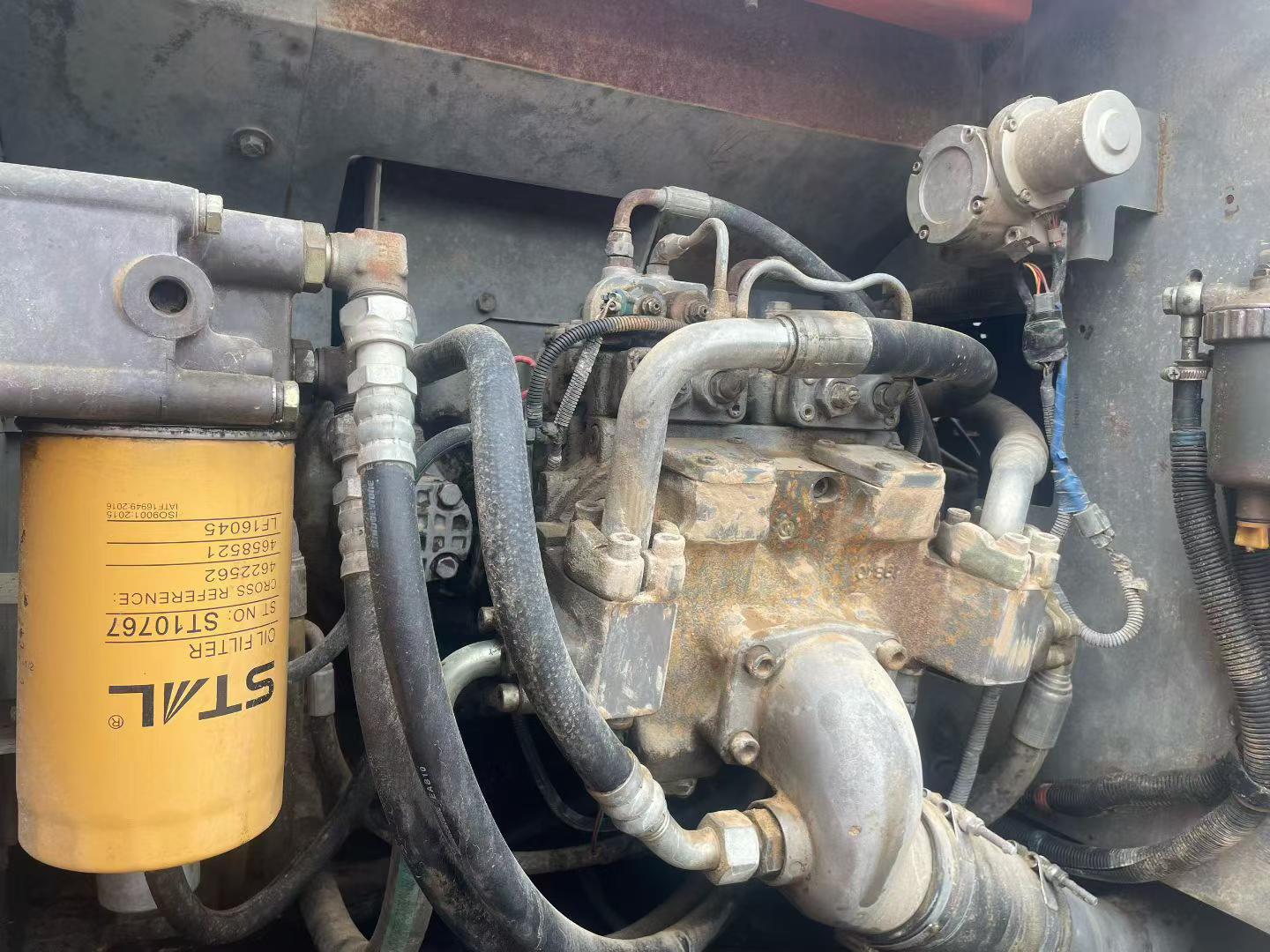

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
