Product Description
Engineered with Hitachi's proven hydraulic architecture, this 2014 ZX240-3G delivers precision and durability across demanding excavation applications. Powered by an ISUZU CC-6BG1T engine producing 125 kW at 2100 rpm, the machine combines a 6.494L displacement with 4-stroke turbocharged, intercooled technology for consistent performance under load. Dual variable axial piston pumps supply 204 L/min each, driving a working hydraulic circuit rated at 34.3 MPa—ensuring responsive control across boom, arm, and bucket functions.
Operating at 23,500 kg working weight with bucket capacities from 1.0 to 1.2 m³, this 24-ton excavator achieves a maximum digging reach of 10,270 mm and depth of 6,950 mm. The 6.00 mm H-type boom and 2.96 mm arm configuration deliver 18,000 kN bucket digging force and 125 kN arm force. Ground-specific pressure remains low at 51 kPa across 600 mm track plates, while the axial piston travel motors provide dual-speed capability of 3.6/5.5 km/h. Currently located in Heze, Shandong, this joint-venture manufactured unit represents Hitachi's third-generation design philosophy: hydraulic efficiency, structural integrity, and operational longevity.
| Specifications | Value |
|---|---|
| No. | 1048728 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

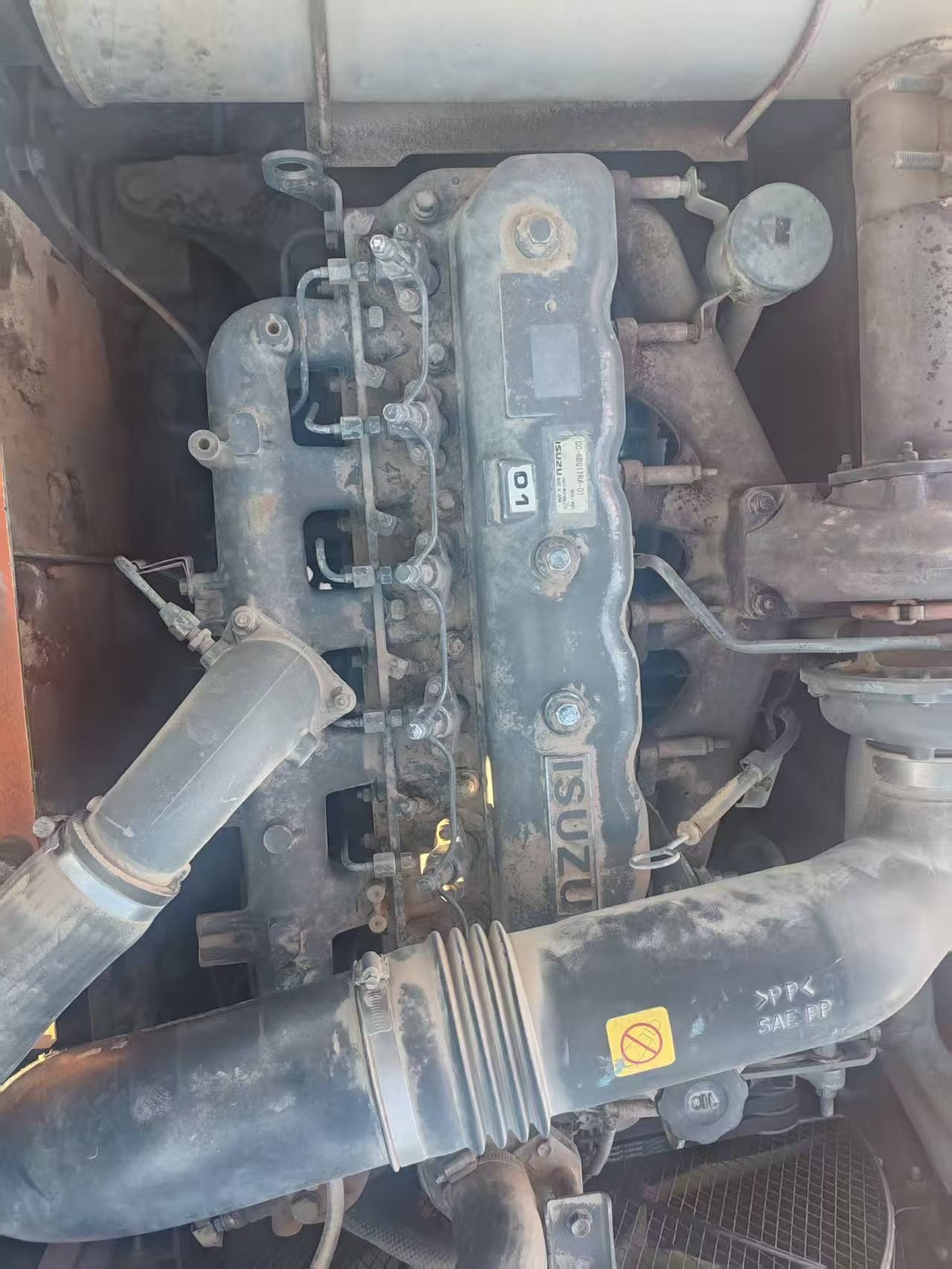

| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |

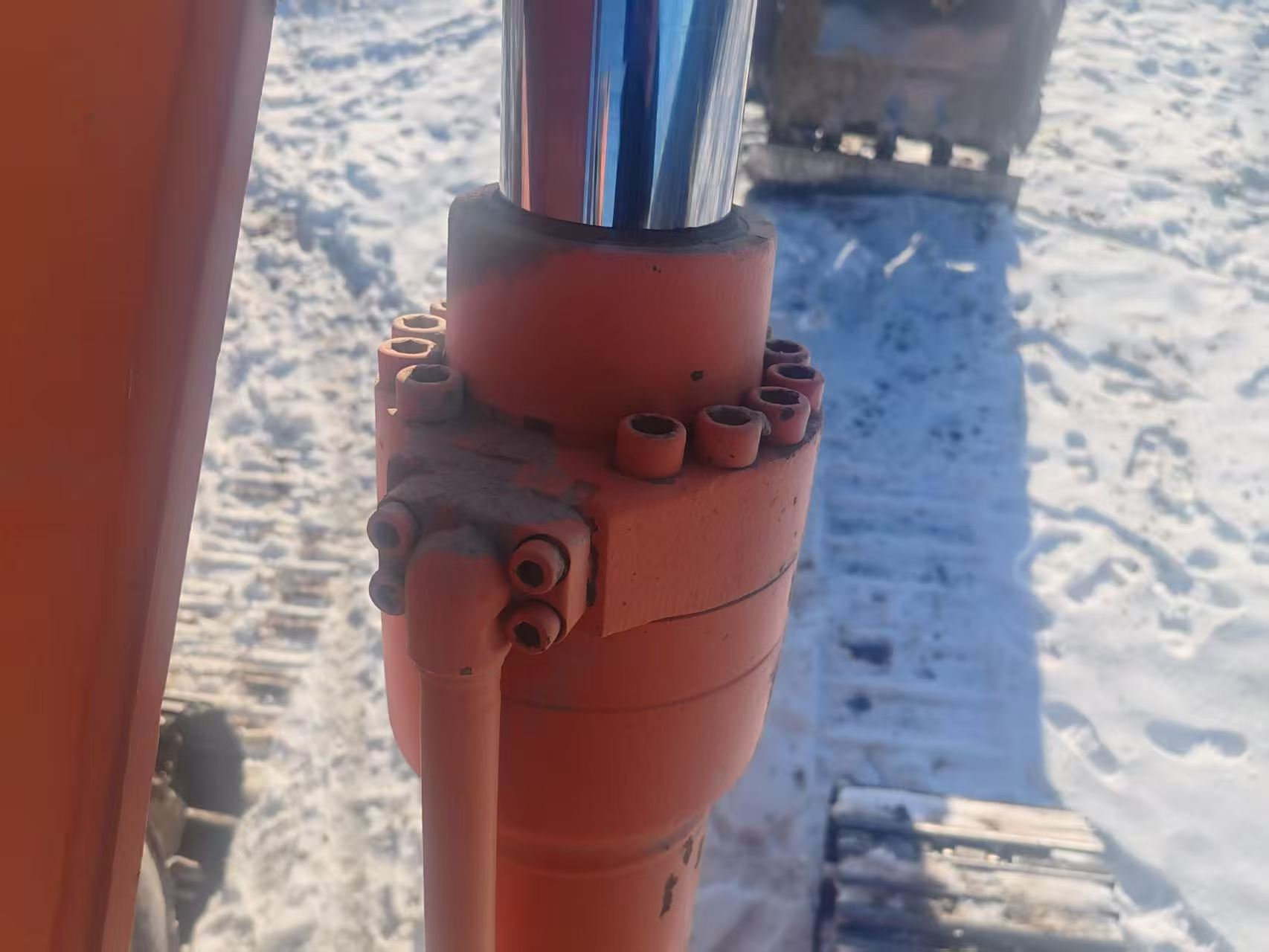

| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
