Product Description

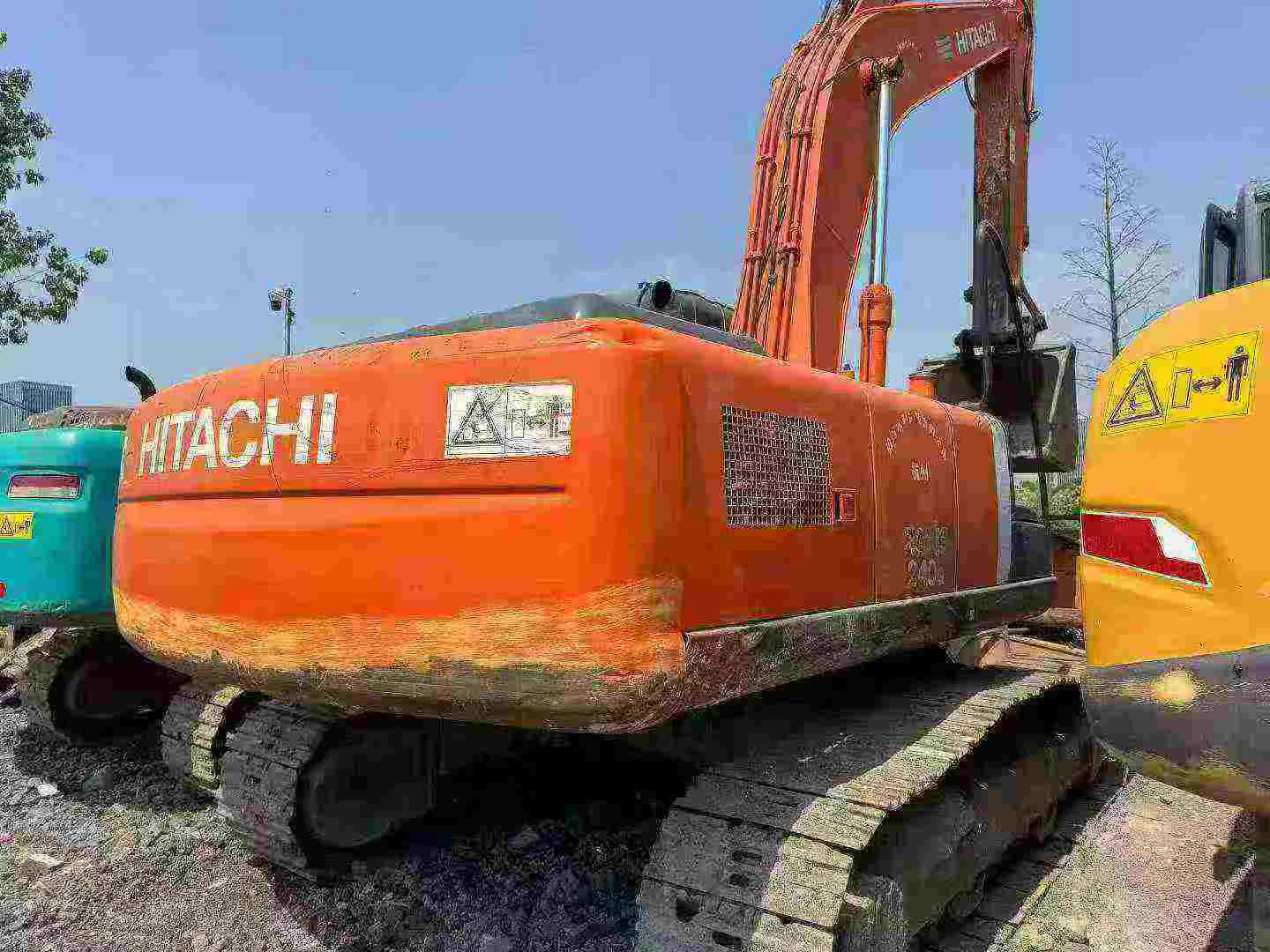

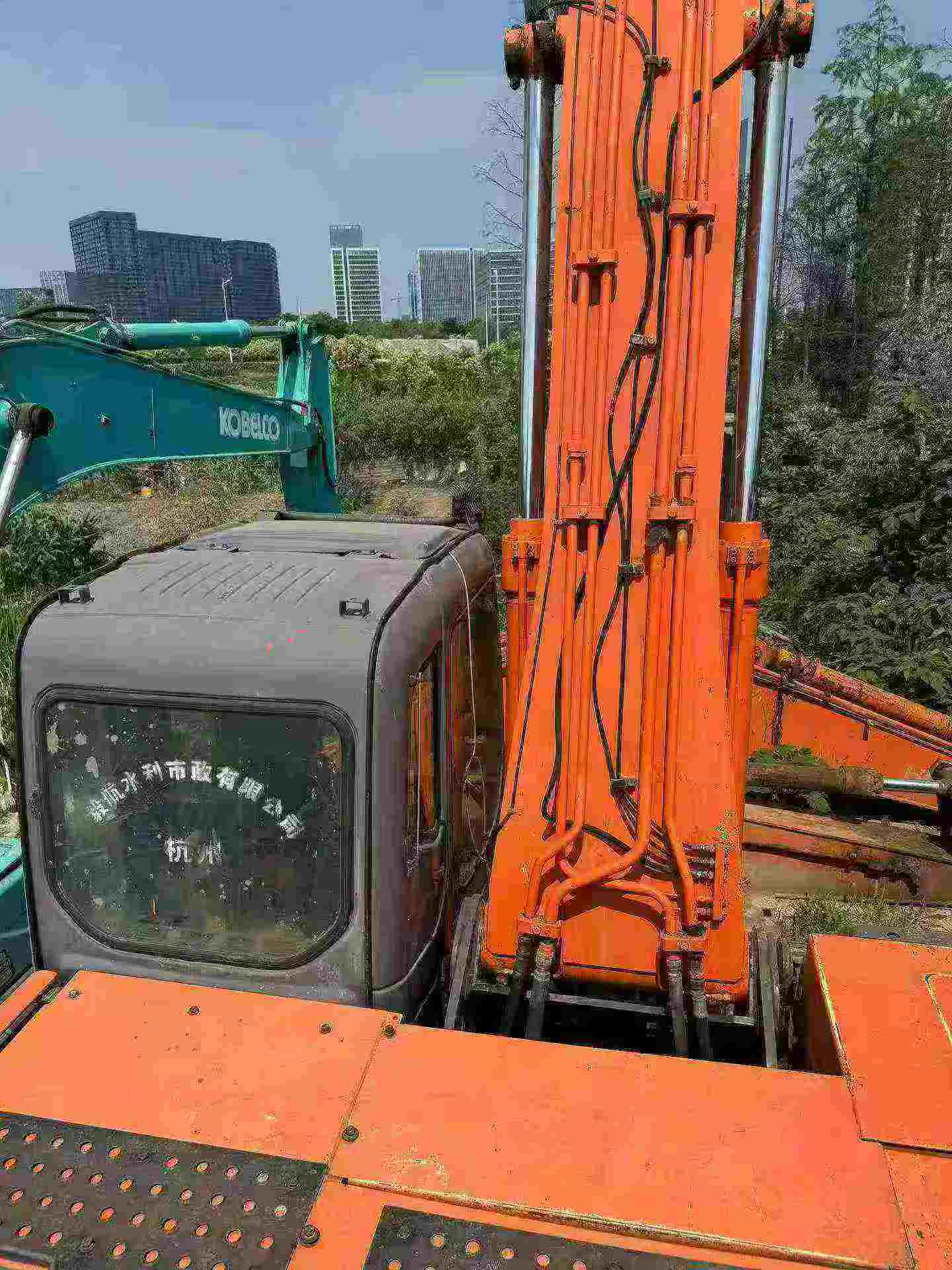

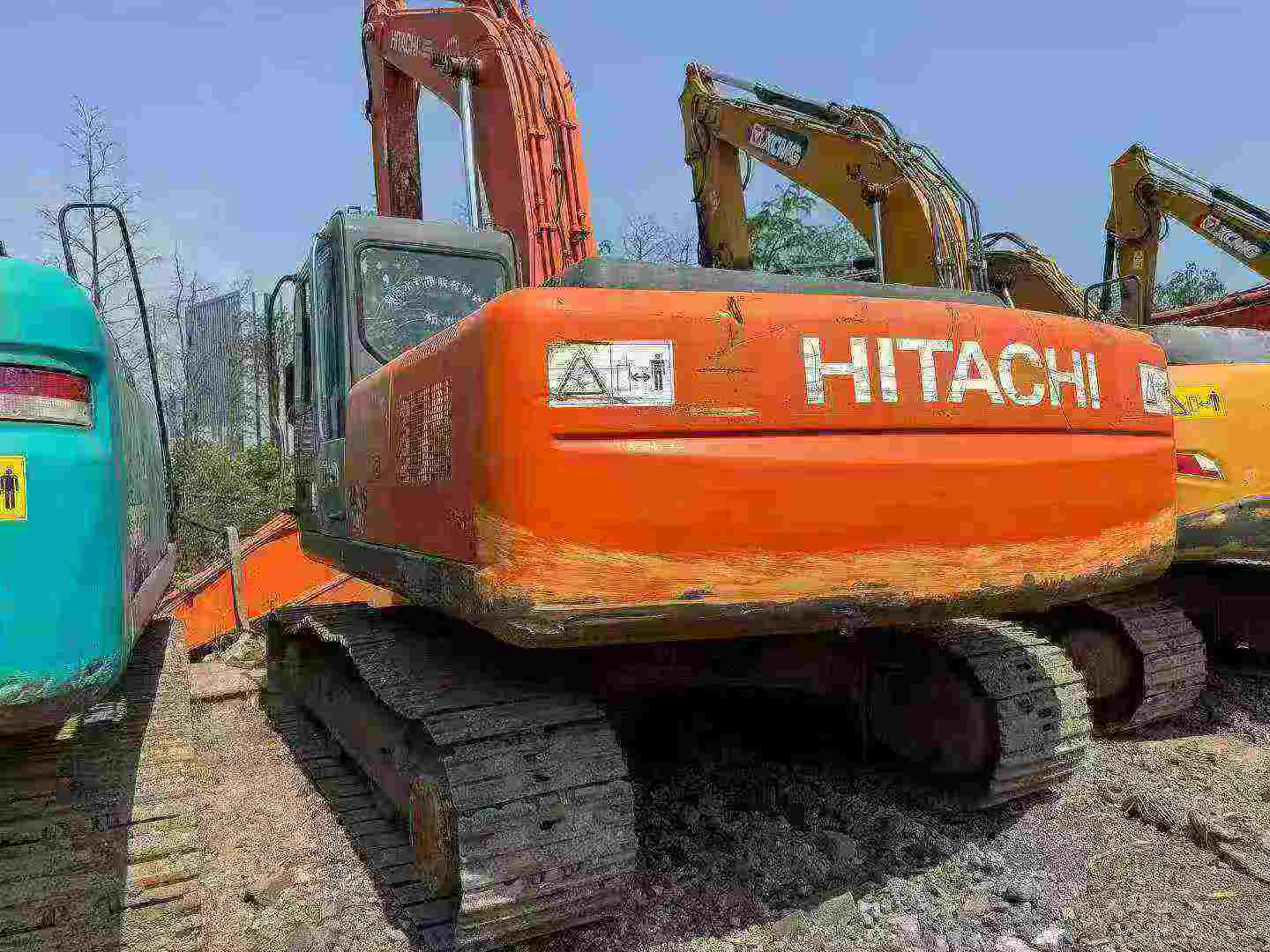

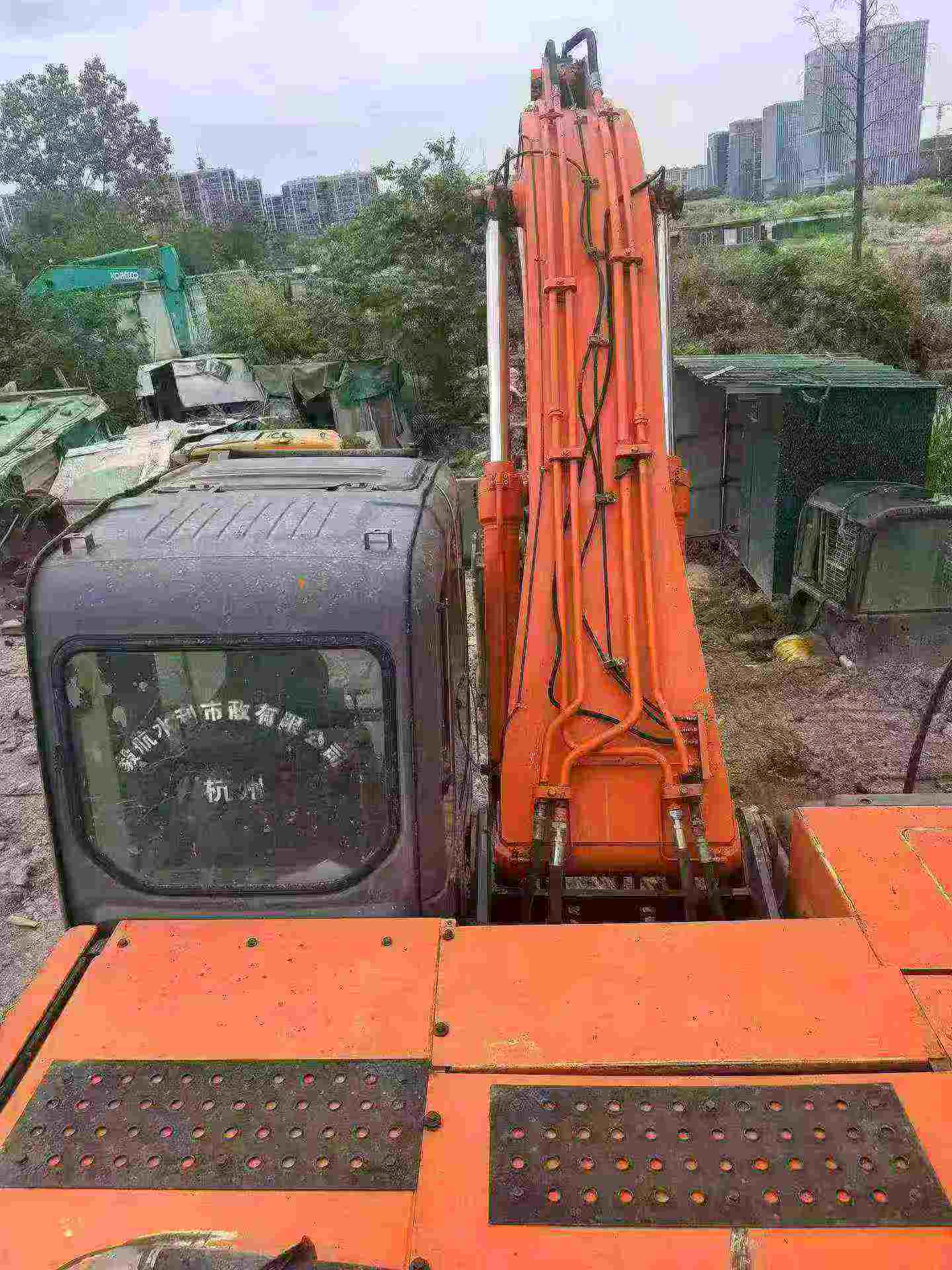

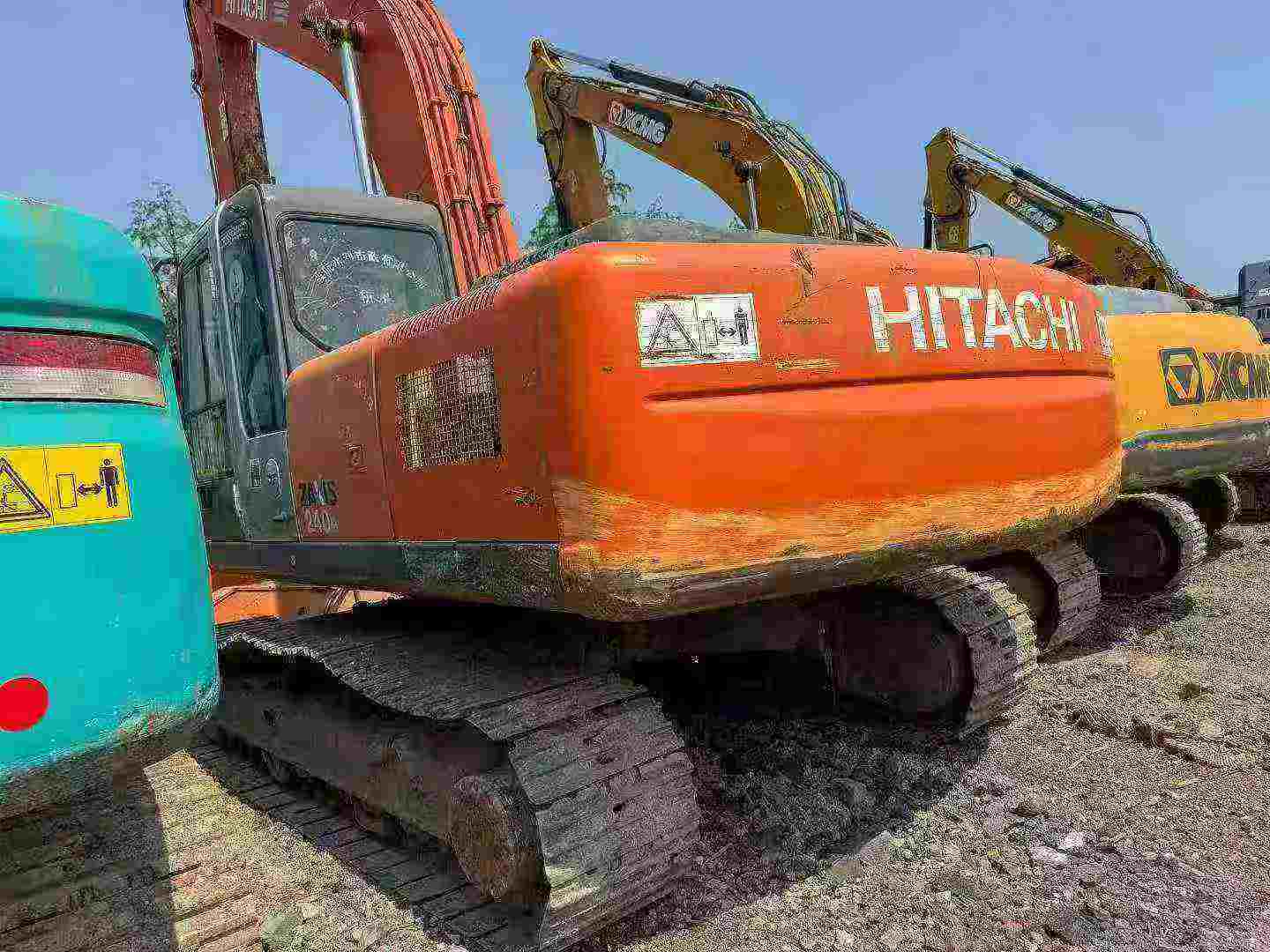

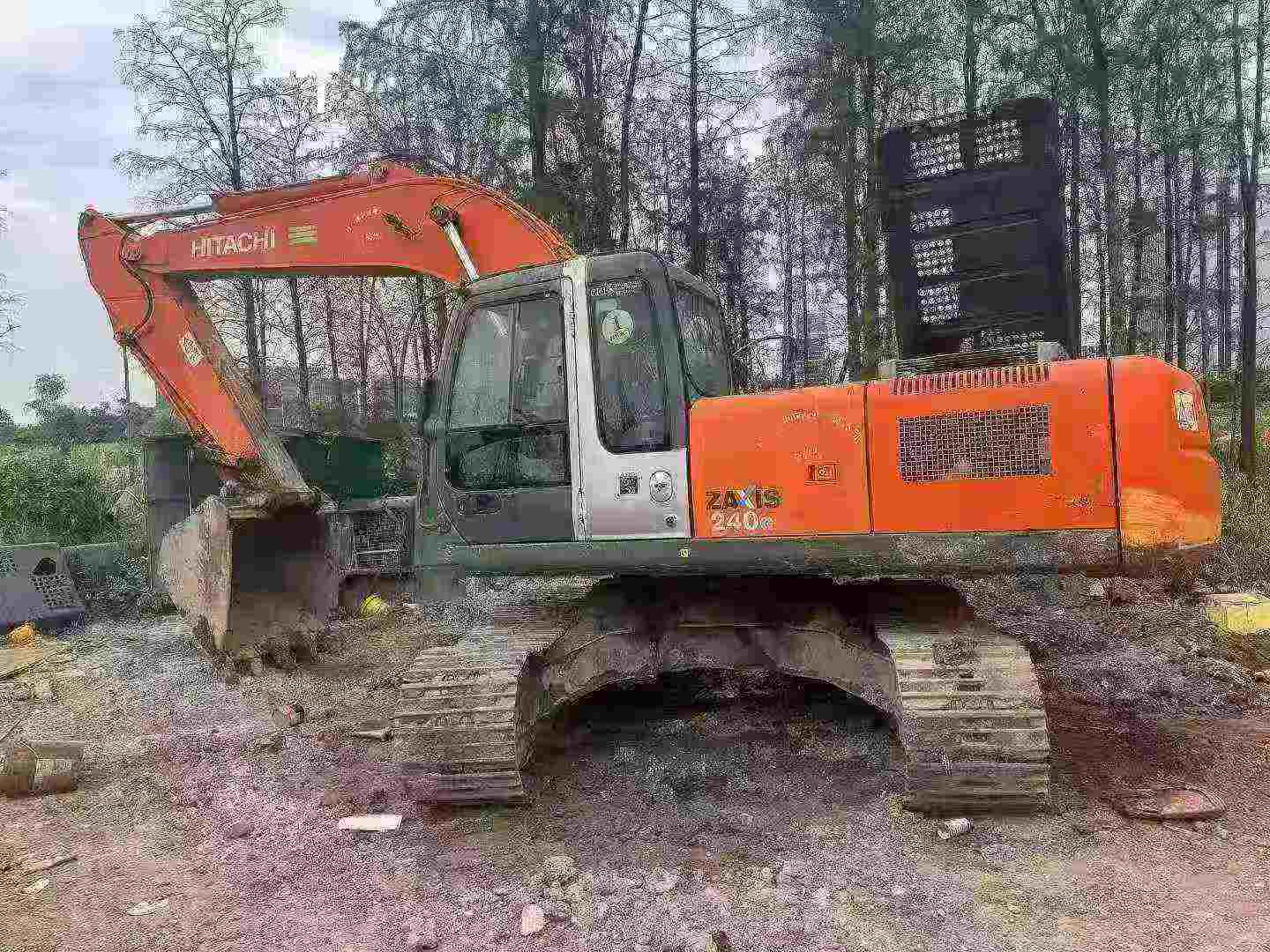

This 2020 Hitachi ZX240-3G hydraulic excavator represents a well-maintained original import unit currently located in Zhejiang, China. The machine features excellent overall condition with major components showing minimal wear and strong operational performance throughout all systems.
Key highlights include:
- Original factory configuration maintained across all components
- Clean major assemblies with no significant modifications
- Reliable performance suitable for immediate deployment
- 24-ton operating weight class ideal for general earthmoving applications
- Proven Hitachi engineering and build quality
This ZX240-3G is ready for productive work in construction, excavation, and site development operations. The machine's well-preserved condition makes it suitable for contractors seeking dependable equipment with solid remaining service life. Available for inspection in Zhejiang province.
| Specifications | Value |
|---|---|
| No. | 1084820 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

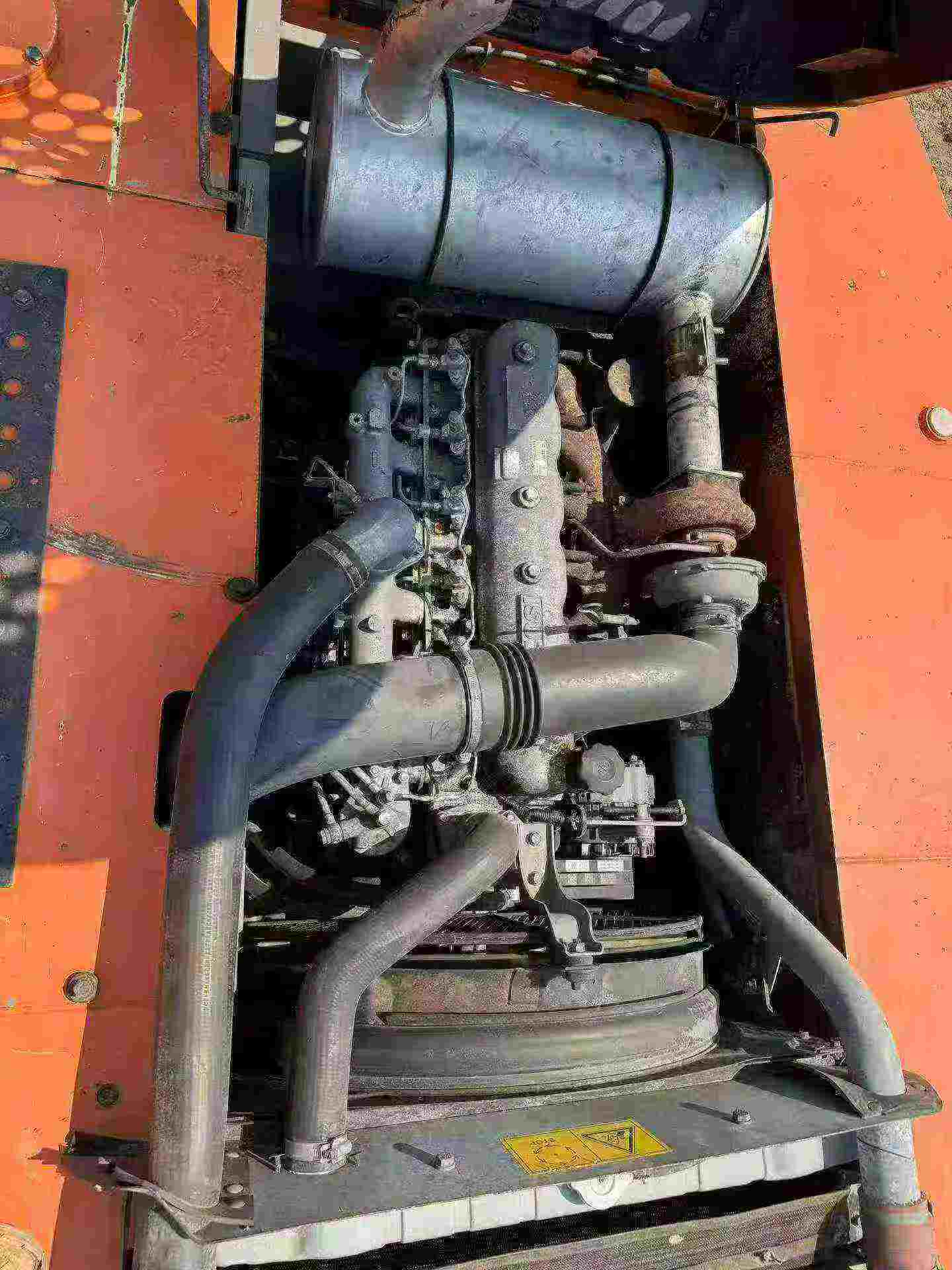

| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |

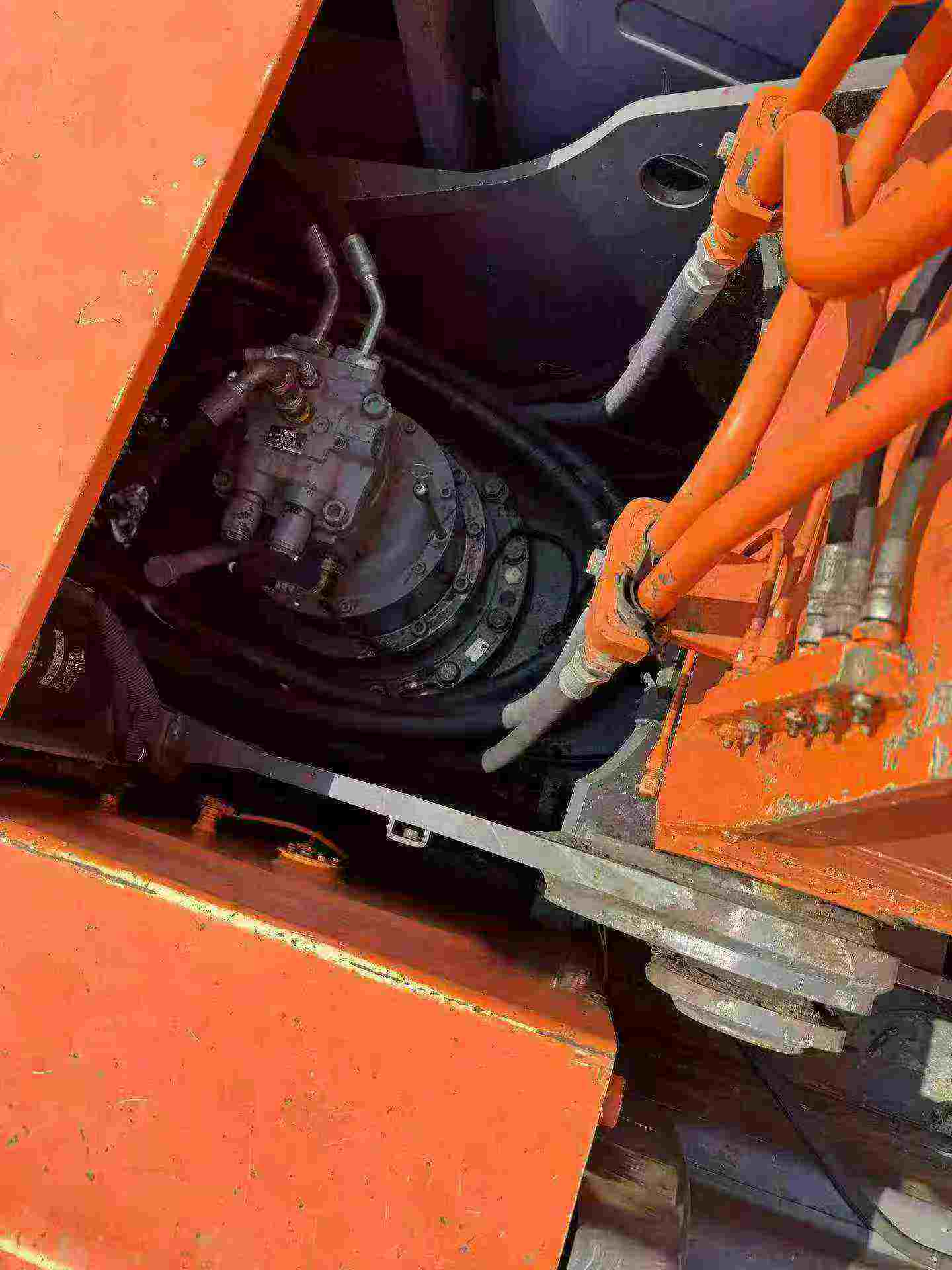

| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

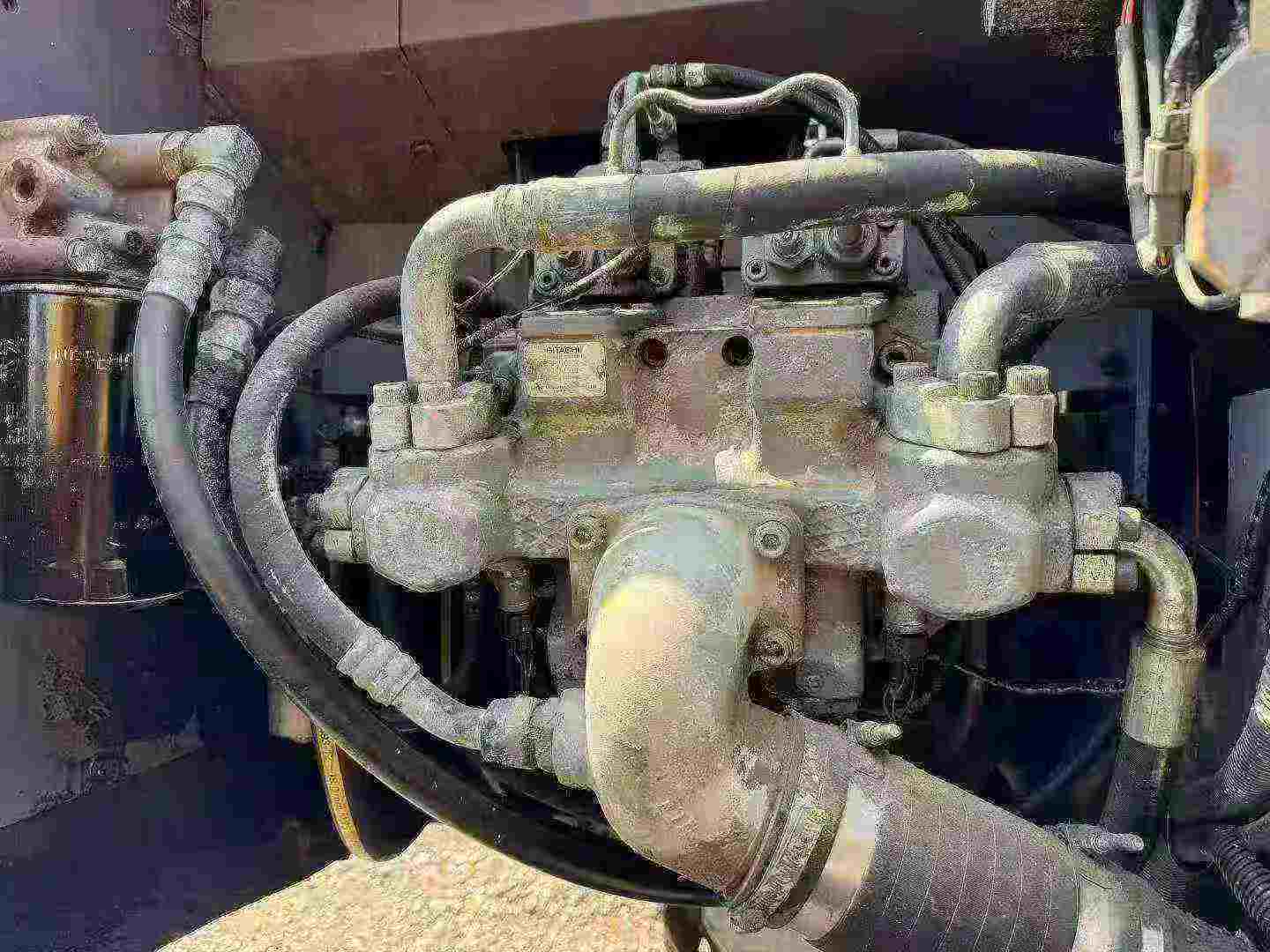

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
