Product Description

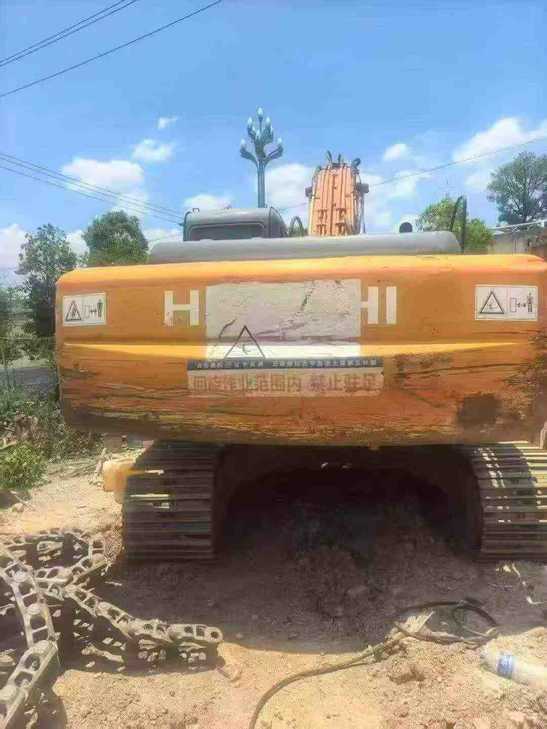

Built for demanding contractors who need reliable backup or fleet expansion, this 2020 Hitachi ZX240-3G medium excavator delivers consistent 24-ton performance straight from its Sichuan, China base. Powered by an ISUZU CC-6BG1T six-cylinder turbocharged engine producing 125kW at 2,100 RPM, this Japanese-engineered machine keeps your crew productive across high-volume earthmoving, trenching, and site preparation work without downtime disruptions.
- Engine: ISUZU CC-6BG1T | 125kW/2,100 RPM | 6-cylinder, 6.494L displacement, water-cooled, turbocharged & intercooled
- Bucket Options: 1.0m³ standard / 1.2H / 1.2m³ rock bucket — versatile for multiple job configurations
- Digging Performance: 6,950mm max digging depth | 10,270mm max digging radius | 18,000kN bucket digging force
- Hydraulics: Dual variable axial piston pumps | 204 L/min × 2 | 34.3 MPa working circuit
- Mobility: Travel speed 3.6/5.5 km/h | 70% gradeability | 600mm track plates | 51 kPa ground pressure
- Transport Dimensions: 10,140mm (L) × 2,990mm (W) × 3,100mm (H) | Fuel tank: 380L
- Location: Sichuan, China — available for prompt international inspection and export
Proven specs, solid hydraulic architecture, and a well-maintained condition make this ZX240-3G a smart, low-risk addition to any active fleet. Contact Fair Trade Machinery today to request full inspection reports and export logistics details.
| Specifications | Value |
|---|---|
| No. | 1087201 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
