Product Description

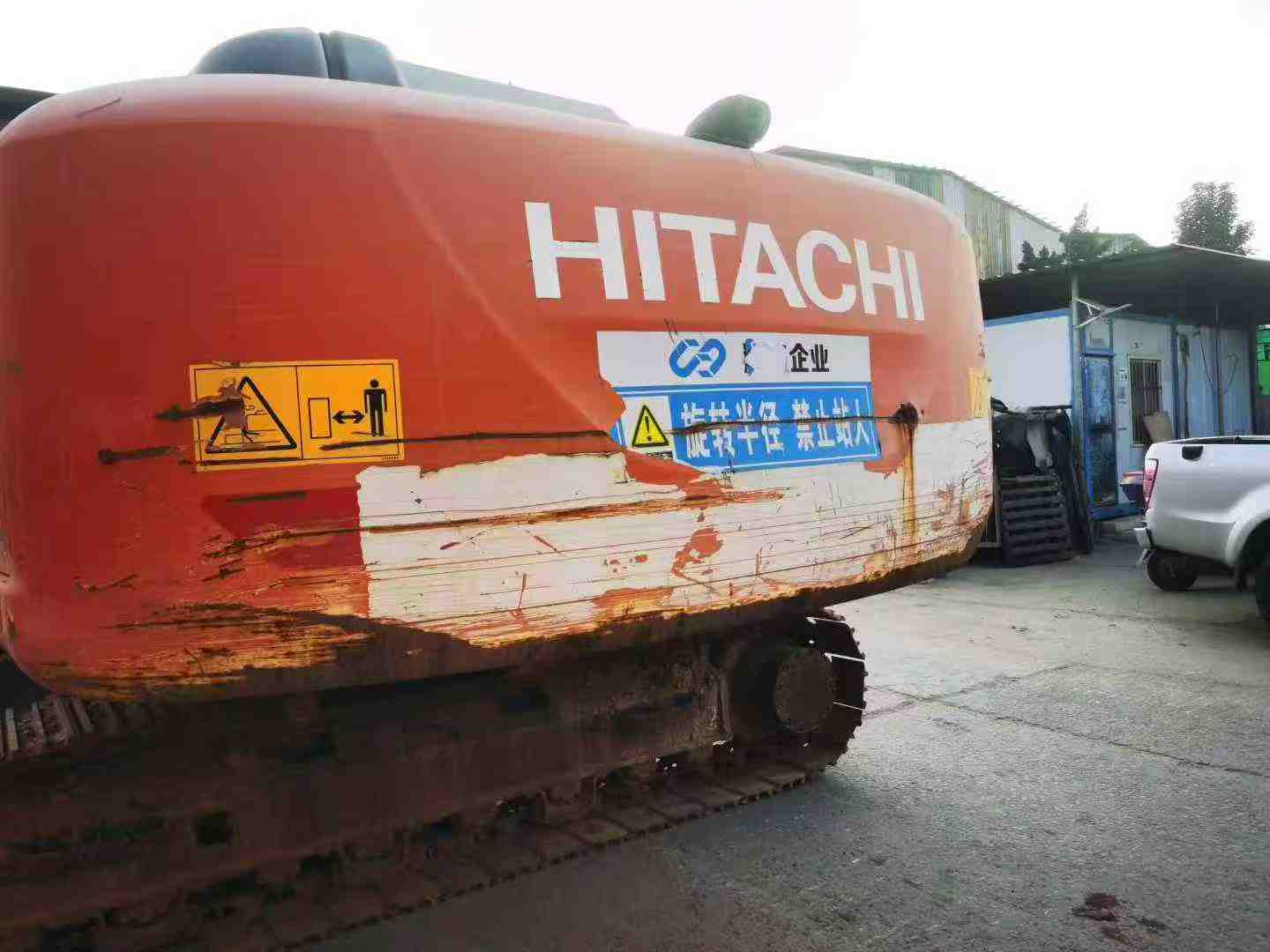

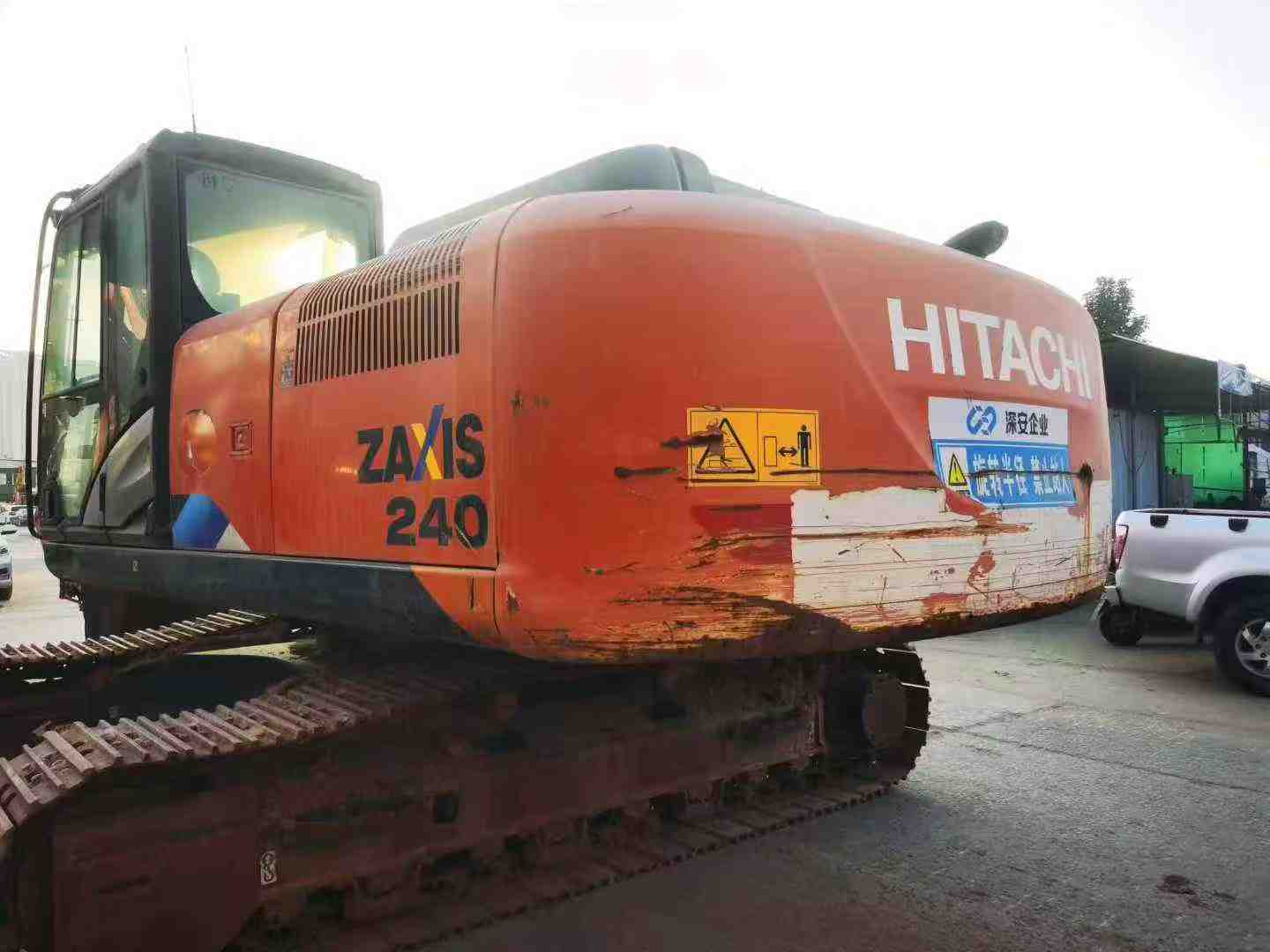

Engineered for precision and operator confidence, this 2021 Hitachi ZX240-5A excavator delivers exceptional control across demanding jobsites. Operating at 24 tons with a robust Isuzu GH-4HK1XKSA-01 engine producing 127 kW at 2000 rpm, this machine combines power with refined handling characteristics that experienced operators demand.

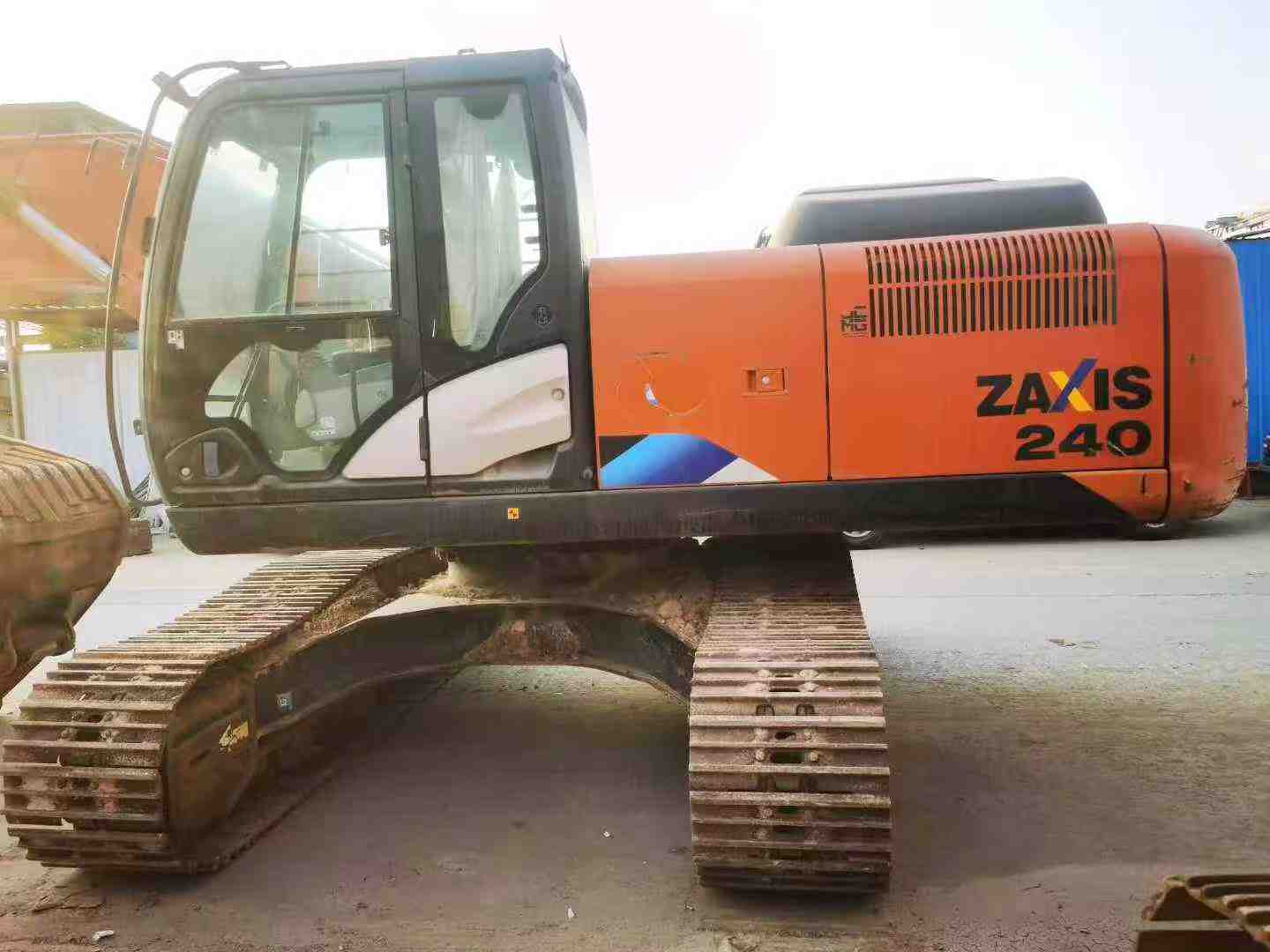

Cabin design prioritizes visibility and comfort during extended shifts. Positioned in 广东惠州, this unit features:
- Spacious cab with 3010mm height providing panoramic sightlines to the working envelope
- Responsive hydraulic controls fed by dual 224 l/min variable axial piston pumps for smooth, predictable movements
- 12.4 rpm rotation speed with 77.5 Nm turning torque enabling precise positioning
- Low 53 kPa ground pressure and 460mm ground clearance for stable operation on varied terrain
- Dual-speed travel system (5.5/3.4 km/h) balancing maneuverability with transport efficiency
With 10290mm maximum reach and 188 kN bucket digging force, operators maintain full command over material handling tasks while benefiting from Hitachi's proven joint-venture engineering standards and water-cooled reliability.
| Specifications | Value |
|---|---|
| No. | 993662 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300-24400 |
| Bucket capacity (m³) | 1.2-1.4 |

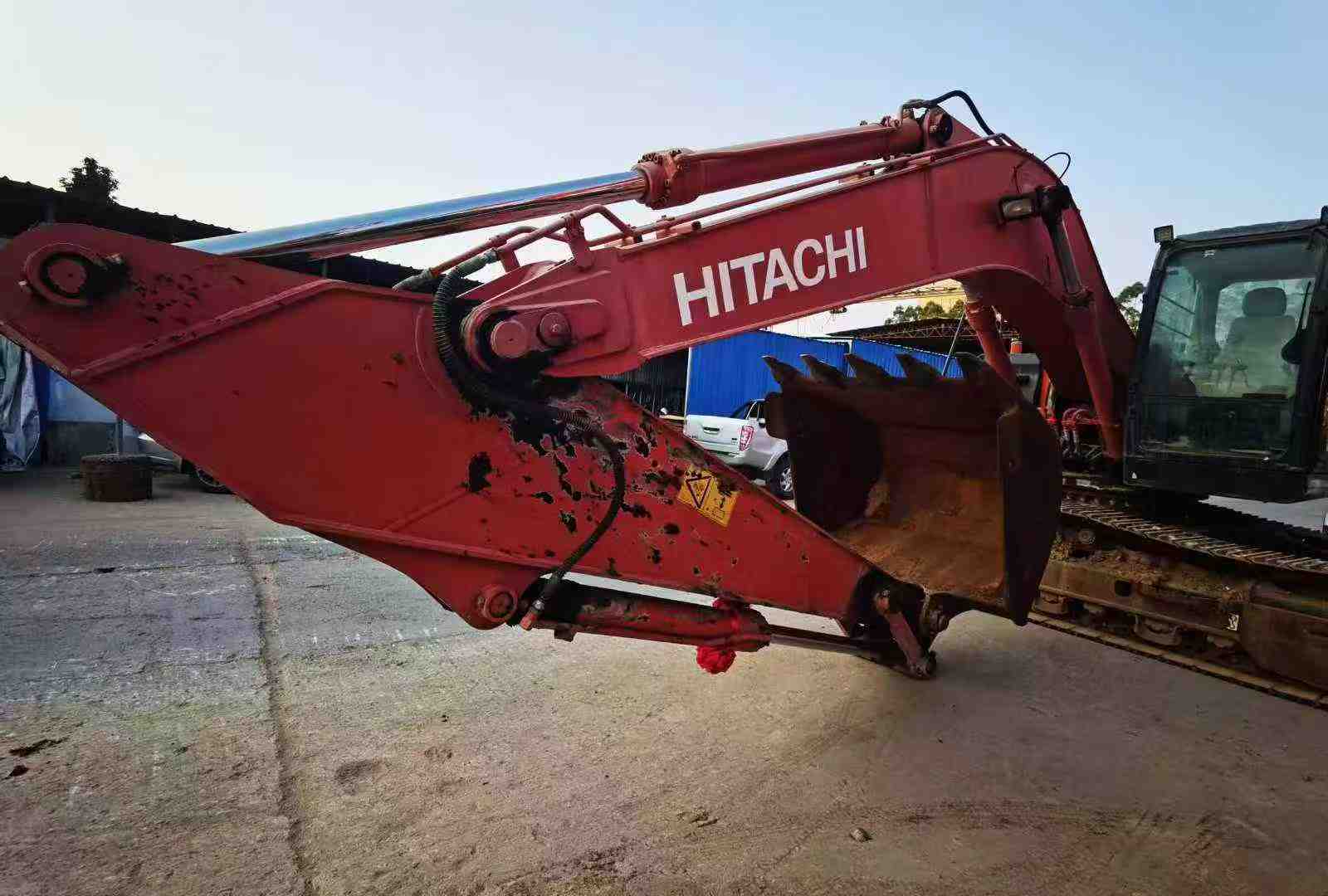

| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

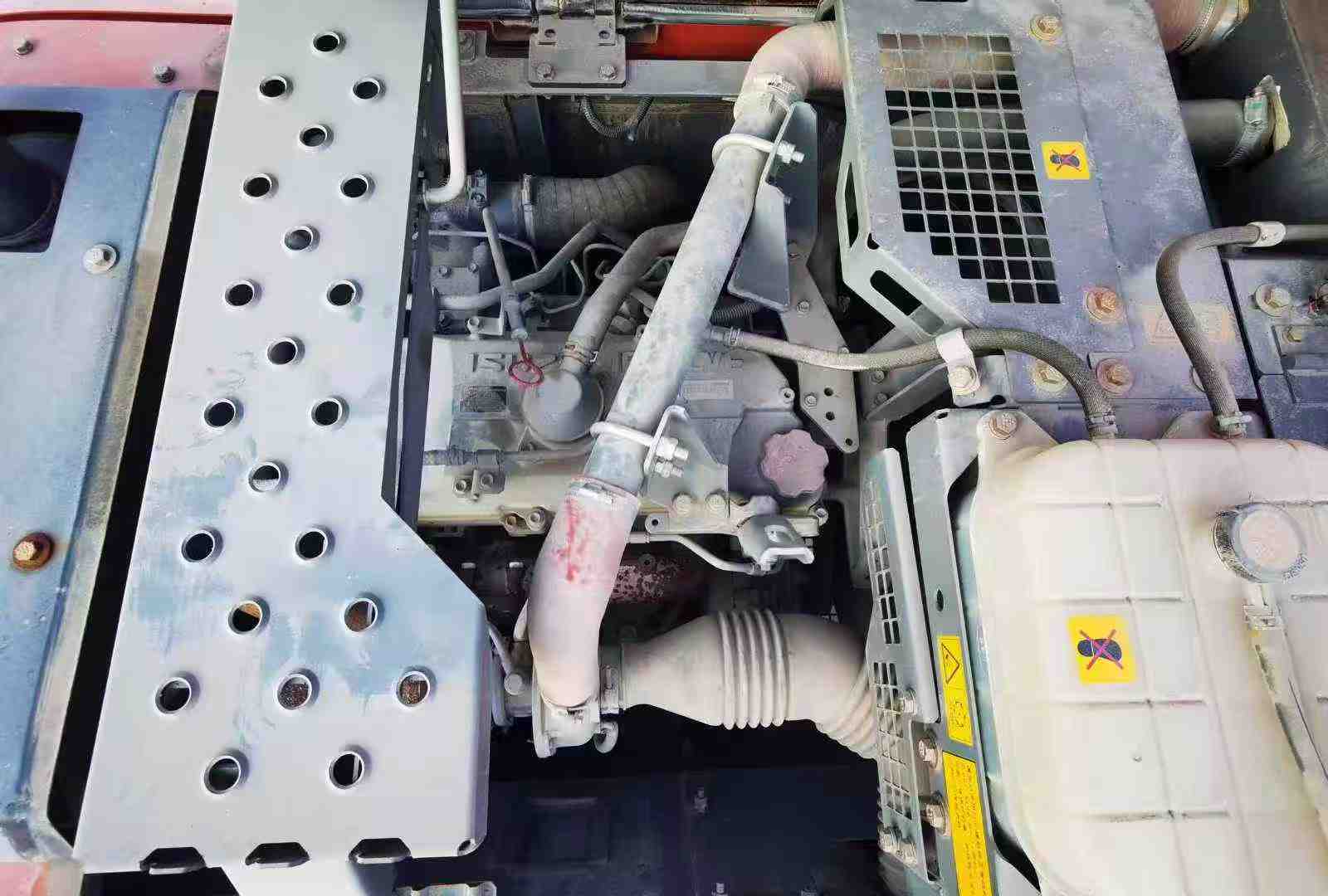

| Engine type | Isuzu GH-4HK1XKSA-01 |
| Rated power (kw/rpm) | 127/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 640/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 53 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 188 |
| Rod digging force (kN) | 131 |
| Maximum tractive force (kN) | 222 |
| Travel speed (km/h) | 5.5/3.4 |
| Turning torque (Nm) | 77.5 |

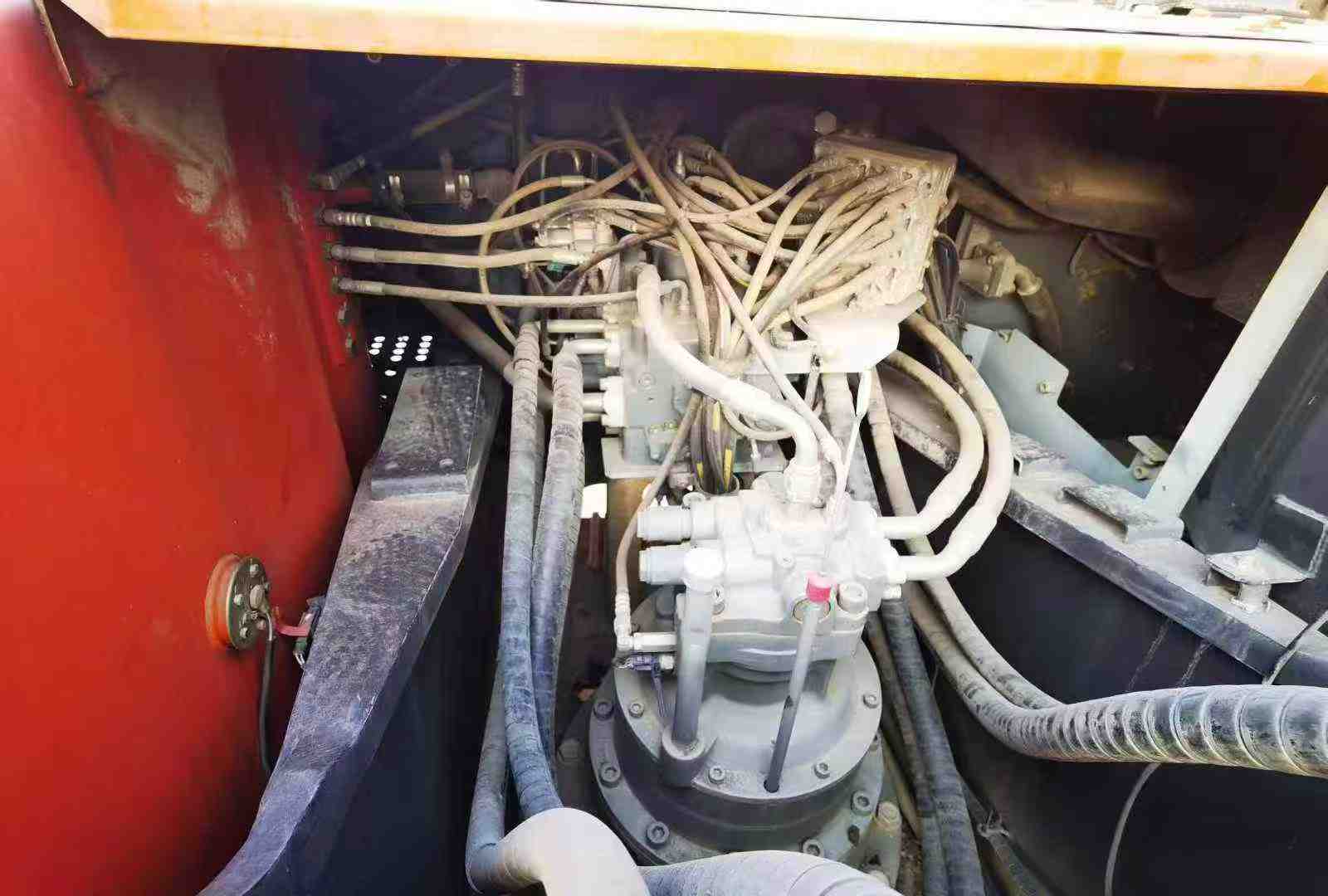

| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 224 + 32 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |

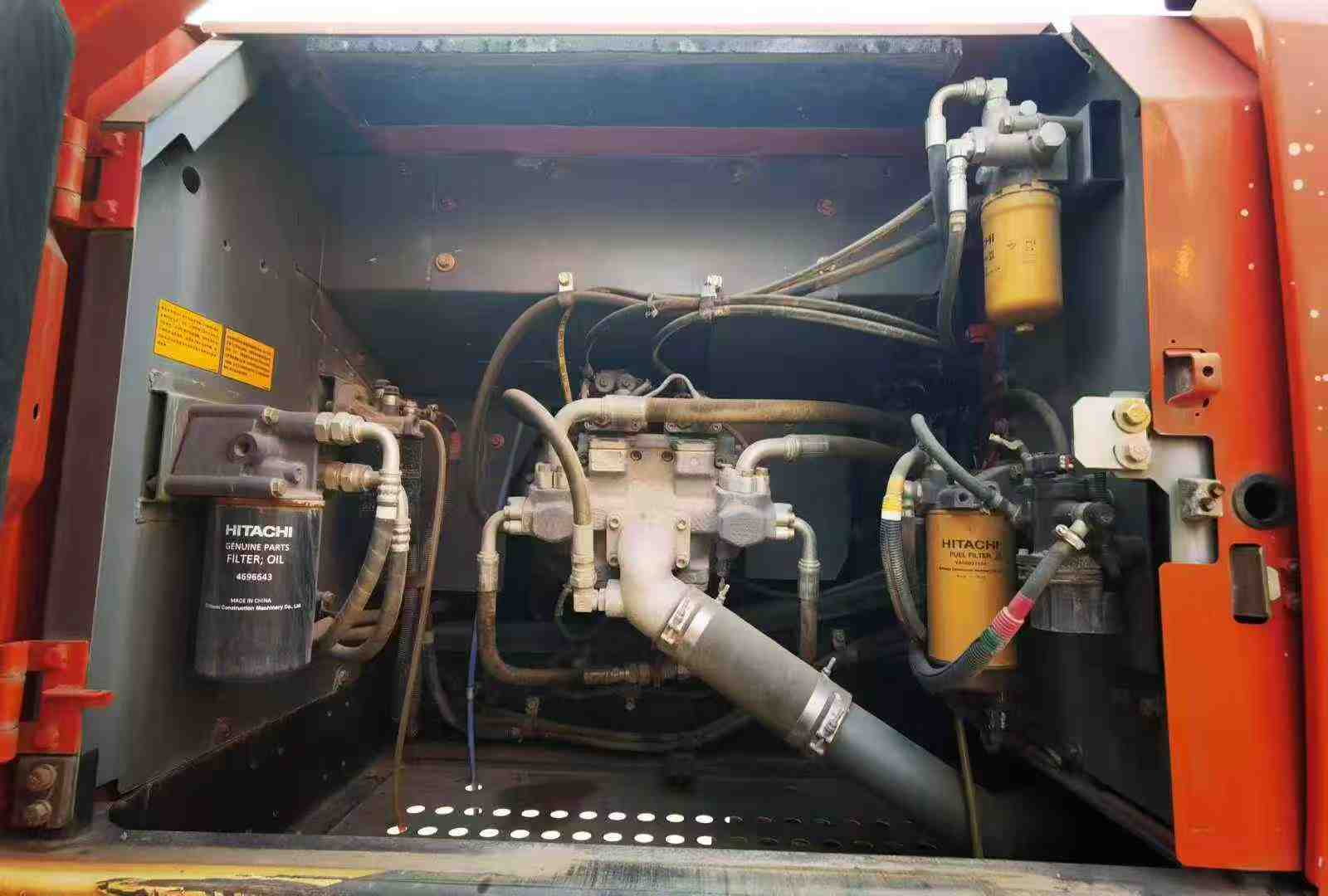

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 x 90 |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10360 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3440 |
| Back end turning radius (mm) | 3140 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Maximum excavation radius of stop surface (mm) | 10110 |
