Product Description

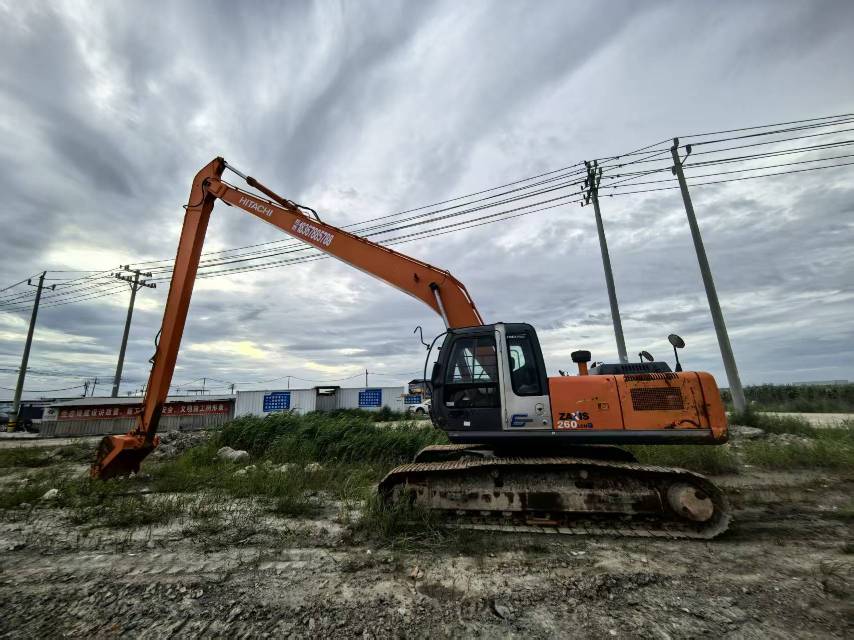

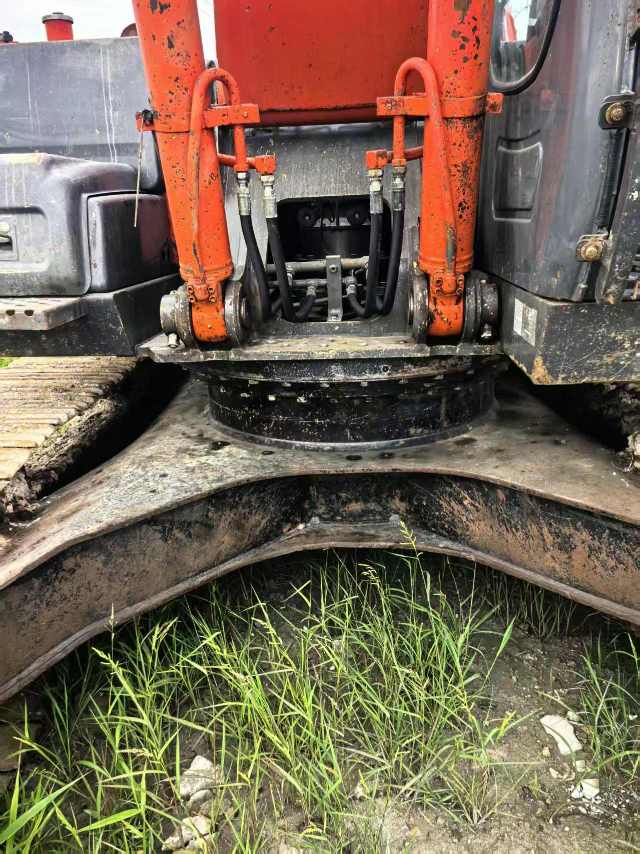

This 2020 Hitachi ZX260LCH-3G hydraulic excavator is a reliable choice for deep excavation and specialized applications. Equipped with an extended 18-meter long reach boom, this machine excels in river dredging, slope work, and deep foundation projects where standard equipment falls short. Currently located in Zhejiang, China, this unit demonstrates solid operational performance and is available for on-site inspection and testing.
- Year: 2020
- Model: Hitachi ZX260LCH-3G
- Configuration: 18-meter long reach boom
- Operating weight class: 26-ton
- Location: Zhejiang Province, China
- Condition: Good working order, inspection welcome
- Viewing: Available for on-site demonstration
The ZX260LCH-3G combines Hitachi's proven hydraulic system with fuel-efficient performance. Ideal for contractors requiring extended reach capabilities. Contact us to schedule an inspection or request detailed specifications and competitive pricing.
| Specifications | Value |
|---|---|
| No. | 1087695 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25,100 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | 2960(Type H) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

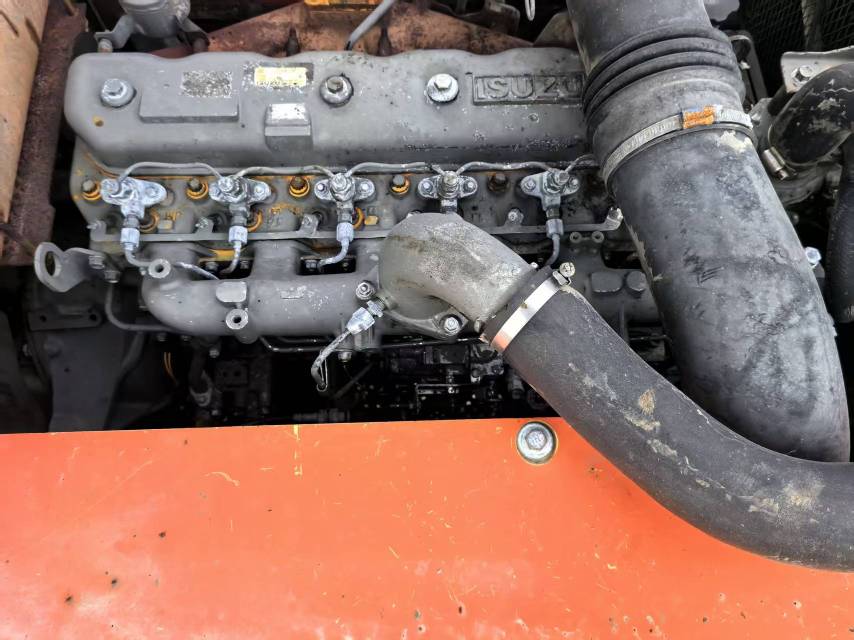

| Engine type | Isuzu CC-6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |

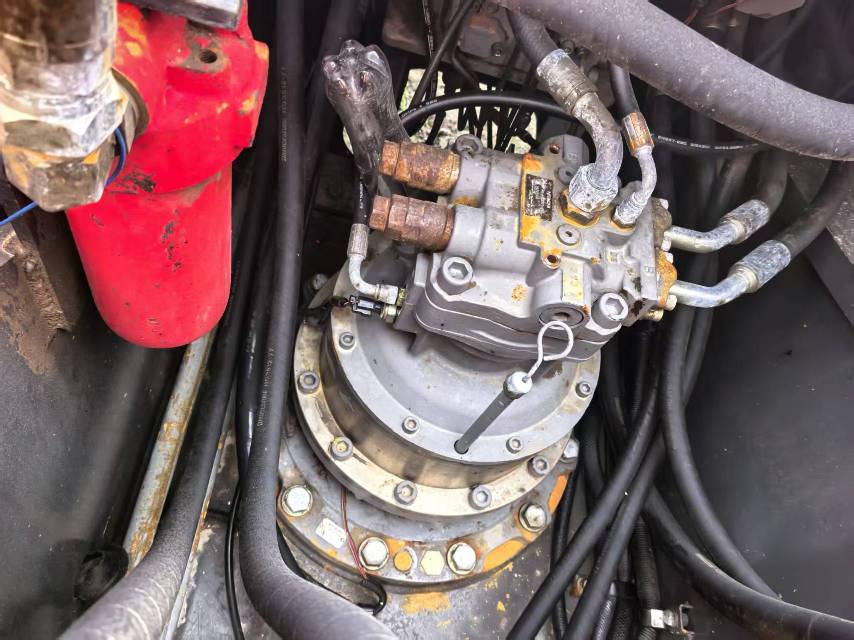

| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 204 |
| Traveling Hydraulic Circuit (Mpa) | .34. |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

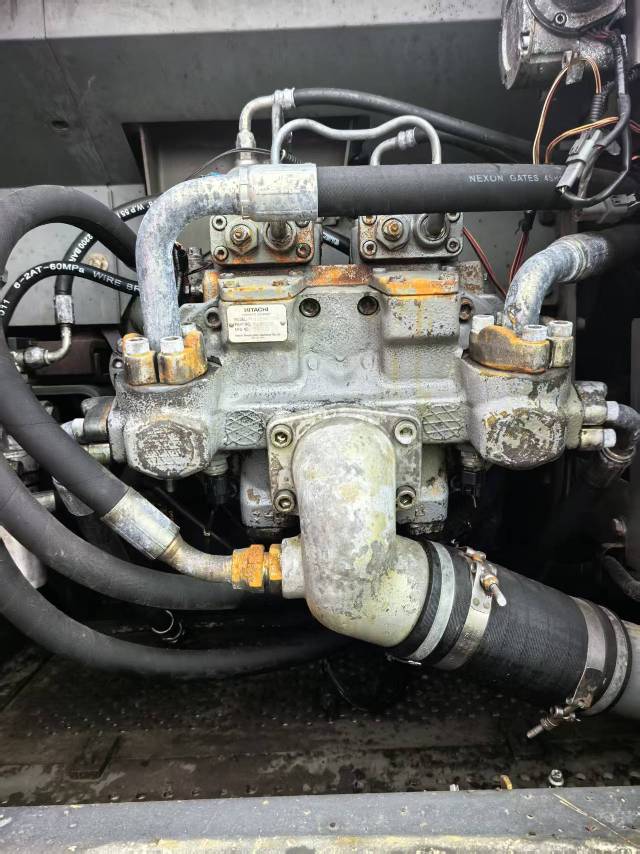

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10,140 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,100 |
| Full cab height (mm) | 3,020 |
| Counterweight ground clearance (mm) | 1,090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3,870 |
| Back end turning radius (mm) | 2,940 |

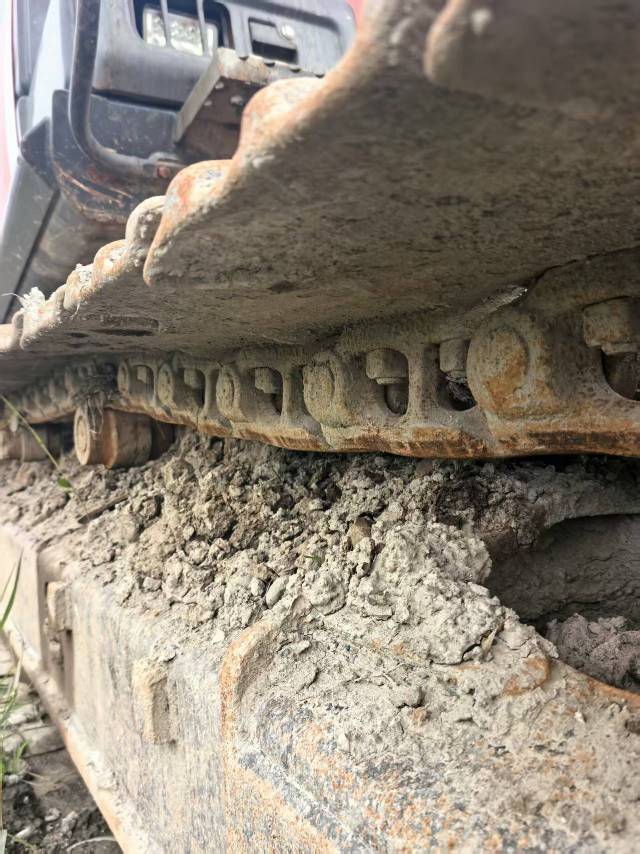

| Total track length (mm) | 4,640 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6950 |
| Maximum unloading height (mm) | 6,760 |
| Maximum vertical digging depth (mm) | 6,020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
