Product Description

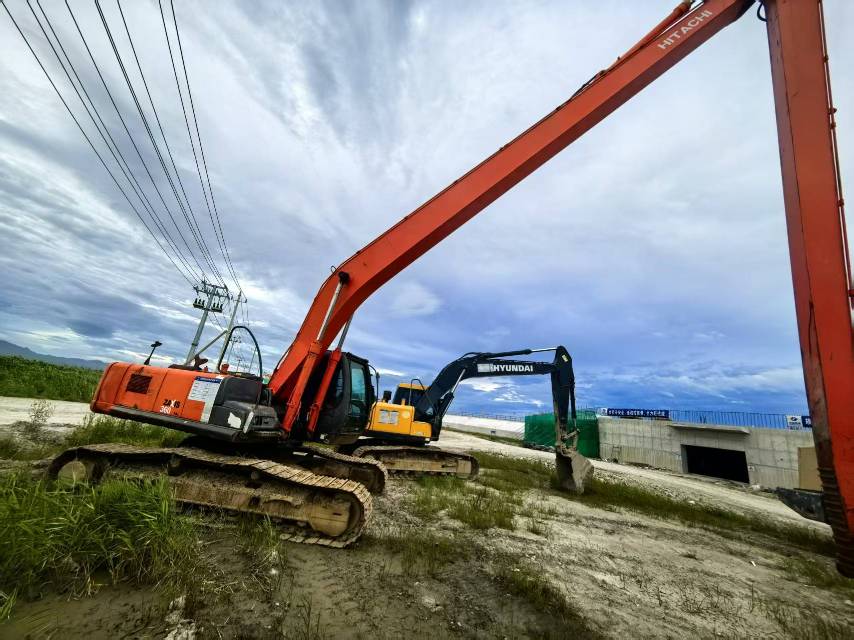

Discover the robust 2020 Hitachi ZX260LCH-3G, a versatile and reliable excavator designed for a wide range of heavy-duty applications. Located in Zhejiang, China, this used machine is equipped with a 22-meter extended arm, making it ideal for tasks such as river dredging, embankment repair, slope grading, hillside management, building demolition, pond excavation, and port operations. The ZX260LCH-3G is known for its exceptional performance and efficiency, ensuring that your projects are completed with precision and speed. With competitive pricing, this excavator offers a cost-effective solution for your construction needs. Inspections and test drives are available on-site.
- Model: ZX260LCH-3G
- Year: 2020
- Location: Zhejiang, China

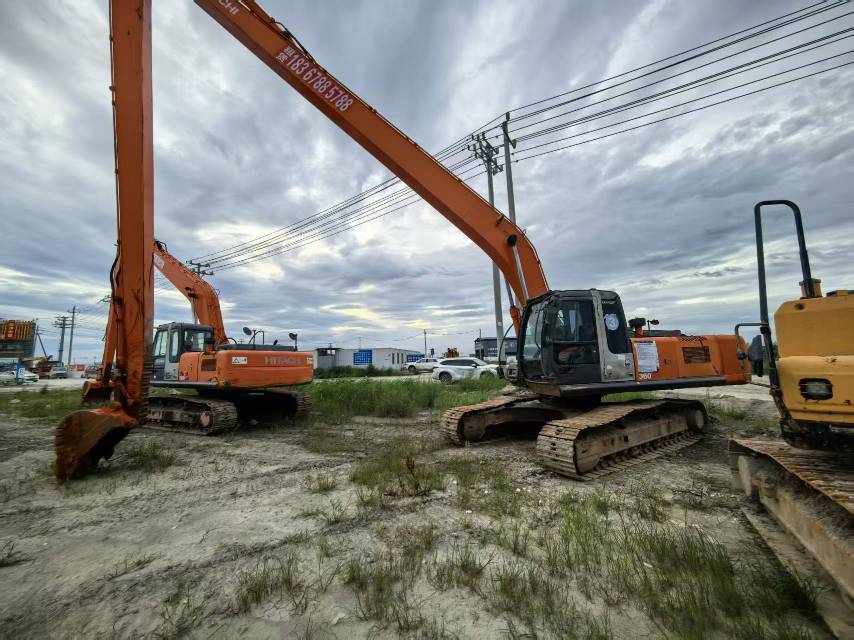

- Extended Arm: 22 meters
- Applications: Dredging, grading, demolition, and more
| Specifications | Value |
|---|---|
| No. | 1087719 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25,100 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | 2960(Type H) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

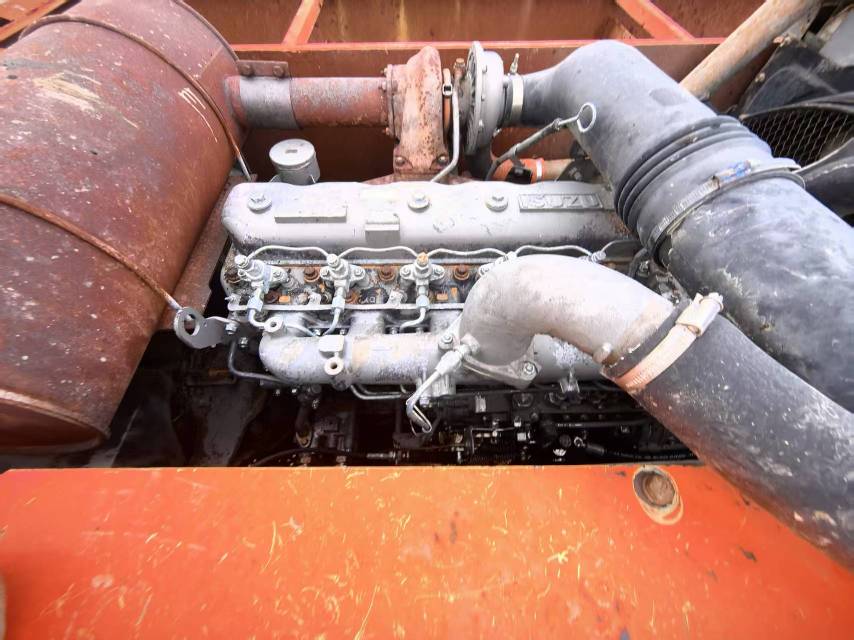

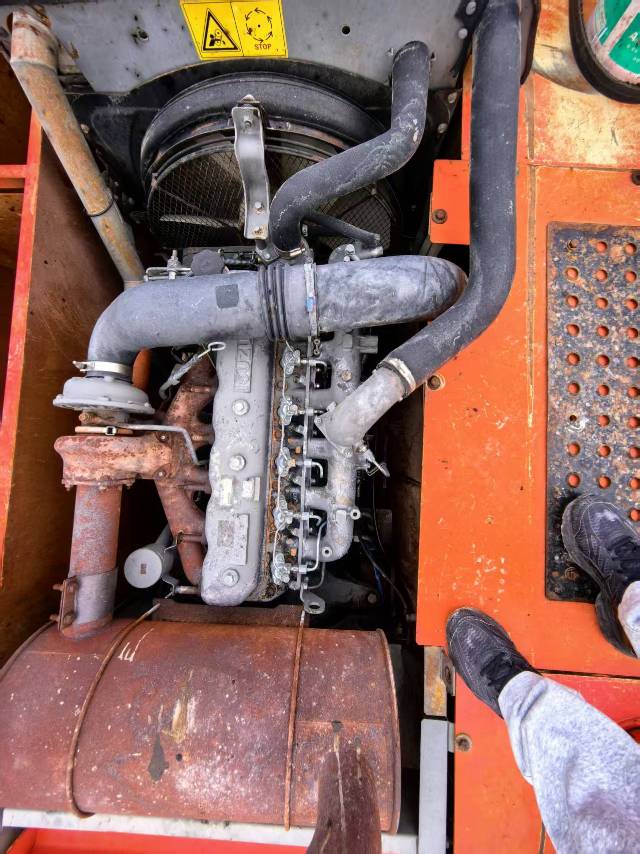

| Engine type | Isuzu CC-6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 204 |
| Traveling Hydraulic Circuit (Mpa) | .34. |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

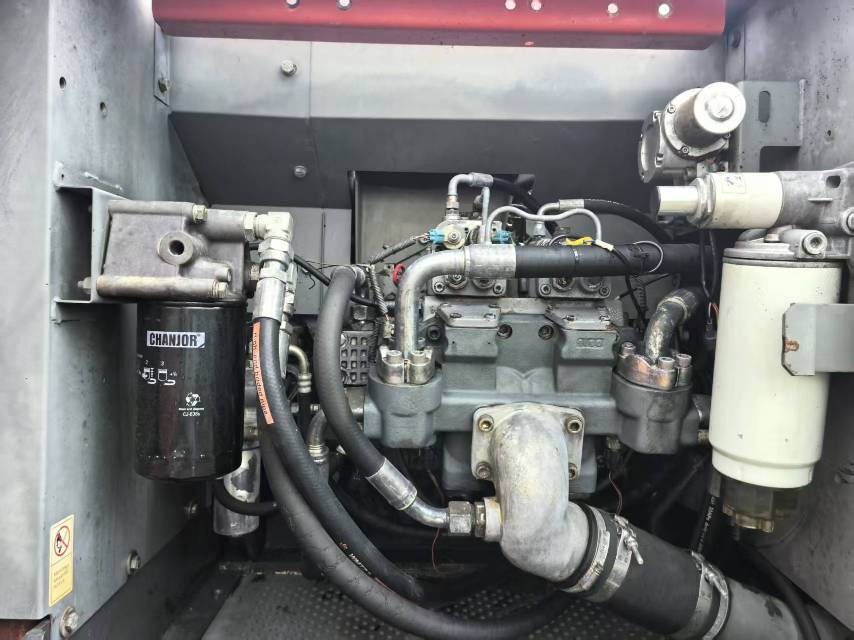

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10,140 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,100 |
| Full cab height (mm) | 3,020 |
| Counterweight ground clearance (mm) | 1,090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3,870 |
| Back end turning radius (mm) | 2,940 |
| Total track length (mm) | 4,640 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6950 |
| Maximum unloading height (mm) | 6,760 |
| Maximum vertical digging depth (mm) | 6,020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
