Product Description

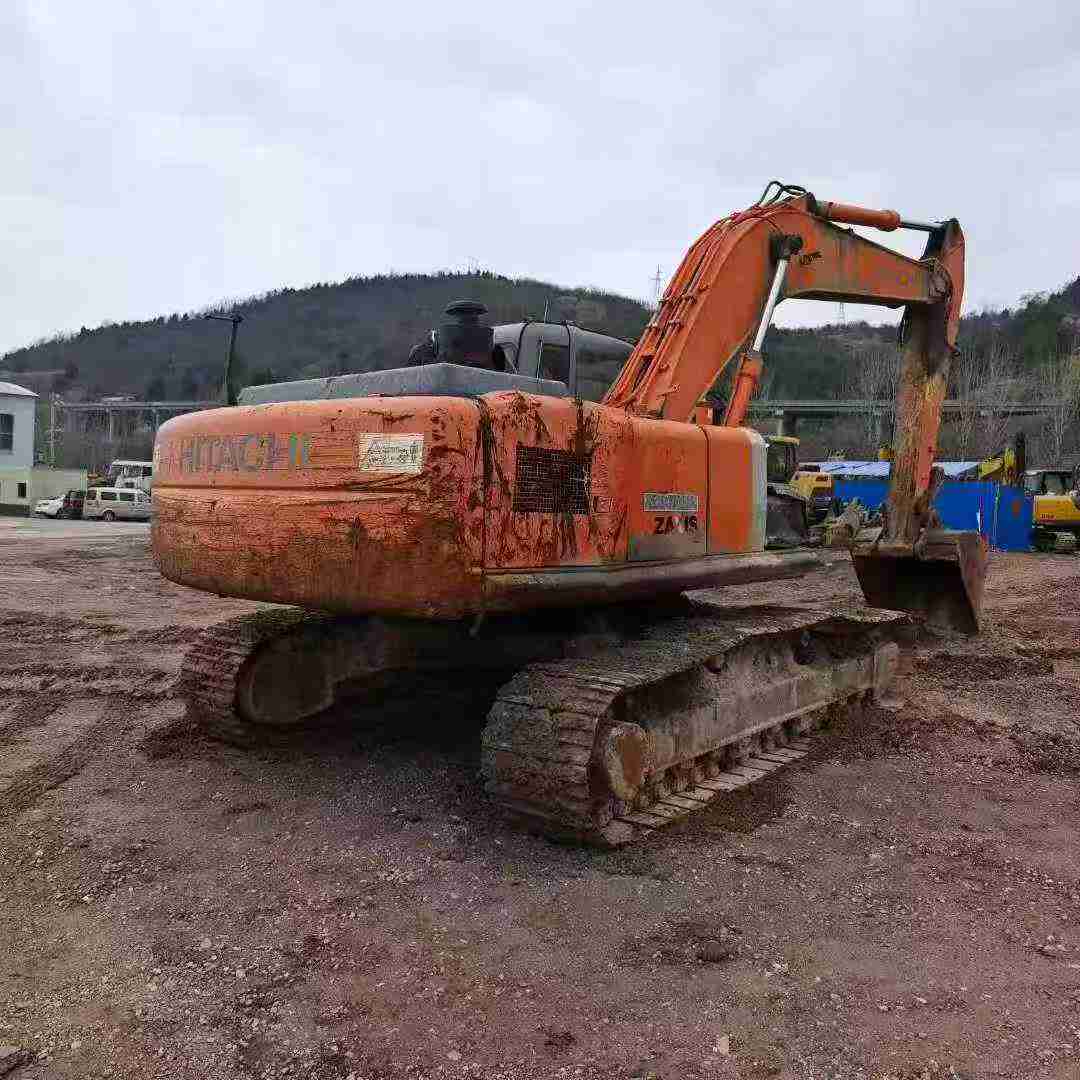

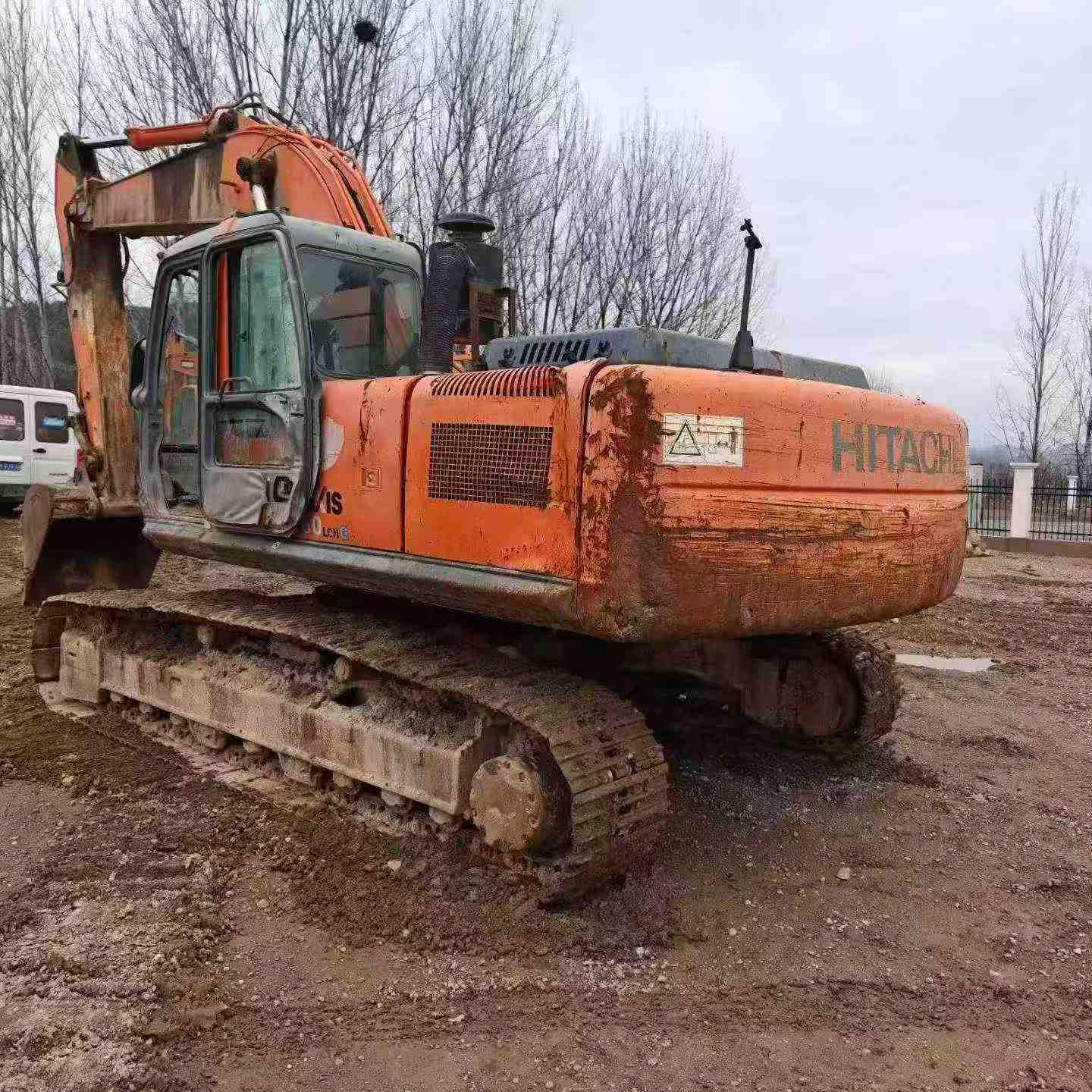

Built for high-volume earthmoving and demolition work, this 2015 Hitachi ZX260LCH-3G delivers 26 tons of digging power with a turbocharged Isuzu 6BG1 engine rated at 125 kW. Equipped with a 1.3 m³ backhoe bucket and 2,960 mm Type H rod configuration, it reaches 10,270 mm maximum digging radius and 6,950 mm depth—ideal for foundation excavation, trenching, and mass grading projects. With 180 kN bucket digging force and dual variable axial piston pumps providing 408 L/min combined flow, this machine moves material efficiently on demanding jobsites.
Currently located in Shaoxing, Zhejiang, this Japan-manufactured excavator features water-cooled hydraulics, 13.5 rpm swing speed, and 70% climbing ability for challenging terrain. The dual-pump hydraulic system operates at 34.3 MPa with 303-liter capacity, ensuring consistent performance during extended shifts. Track dimensions of 4,640 mm length and 600 mm width distribute the 25,100 kg operating weight across 51 kPa ground pressure, minimizing surface damage while maintaining stability.
- Operating weight: 25,100 kg with standard configuration
- Engine: Isuzu 6-cylinder, turbocharged, intercooled diesel
- Maximum digging depth: 6,950 mm for deep utility
| Specifications | Value |
|---|---|

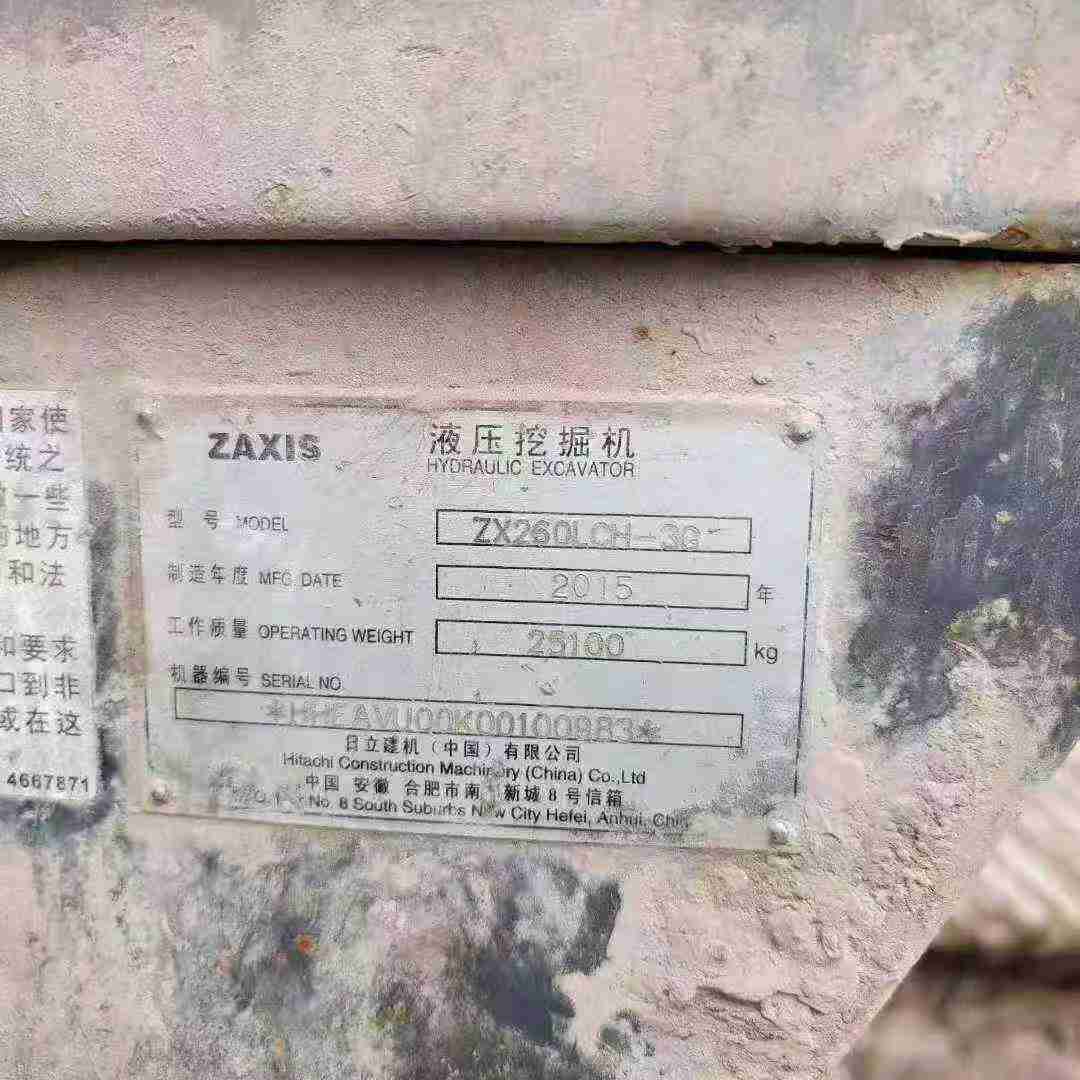

| No. | 1033017 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25,100 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | 2960(Type H) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

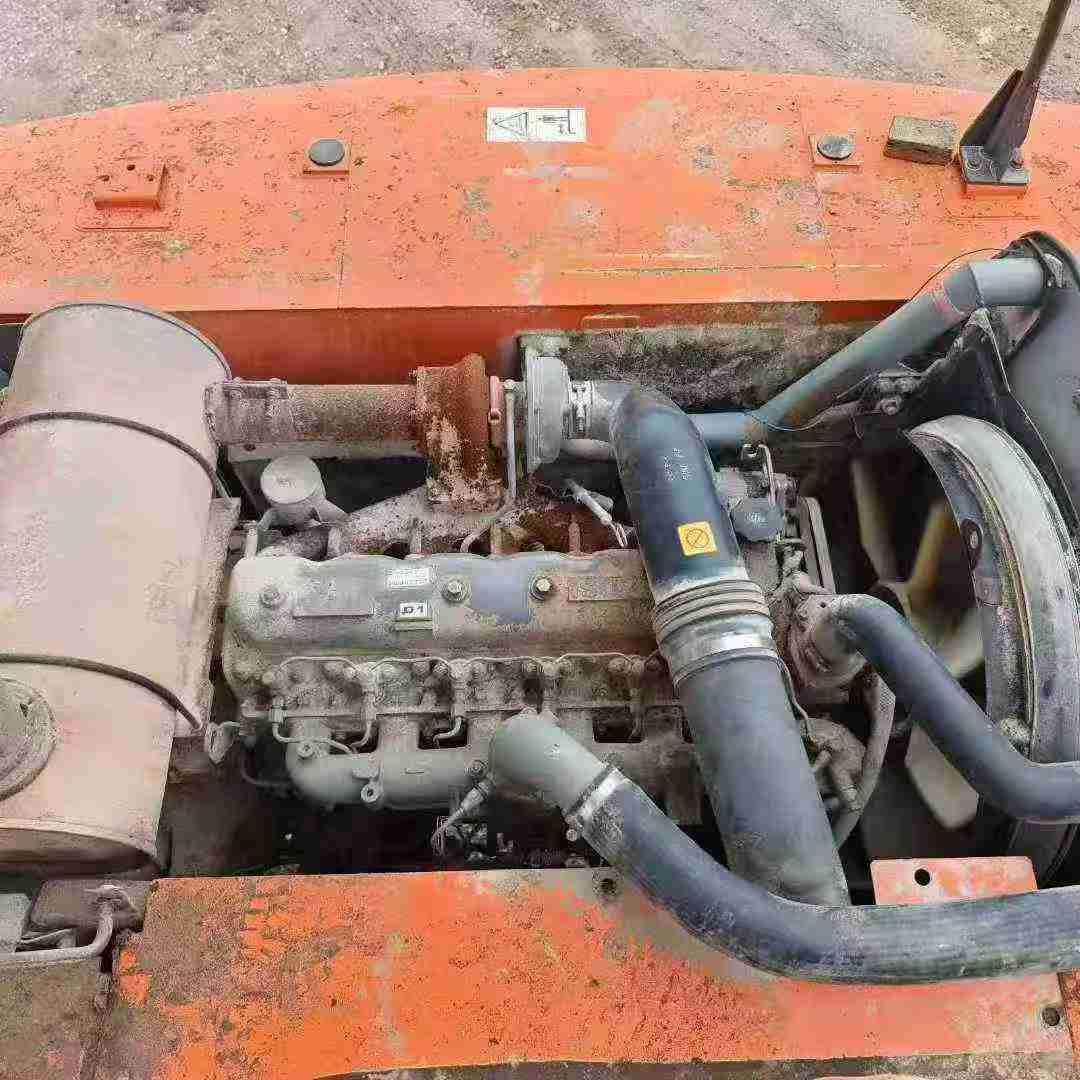

| Engine type | Isuzu CC-6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 204 |
| Traveling Hydraulic Circuit (Mpa) | .34. |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

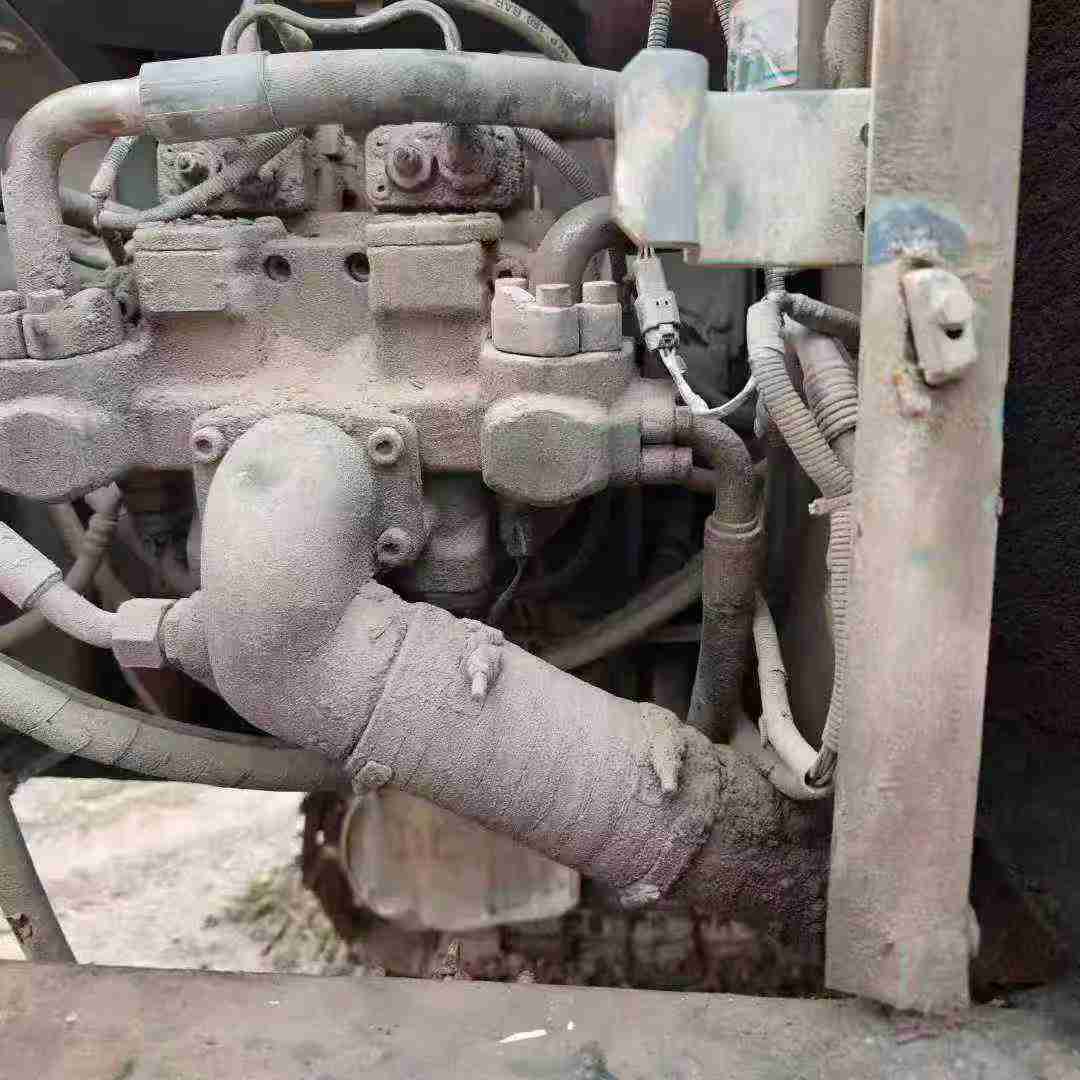

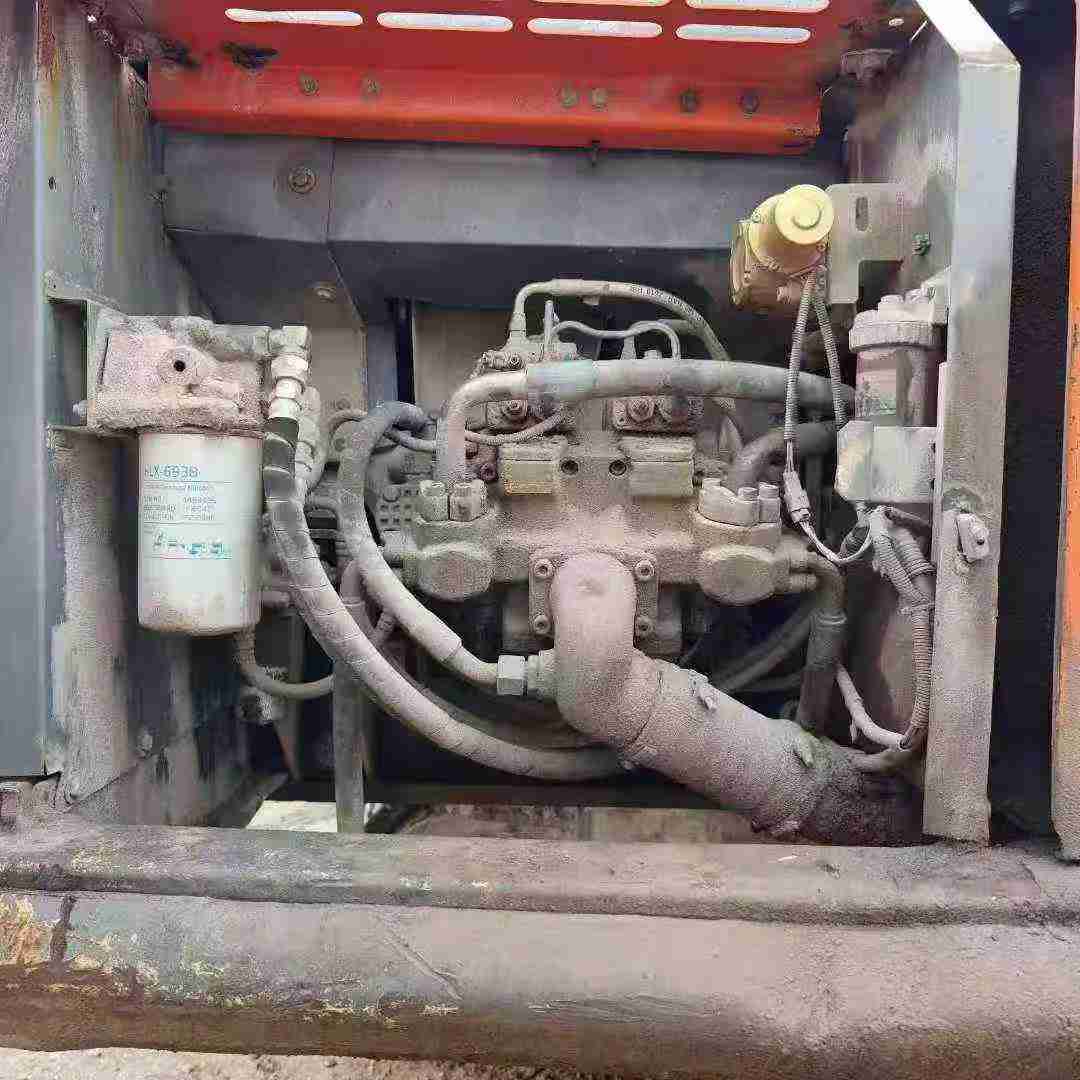

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10,140 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,100 |
| Full cab height (mm) | 3,020 |
| Counterweight ground clearance (mm) | 1,090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3,870 |
| Back end turning radius (mm) | 2,940 |

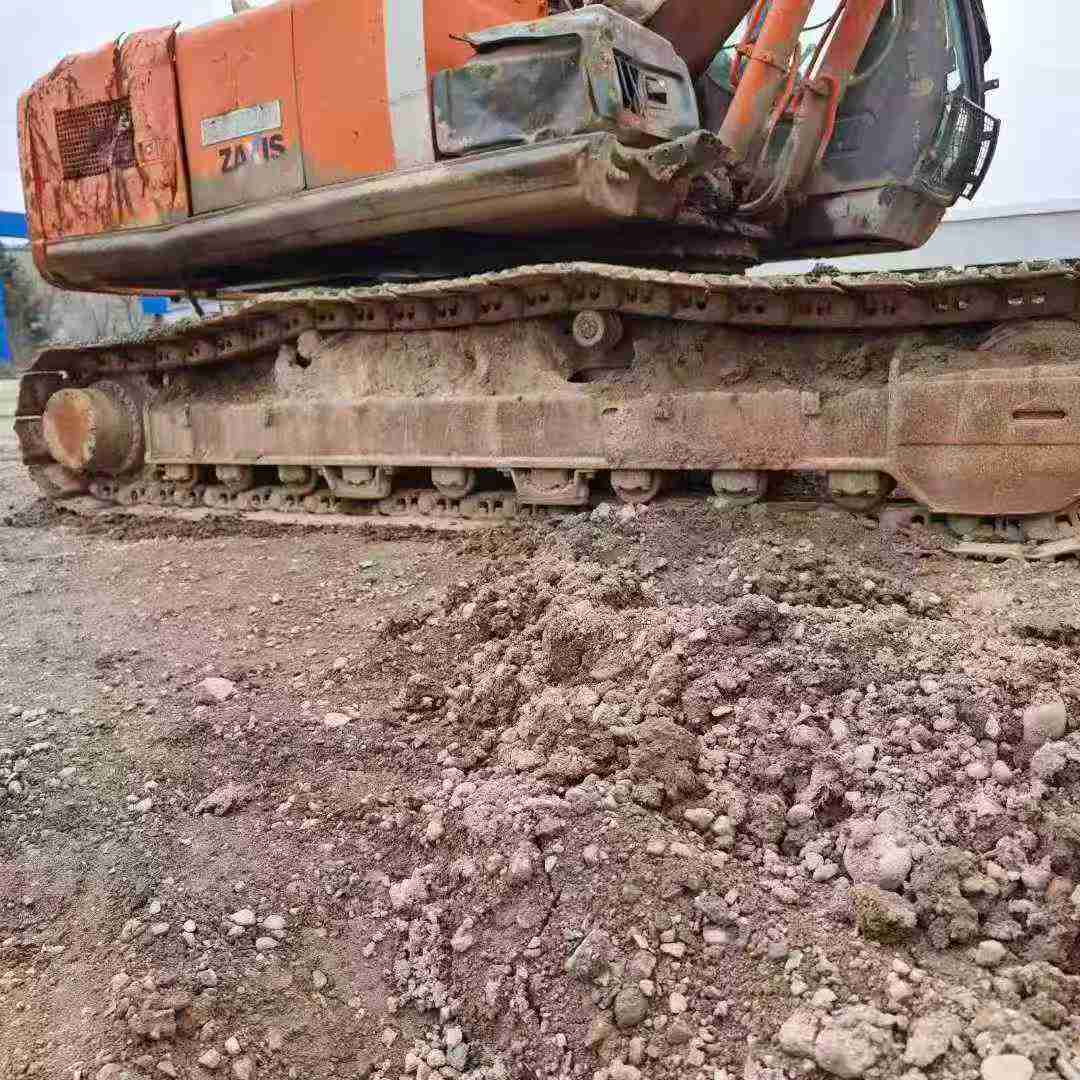

| Total track length (mm) | 4,640 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6950 |
| Maximum unloading height (mm) | 6,760 |
| Maximum vertical digging depth (mm) | 6,020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
Overview
No.1033017
Brand Name：
HitachiModel Number：
ZX260LCH-3GYear：
2015
Location：
Zhejiang China
Pub Date：
