Product Description

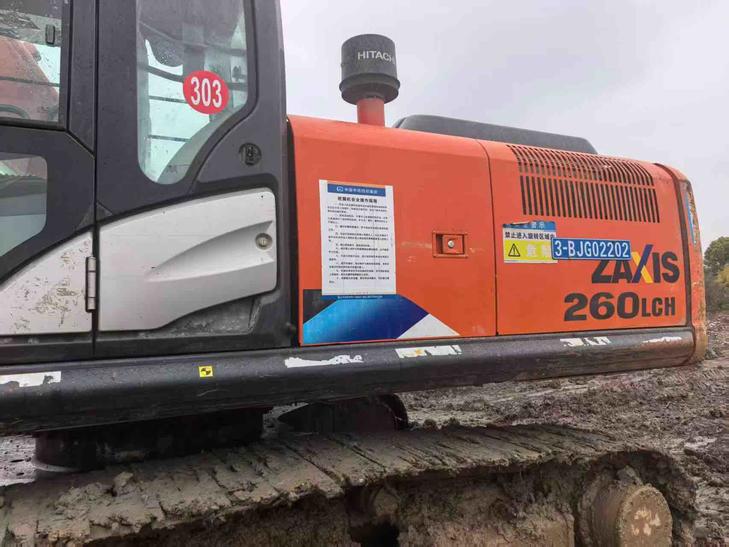

Well-maintained 2019 Hitachi ZX260LCH-3G hydraulic excavator available for immediate sale from our Zhejiang, China location. This mid-size crawler excavator demonstrates reliable performance with strong hydraulic power and smooth operational responses across all functions.
The machine features intact major components including engine, hydraulic system, and undercarriage. Complete documentation and service records are available. All systems have been verified and are ready for productive fieldwork.
- Year of Manufacture: 2019
- Model: Hitachi ZX260LCH-3G
- Type: Hydraulic Crawler Excavator
- Location: Zhejiang Province, China
- Condition: Fully operational, ready for inspection
- Documentation: Complete ownership and maintenance records
On-site testing and inspection welcomed. Flexible payment terms available. Nationwide transportation can be arranged upon request. Contact us directly to schedule a viewing or discuss pricing.
| Specifications | Value |
|---|---|
| No. | 1083916 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25,100 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | 2960(Type H) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 204 |
| Traveling Hydraulic Circuit (Mpa) | .34. |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10,140 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,100 |
| Full cab height (mm) | 3,020 |
| Counterweight ground clearance (mm) | 1,090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3,870 |
| Back end turning radius (mm) | 2,940 |
| Total track length (mm) | 4,640 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6950 |
| Maximum unloading height (mm) | 6,760 |
| Maximum vertical digging depth (mm) | 6,020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
