Product Description

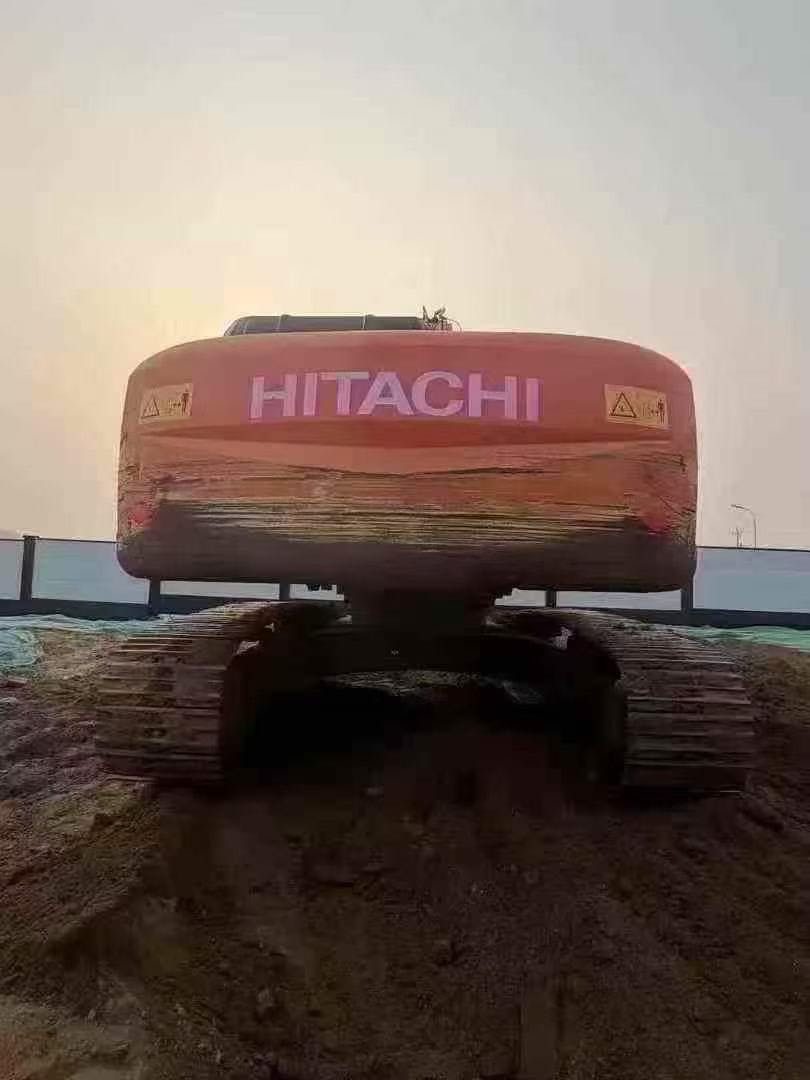

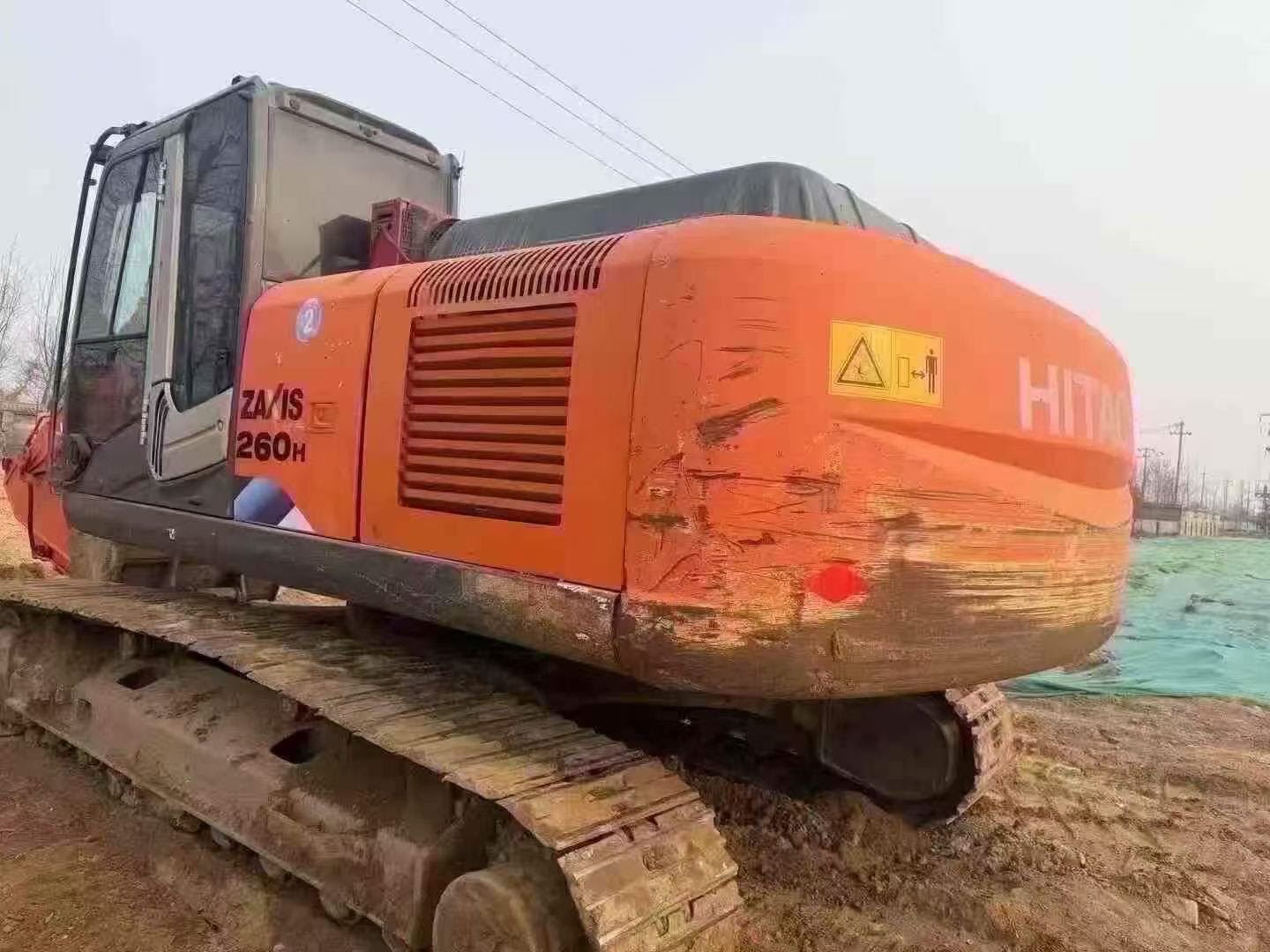

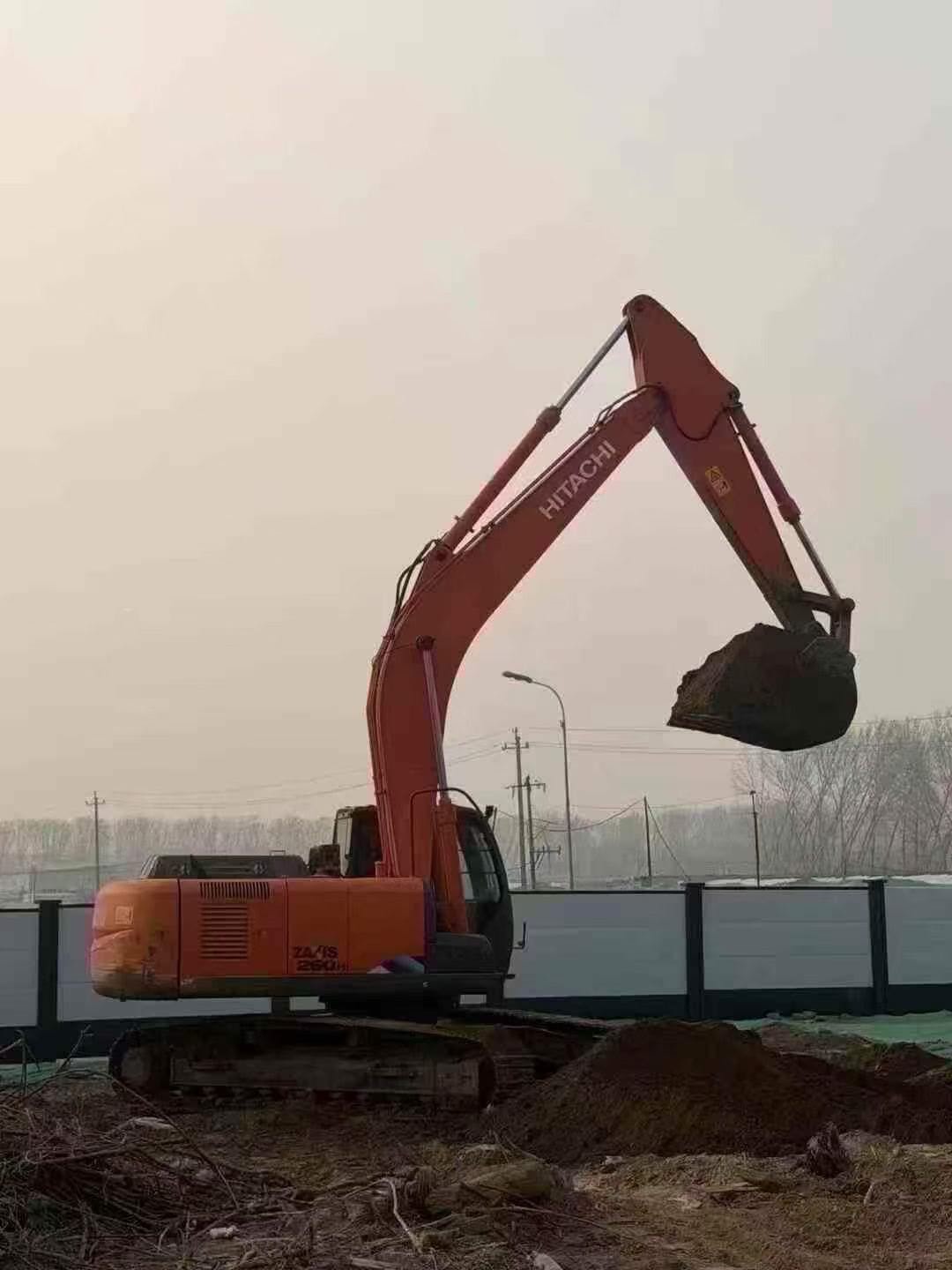

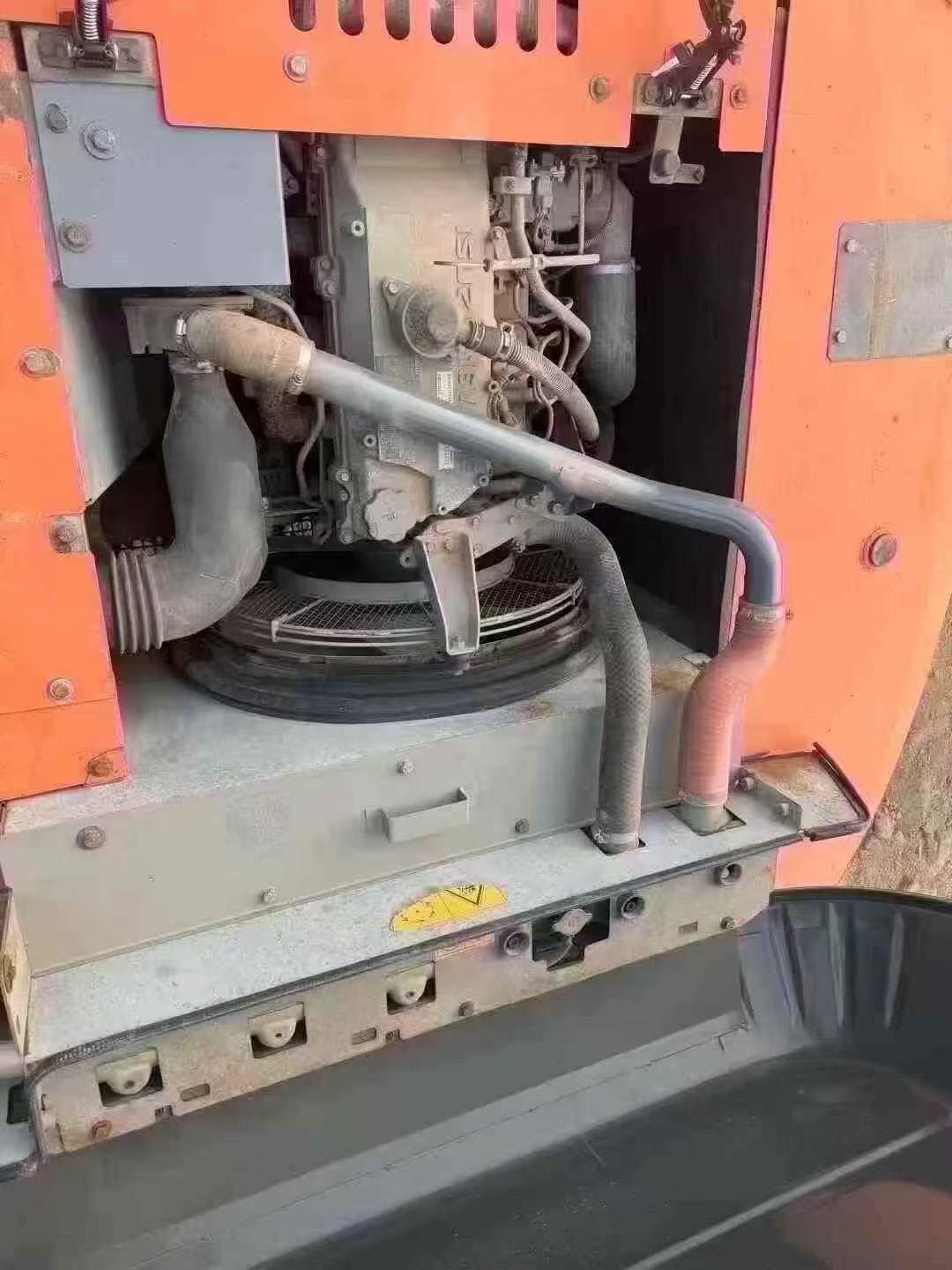

Discover the reliability and efficiency of this 2020 Hitachi ZX260LCH-3G, available in Hebei, China. Known for its robust performance, this excavator is a prime example of Hitachi's commitment to excellence. It excels in digging power and speed, making it ideal for demanding job sites. The machine is in excellent condition, with no oil leaks from the key components, ensuring smooth and uninterrupted operation. This unit has been well-maintained by a single owner, used primarily for on-site work. Prospective buyers are welcome to conduct a thorough on-site inspection and test drive to experience its capabilities firsthand.
- Year: 2020
- Brand: Hitachi
- Model: ZX260LCH-3G
- Location: Hebei, China
- Condition: Excellent, with no oil leaks
- Test Drive: Available on-site
| Specifications | Value |
|---|---|
| No. | 1112654 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25,100 |

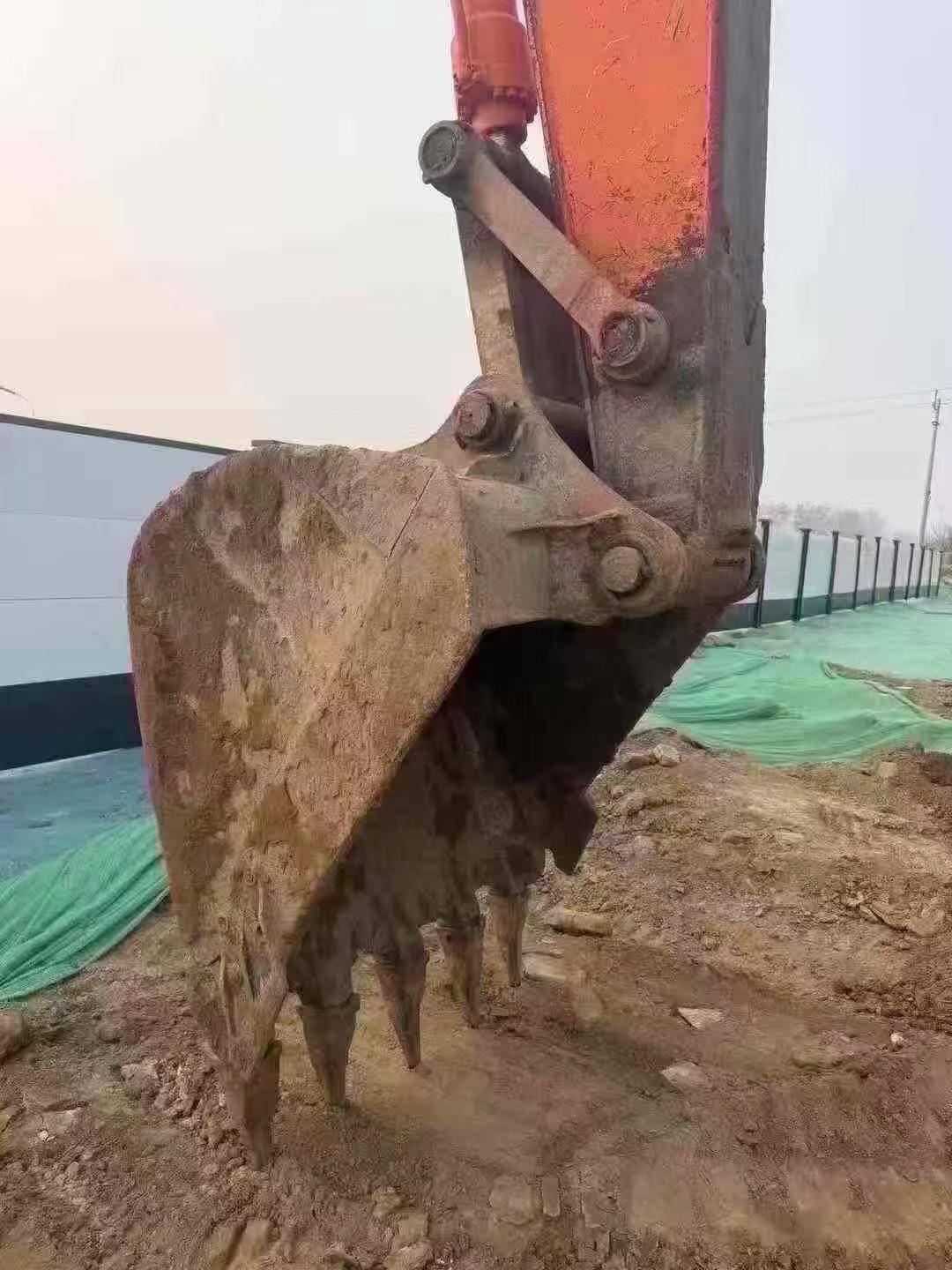

| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | 2960(Type H) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |

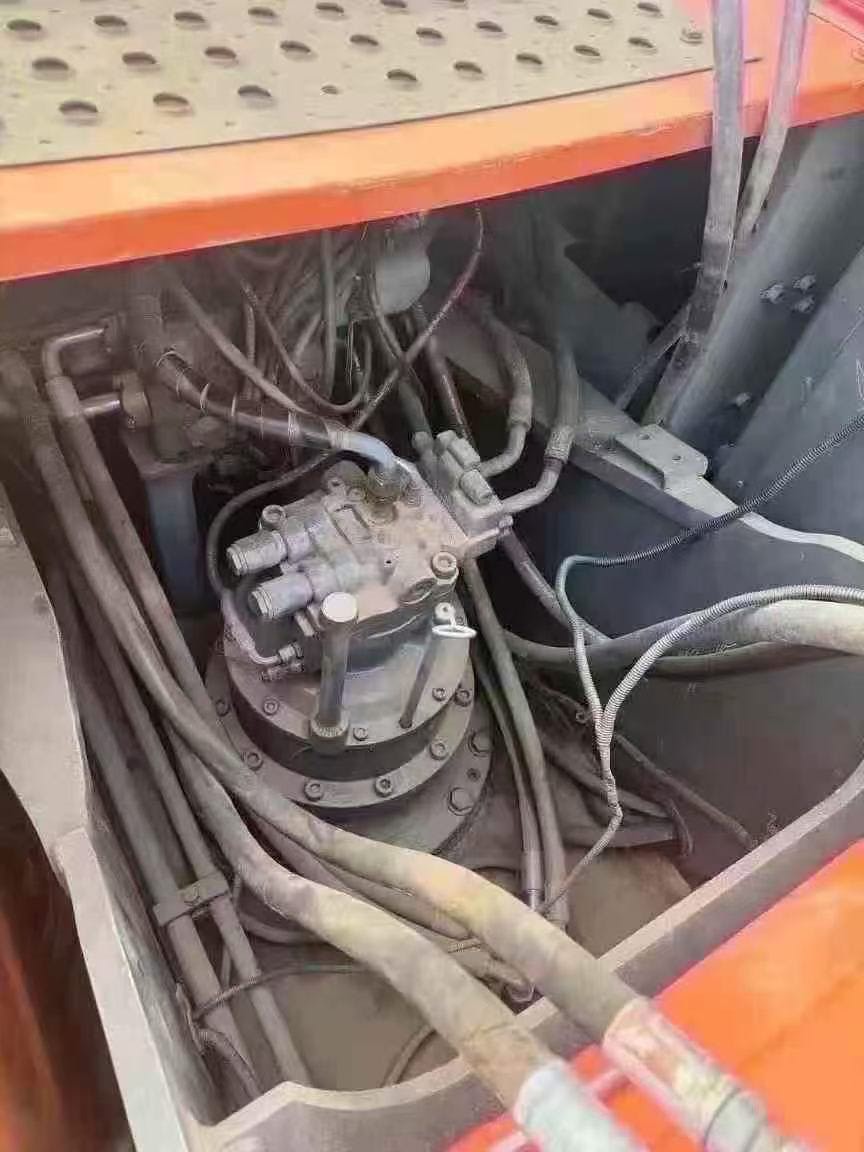

| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 204 |
| Traveling Hydraulic Circuit (Mpa) | .34. |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |

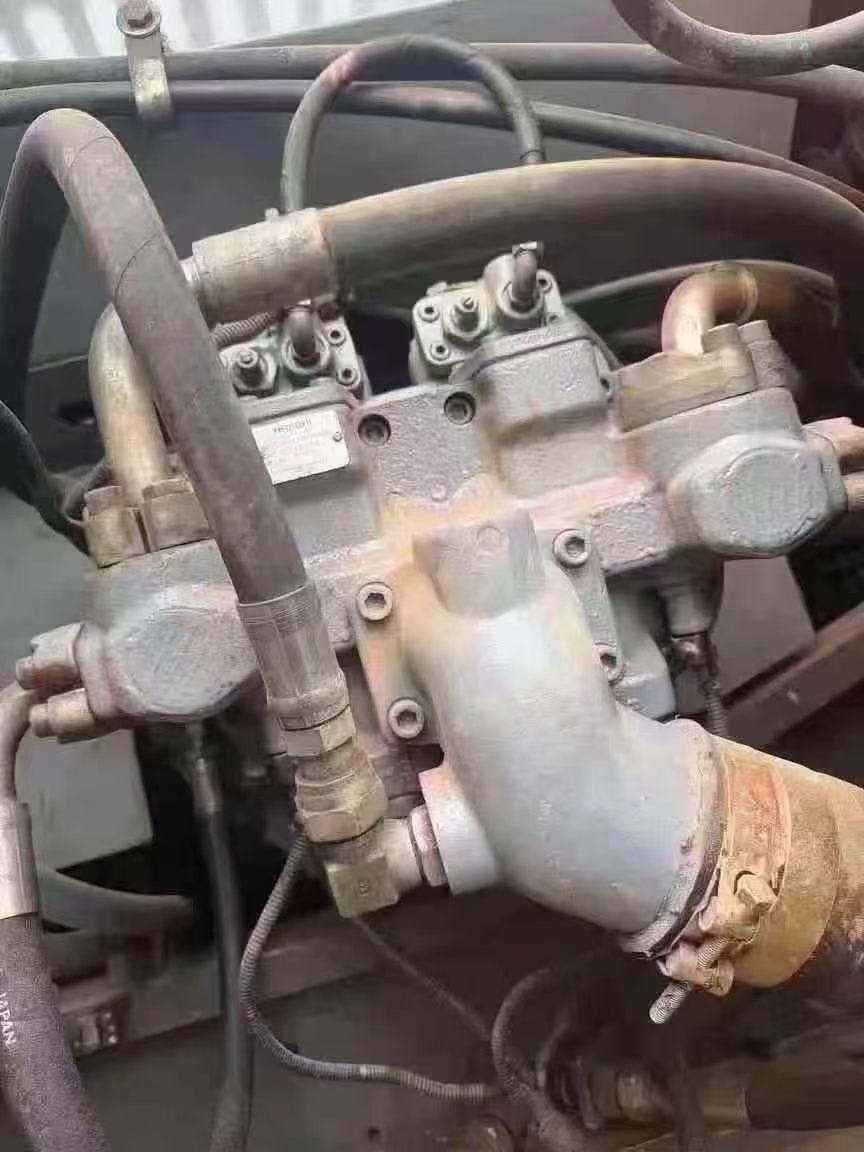

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10,140 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,100 |
| Full cab height (mm) | 3,020 |
| Counterweight ground clearance (mm) | 1,090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3,870 |
| Back end turning radius (mm) | 2,940 |

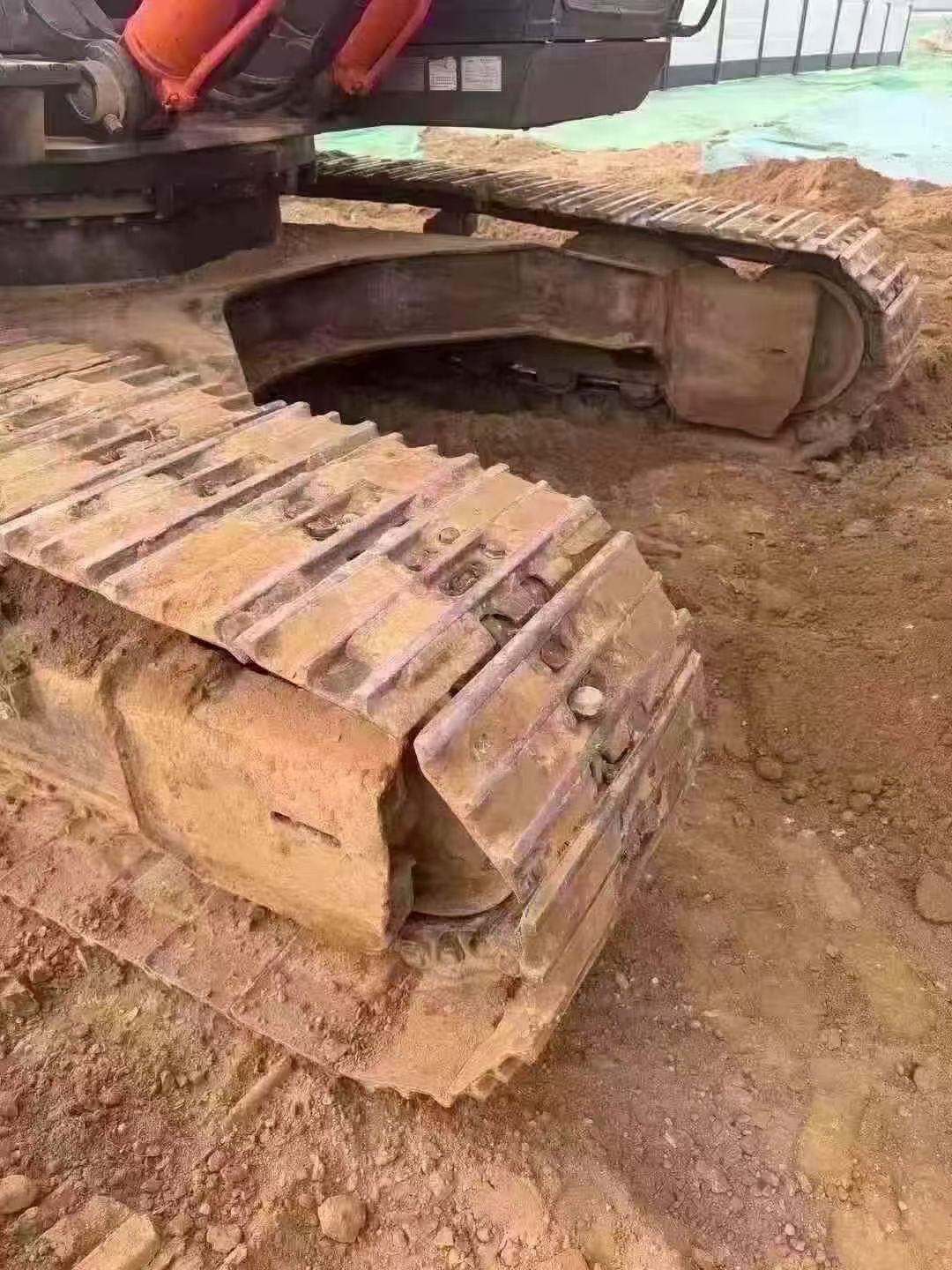

| Total track length (mm) | 4,640 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6950 |
| Maximum unloading height (mm) | 6,760 |
| Maximum vertical digging depth (mm) | 6,020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
