Product Description

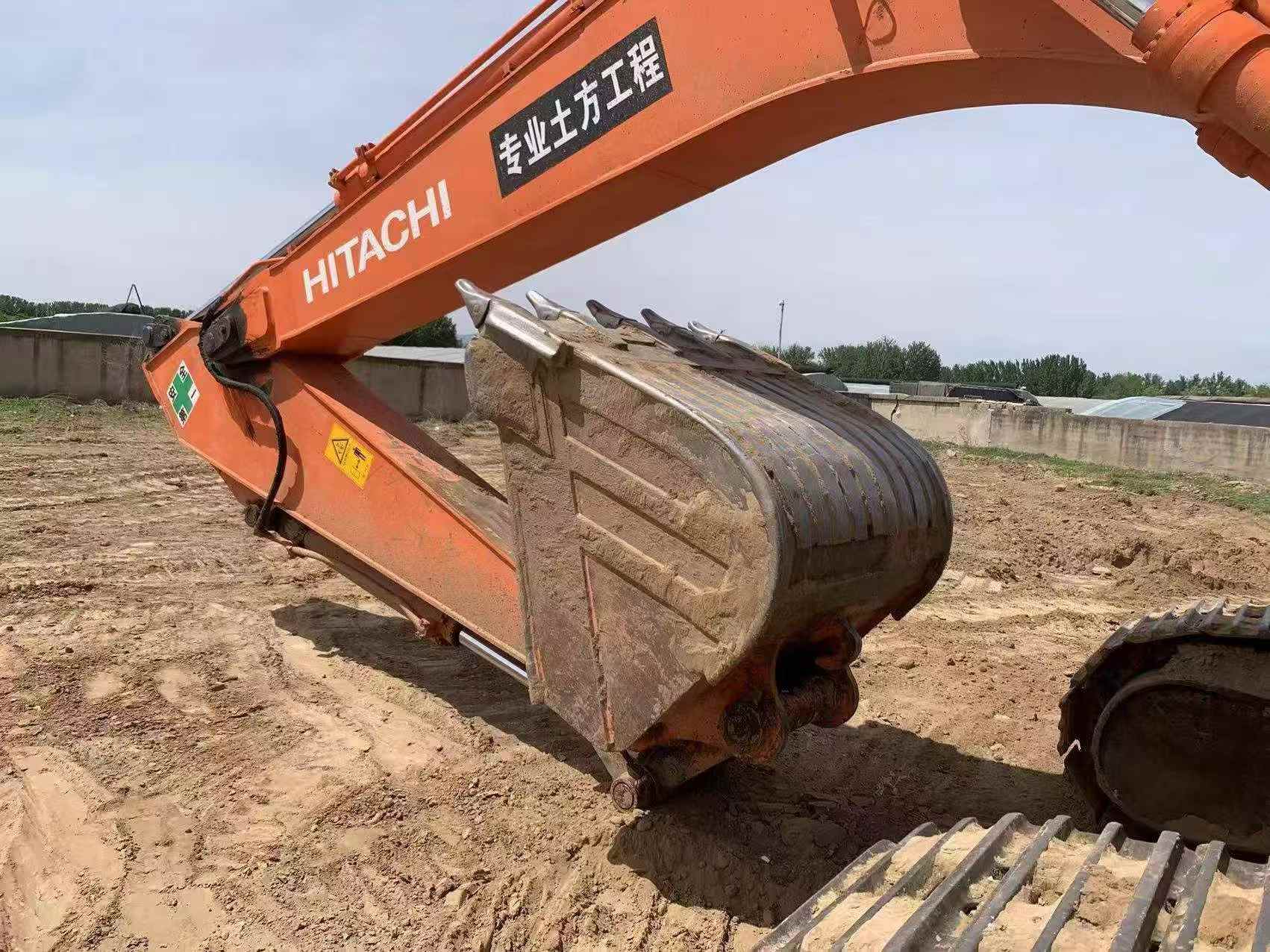

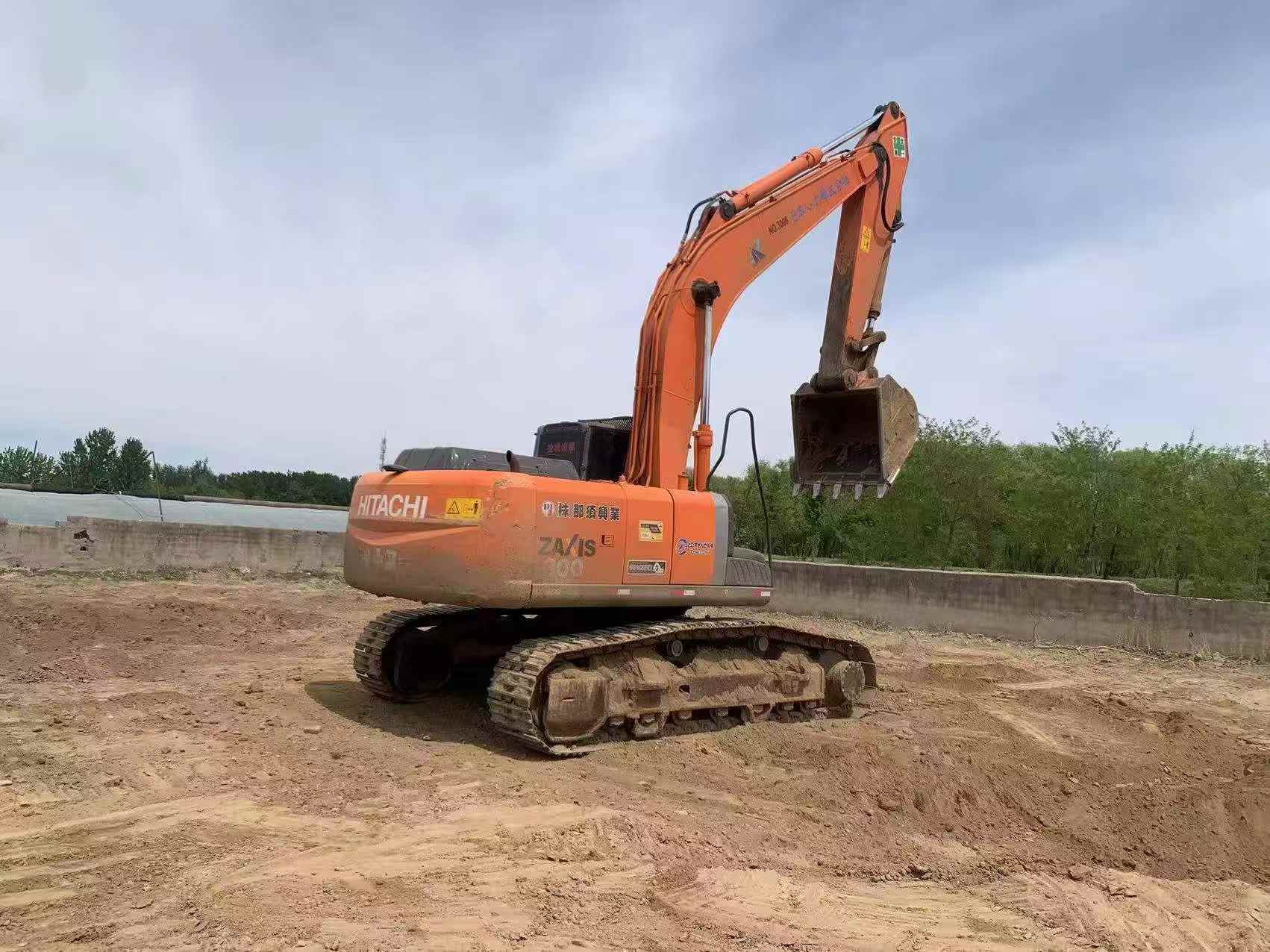

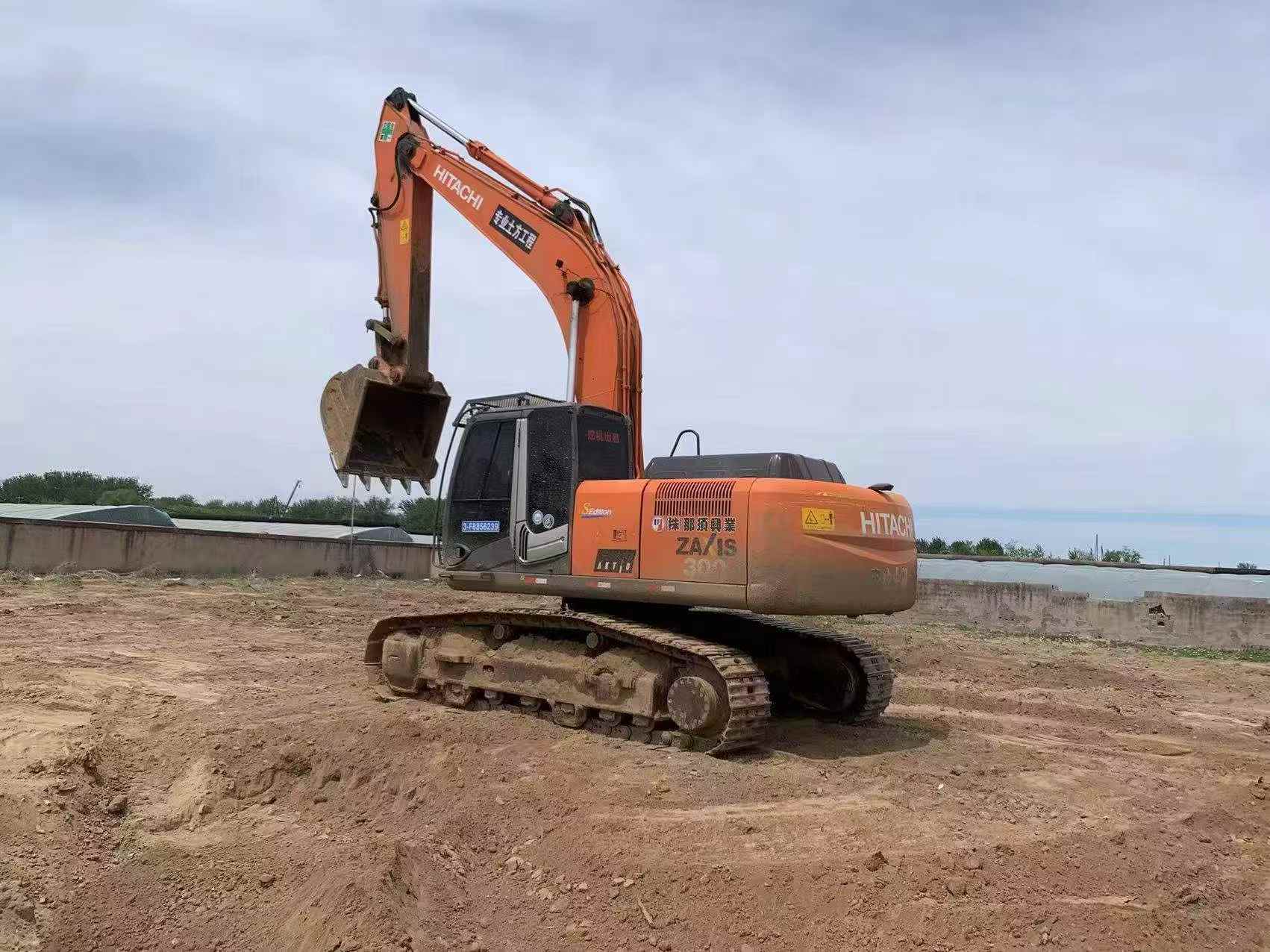

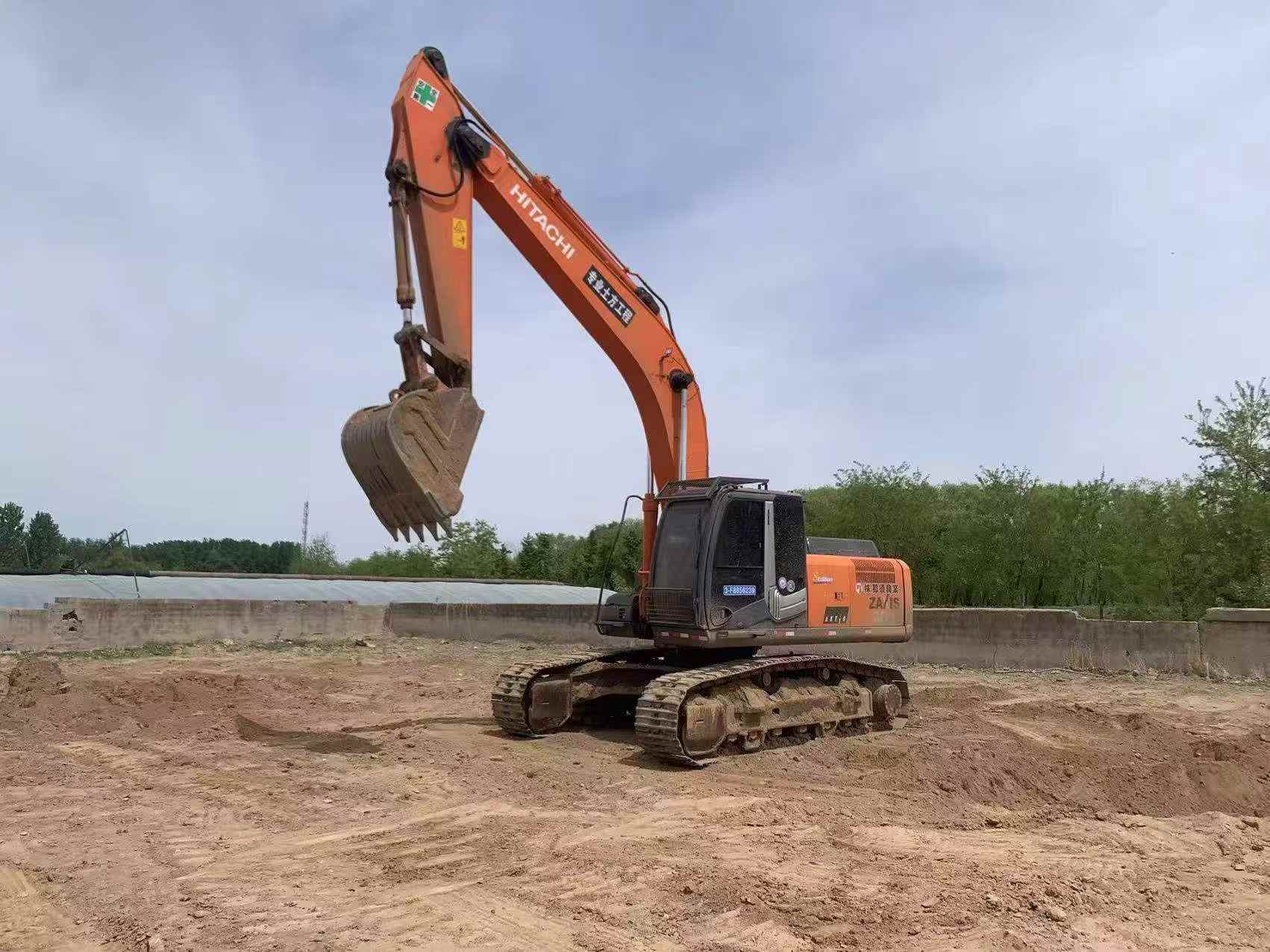

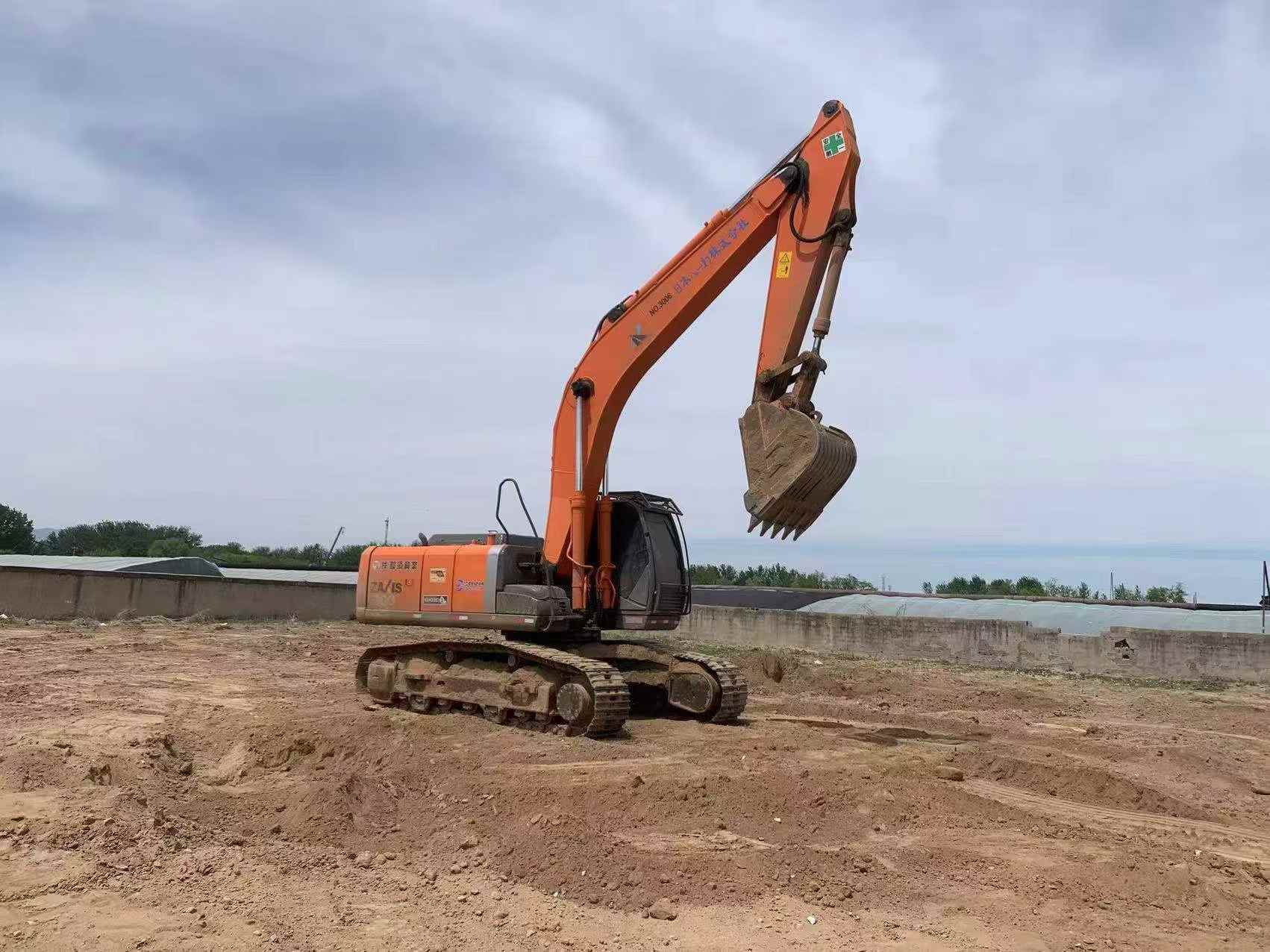

Discover the reliability and efficiency of the 2020 Hitachi ZX270-3 excavator, currently available in Hebei, China. This machine boasts its original paint and is equipped with the standard bucket, ideal for earthmoving tasks. Known for its smooth operation and fast performance, this excavator has been maintained meticulously by a single owner. The electrical system functions flawlessly, ensuring continuous productivity on your job site. We welcome on-site inspections and testing to demonstrate its capabilities. For more detailed information, including extensive photos and videos, contact us today.
- Year: 2020
- Brand: Hitachi
- Model: ZX270-3
- Location: Hebei, China
- Features: Original paint, standard bucket, well-maintained, flawless electrical system
| Specifications | Value |
|---|---|
| No. | 1115338 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27700 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6.2 |
| Rod length (mm) | 3.11 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 137 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10340 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4670 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 10710 |
| Maximum digging depth (mm) | 7230 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
