Product Description

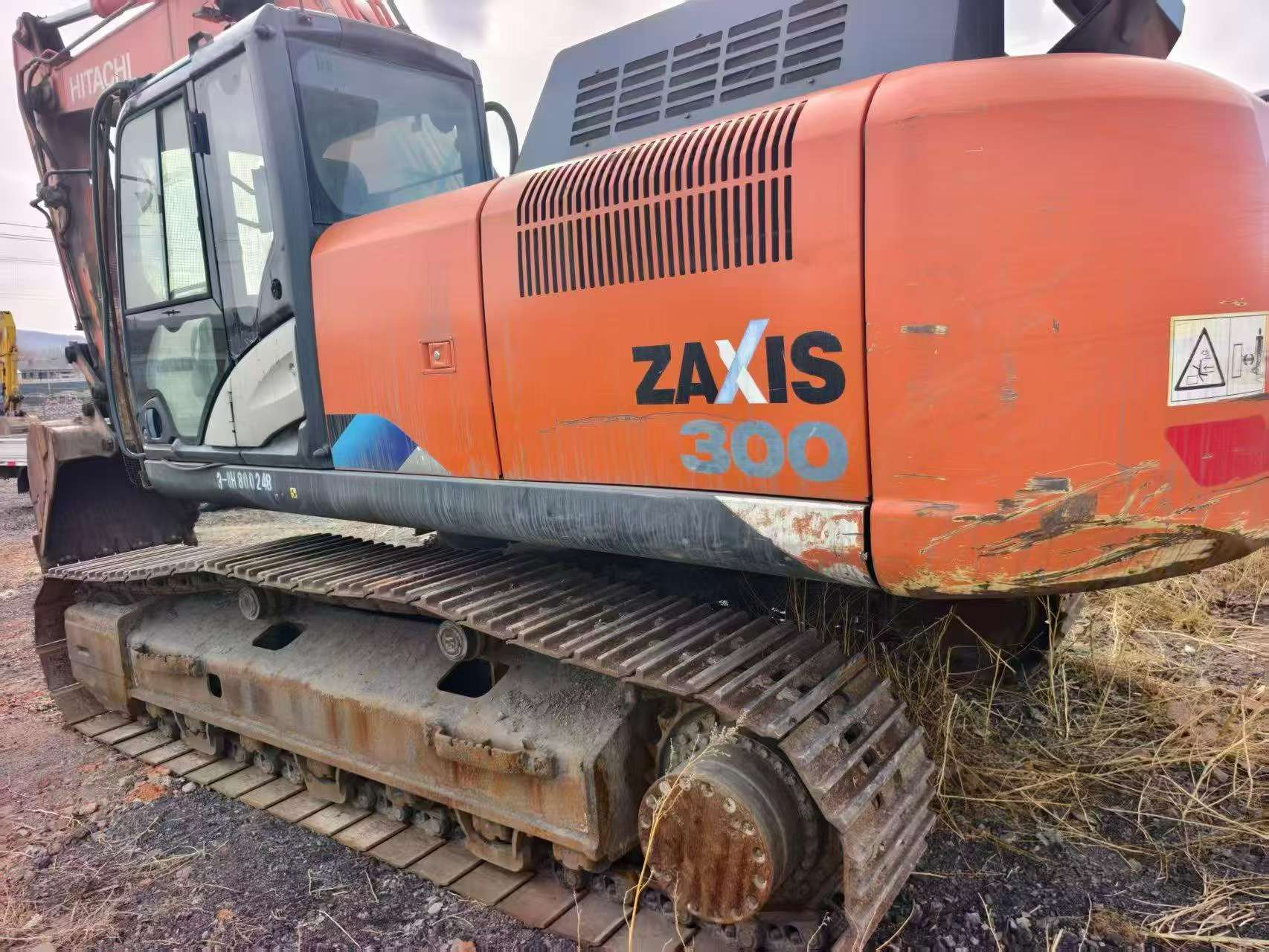

Expand your operational capacity with this robust 2016 Hitachi ZX300-5A hydraulic excavator, currently located in Fuzhou, Fujian. Built for contractors managing multiple jobsites simultaneously, this 30-ton machine delivers consistent performance as a primary workhorse or strategic backup unit. Powered by a reliable Isuzu 6HK1XKSA engine generating 171 kW at 1900 rpm, it provides the muscle needed for demanding excavation, trenching, and material handling tasks across construction and infrastructure projects.
- Operating weight: 28,800–29,000 kg with proven stability
- Bucket capacity: 1.4–1.62 m³ for efficient material movement
- Maximum digging reach: 10,790 mm; depth to 7,300 mm
- Bucket digging force: 202 kN for tough ground conditions
- Dual variable axial piston pumps: 2 × 236 L/min hydraulic flow
- Water-cooled, electronically controlled direct injection system
With a 6,200 mm boom and 3,110 mm arm configuration, this ZX300-5A integrates seamlessly into mixed fleets requiring standardized maintenance protocols and operator familiarity. Available for immediate deployment to support your growing project demands.
| Specifications | Value |
|---|---|
| No. | 1047999 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |
| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |

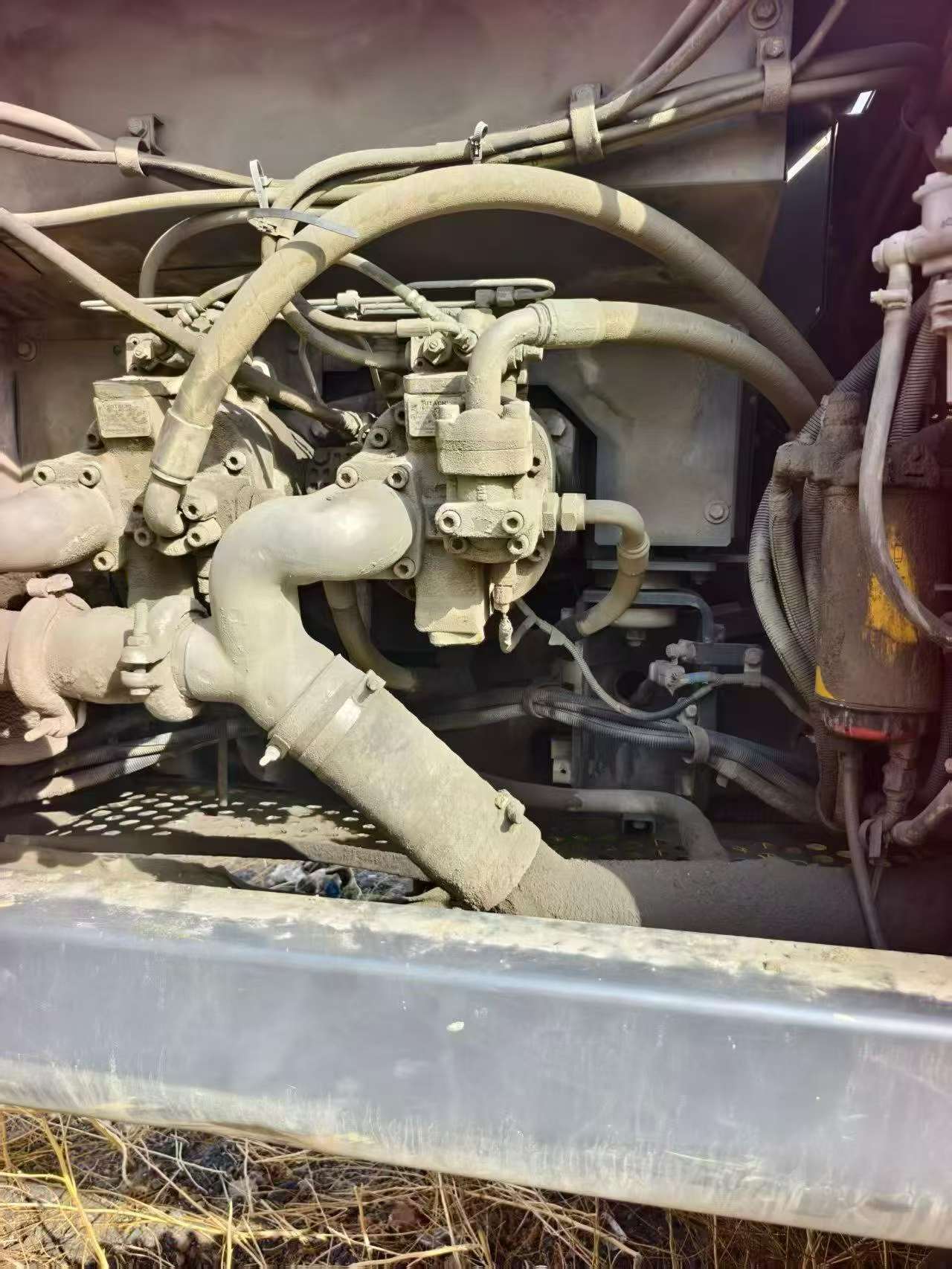

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |

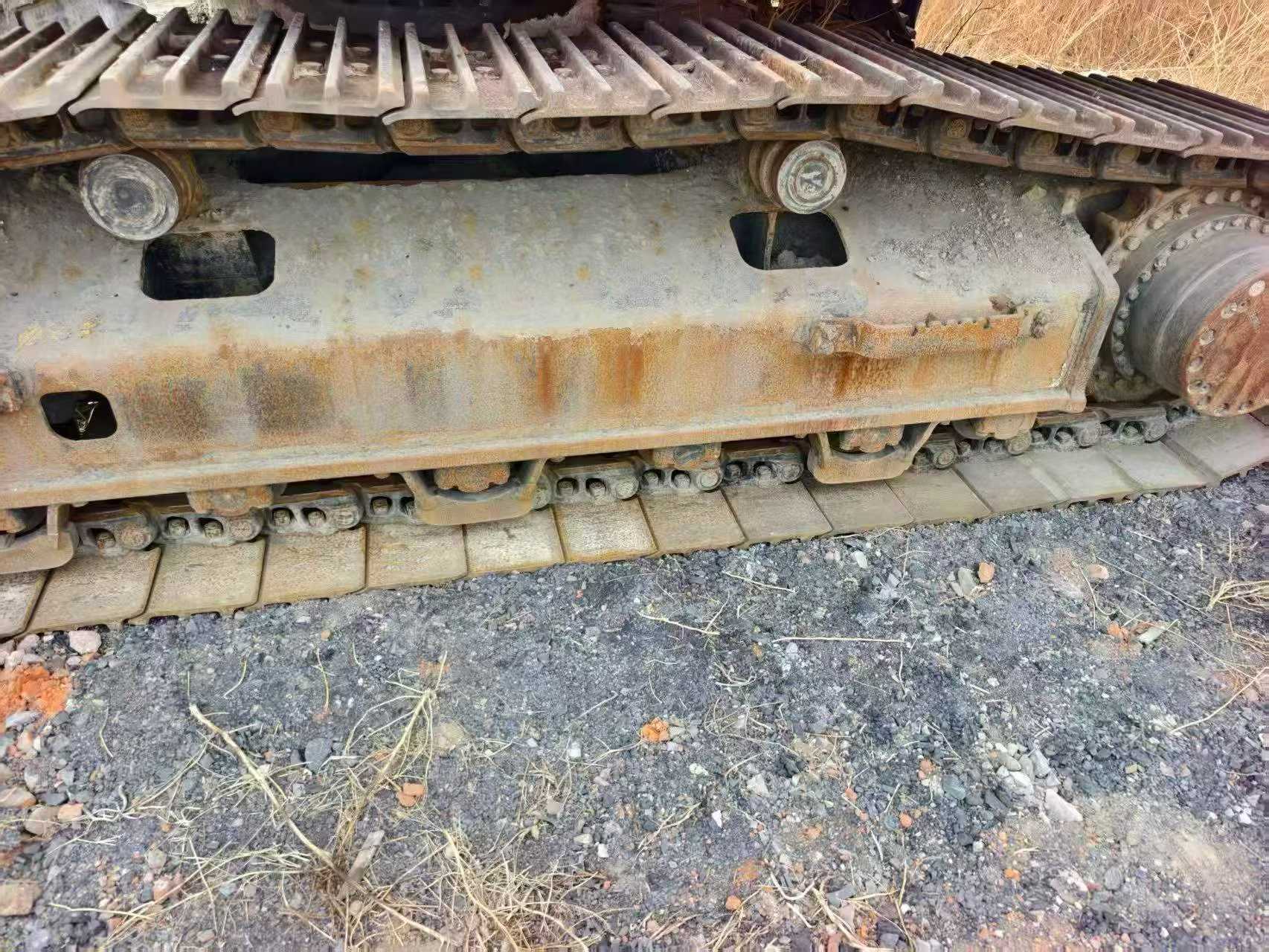

| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
