Product Description

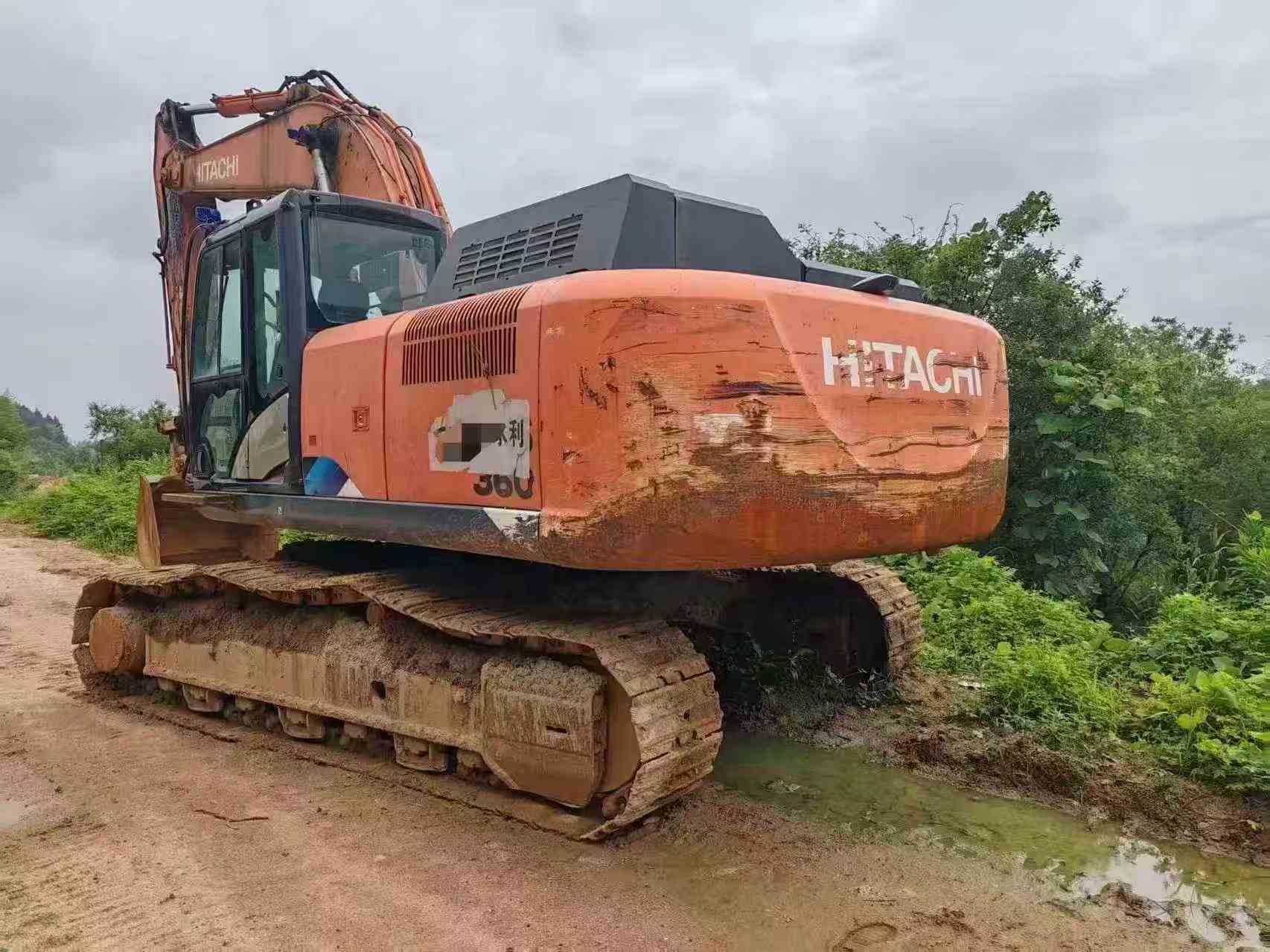

This 2016 Hitachi ZX300-5A hydraulic excavator is available for immediate delivery from Fujian, China. The machine has been primarily used for earthmoving applications and demonstrates reliable performance characteristics typical of Hitachi's proven 5A series design.
- Year: 2016
- Model: ZX300-5A
- Primary Application: Earthmoving operations
- Location: Fujian Province, China
- Availability: In stock, ready for inspection
The ZX300-5A features Hitachi's fuel-efficient engine technology and hydraulic system designed for demanding excavation work. This unit has been maintained in operational condition and is suitable for contractors seeking dependable mid-size excavation equipment. Competitive pricing available for qualified buyers. Contact us for detailed specifications, current condition assessment, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1074770 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |
| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
