Product Description

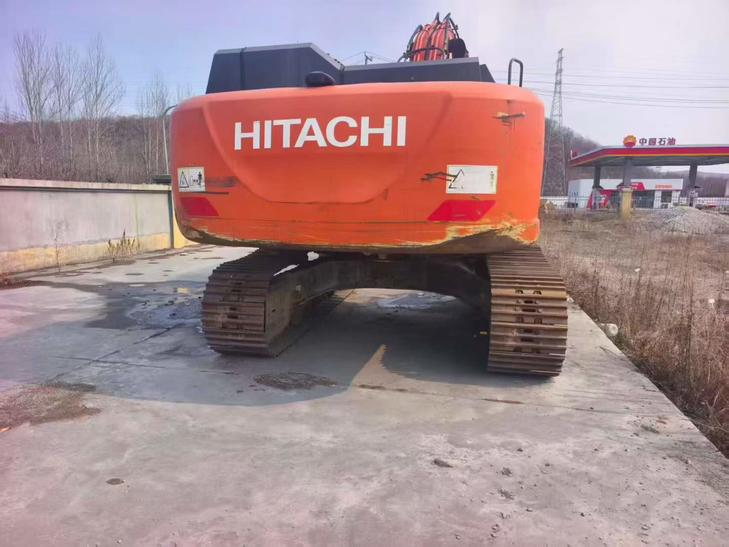

Delivering 171 kW of Isuzu-powered reliability, this 2017 Hitachi ZX300-5A represents a smart alternative to new equipment pricing. Operating at 30 tons with a bucket capacity of 1.4-1.62 m³, this excavator handles demanding applications with proven efficiency. Its 202 kN bucket digging force and 10,790 mm maximum reach ensure productive cycles across construction, mining, and infrastructure projects.
Key performance specifications include:
- Isuzu GH-6HK1XKSA-02 engine: 171 kW at 1,900 rpm with water-cooled efficiency
- Dual variable axial piston pumps: 2 × 236 L/min hydraulic flow
- 7,300 mm maximum digging depth with 7,250 mm unloading height
- 11.6 rpm rotation speed with 3.3-5.5 km/h travel capability
- Currently located in Hunan Province, ready for global export
Purchased new, comparable machines exceed significant capital investment. This joint venture/import unit offers equivalent operational capacity at a fraction of replacement cost, making it an intelligent choice for budget-conscious contractors seeking proven Japanese engineering without premium pricing.
| Specifications | Value |
|---|---|
| No. | 1046140 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |
| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
