Product Description

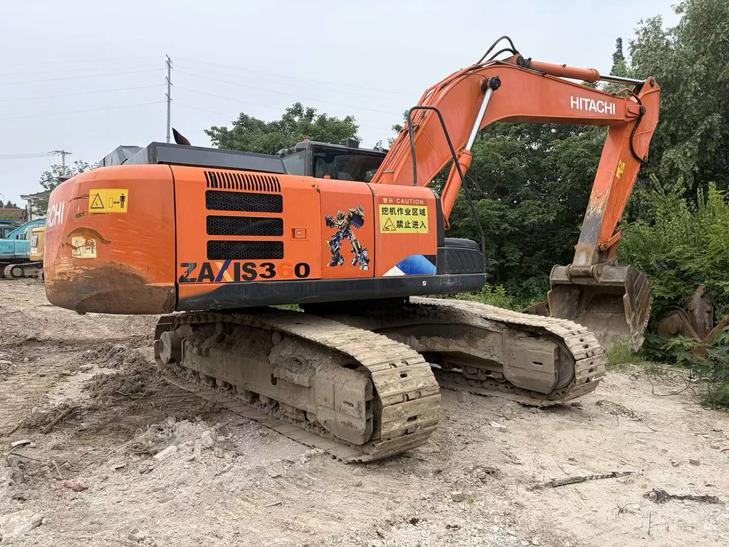

Built for demanding excavation work, the Hitachi ZX300-5A delivers proven 30-ton performance with a focus on operator control and long-shift comfort. Powered by an Isuzu 6HK1 engine producing 171 kW at 1,900 rpm and 1,014 N·m of peak torque, this machine handles heavy digging cycles without strain. A bucket digging force of 202 kN and maximum digging depth of 7,300 mm make it well-suited for deep foundation work, trenching, and mass earthmoving operations.
From the cab, operators benefit from the wide-visibility design standard to Hitachi's Generation-5 platform — reduced blind spots, low-vibration controls, and an ergonomic layout built for precision on congested job sites. The 600 mm track plates and 57.8–58 kPa ground pressure keep the machine stable across varied terrain, while a 70% grading ability confirms its competence on slopes.
- Engine: Isuzu GH-6HK1XKSA-02 | 171 kW / 1,900 rpm | 7.79 L displacement
- Bucket capacity: 1.4–1.62 m³ | Bucket digging force: 202 kN
- Max digging depth: 7,300 mm | Max digging radius: 10,790 mm
- Travel speed: 3.3–5.5 km/h | Max tractive force: 246 kN
- Hydraulic system: 2 × 236 L/min variable axial piston pumps
- Operating weight: 28,800–29,000 kg | Fuel tank: 510 L
- Location: Guangdong, China | Year: 2018
| Specifications | Value |
|---|---|
| No. | 1086395 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |
| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
