Product Description

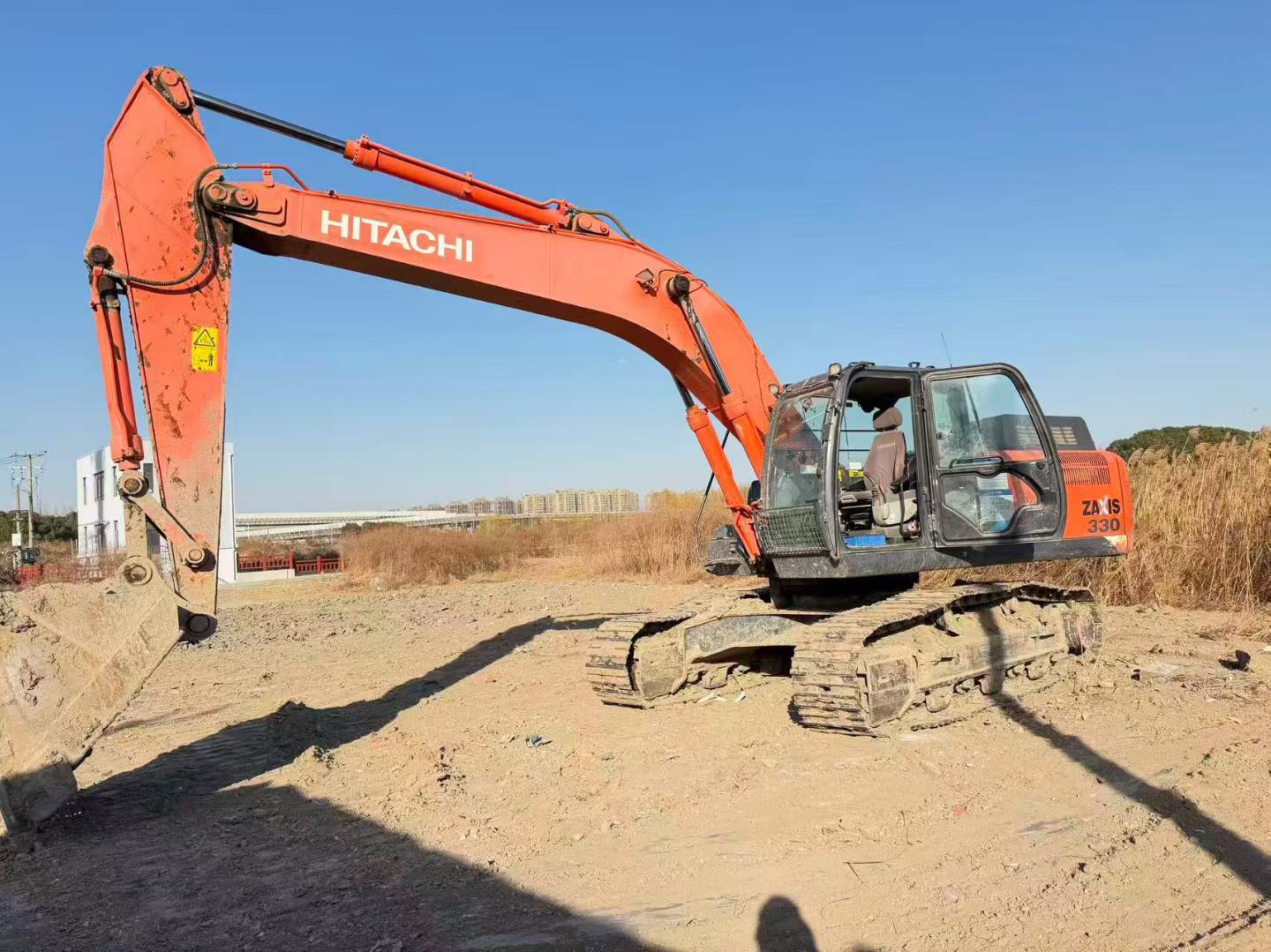

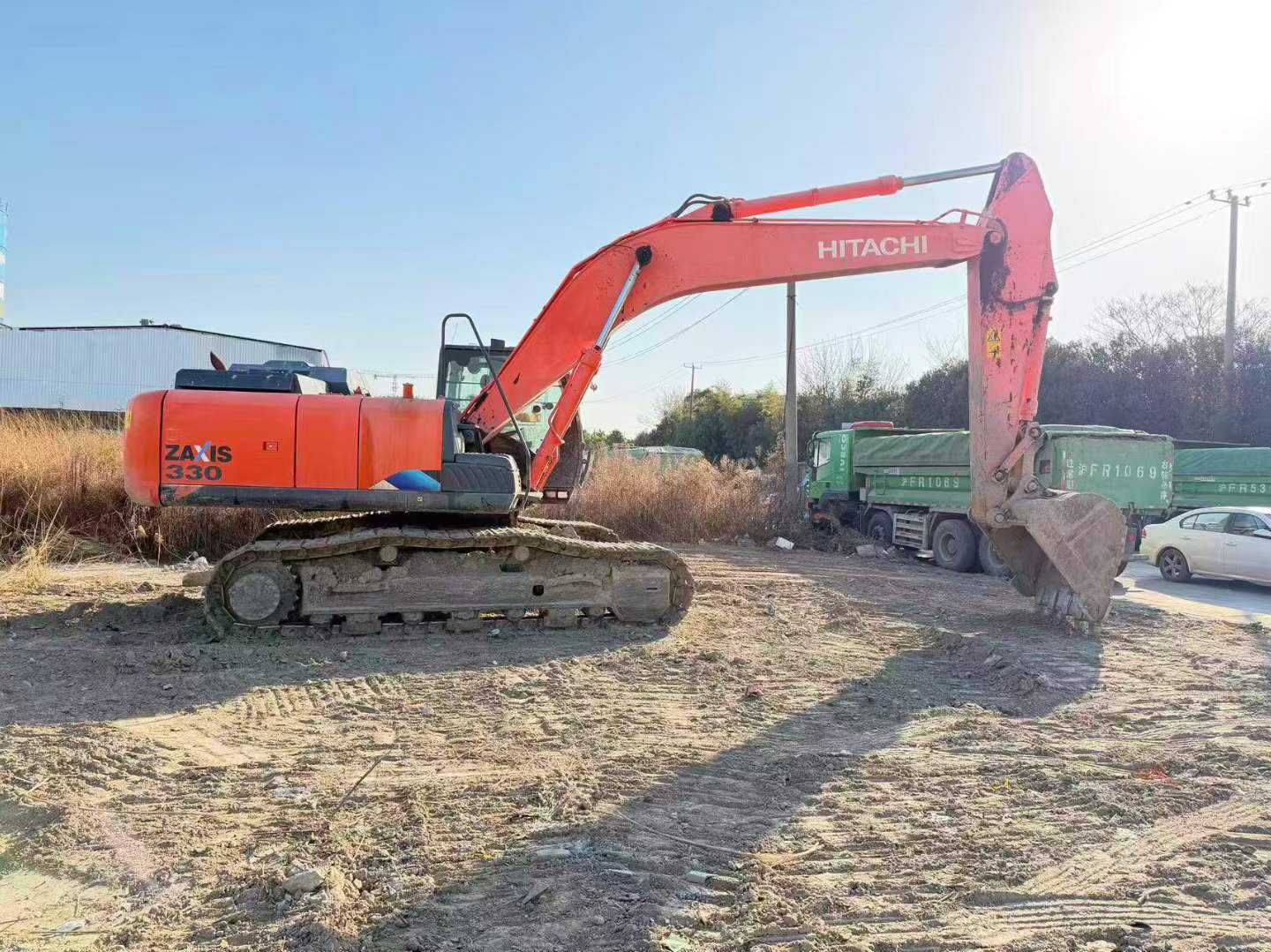

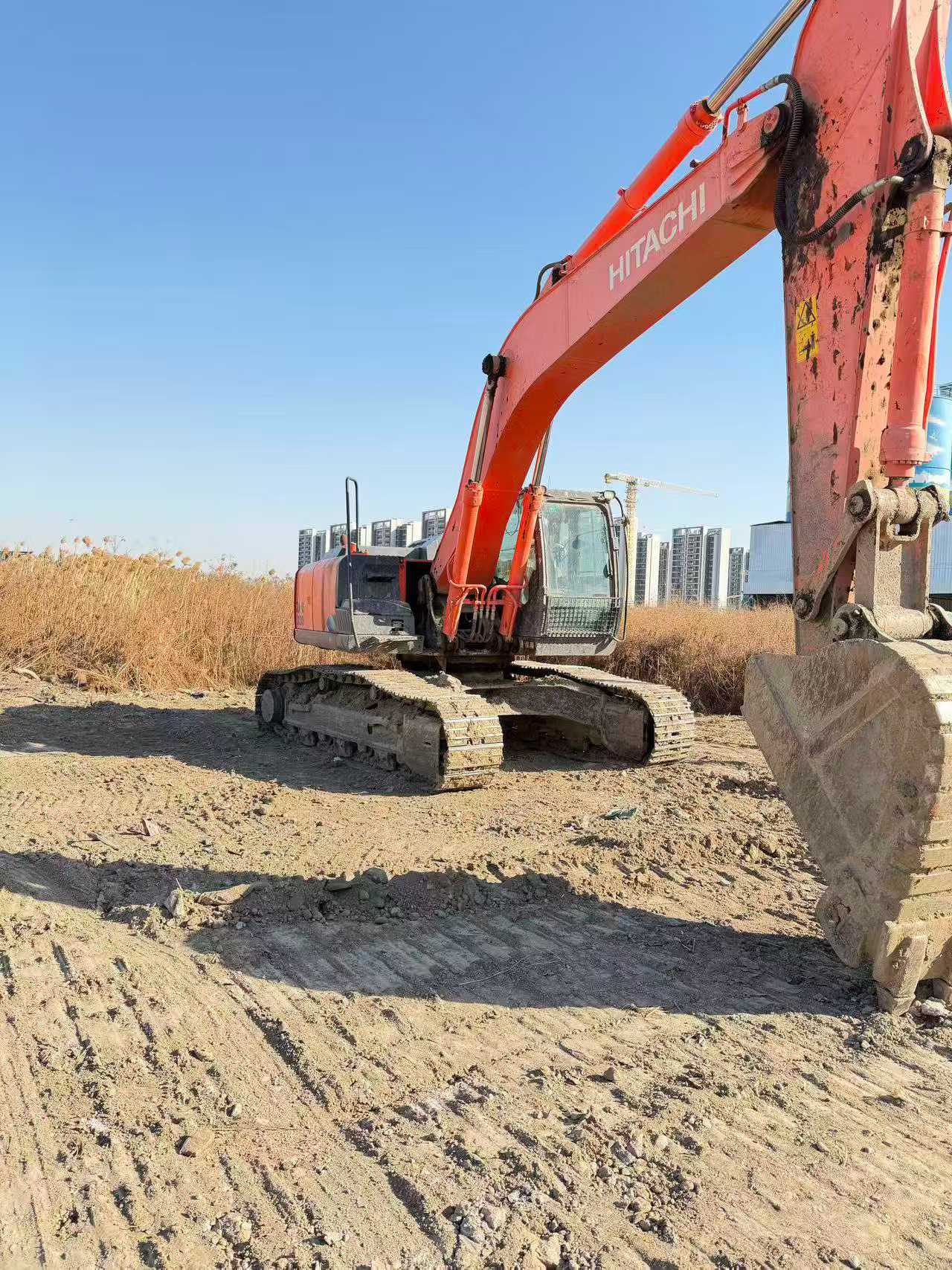

Engineered with precision hydraulics and a robust Isuzu 6HK1XKSA engine delivering 171 kW at 1900 rpm, this 2020 Hitachi ZX300-5A represents proven performance in the 30-ton excavator class. Dual variable axial piston pumps provide combined flow of 472 L/min, ensuring responsive control across all functions. Operating weight of 28,800-29,000 kg pairs with 1.4-1.62 m³ bucket capacity to handle demanding earthmoving applications.
- Isuzu 6-cylinder turbocharged engine: 171 kW rated power, 1014 N·m maximum torque
- Advanced hydraulic system: 34.3 MPa working pressure, dual 236 L/min pumps
- Superior digging performance: 202 kN bucket force, 10,790 mm maximum reach
- 6,200 mm boom and 3,110 mm arm configuration for versatile job site coverage
- Water-cooled, electronically controlled direct injection for fuel efficiency
- Currently located in Shanghai, ready for global deployment
Built to Hitachi's exacting joint-venture standards, this ZX300-5A combines Japanese engineering reliability with field-proven hydraulic architecture. Ideal for contractors requiring consistent output in construction, mining, or infrastructure projects.
| Specifications | Value |
|---|---|
| No. | 1025524 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |

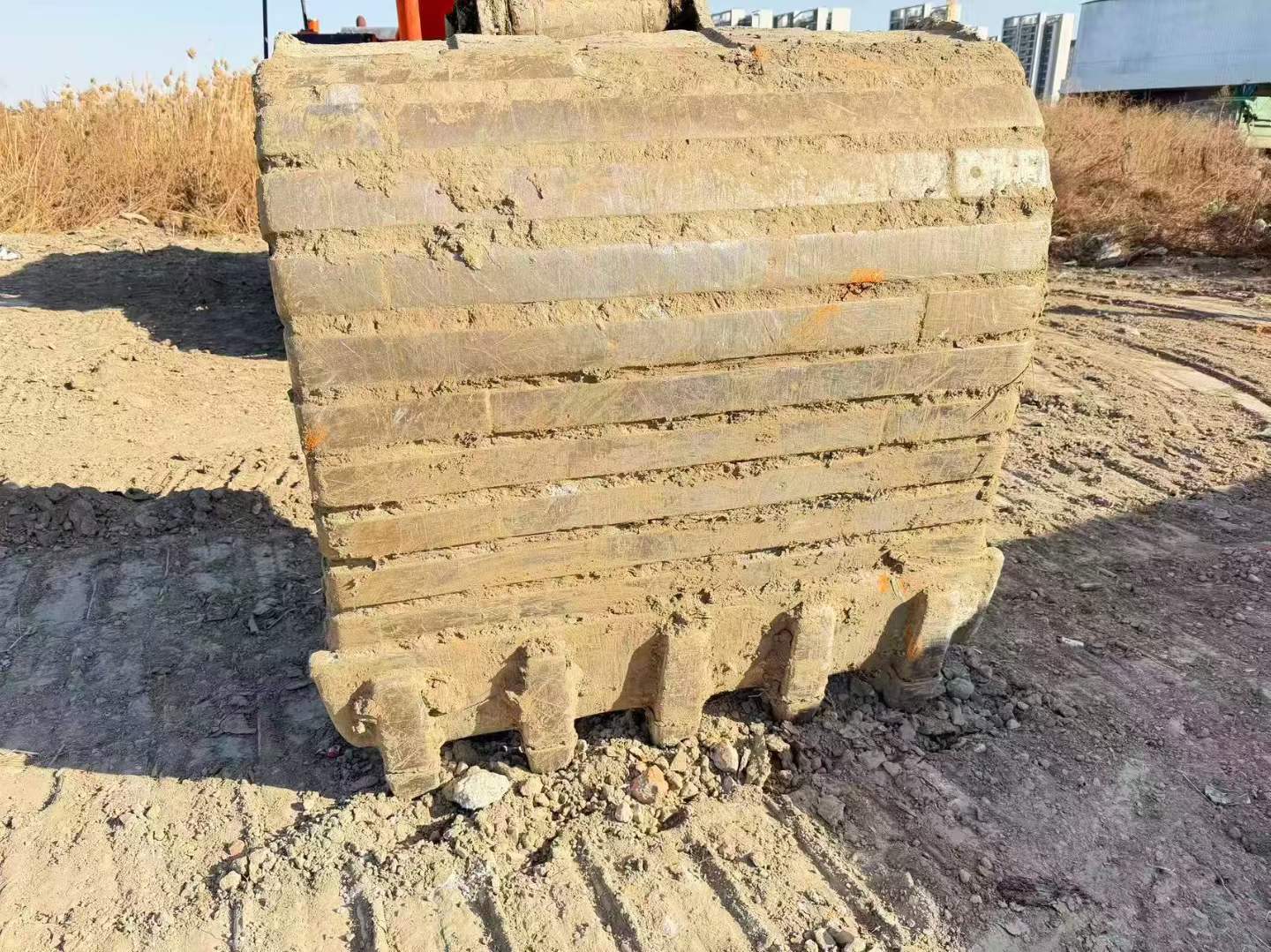

| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

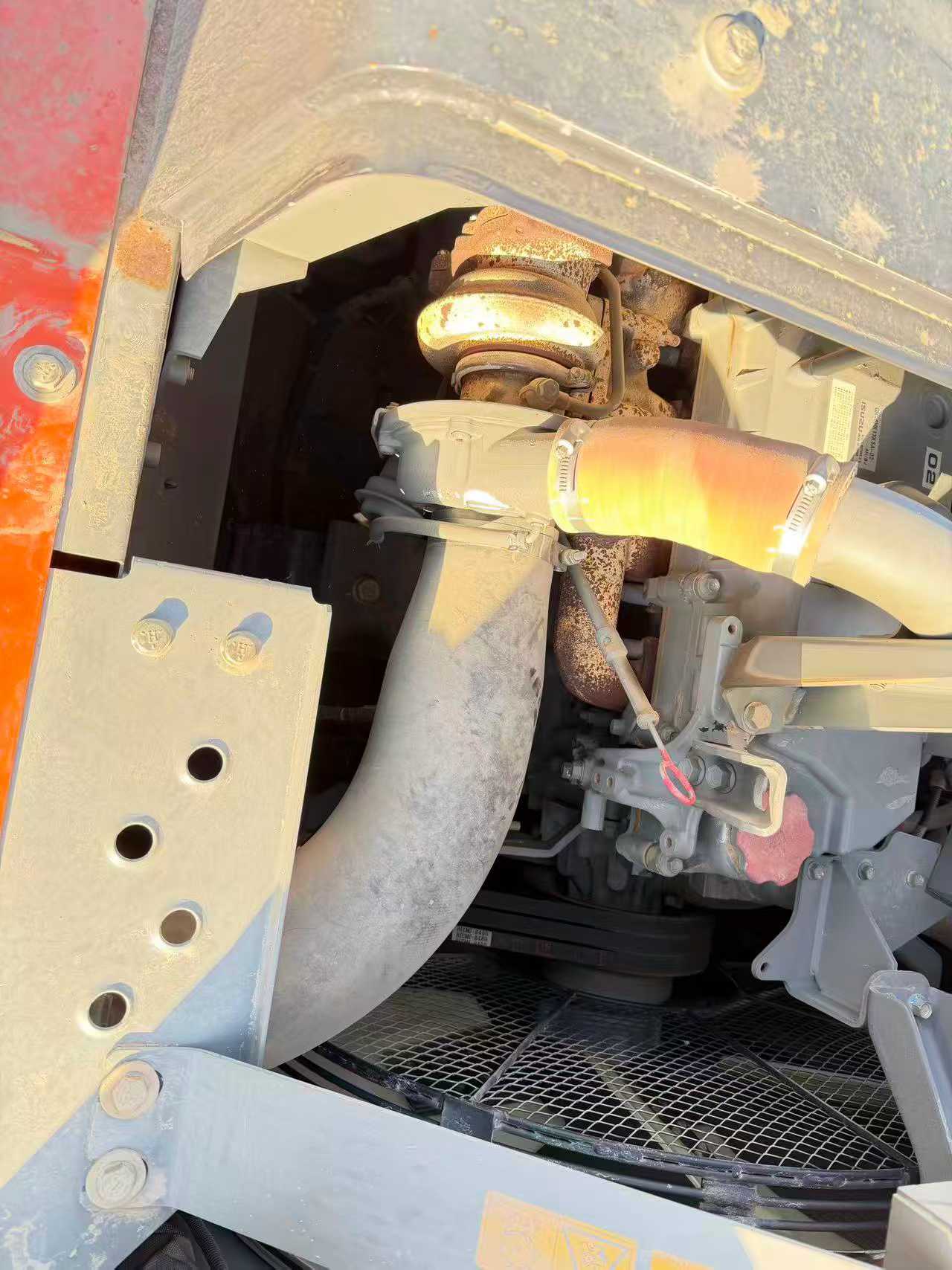

| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |

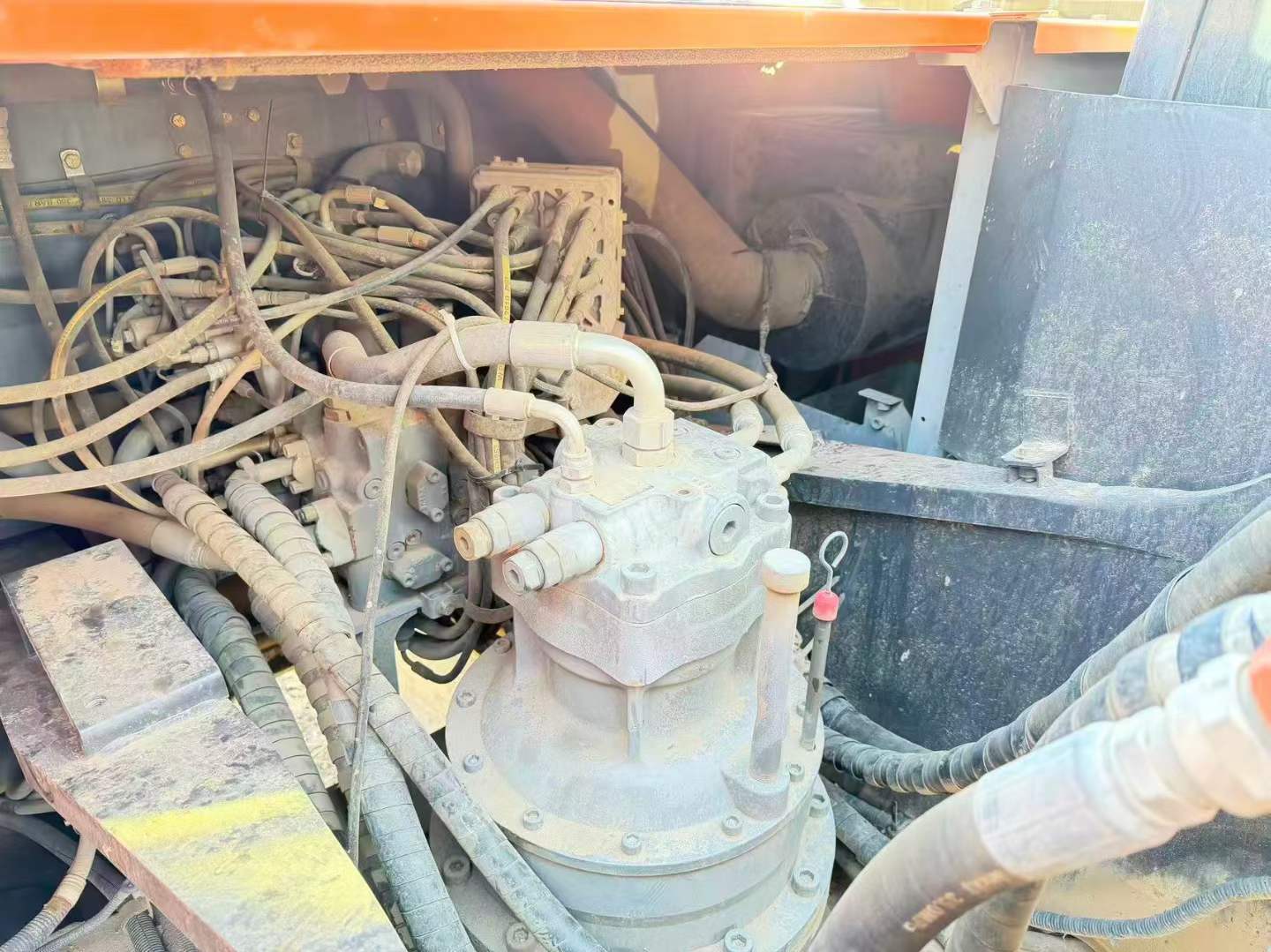

| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |

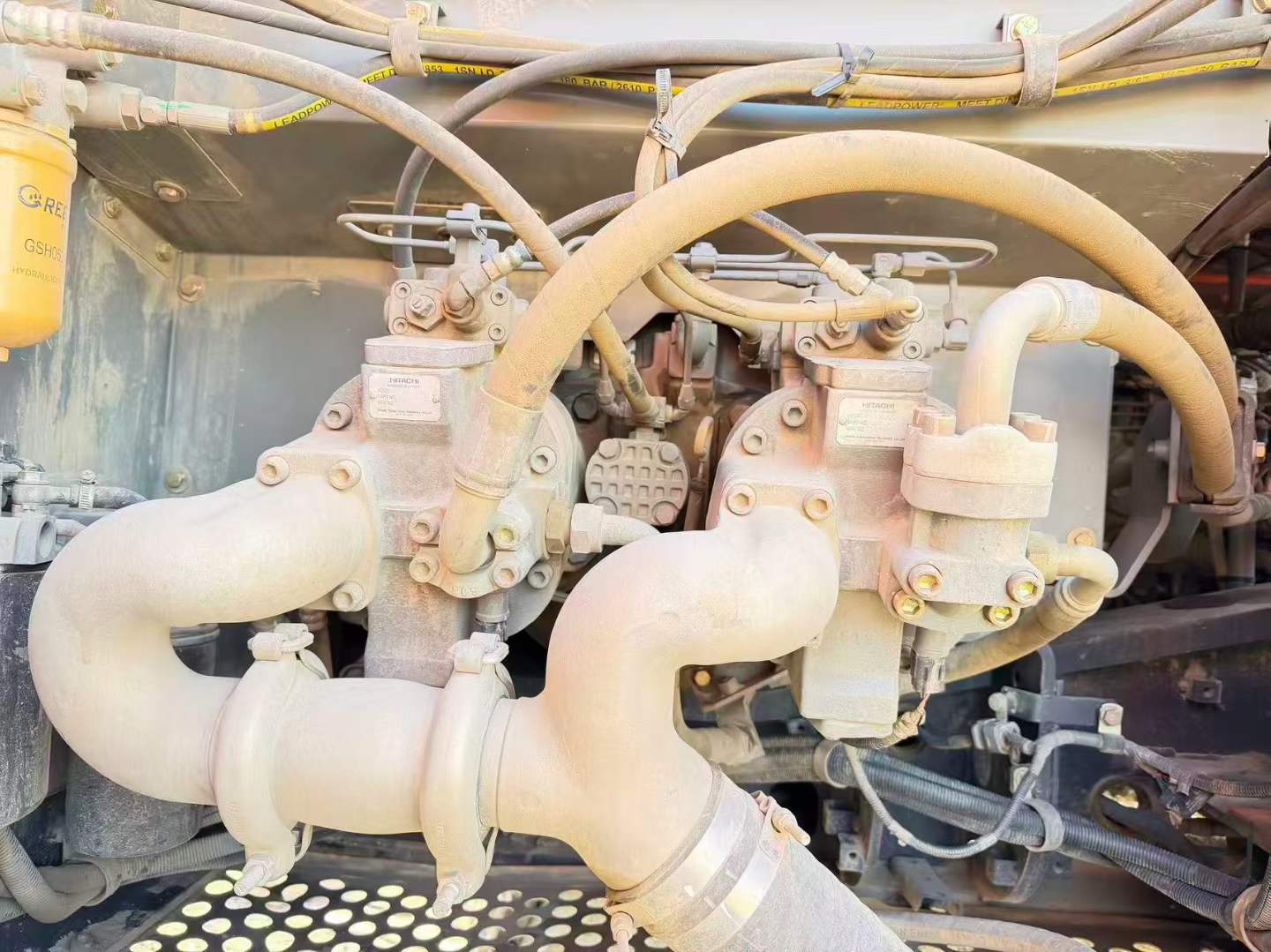

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |

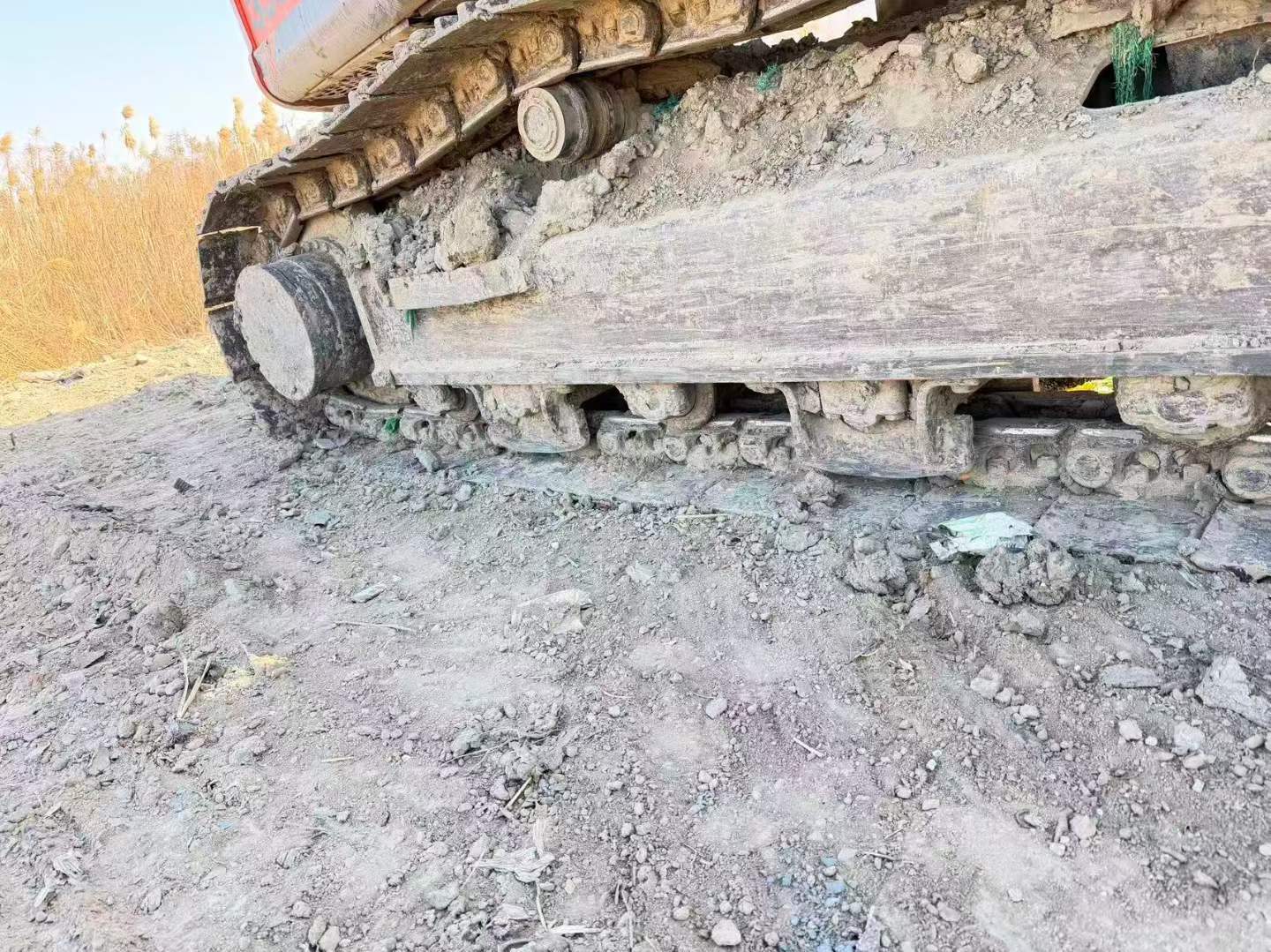

| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
